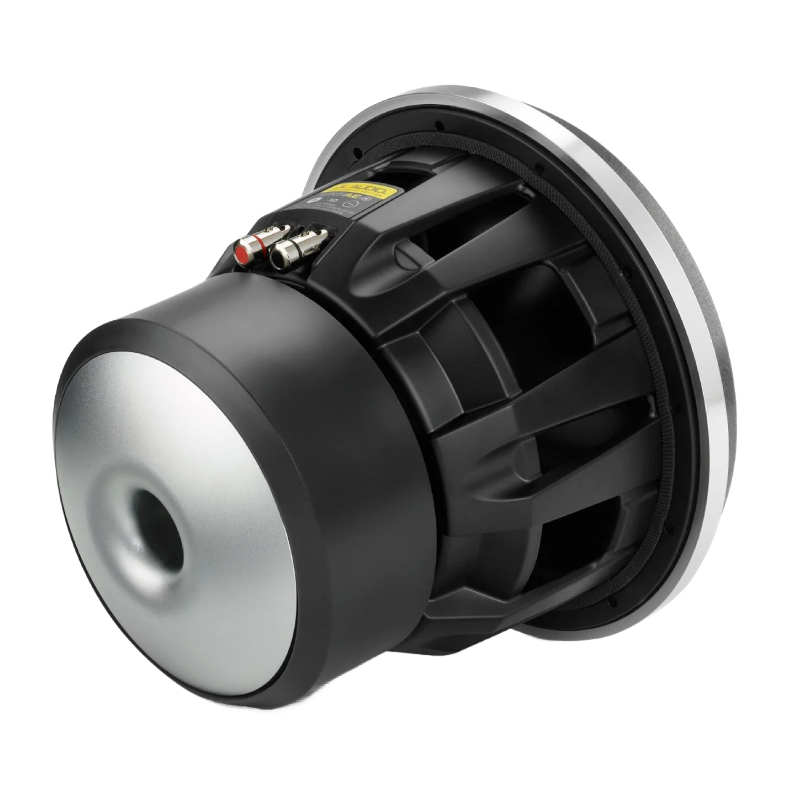

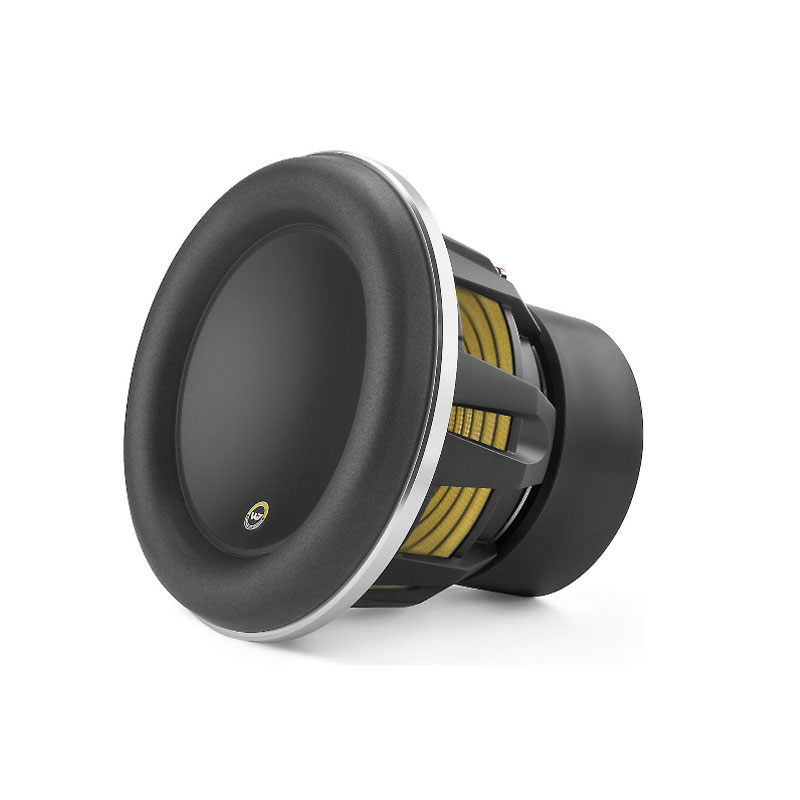

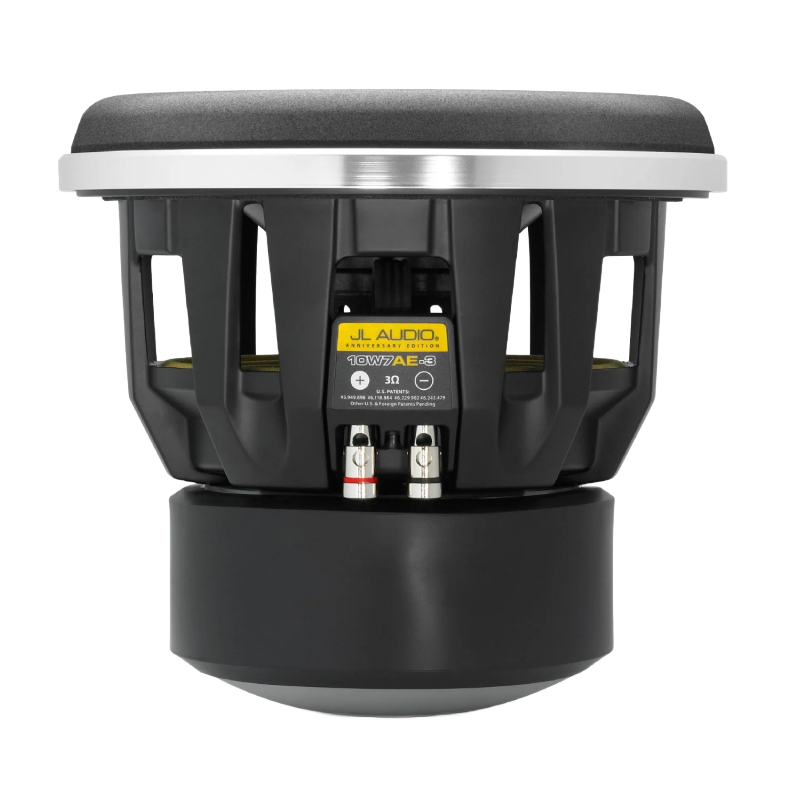

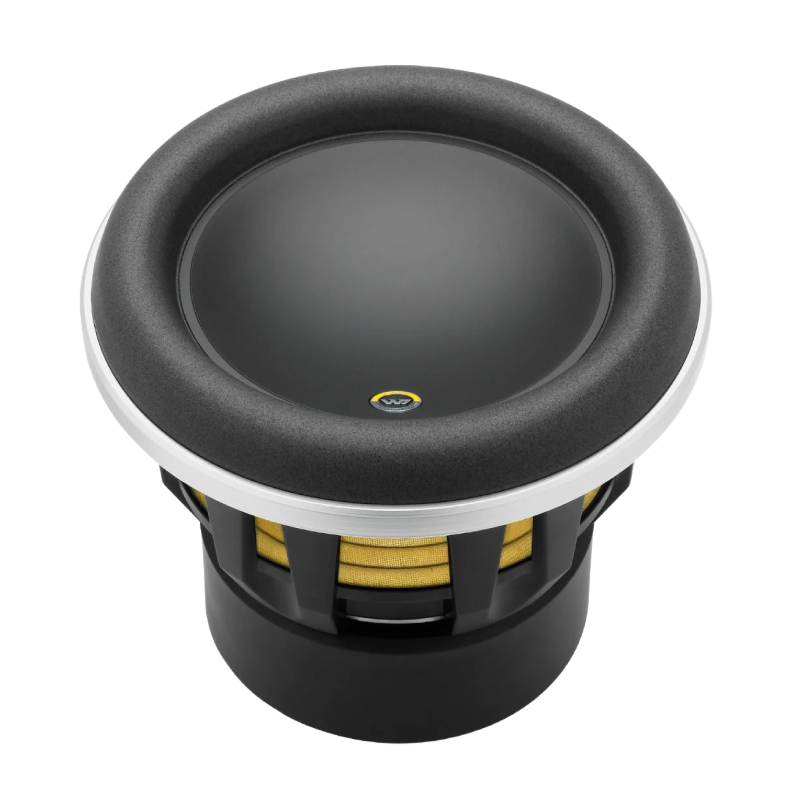

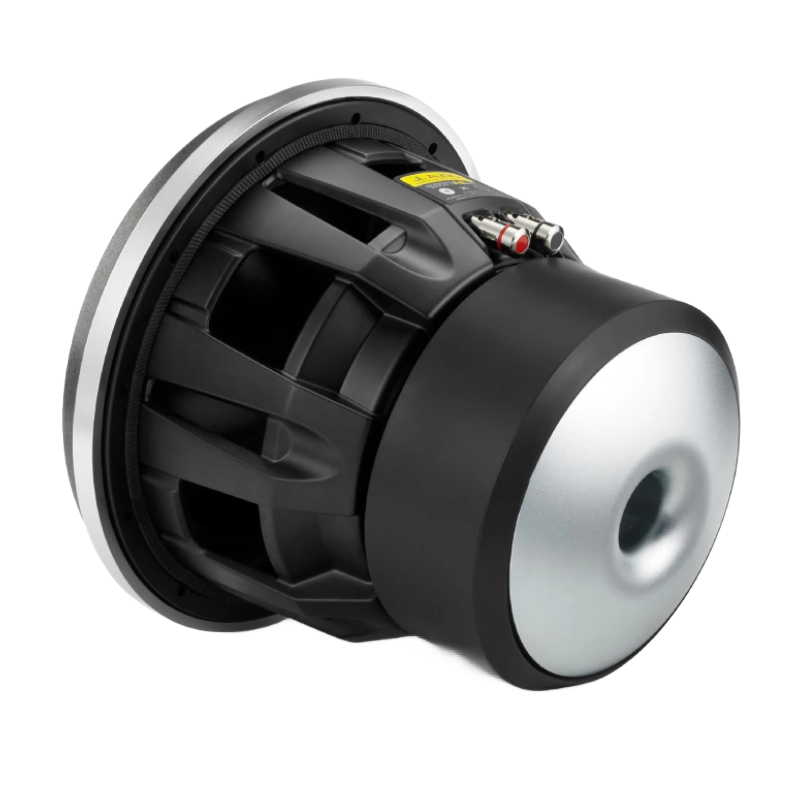

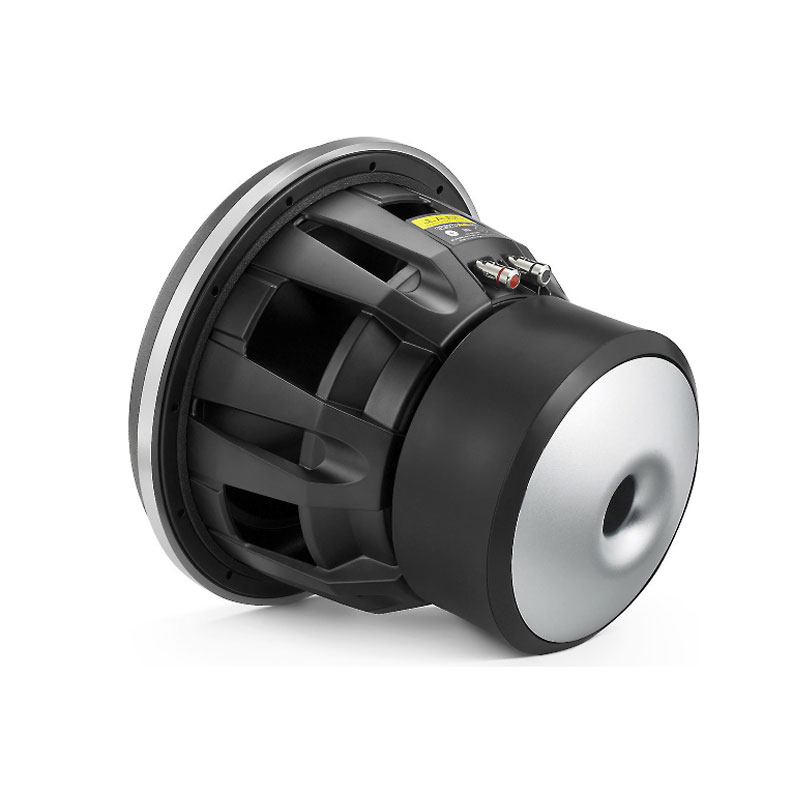

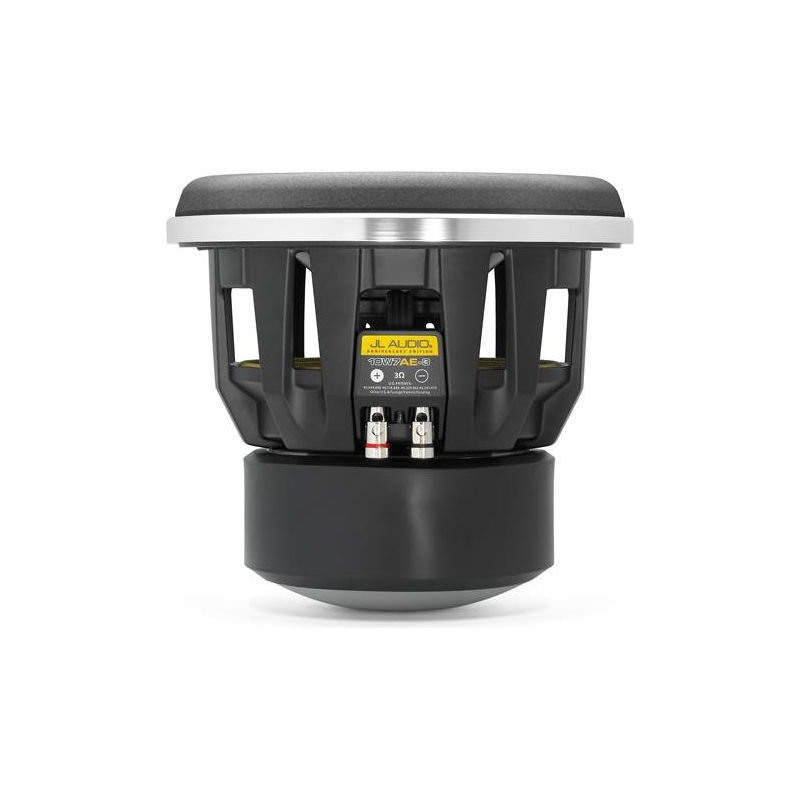

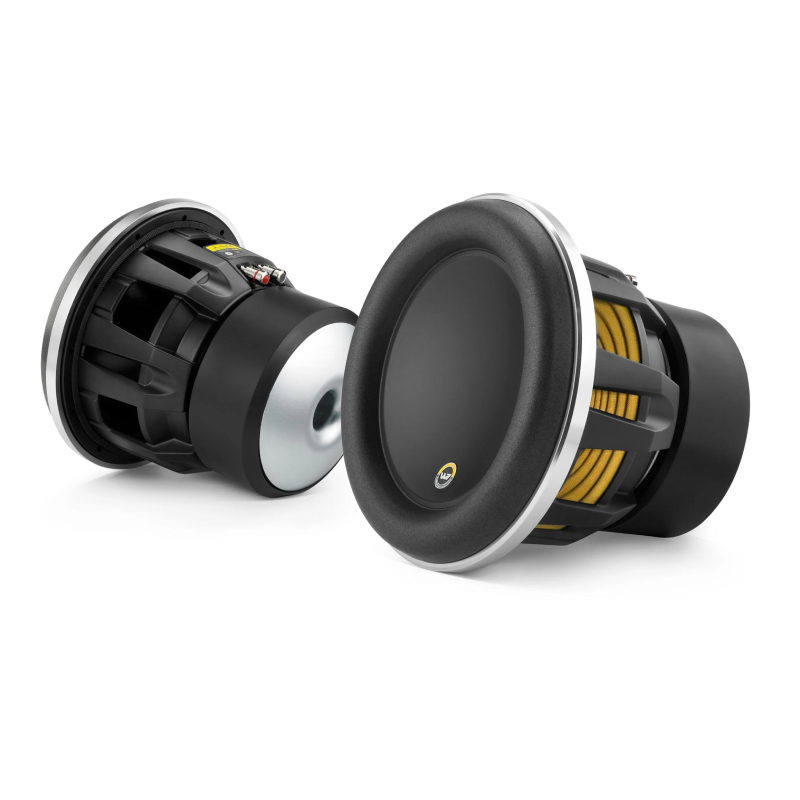

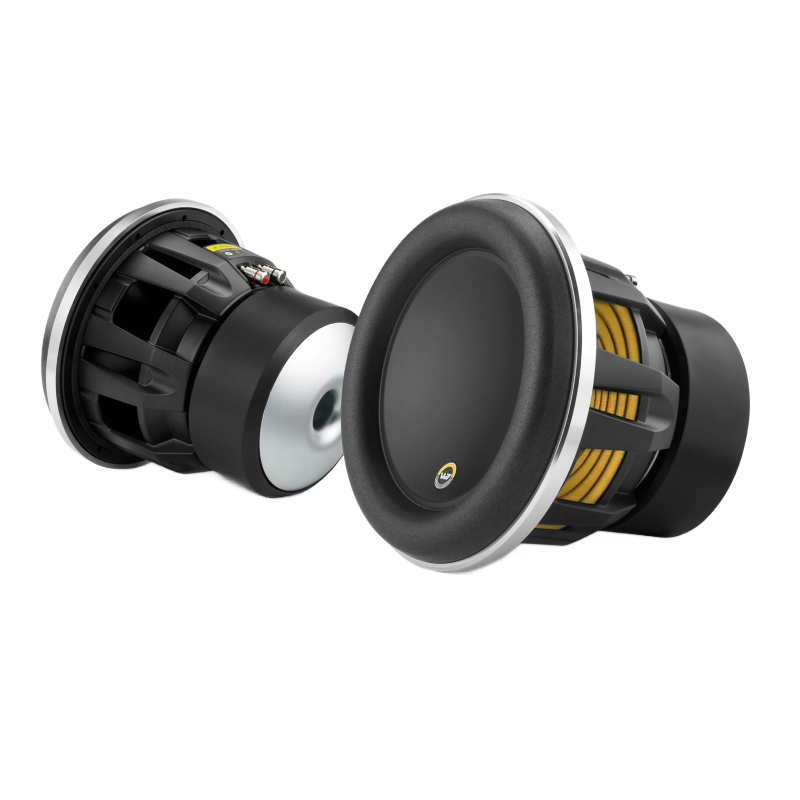

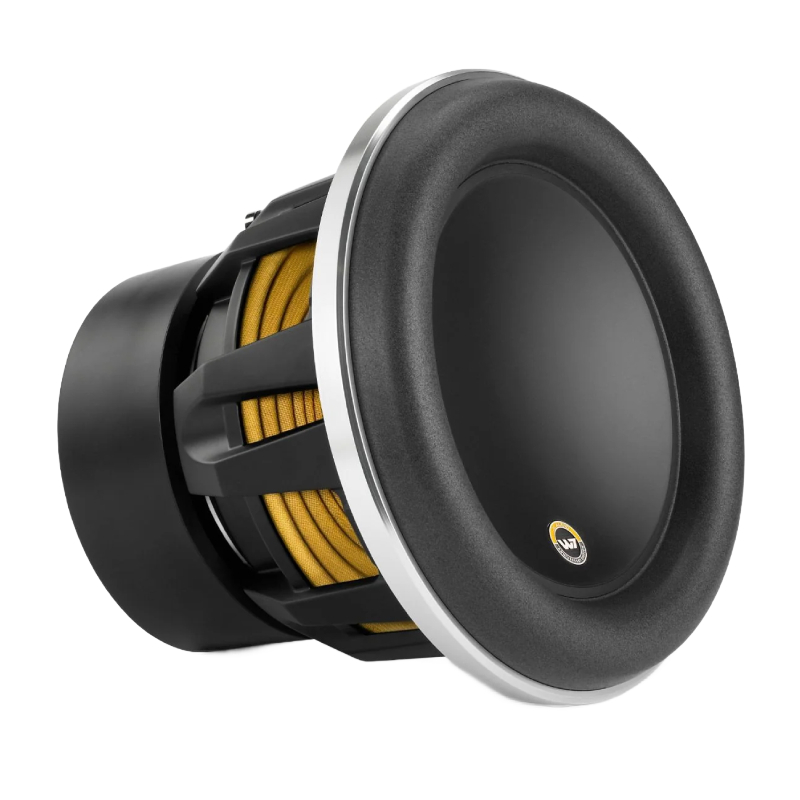

JL Audio 10W7AE-3 Anniversary Edition W7 Series 10" Single 3 Ohms Voice Coil Car Audio Subwoofer
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•One 10" Single voice coil subwoofer
Preference for Flagship
If you always have a preference for flagship and top-notch car subwoofers, the JL Audio 10W7AE-3 is a top-of-the-line 10-inch subwoofer that is made using JL Audio's patented technologies, ensuring a bass output quality that you'll only get from a premium sub, such as this one.
Polypropylene W-cone and a Polyester Foam Surround
The JL Audio 10W7AE-3 subwoofer has a polypropylene W-cone and a polyester foam surround, allowing it to be lightweight but still ensuring that you get a heart-pounding and accurate bass response with minimal distortion. Utilizing the OverRoll technology allows for more cone area, resulting in the production of deeper lows.
JL Audio's Elevated Frame Cooling technology allows for improved airflow through the subwoofer's vents, resulting in it staying cool for a long time, even after long hours of use at high volume levels. The JL Audio 10W7AE-3's solid cast-alloy basket can withstand constant vibration, so you can expect it to last long.
Issues Producing a Deep Low-frequency Performance
The JL Audio 10W7AE-3 can deliver a power output of 750 Watts RMS power and can reach up to 1,500 Watts of peak power at 3 ohms. With a frequency response of 20 up to 250 Hz and a sensitivity rate of 84.3 dB, you can expect that this subwoofer won't have any issues producing a deep low-frequency performance while having the ability to go loud with reduced noise.
Diameter : 10 Inch
Sensitivity : 84.3 dB
Impedance : 3 Ohm
Frequency Response : 20-250 Hz
Peak Power Handling : 1500 Watts
Top Mount Depth : 8-1/8 Inches
Shallow Mount : No
Number of Voice Coils : Single
Suggested Sealed Box Volume : 1.25 Cubic ft.
Suggested Ported Box Volume : 1.5 Cubic ft.
Mounting Depth : 8.0 Inches
RMS Power Handling : 750 Watts
10" 3-ohm subwoofer
polypropylene W-Cone with polyester foam surround
solid cast-alloy basket
no grille included: optional grille rods available
power range: 250-750 watts RMS
peak power handling: 1500 watts
frequency response: 20-250 Hz
sensitivity: 84.3 dB
top-mount depth: 8-1/16"
sealed box volume: 1.25 cubic feet
ported box volume: 1.5 cubic feet
Size: 10 -inch
Impedance (Ohms): 3
Cone Material: Polypropylene
Sensitivity: 84.3 dB at 1 watt
Frequency Response: 20 - 250 Hz
Max RMS Power Handling: 750
Peak Power Handling (Watts): 1500
Top Mount Depth (inches): 8 1/8
Cutout Diameter or Length (inches): 8 3/4
Vas (liters): 36.1
Fs (Hz): 30.6
Xmax (millimeters): 23
Ideal Sealed Box Volume (cubic feet): 1.25
