Infinity Primus 5.25" 2-way Component System
Patented Plus One™ Polypropylene Woofers
The Infinity Primus PR5010cs is a high-quality car audio component system with exceptional sound performance and clarity. In this comprehensive review, we explore the impressive features and benefits that make the Primus PR5010cs a top choice for car enthusiasts seeking to elevate their in-car audio experience.

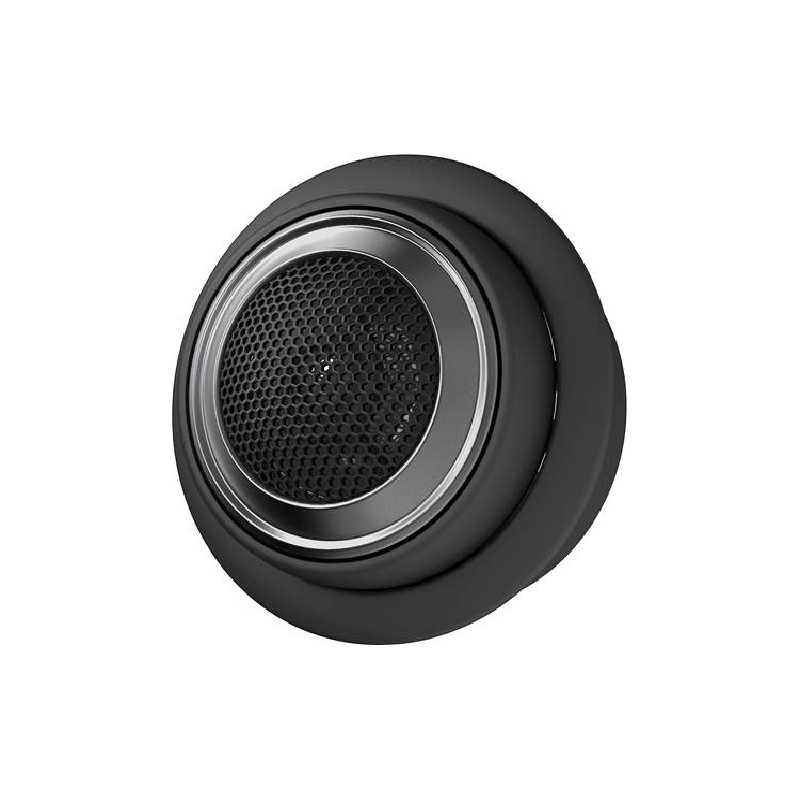

Edge-Driven Tweeters

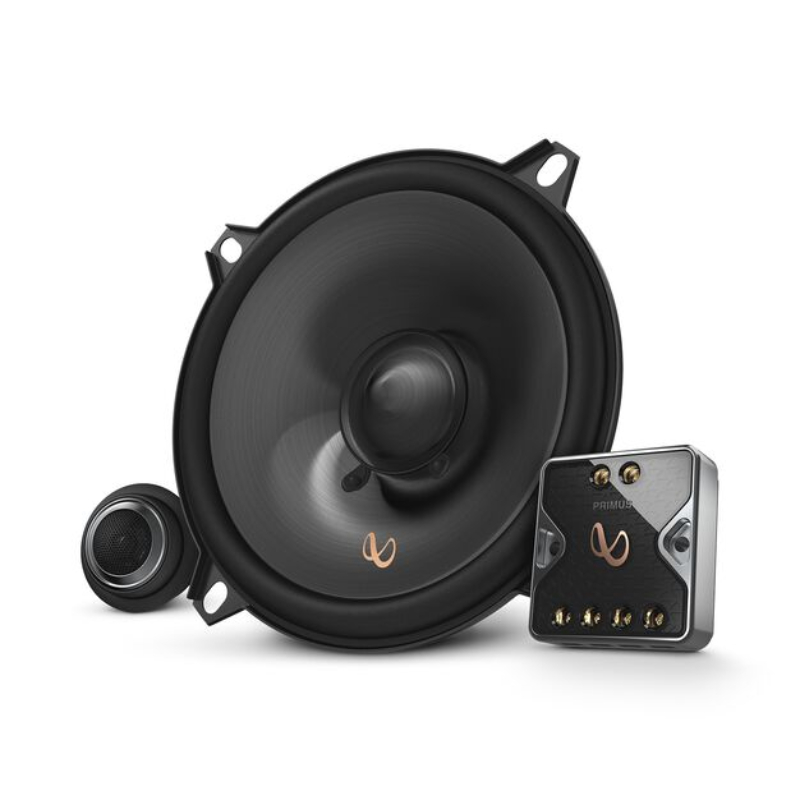

With a pair of 5.25" woofers and edge-driven textile dome tweeters, the Primus PR5010cs produces immersive and detailed sound reproduction. With the help of external crossovers, it delivers crisp highs, balanced midranges, and deep bass, ensuring that every note and instrument is heard clearly and precisely.
True 4 Ohm Architecture
The Primus PR5010cs offers versatile installation options to accommodate various car models. Its compact size and shallow mounting depth make it easy to fit into tight spaces, while its adjustable tweeter levels allow sound staging and imaging customization.
Harman Standard Reliability Testing
Built with high-quality materials and precision engineering, the Primus PR5010cs is designed to withstand the rigors of daily use. Its robust construction ensures durability, allowing you to enjoy exceptional sound performance for an extended period.
Voicing of Speakers
The Infinity Primus PR5010cs is a superb choice for those seeking outstanding sound quality in their vehicle. With its immersive sound reproduction, versatile installation options, and durable construction, the Primus PR5010cs enhances your driving experience by delivering a rich and captivating audio performance. Upgrade your car's audio system with the Primus PR5010cs and immerse yourself in the brilliance of your favorite music while on the road.
- Diameter : 5.25 Inch
- Sensitivity : 88 dB
- Frequency Response : 67-20000 Hz
- Peak Power Handling : 165 Watts
- Shallow Mount : No
- RMS Power Handling : 55 Watts
Features:

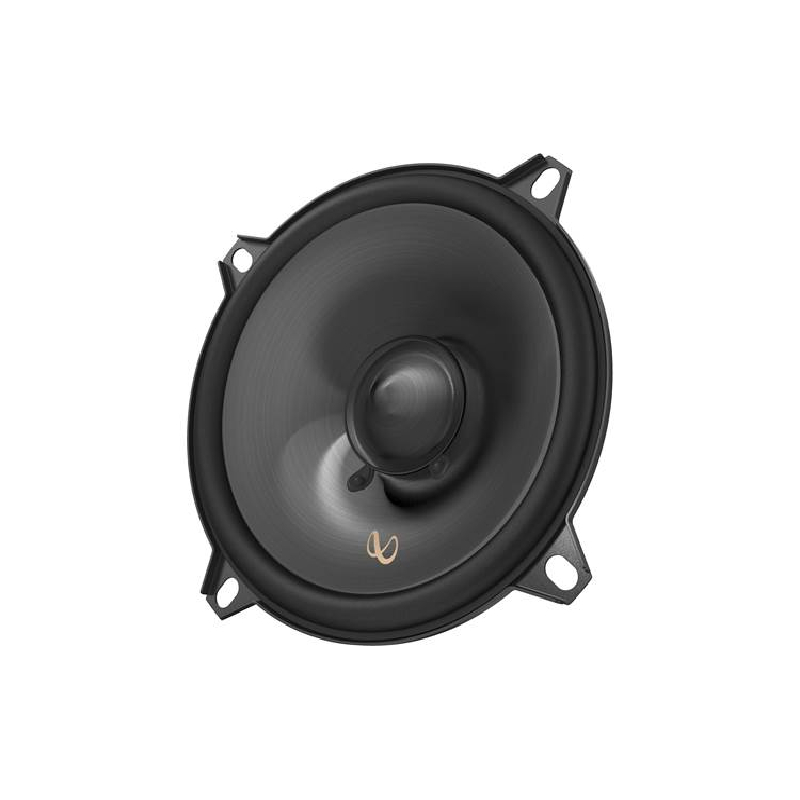

- Plus One Woofer Cones: The Plus One speaker cones offer more surface area than other speakers that fit in the same size opening. This is accomplished by using a new basket design and hi-roll surround. The result is greater bass output and an increase in efficiency.
- Tweeter Mounting: The I-Mount tweeter mounting system and Starfish mounting brackets give you several different ways to mount the tweeters:
- I-Mount Mounting System: The tweeters can be surface or flush mounted:
- Surface Mount: Surface mounting the tweeters involves screwing the surface-mount cup to the mounting location, then inserting and locking the tweeter into the cup.

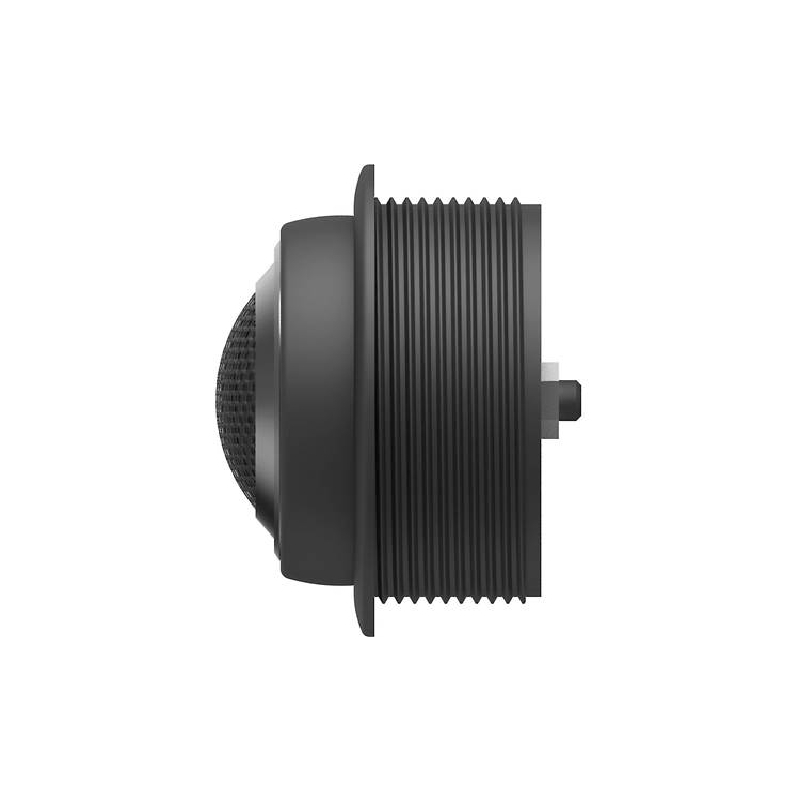

- Flush Mount: Flush mounting is made easy through the use of the threaded flush-mount housing and plastic locking nut. Once a cutout is made, the tweeter is installed in the flush-mount adapter, then into the flush mount housing and inserted into the hole. The large plastic locking nut is threaded onto the adapter (from behind the mounting surface) to hold the complete assembly securely in place. When flush mounted, the tweeters may be angled for optimum response and imaging.
- Starfish Mounting Brackets: The Starfish mounting brackets allow the tweeters to be installed in factory locations behind the grilles:
- Bottom Mount: Once the Starfish bracket is trimmed, it is secured to the underside of the grille panel. The tweeter must be inserted into the bracket and locked into place before the bracket is mounted.
- Surface Mount: Once the Starfish bracket is trimmed, it is screwed to the top of the mounting surface behind the grille panel. Then, the tweeter is inserted into the bracket and locked into place.
- Flush Mount: There are two sets of tabs to flush mount the tweeter in the Starfish bracket, yielding different mounting dimensions. The upper tabs mount the tweeter completely below the opening and are glued in place. The lower mounting tabs are screwed in place and result in a mounting height just over 1/3 inch. Once the bracket is mounted, the tweeter is inserted into the bracket and locked into place.

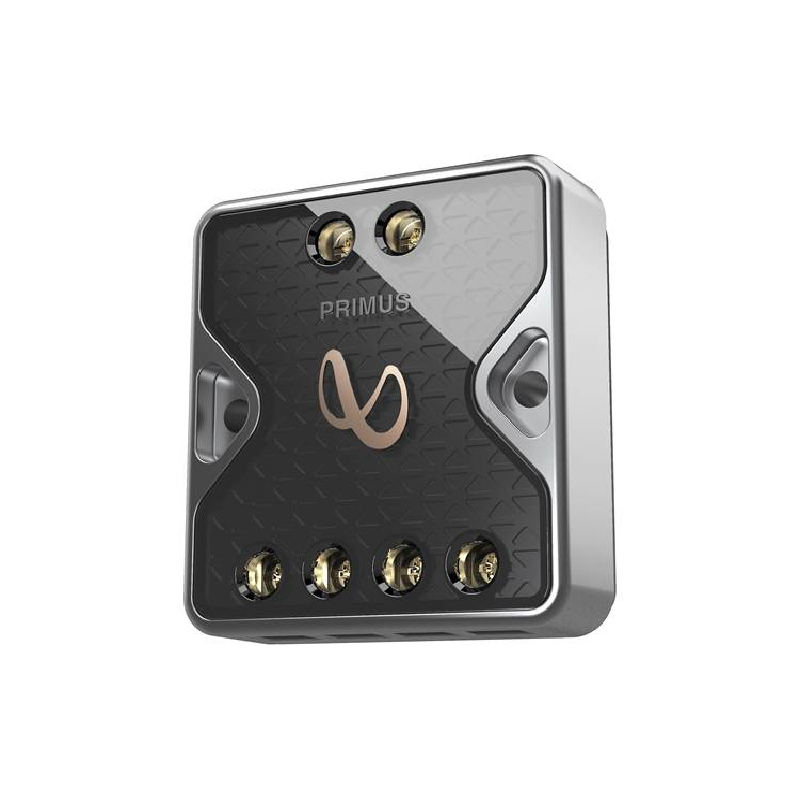

- Crossovers: The crossovers' inputs and outputs are screw terminals; they will accommodate bare wire or spade connectors up to 0.315" wide. There are two mounting holes in each crossover.
- Impedance: The Primus Series speakers feature 2.7? voice coils to compensate for the high in-line resistance of small gauge factory wiring and extract every watt from the factory receiver, increasing overall system output and efficiency (relative to 4-ohm speakers). The speakers also benefit from increased power when you upgrade the wire and add aftermarket amplifiers capable of powering a lower impedance load.
Specifications:
- Power Handling: 55W RMS, 165W peak
- Speaker Size: 5 1/4
- Design: 2-way
- Tweeter Design: Edge-Driven Dome
- Impedance (Ohms): 2.7
- Tweeter Composition: Textile
- Woofer Composition: Polypropylene
- Woofer Surround: Rubber
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- Sensitivity (1W at 1 meter): N/A
- Sensitivity at 2.83 volts: 88
- Frequency Response: 67 - 20k Hz
- Minimum RMS Wattage: ---
- Maximum RMS Wattage: 55
- Peak Power Handling (Watts): 165
- Top-mount Depth (Inches): 1 15/16
- Bottom-mount Depth (Inches): N/A
- Cutout Diameter or Length (inches): 4 7/16
- Mounting Height (Inches): 0.258
- UPC: 050667373290
- Weight: 4
