The AP-4340 4-channel class AB amplifier can be used in three modes: 4, 3 or 2-channel.
In 4-channel mode, its CEA power of 4 x 70W RMS will allow you to get the most from your Auditor kits installed up front and in the rear. The 3-channel mode enables you connect a kit to channels one and two, as well as an Auditor subwoofer to channels three and four in bridged mode for a CEA power of 190W RMS under 2 Ohms. The 2-channel mode, which consists of bridging channels 1-2 and 3-4, provides a CEA power of 2 x 190W RMS under 2 Ohms.
Equipped with high-pass and low-pass crossovers, as well as a subsonic crossover, the AP-4340 amplifier guarantees the optimal performance of the kits and subwoofers in this line.

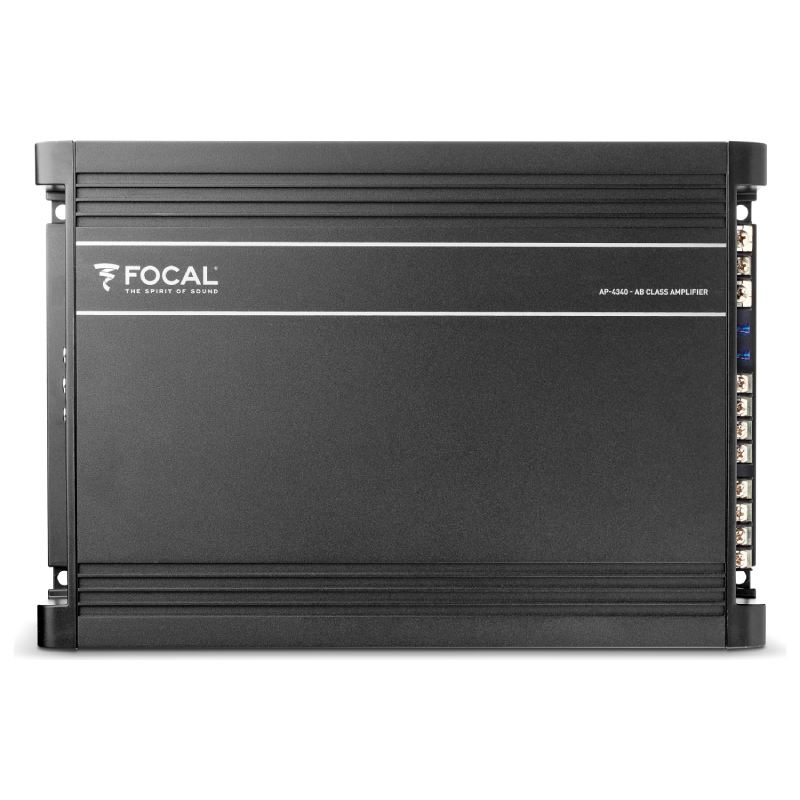

- Aluminum chassis
High heat dissipation

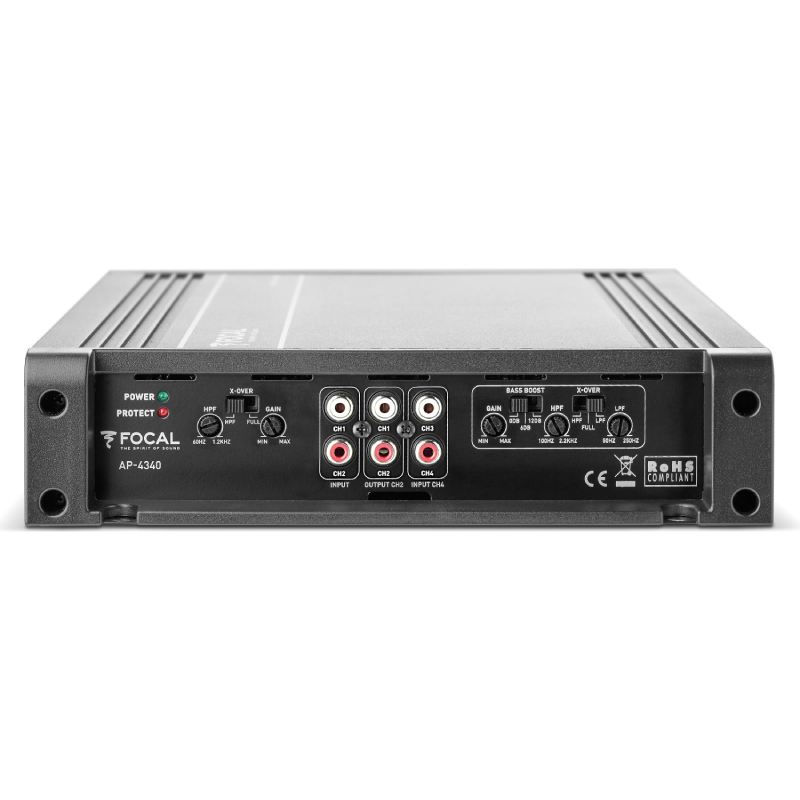

- RCA inputs
- Crossover settings
"Low-pass / high-pass Bass boost adjustment"
- Aluminum chassis: High heat dissipation
- RCA inputs: After-Market headunit
- Crossover settings: Low-pass/High-pass, Bass boost adjustment
- Stable under 2Ω
- THD: 0,06%
- Channel separation (1 KHz): 45 dB
- SNR (1W/A): 76 dBA
- Low level input sensitivity: 160mV
- CEA Power (4Ω): 4 x 70W RMS
- Max power (2Ω): 4 x 95W
- Max power (Bridged 4Ω): 2 x 190W
- High-pass Crossover (Ch 1-2): 60Hz – 1.2kHz
- High-pass Crossover (Ch 3-4): 100Hz – 2.2kHz
- Low-pass Crossover: 50 – 250Hz
- Full range mode Bandwith: 10Hz- 30kHz
- Full-Range mode: Yes
- Low impedance
- Polarity reversal
- Thermal over / under voltage
- Height: 2"
- Width: 13-25/64"
- Depth: 9-1/4"
- Unit: 6.06 lbs
- Shipping: 8 lbs
- UPC: 3544054750568
- Weight: 8
