Infinity Kappa 5.25" 2-way Component System
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •(2) Woofers

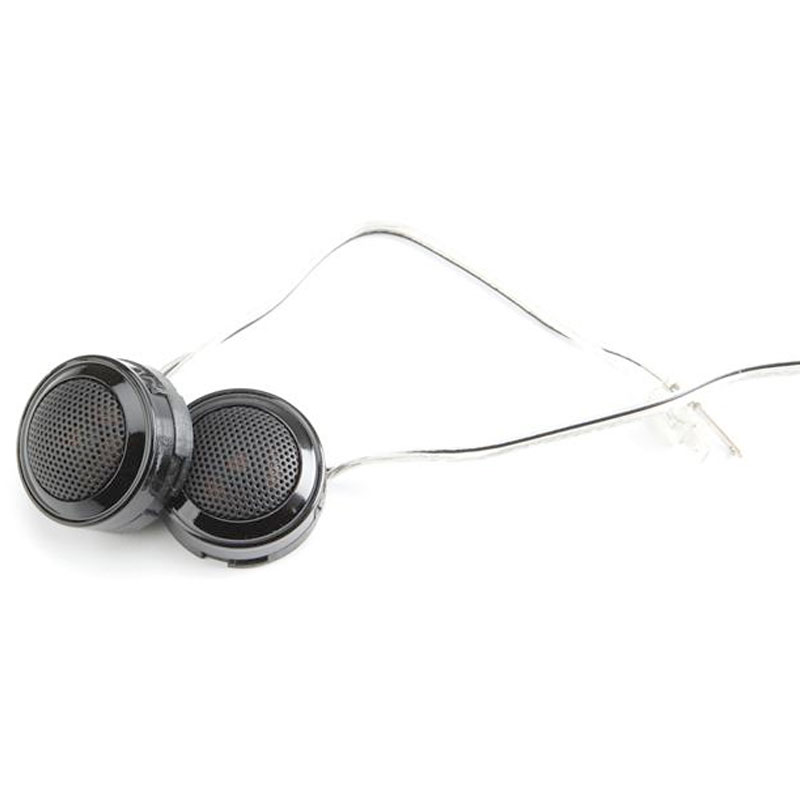

- •(2) Tweeters (each has attached 6" speaker leads)
- •(2) Crossovers
- •(2) Tweeter flush-mount housings
- •(2) Threaded flush-mount adapters
- •(2) Plastic locking nuts
- •(2) Tweeter surface-mount housings
- •(2) Starfish tweeter mounts
- •(8) 1-3/8" Screws
- •(8) 1-1/8" Screws
- •(8) Speed clips
- •(6) 5/8" Flat head screws
- •(2) Washers
- •(2) Nuts
- •(2) Adhesive backed foam gaskets
- •(2) Infinity logos
- •Template on box
- •Instruction manual
Easily Installed in Any Vehicle

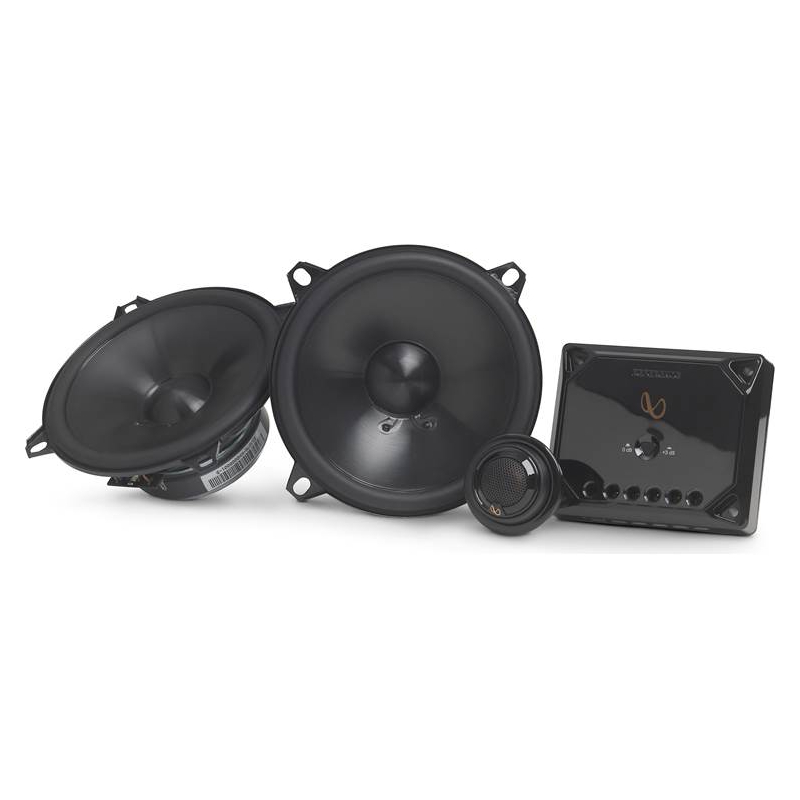

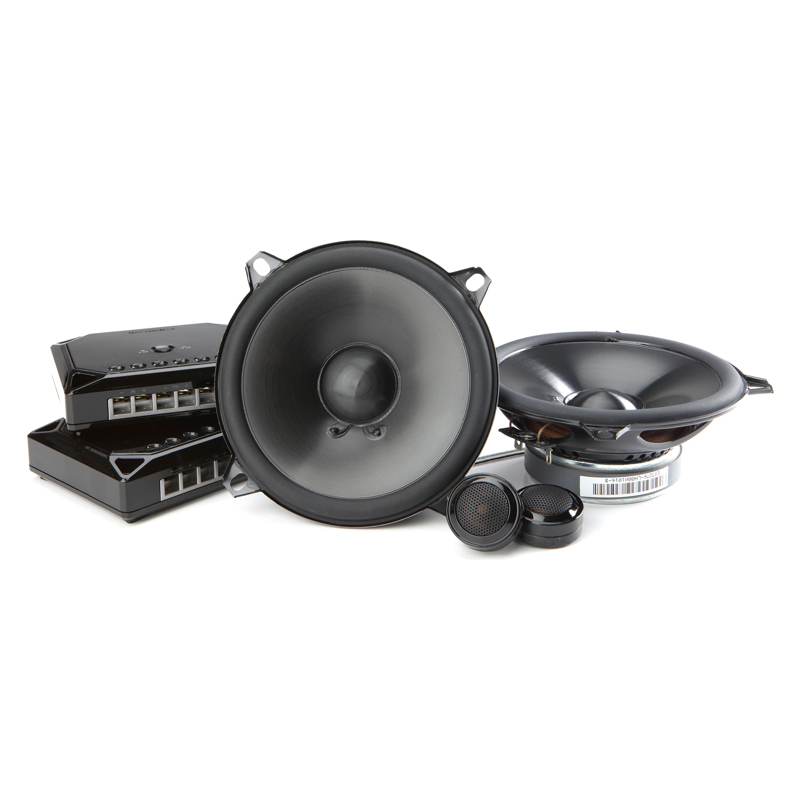

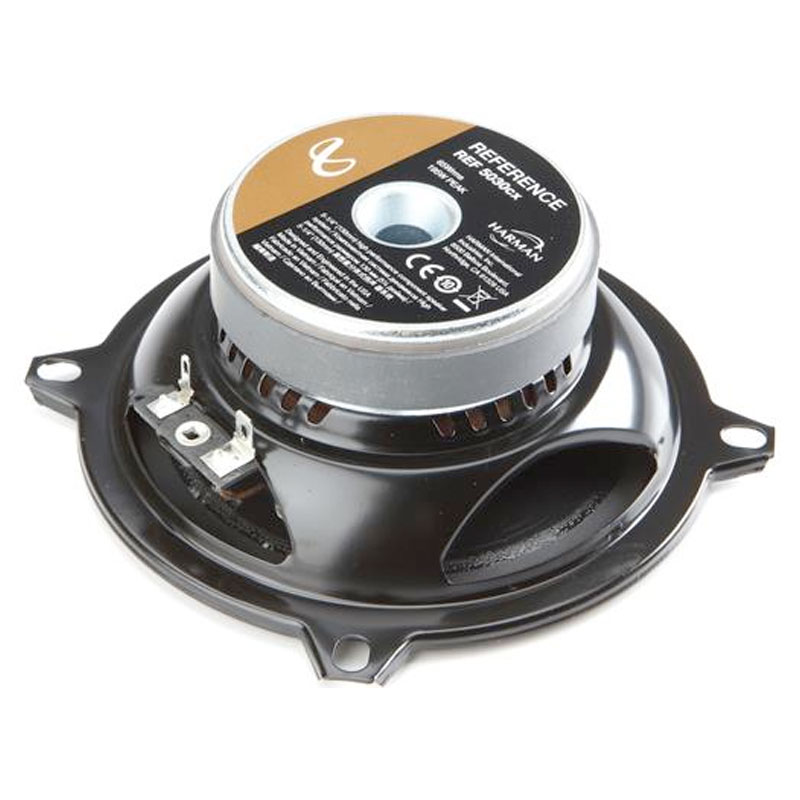

An excellent upgrade from your car's stock speaker system, the Infinity Reference REF-5030cx is a component speaker system that is composed of a separate pair of woofers, pair of tweeters, and a couple of crossover networks that can be easily installed in any vehicle, thanks to its mounting brackets.
Has a Larger Speaker Cone Area
The Infinity Reference REF-5030cx comes with the famous 5.25-inch Plus One oversized woofer composed of a polypropylene cone and a hi-roll rubber surround to give you an accurate mid and bass output that is durable to have a prolonged lifespan even if constantly used at high volume levels. It also has a larger speaker cone area, allowing for more airflow and louder audio output.
Includes Crossover Networks

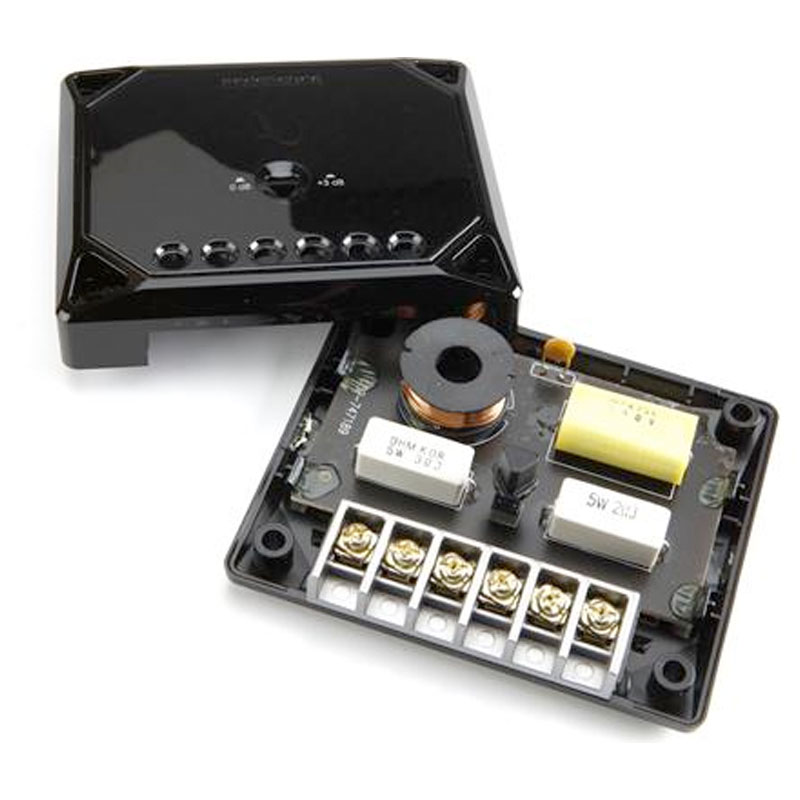

It also comes with a pair of premium 0.75-inch textile dome tweeters to give you a clear and bright high-frequency production with a minimal breakup. The Infinity Reference REF-5030cx also includes crossover networks to filter out the frequencies that could damage the woofers and tweeters, resulting in a more defined audio performance.
Can Handle a Power Output of 65 Watts Rms Per Pair
The Infinity Reference REF-5030cx can handle a power output of 65 Watts RMS per pair at 3 ohms and get up to 195 Watts of peak power. It has a frequency response of 67 Hz up to 21 kHz and a sensitivity rate of 93 dB, which means it can go loud smoothly while delivering an extensive full-range frequency with reduced noise.
- Diameter : 5.25 Inch
- Sensitivity : 93 dB
- Frequency Response : 67-21000 Hz
- Peak Power Handling : 195 Watts
- Shallow Mount : No
- RMS Power Handling : 65 Watts
Features:
- Plus One+ Woofer Cones: Each speaker uses a larger cone than other speakers of the same size. This is accomplished by using a unique basket design and hi-roll surround. The Plus One+ design offers greater bass output and an increase in efficiency.
- Hi-roll Rubber Surrounds: The hi-roll rubber surrounds allow the woofers a greater range of movement, resulting in longer X-max and more bass output.
- Material: Each tweeter features a 3/4" edge-driven textile dome for smooth, accurate highs.
- Surface Mount: Surface mounting the tweeters involves screwing the surface-mount cup to the mounting location, then inserting and locking the tweeter into the cup.
- Flush Mount: Flush mounting is made easy through the use of the threaded flush-mount housing and plastic locking nut. Once a cutout is made, the tweeter is installed in the flush-mount adapter, then into the flush mount housing and inserted into the hole. The large plastic locking nut is threaded onto the adapter (from behind the mounting surface) to hold the complete assembly securely in place. When flush mounted, the tweeters may be angled for optimum response and imaging.
- Bottom Mount: Once the Starfish bracket is trimmed, it is secured to the underside of the grille panel. The tweeter must be inserted into the bracket and locked into place before the bracket is mounted.
- Surface Mount: Once the Starfish bracket is trimmed, it is screwed to the top of the mounting surface behind the grille panel. Then, the tweeter is inserted into the bracket and locked into place.
- Flush Mount: There are two sets of tabs to flush mount the tweeter in the Starfish bracket, yielding different mounting dimensions. The upper tabs mount the tweeter completely below the opening and are glued in place. The lower mounting tabs are screwed in place and result in a mounting height just under a half inch. Once the bracket is mounted, the tweeter is inserted into the bracket and locked into place.
Specifications:
- Edge-driven, textile tweeters
- Adjustable tweeter output level
- Plus One™ woofer cone architecture
- Optimized Frame Size
- Competitive pricing
- Description: 5-1/4" (130mm) component speaker system
- Power Handling: 65W RMS, 195W peak
- Sensitivity (@ 2.83V): 93dB
- Frequency Response: 67Hz – 21kHz
- Impedance: 3.0 ohms
- compatible with virtually all factory or aftermarket car stereos
- woofer mounting depth: 1-15/16
- Plus One+ polypropylene woofer cone with hi-roll rubber surround
- sensitivity: 93 dB
- tweeter adjustment circuits (0, +3 dB)
- grilles not included
- UPC: 050667373429
- Weight: 6
