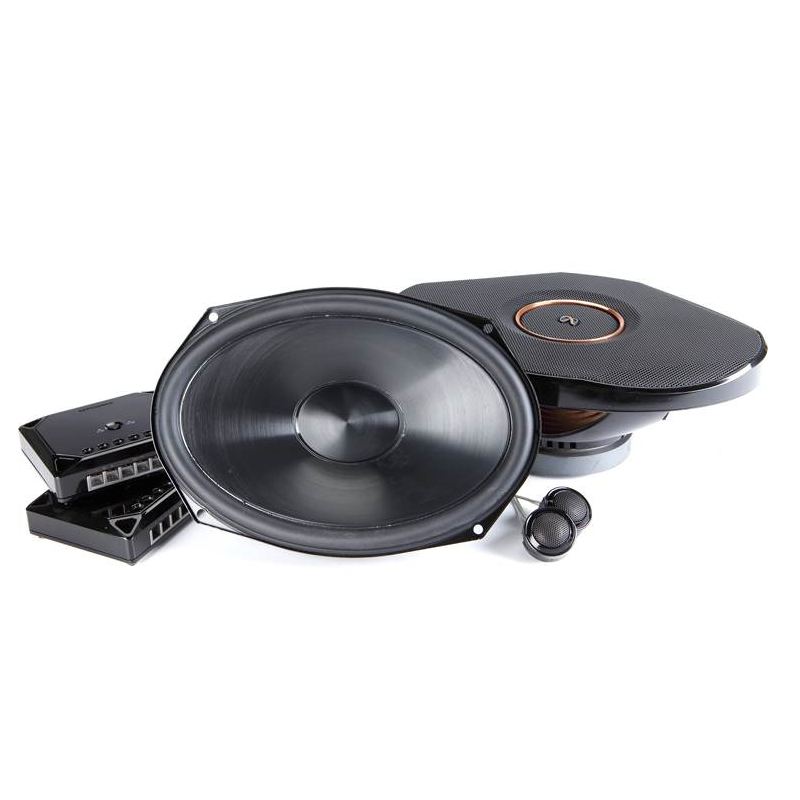

Infinity REF-9630CXAM Reference Series Peak Power Component Car System
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

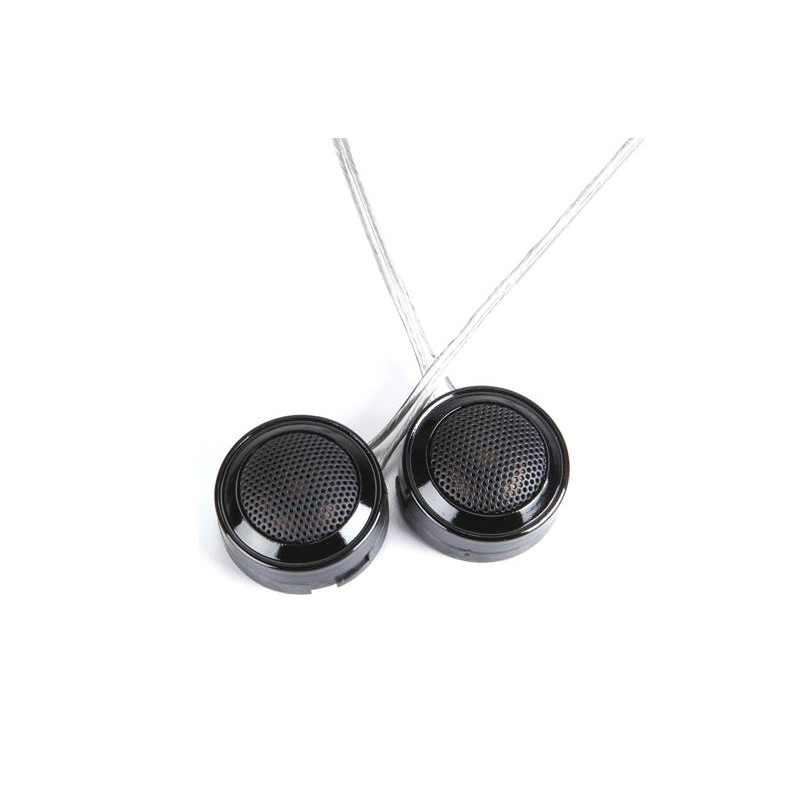

•2 Tweeters (each has attached 6" speaker leads)
•2 Woofer grilles
• 2 Woofer grille frames
• 2 Woofer bottom mount rings

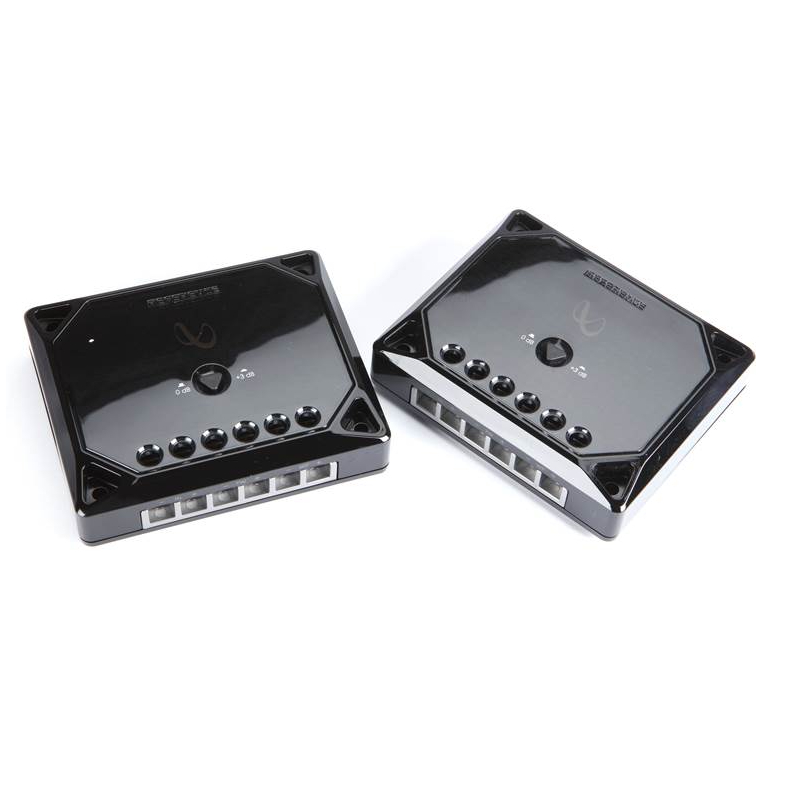

• 2 Crossovers
•2 Tweeter flush-mount housings
• 2 Threaded flush-mount adapters
•2 Plastic locking nuts
• 2 Tweeter surface-mount housings
• 2 Starfish tweeter mounts
•Eight 1-3/8" Screws
•Eight 1-1/8" Screws
• 8 Speed clips
• Six 5/8" Flat head screws
• 2 Nuts
• 2 Adhesive backed foam gaskets
• 2 Infinity logos
The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels. Plus One™ cones provide more overall speaker-cone area than other cones in its class — the result is higher sensitivity, increased low-frequency output and accurate music reproduction.
Diameter : 6x9 Inch
Sensitivity : 93 dB
Frequency Response : 46-21000 Hz
Peak Power Handling : 375 Watts
Shallow Mount : No
RMS Power Handling : 125 Watts
1 x Pair of woofers
1 x Pair of tweeters
1 x Pair of speaker grilles
1 x Pair of crossovers
1 x Pair of woofer adapter rings
1 x Pair of tweeter surface mount accessories
1 x Pair of tweeter flush mount accessories
1 x Pair of tweeter nuts
1 x Pair of tweeter flat washers
6 x Tweeter mounting screws
8 x Woofer mounting screws
8 x Crossover mounting screws
8 x Speed clips
1 x Pair of spacers
1 x Foam mounting tape
1 x Owner’s manual
Edge-driven, textile tweeters
Adjustable tweeter output level
Plus One™ woofer cone architecture
Optimized Frame Size
Description: 6" x 9" (152mm x 230mm) component speaker system
Power Handling: 125W RMS, 375W peak
Sensitivity (@ 2.83V): 93dB
Frequency Response: 46Hz – 21kHz
Impedance: 3.0 ohms
Starfish™ mounting brackets for easier tweeter installation in factory locations
woofer mounting depth: 3-1/16
component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers
tweeter adjustment circuits (0, +3 dB)
