Sony XAV-AX150 6.95" Digital Multimedia Receiver with Apple CarPlay, Android Auto, AM/FM tuner and Bluetooth
We are a Sony authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• Digital media receiver w/ 6.95" touchscreen monitor (10A fuse)

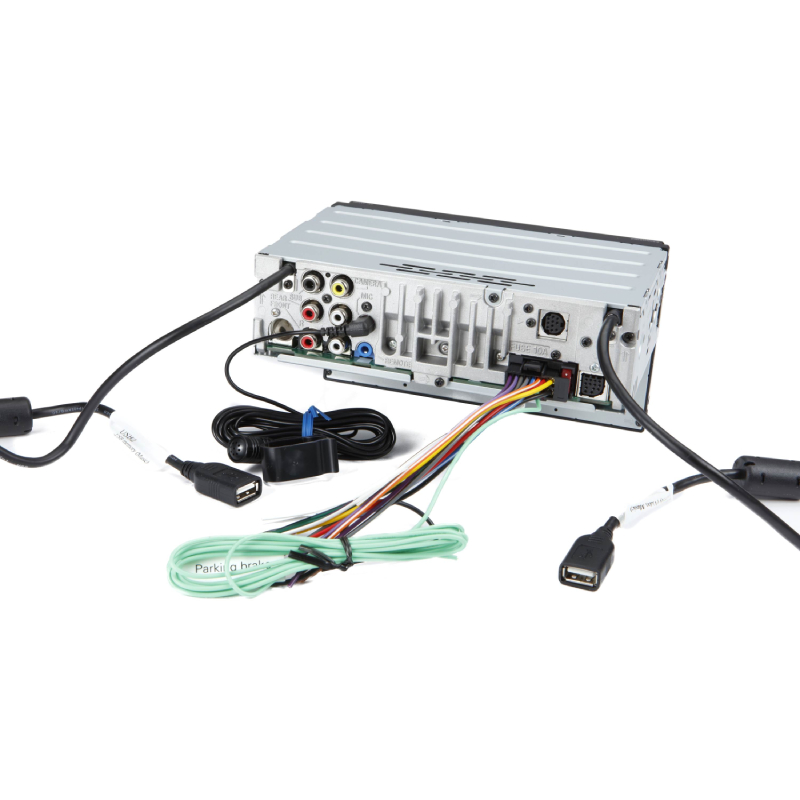

• Wiring harness (6.5' parking brake wire)

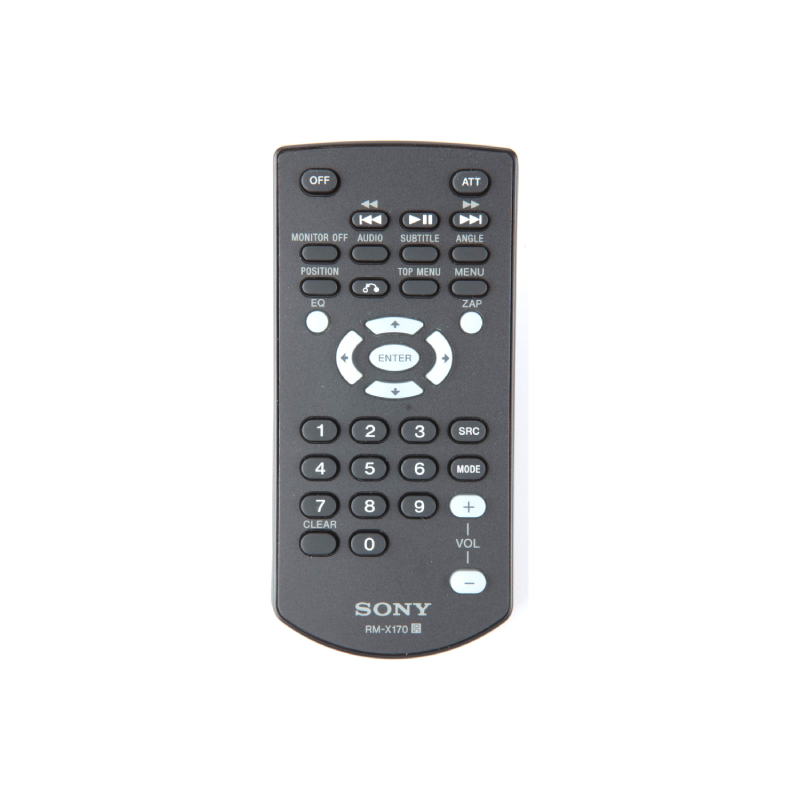

• Remote control (RM-X170)
• CR2025 3V battery (installed in remote)
• Microphone w/ bracket (attached 12' cable terminated by a right-angle mono-3.5mm connector)
• Two-sided tape
• Four M5x6mm ISO-screws
• Operating Instructions
• Warranty Sheet
Step into the future
Step into the future every time you get into your car with the Sony XAV-AX5000 In-Dash Digital Media Receiver. This Bluetooth car stereo only uses USB and wireless streaming connections to play music, eliminating the clutter of CDs and DVDs scattered about. But thanks to the continued digital evolution, there are plenty of ways to listen and watch. One-touch Bluetooth pairing allows for both audio streaming and hands-free calling. Users can also use Apple CarPlay and Android Auto to connect the phones, enabling music playlists, movie watching or in-dash GPS navigation.
The XAV-AX5000 mechless receiver is also compatible with satellite radio tuners, can play files directly from USB thumb drives and allows for direct control over your Pandora or Spotify account. And if you ever want to listen to regular AM/FM radio, you can do that, too. Sony has included six pre-amp outputs for speakers or amplifiers plus a 10-band equalizer to balance every aspect of the sound. Use it with any universal double-DIN dash opening to go fully digital with your portable media. We have a low price guarantee and lifetime tech support whether you order online or visit a brick-and-mortar store.
More screen, more music connections
Enjoy smooth and simple control for every journey, with a responsive 6.95" (17.6 cm) (diag.) touchscreen display that wakes up 2.5 times as fast as previous models, and dual USB ports, for more music options on the go.

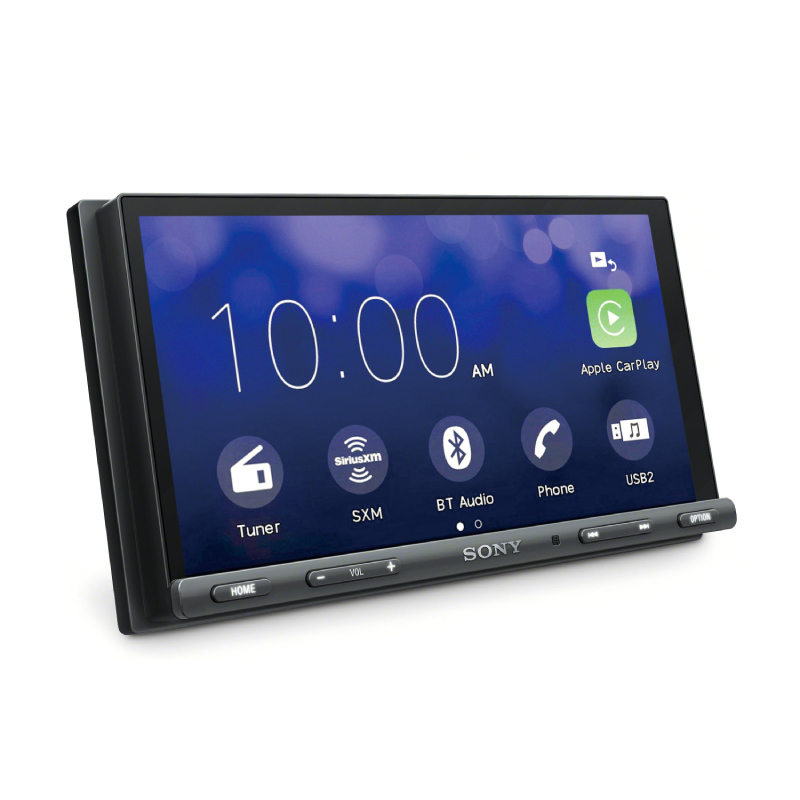

Siri with Apple CarPlay
Easily access the iPhone features you know and love, just by talking to Siri. Music, maps, phone calls and messages are all under your control.

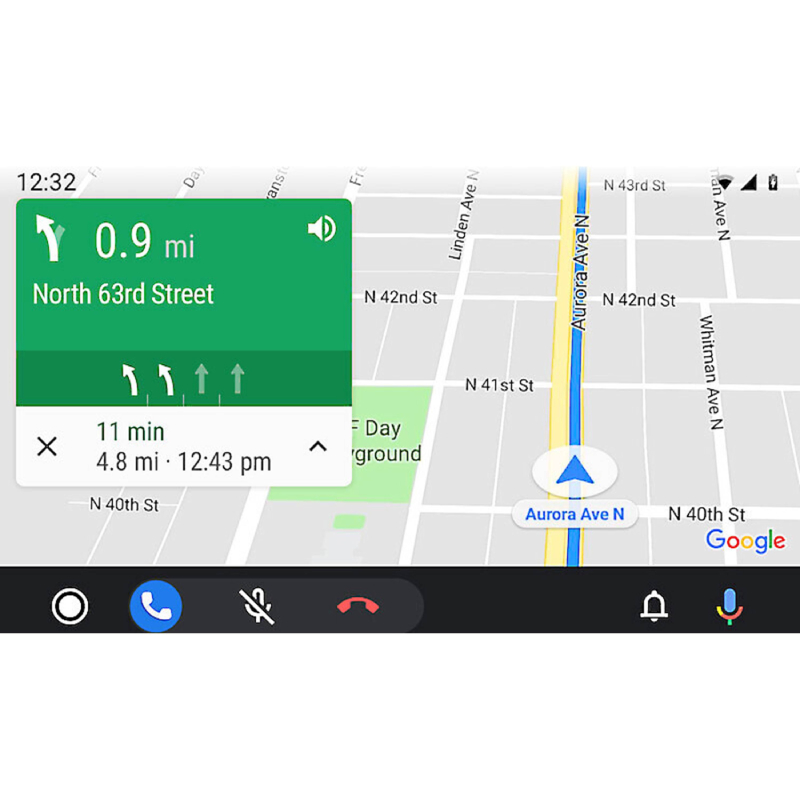

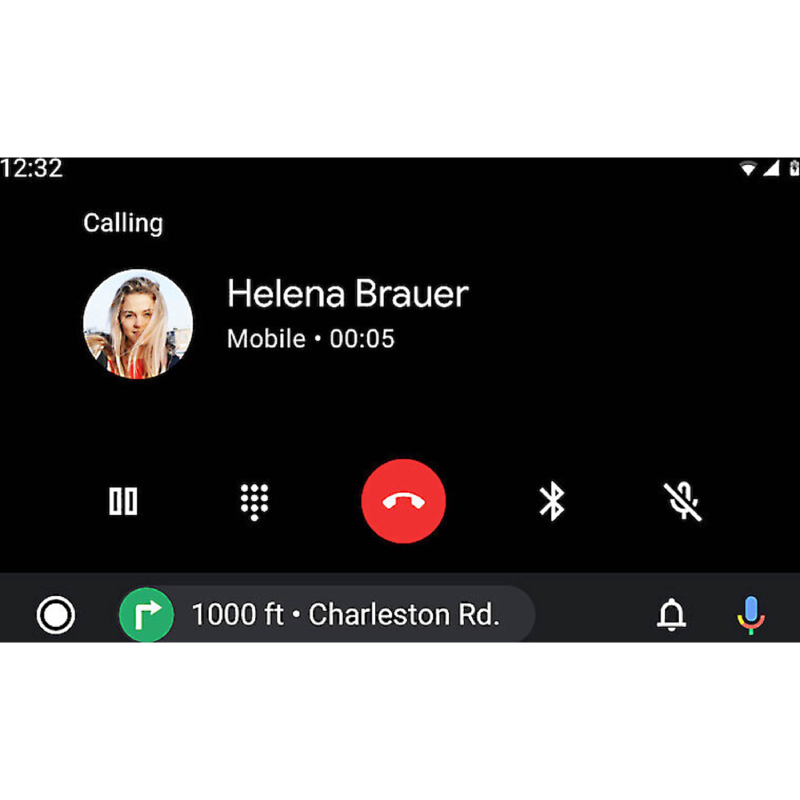

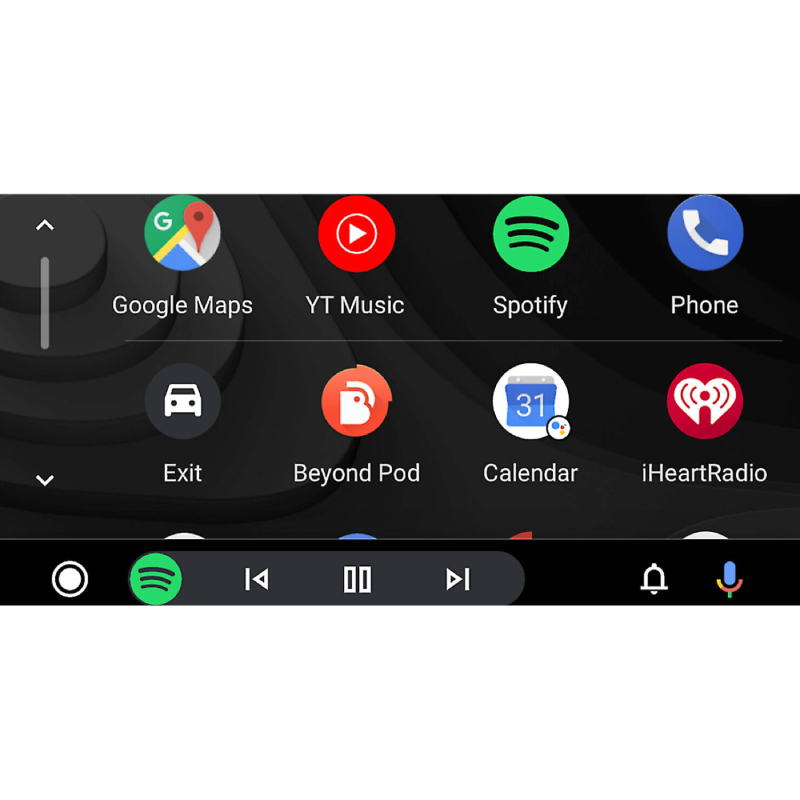

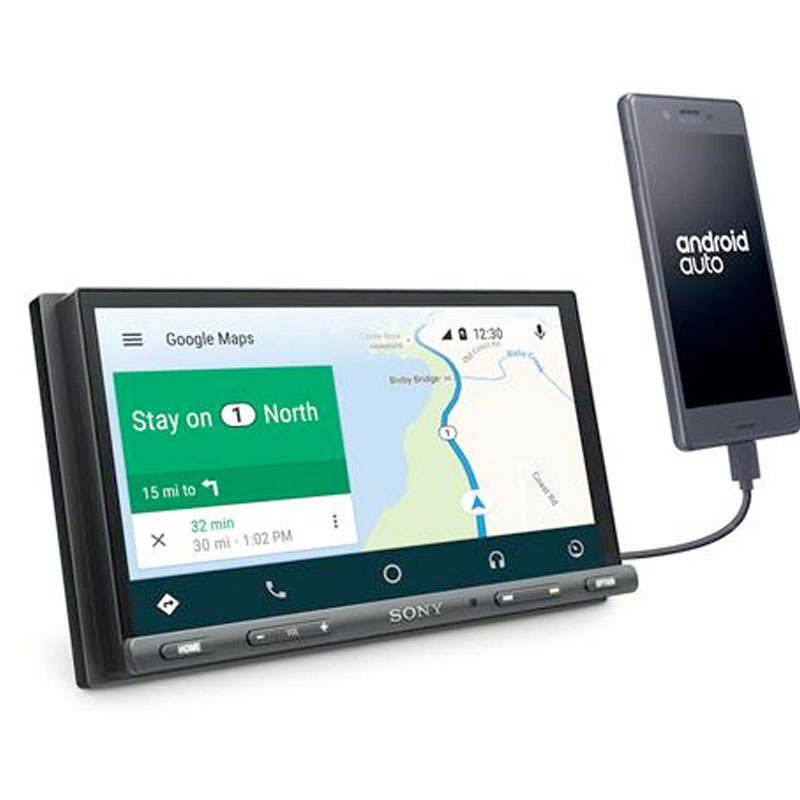

Voice Control with Android Auto
Use voice commands to dictate message, take phone calls or get help from Google Maps. You can even control music playback, just by talking.

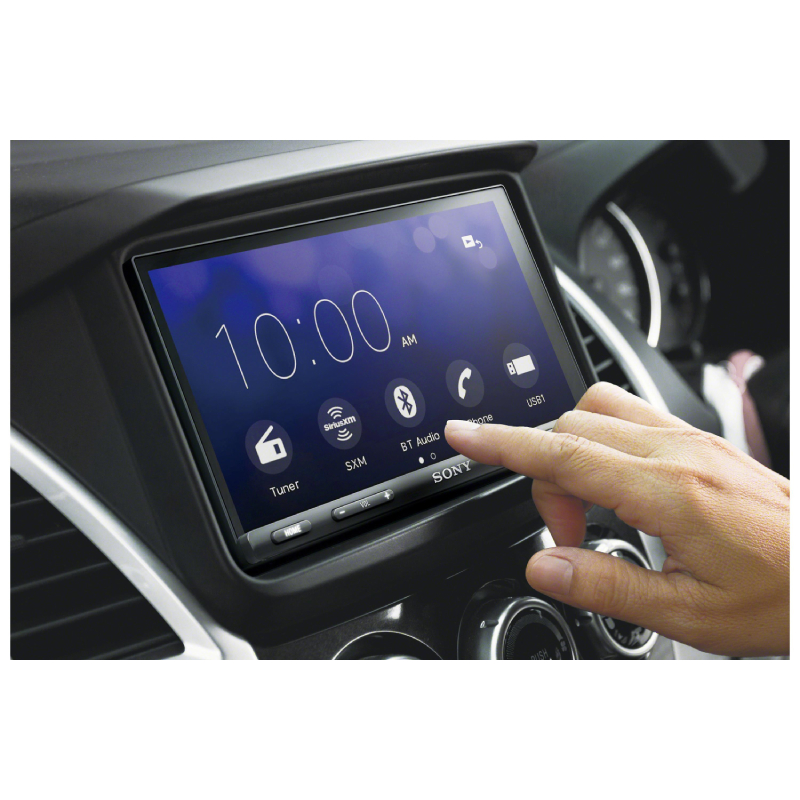

Bring up maps, sort through playlists, and make phone calls - all from a smooth, bezel-less display that integrates seamlessly with your dashboard. The 17.6cm (6.95") screen ensures everything is easy to use, and wakes up 2.5 times as fast as previous models, so you can get on the road faster.
Simple button controls
Get instant access to basic features such as volume, source, sound settings and voice control for safe and easy operation on the road.

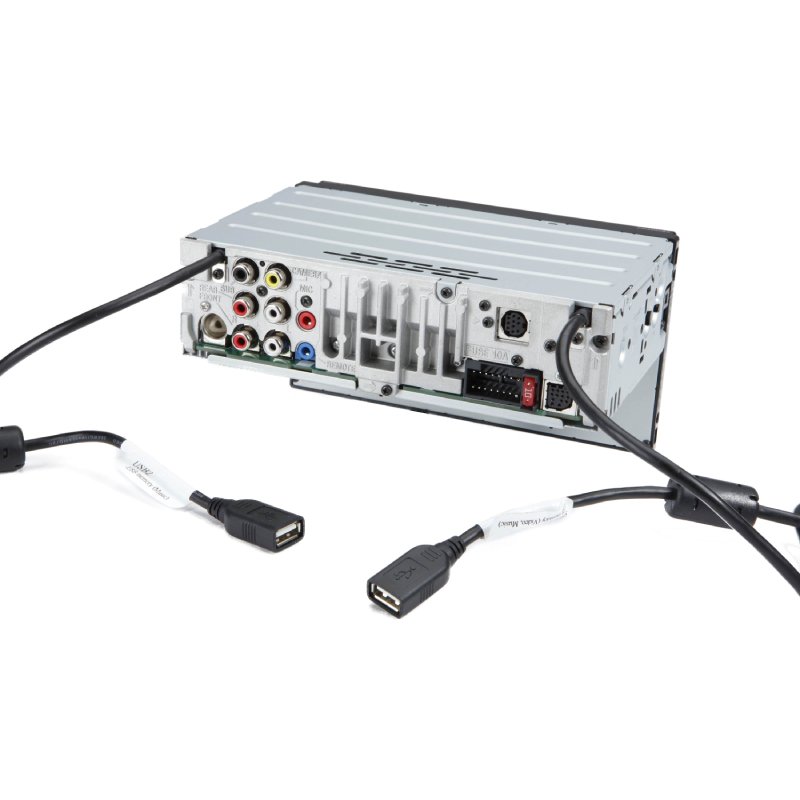

Dual USB for phone connection and music library
Thanks to dual USB ports, you can hook up storage devices to access your music library while connecting a smartphone for Apple CarPlay and Android Auto.
Rear view camera ready
Got a rear camera installed? View its feed through the screen, along with customisable guidelines that help you back in safely.
BLUETOOTH® wireless technology
Make hands-free calls and stream wireless audio from your smartphone, with Bluetooth®.
Powerful, clear amplification
Advanced signal processing from the 4 x 55W Dynamic Reality Amp 2 removes interference, so music sounds clear and detailed. Even when you crank up the volume.
Music that jumps from your dashboard
Sound waves are directional, so if your speakers are in your doors or under your dash, the audio may seem muddy or unclear. Dynamic Stage Organiser adjusts the signal, improving the stereo positioning so music sounds like it's coming from the dashboard.
Sculpt your sound
Tailor the sound to your personal preference with the 10-band graphic equaliser.
Maximum Power : 220 Watts
Satellite Radio Ready : Yes
Detachable Face : No
Built-in EQ : Yes
Changer Control : No
DIN : 2
Preamp Voltage : 4 volts
Display Size : 7 Inch
Bluetooth : Yes
Aux Input : No
MP3 Playback : Yes
WMA Playback : Yes
HD Radio : No
Rear USB Input : 1
Preamp Outputs : 6
Color : Black
Rear View Camera Input : Yes
Apple CarPlay : Yes
Android Auto : Yes
USB Mirroring : Yes
digital multimedia receiver with AM/FM tuner
works with Apple CarPlay and Android Auto
inputs: dual rear USB inputs, rear-view camera input
compatible with SiriusXM satellite radio tuner
Pandora and Spotify control with iPhone and Android
Bluetooth hands-free calling and audio streaming
plays FLAC files on USB drives

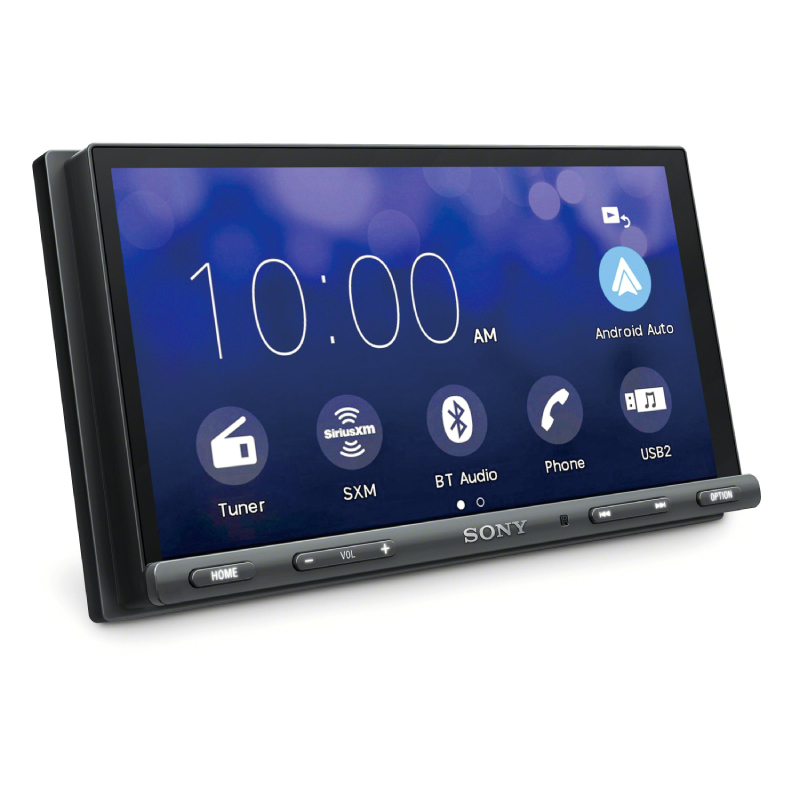

6.95" touchscreen display on bezel-less panel
plays media from USB memory devices
10-band equalizer with digital time alignment
Dynamic Stage Organizer (DSO) compensates for low speaker positions
built-in internal amp (17 watts RMS/55 peak x 4 channels)

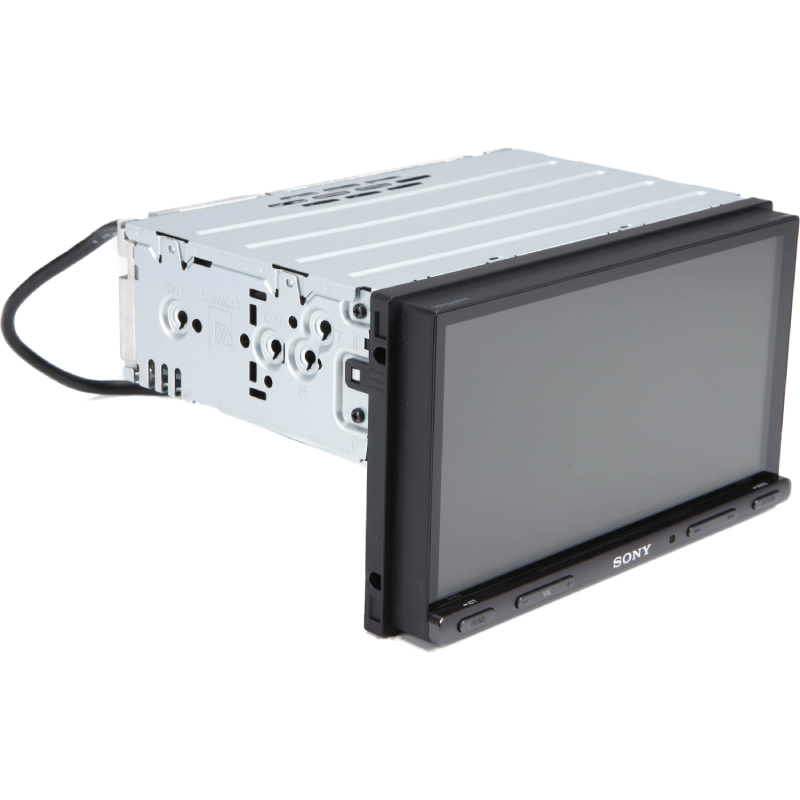

fits double-DIN dash openings
DIMENSIONS (W X H X D): 178x100x139mm
OUTPUT POWER: 55W
PRE OUT: 3Pre Out, 3 Pre 2V
SUB OUT: Yes
ZONE X ZONE: No
REAR VIEW CAMERA IN: Yes
USB: Yes (Rear x2)
NAVIGATION: No, Yes, via Apple CarPlay or Android Auto
FIRMWARE UPGRADABILITY: Yes
VIDEO OUT: No
TIME ALIGNMENT: No
DSO (DYNAMIC STAGE ORGANIZER): Yes
EQUALIZER: 10-band Graphic Equalizer
EXTRA BASS: Yes (Off / 1 / 2)
PRESET: FM18 / AM12
AUTO MEMORY: BTM
RDS / EON: Yes (RDS)
HFP: Yes (1.6)
A2DP: Yes (1.3)
AVRCP: Yes (1.3)
PBAP: Yes (1.1)
REPEAT / SHUFFLE (MAIN UNIT): No
CD-R PLAYBACK: No
CD-RW PLAYBACK: No
DVD-R / -RW PLAYBACK: No
DVD+R / +RW PLAYBACK: No
MP3: ID3 TAG INDICATION (VERSION, TITLE /ARTIST / ALBUM): No
DOLBY DIGITAL PLAYBACK (MAIN UNIT): No
DVD-VIDEO PLAYBACK (MAIN UNIT): No
DVD-VR PLAYBACK (MAIN UNIT): No
VCD PLAYBACK (MAIN UNIT): No
CD / DVD AUDIO CODEC: No
CD / DVD AUDIO PLAYABLE EXTENSION: No
CD / DVD VIDEO CODEC: No
CD / DVD VIDEO PLAYABLE EXTENSION: No
SPEED DIAL: Yes (6 memories)
RECENT CALLS (# OF): Yes
LAST DIALED CALL: Yes (select from the dialed call history)
PHONEBOOK (BUILT IN): No
PHONEBOOK ACCESS VIA PBAP: Yes
ALPHABETICAL PHONEBOOK SORTING: Yes
AUTO ANSWER: No
RING VOLUME LEVEL CONTROL: Yes
CALL VOLUME LEVEL CONTROL: Yes
VOICE DIAL ACTIVATION: No
EXTERNAL MICROPHONE: Supplied
BATTERY REMINDER: Yes
SIGNAL STRENGTH INDICATION: Yes
AUDIO CODEC (BLUETOOTH AUDIO): SBC / AAC
PAUSE (BLUETOOTH AUDIO): Yes
CUE / REV: Yes
TRACK +/-: Yes
GROUP (FOLDER) +/-: Yes
AUDIO LEVEL ADJUSTMENT: Yes (-8dB to +18dB)
REPEAT CONTROL (AUDIO DEVICE SIDE): Yes
SHUFFLE CONTROL (AUDIO DEVICE SIDE): Yes
META DATA INDICATION: Yes
PANEL SURFACE FINISH COLOR: Black
KEY ILLUMINATION: Yes (White)
PANEL DETACHABILITY: No
Monitor(AVC): LCD TYPE
TFT Active Matrix, TFT Active Matrix / Capacitive Touch
SCREEN ASPECT: 17: 9
SCREEN DIAGONAL (INCH / MM): 6.95 inch
SCREEN SIZE (W X H MM): 156.6 * 81.6 (mm)
RESOLUTION (DOT): 800 x 480
CONTRAST RATIO: 400
BRIGHTNESS: 500cd / m2
KEY ILLUMINATION INITIAL: Yes (White)
DIMMER ADJUST: Yes
TOUCH PANEL: Yes / Capacitive
GESTURE COMMAND: Yes
REMOTE COMMANDER: RM-X170
PARKING CONTROL: Yes
ASPECT RATIO SELECT: Yes
REAR VIEW CAMERA-IN MARKER SETTING: Yes
MENU: English / Spanish / French / German / Italian / Russian / Portuguese / Thai Simplified Chinese / Traditional Chinese / Korean / Arabic
ID3 TAG: English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic
