The new X-Series speakers combine proven technologies, superior materials and innovative design to reproduce sound so accurately, you’ll feel like you’re right in front of the performance.
Hi-Res Audio is the next level of digital audio for music fans alike and requires an incredibly wide dynamic range to reproduce music with amazing realism and depth. The X-Series speakers are Hi-Rez compatible and when paired with other X-Series components, provide an incredible Hi-Rez Audio experience.
A NEW APPROACH TO SOUND QUALITY
“Good enough” is a common phrase used to describe many factory vehicle sound systems these days. Alpine’s top sound engineers from all over the world gathered in Alpine headquarters to deeply research and evaluate the state of in-car sound from various sources including aftermarket sound systems and high-end factory systems.
NEW CONE MATERIAL
The X-Series’ speaker cone is made from a tightly interwoven Nano-fiber material. The extremely small diameter fibers create a damped, rigid cone structure while staying lightweight. Because of this light rigidity, the X-Series speaker is capable of highly accurate sound reproduction while maintaining a soft tonality. The cone’s resistance to flex ensures there is very little to no discoloration of sound and phase shifts. The result is a highly accurate speaker that is well staged in front of you.
Alpine’s High Amplitude Multi-Roll surround is a patented technology originally implemented in subwoofers to increase excursion while maintaining accuracy and linearity. This technology has made its way into midrange speakers and the results have been spectacular. The multi-roll design allows an even unfolding of the surround which creates incredible linearity and colorization rejection.
RADIAL RING MAGNET
Repositioning the already powerful neodymium magnet to the center of the voice coil allows for direct drive of the coil. A traditional magnet mounted outside of the voice sends its magnetism through the top and bottom plate resulting in losses of magnetic strength. This direct-drive effect allows for increased efficiency and accuracy. A side effect of moving the magnet into the center pole is the ability to reduce the size of the outer basket making it easier to fit in various vehicle applications.

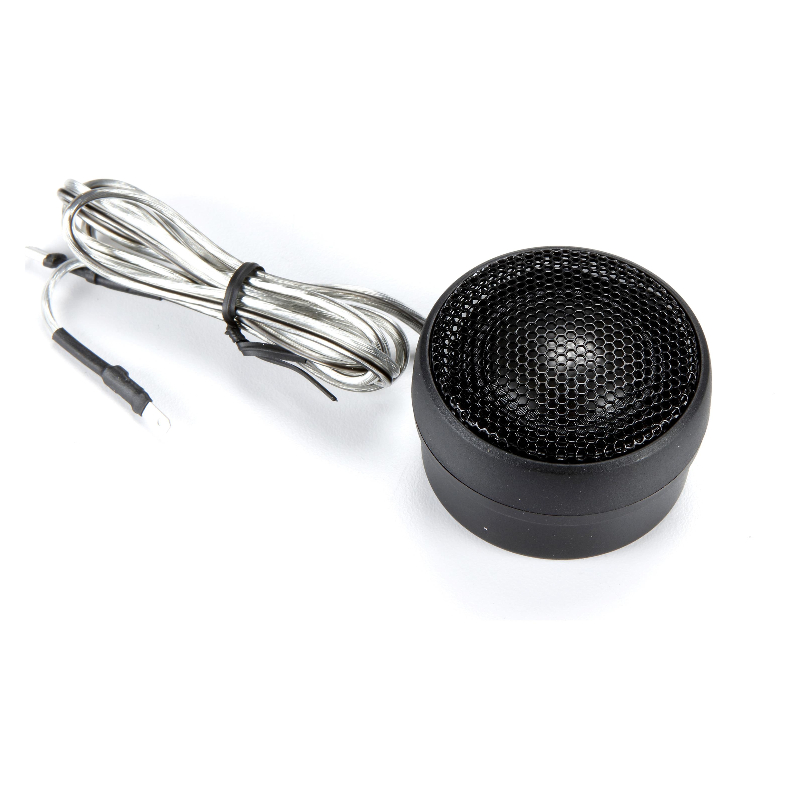

CARBON GRAPHITE TWEETER
The tweeter’s diaphragm is built from a sheet of carbon graphite which enables it to reproduce frequency ranges in the upper 55kHz range, usually achieved using a harsher, hard dome tweeter like Aluminum or Titanium. Carbon graphite allows us to hit those High-rez audio-compatible frequencies while maintaining the softer, more damped sound qualities of a soft dome.

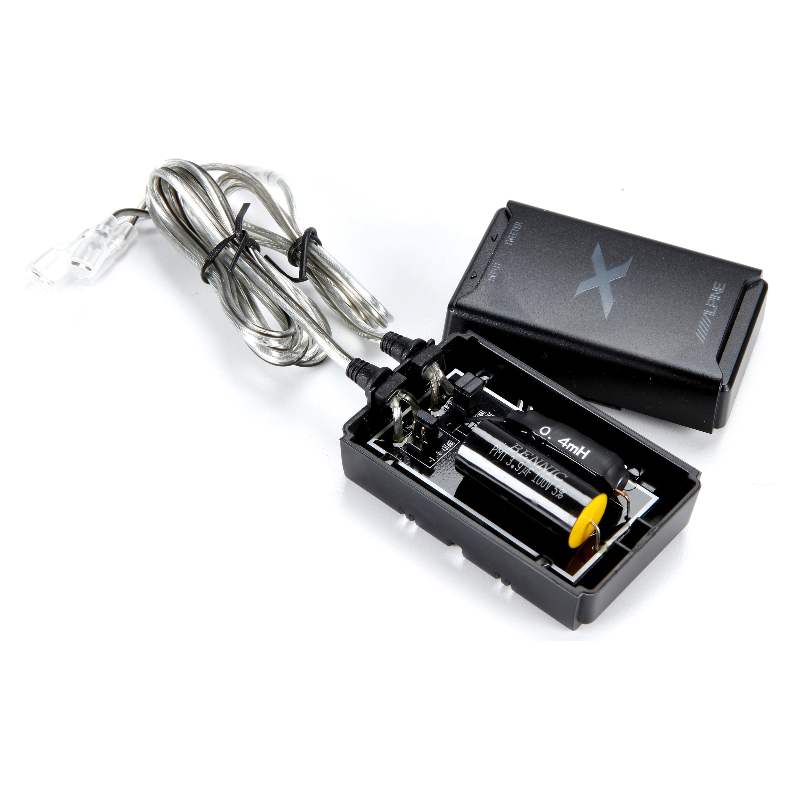

SIMPLIFIED INLINE CROSSOVER
With the introduction of the nanofiber cone, the X-Series’ midrange is capable of reproducing some incredible detail in the upper frequency range, known as transients. These harmonic notes are details lost when a low past filter is introduced. Along with limiting these frequencies, a low pass filter can introduce phase shifts in the upper frequency ranges which create time smearing and other phase issues. To ensure proper detail reproduction and imaging, we allow the midrange to play in full range and include a simple high pass filter for the tweeter. As a system, these speakers are able to play highly detailed music passages where you can feel the musicians presence in front of you.
Diameter : 6.5 Inch
Sensitivity : 89 dB
Frequency Response : 55-50000 Hz
Peak Power Handling : 360 Watts
Shallow Mount : No
RMS Power Handling : 120 Watts

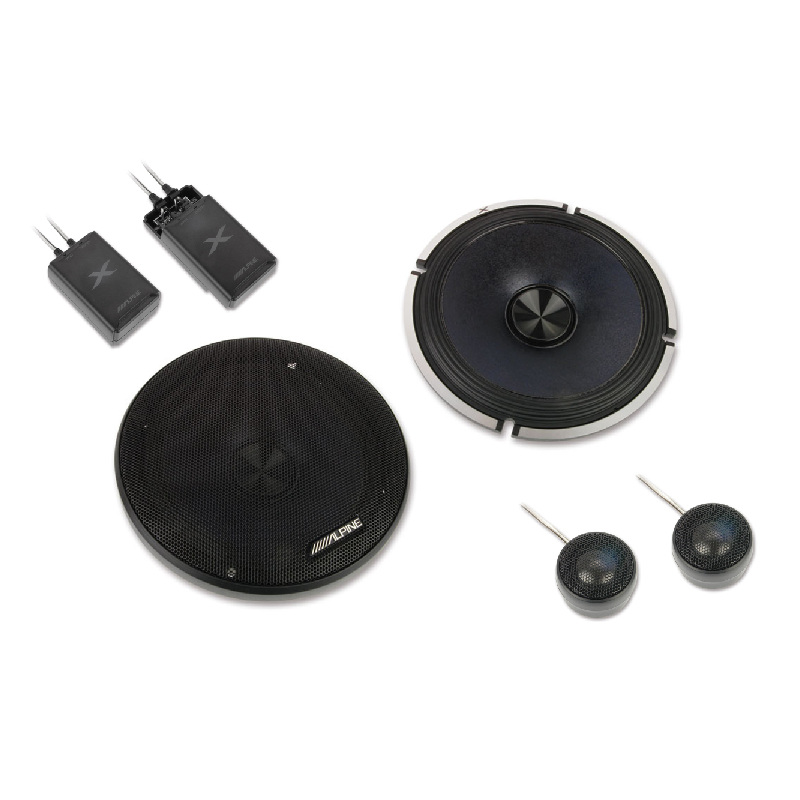

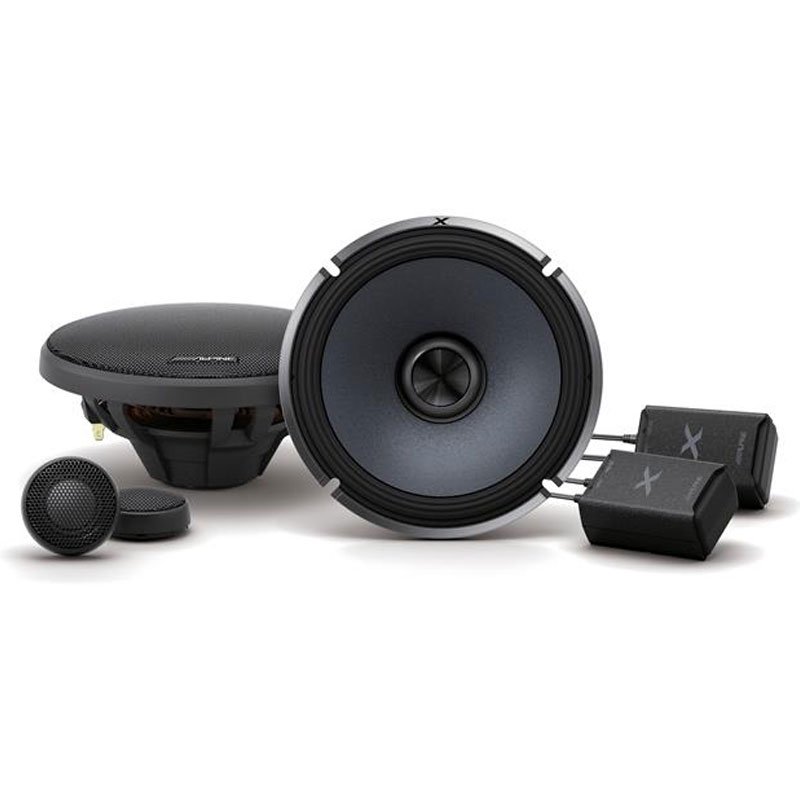

Component speaker system includes two woofers, two tweeters and two external crossover networks
6-1/2" nano-fiber woofer with High Amplitude Multi-Roll surround
1" carbon graphite dome tweeter
Handles up to 120 watts RMS (330 watts peak power)
Frequency range: 55-50,000 Hz
Sensitivity: 89 dB
Woofer top-mount depth: 2-5/16"
Max: 720 W per set/ 360 W per side
RMS: 240 W per set/ 120 W per side
Recommended power range: 10 - 120W RMS
Hi-Res Audio compatible
Nano-fiber woofer cone
1" carbon graphite tweeter
Adjustable tweeter attenuation: 0dB, +3dB, -3dB
Adjustable tweeter phase: Normal or reverse
A-Pole type neodymium magnet
Top-mount Depth: 2-5/16"
Cutout Dimensions: 5-13/32"
4 ohms impedance
Frequency Response: 55 - 50,000 Hz
Sensitivity: 89 dB
