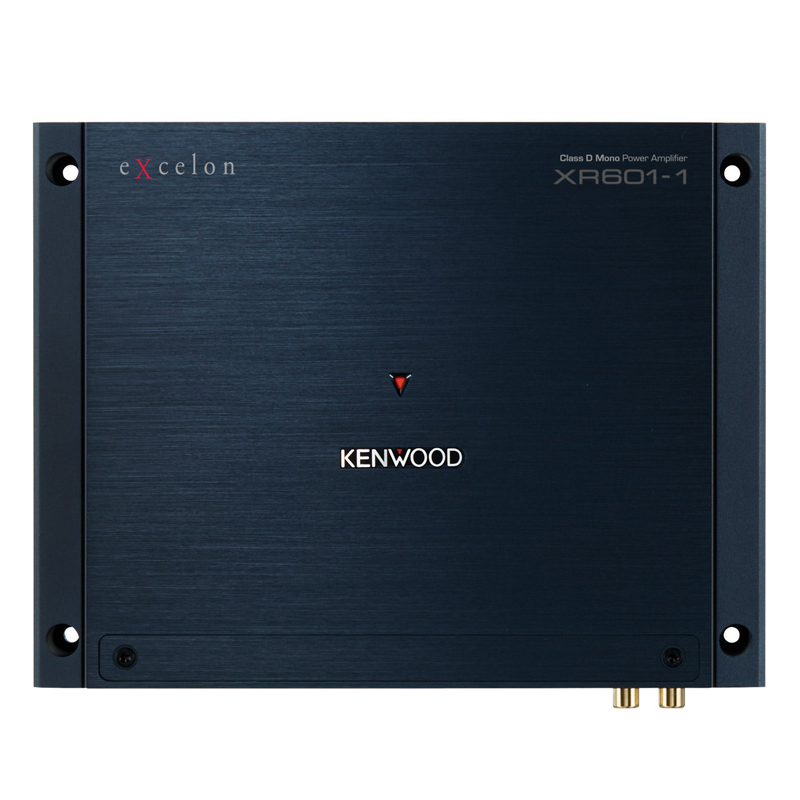

Kenwood Excelon XR601-1 Class D Monoblock Car Amplifier
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Mono subwoofer amplifier
- •Three 30A ATM mini-blade fuses (installed)
- •Remote Commander
- •Flat washer
- •Hex nut
- •20' Remote cable (RJ-14 modular plugs on each end)
- •4mm Allen wrench
- •2.5mm Allen wrench
- •Four 5/8" self-tapping screws
- •Warranty card
- •Owner's Manual
High Performance Parts
The Kenwood Excelon XR601-1 mono amplifier is a true powerhouse designed to deliver raw power and elevate your audio car experience. With an RMS power output of 600 watts at 2 ohms, the XR601-1 amplifier provides a commanding audio experience. It drives your car audio system effortlessly, delivering intense and precise sound reproduction with exceptional clarity and accuracy.
Deep Bass Sound
The XR601-1 amplifier boasts a Class D design, ensuring efficient power delivery and minimal heat dissipation. This results in improved overall performance and reduced power consumption, making it an excellent choice for those looking to enhance their audio system without draining their vehicle's electrical resources.
Enhanced Signal to Noise Ratio
Equipped with adjustable low-pass and variable bass boost, the XR601-1 allows you to fine-tune your sound to perfection. Tailor the audio output to your preferences, optimizing the bass response and achieving the ideal balance for your music. Built with durability in mind, the XR601-1 features robust construction and reliable components. Its solid build ensures longevity, allowing you to enjoy its powerful performance for years.
Specialized Circuit Design
The Kenwood Excelon XR601-1 mono amplifier is a force to be reckoned with, delivering impressive power, efficiency, and customizable sound options. With its unmatched performance, this amplifier elevates your car audio system to a new level, allowing you to experience music with intensity and precision.
- Maximum Power : 1200 Watts
- Low Frequency Response : 50-200 Hz
- Number of Channels : 1
- Frequency Response : 20-200 Hz
- RMS Power Output : 400x1 Watts
- Channel Separation : No
- Amplifier Class : D
- Fuse Rating : 30x3 A
- XP750-SE OFFER : Yes
Features:
- CTA-2006 Compliant: CTA-2006 is a system of testing and measurement methods for mobile audio amplifiers. This voluntary standard advocates a uniform method for measuring an amplifier's RMS power output and signal-to-noise ratio. CTA-2006 allows consumers to compare car amplifiers and receivers on an equal basis. Using CTA-2006 criteria, the Kenwood Excelon XR601-1 is rated at 400 Watts RMS x 1 channel with a 78 dBA signal to noise ratio.
- Specifications: The manual also lists these non CTA-2006 compliant
- Power: 600 watts x 1-channel (into 2Ω at 100 Hz, with no more than 1% THD, 14.4 volts)
- Signal to Noise Ratio: 100 dB (at rated power, 4Ω, 14.4V)
- Mono-Power Amp Design: The Kenwood Excelon XR601-1 is designed with specific features to power your subwoofers with a frequency range between 20 and 200 Hz. This amplifier is not designed to power a full-range speaker.
- Wired Remote Control: The XR601-1 includes a wired remote control with a 20-foot cable that allows you to adjust the volume of the subwoofer from the cabin of the vehicle.
- Class D Amplifier Design: The amplifier design is Class D, which uses digital switching power supplies. The result is much higher efficiency (less heat generated) than Class AB.
- Low-Pass Filter: The Excelon XR601-1 has a low-pass filter, continuously variable from 50 to 200 Hz. The slope is -24dB/octave. The crossover is always engaged (it cannot be bypassed).
- Bass Boost: The bass boost circuit is centered at 40 Hz; boost is variable from 0 to +18 dB.
- Aluminum Heat Sink: The aluminum heat sink increases the amplifier's heat dissipation efficiency, increasing the life of the amplifier.
Specifications:
- Class: D
- Version: 2 ohms
- Channels: 1
- RMS Power Rating:
- 4 ohms: 1 channel x 400 watts
- 2 ohms: 1 channel x 600 watts
- 1 ohm: N/A
- Max Power Output: 1200 watts
- Signal to Noise Ratio: 100dB
- Frequency Response: 20Hz to 200 Hz
- Variable low-pass filter: 50 - 200 Hz, 24 dB/octave
- Input Sensitivity: 0.2V-5V
- Total Harmonic Distortion: 1%
- Fuse Rating: 30A x 3
- Dimensions (W x H x D): 220 x 35 x 169 mm (8-11/26 x 1-3/8 x 6-5/8)
- UPC: 019048222428
- Weight: 3.53
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
