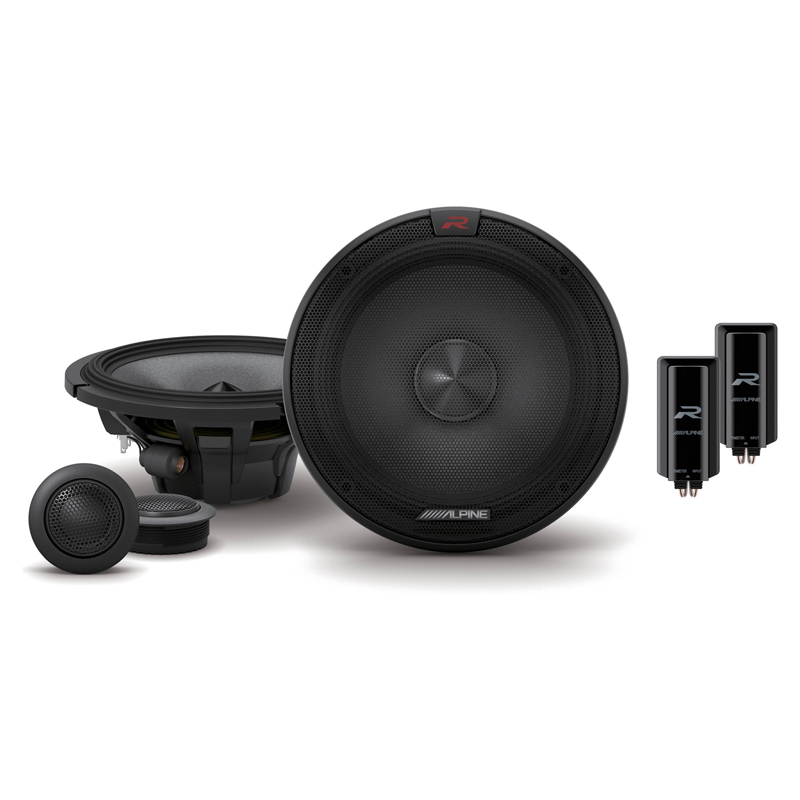

Alpine R Series 6-1/2" 2-Way Component Speaker System
We are an Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

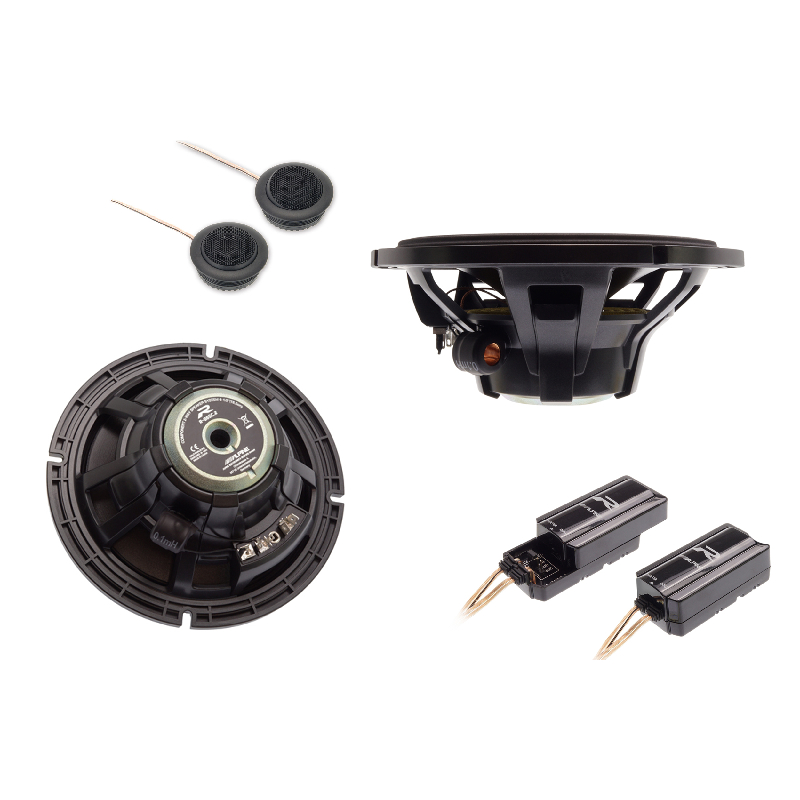

• (2) Woofers

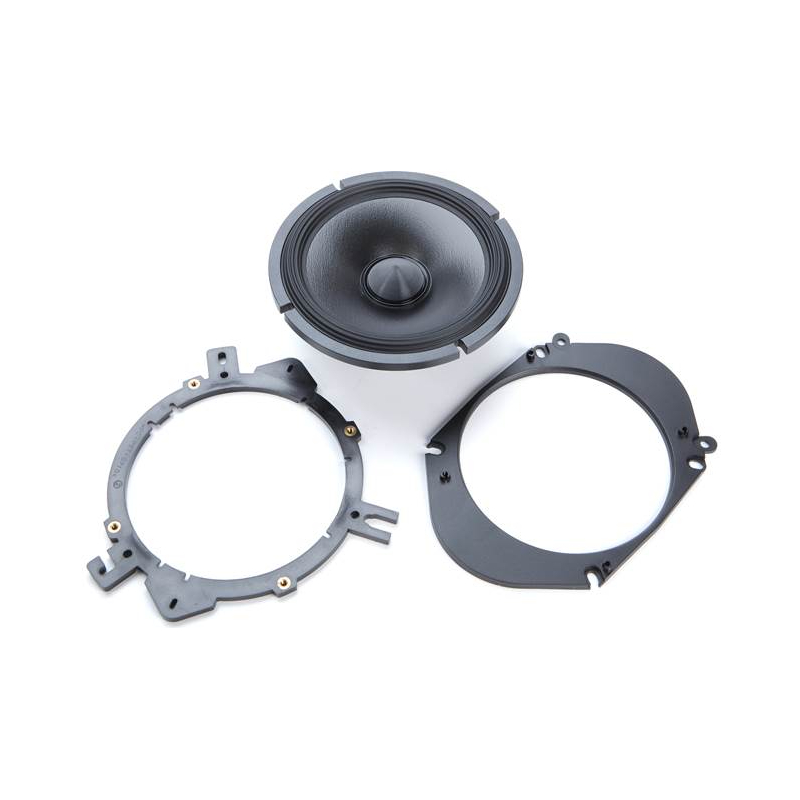

• (2) 6-1/2" Adapter rings (includes GM/Chrysler)
• (2) 6x8 Adapter rings
• (2) Woofer grilles
• (2) Grille badges

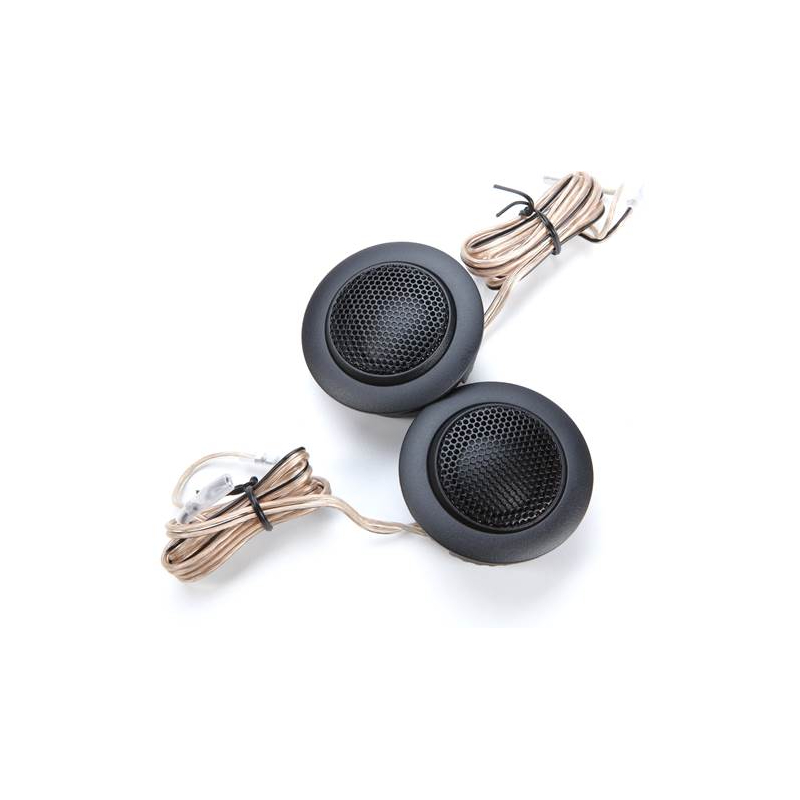

• (2) Tweeters (each has an attached 30" length of wire)
• (2) Tweeter grilles (installed)
• (2) Swivel flush mount housings (with tweeters installed)

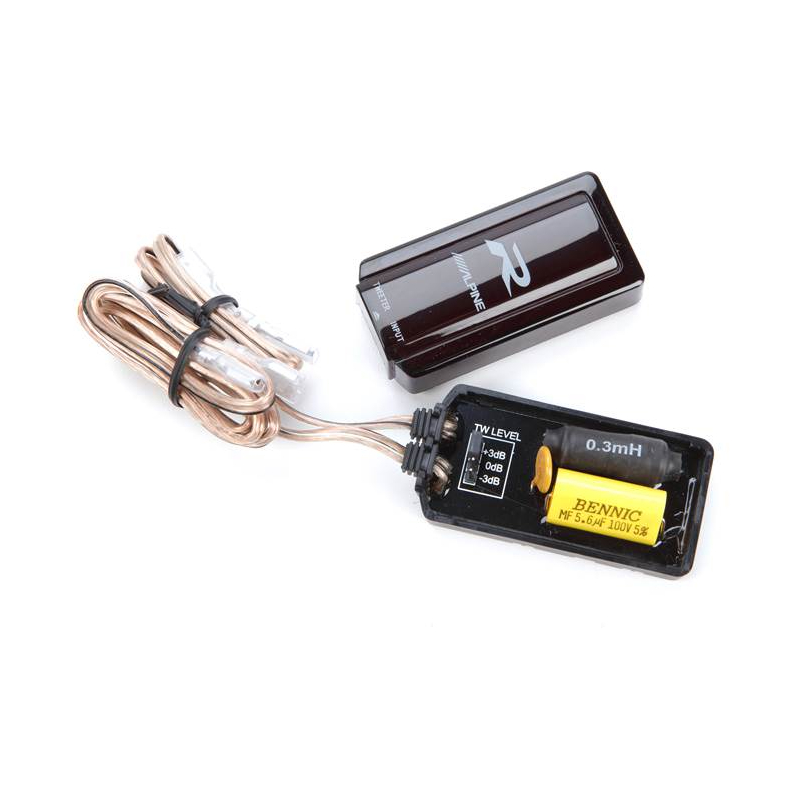

• (2) Crossovers (each has attached input and output wires)
• (2) Flush mount retention rings
• (2) Stealth brackets
• (2) Foam self-adhesive pads
• (2) Foam self-adhesive rings
• (8) 1-1/8" Screws
• (8) 1/2" Screws
• (8) Speed-clips
• (8) M4x12mm Machine screws
• (4) 5" Zip ties
• (2) Pieces of two-sided tape
• Warranty information
• On-line product registration note
• Important Notice sheet
• Template and specs on box
TURN IT UP
If you play your music loud and want others to know, the R-Series speakers are the match for you. You’ll enjoy a center sound stage with speakers that play loud and clear without distortion. The R-Series speakers are tuned with an emphasis on the high- and low-end frequencies, so they deliver power while naturally producing bright, active sound. They are the perfect power and performance match for the R-Series subwoofers and amplifiers.

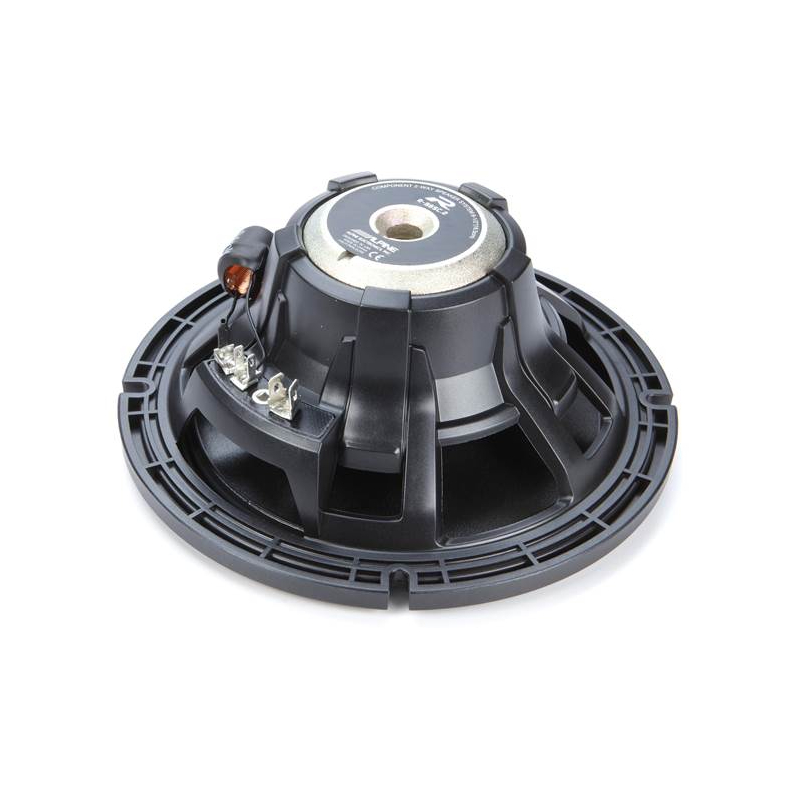

The woofers have a large, 35-millimeter (mm) voice coil which allows for greater heat dissipation, increased motor force, and improved power handling. The result is superior control and output. The R-Series speakers incorporate Alpine’s patented High-Amplitude Multi-Roll Surround (H.A.M.R.) for control and accuracy. The component models use a crossover with an in-line, passive design and reduced footprint, which contributes to easier installation.
EXCLUSIVE CONE TECHNOLOGY
The R-Series speakers use Alpine's exclusive high-strength, lightweight Carbon Fiber Reinforced Polymer (CFRP) cone technology. CFRP can be custom-formed so that its fibers align in the same direction as the curve and shape of the cone, thereby reducing resonant peaks and increasing the speakers' mid-bass performance and dynamic range. CFRP is also used as a tweeter diaphragm, enabling the speakers to perform into the 45kHz range and making them complaint with High-Resolution Audio playback.
The R-Series speakers use a neodymium magnet which gives them a smaller mounting footprint, compared to other speaker brands. The R-Series speakers also use a new, shallower grill design. The result: An improved fitment design that lets the R-Series speakers fit into tighter install locations without sacrificing motor force.
Recommended Amplification: Up to 100W RMS per channel
Woofer Size: 6-1/2" (16.5cm)
Tweeter Size: 1" (2.5cm)
Cutout Diameter: 5" (12.8cm)
Mounting Depth: 2-3/8" (6cm)
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
Estimated Shipping Time for Special Order items is 1-3 weeks.
You may call our Customer Service Department at 310-526-8635 for a more accurate shipping estimate.
Special Order Product
Reserve Now. Risk Free!
This product is temporarily out of stock and estimated date of arrival is unknown but you may order this item today to reserve it.
Order for this item is processed on a first come first served basis
You can cancel the order anytime, risk free
Or, call us for alternatives at 310-526-8635
