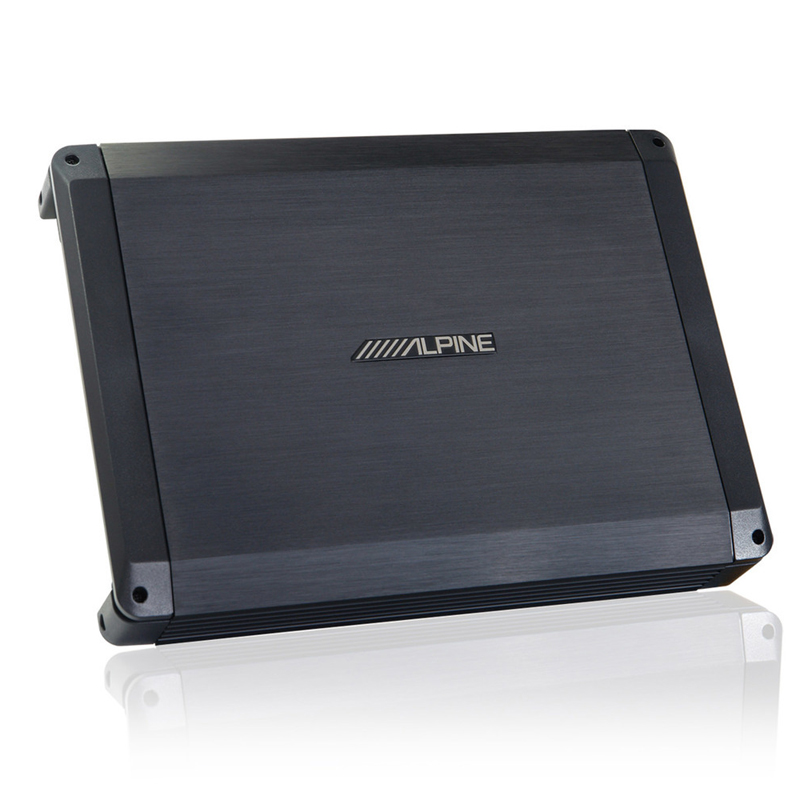

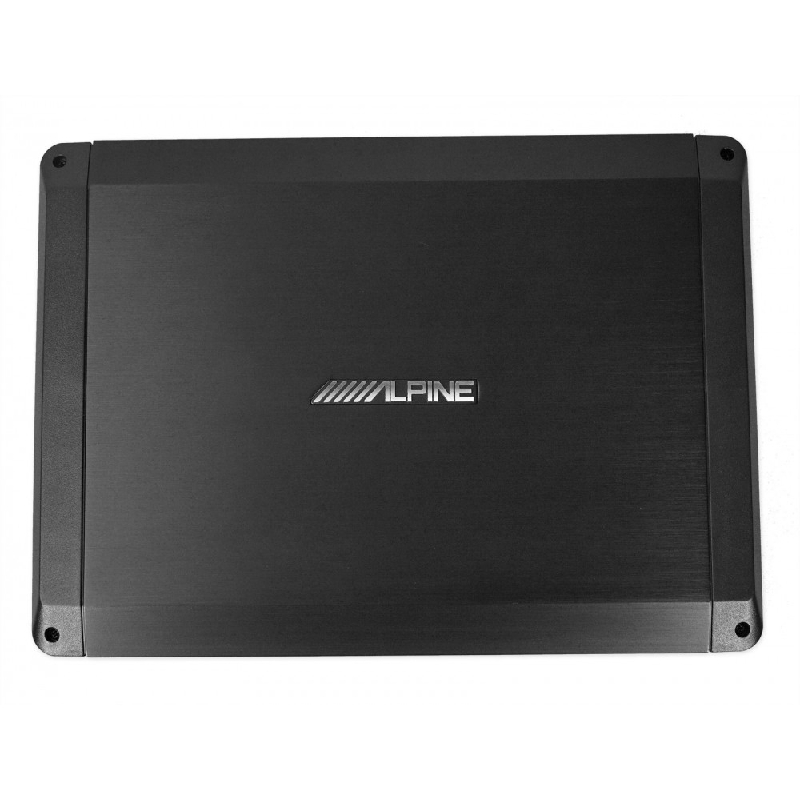

BBX Series 70W x 4 @2Ohms (600W Max Power) Class A/B 4-Channel Car Amplifier
We are an Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• 4 Channel amplifier
• Owners Manual
• Warranty Card
• Self-Tapping Screws (M4 x 20)
• Screw (M3 × 12)
• Terminal Cover
Designed to Fit in Almost All Vehicles
A Class A/B amplifier that can push most car audio systems to their limit, the Alpine BBX-F1200 is designed to fit in almost all vehicles, so you can get the Alpine sound quality that car audiophiles are longing for at a budget-friendly price point.
MOSFET Power Supply
With flexibility, you can set the amplifier in a 4, 3, or 2-channel mode, depending on what your car audio system needs. The Alpine BBX-F120 is equipped with an aluminum heatsink to keep it cool even after long hours of use. The amplifier also uses a MOSFET power supply for stable current flow.
High Pass and Low Pass Filters
The Alpine BBX-F1200 can handle a continuous power output of 50 Watts at 4 ohms and 70 Watts at 2 ohms. The amplifier also has an outstanding frequency response of 5 Hz to 50 kHz and a sensitivity rate of 95 dB, which means that it can deliver a highly extensive full-range frequency performance while going loud at high volume levels with minimal distortion.
Equipped With Variable High and Low-pass Filters
The full-range amplifier is also equipped with variable high and low-pass filters for a more defined audio reproduction and a variable bass boost of up to 12 dB, which can be used if you feel that the amplifier still lacks the bass output that you are looking for.
Maximum Power : 600 Watts
Low Frequency Response : 50-500 Hz
High Frequency Response : 50-500 Hz
Number of Channels : 4
Frequency Response : 5-50000 Hz
Built In Crossovers : Yes
RMS Power Output : 70x4 Watts
Amplifier Class : A/B
Fuse Rating : 40x1 A

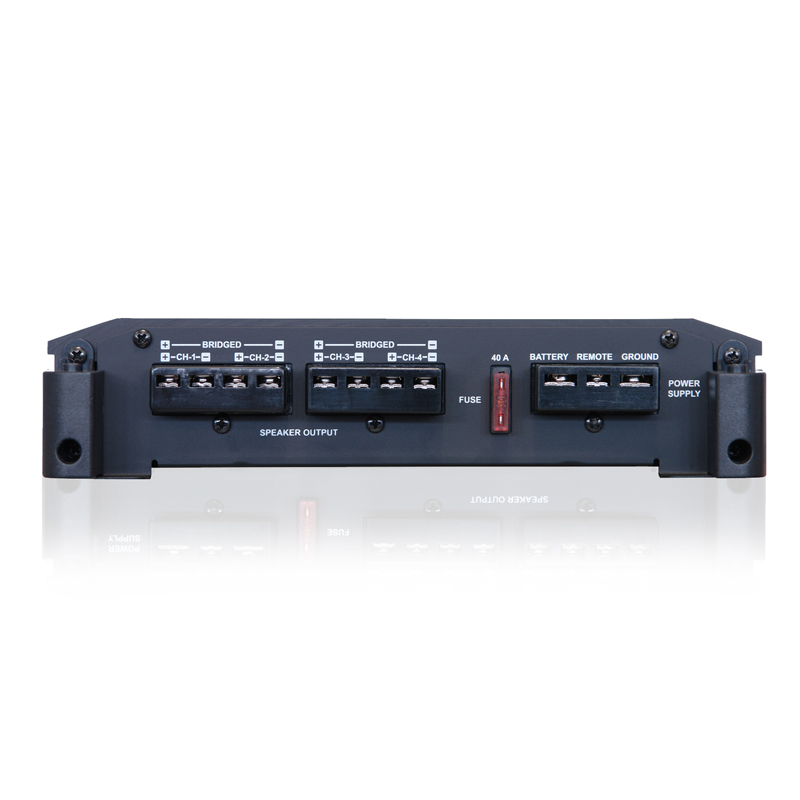

Terminal Layout: Two-Sided
Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals
Amplifier Type: Class-A/B
Channel Design: 4/3/2 Channel
Thermal Control: Thermal Management Control
Power Supply: DC-DC PWM Power Supply
Power Supply Design: MOSFET Power
Current Protection: Over-Current, Over-Voltage and Thermal Protection

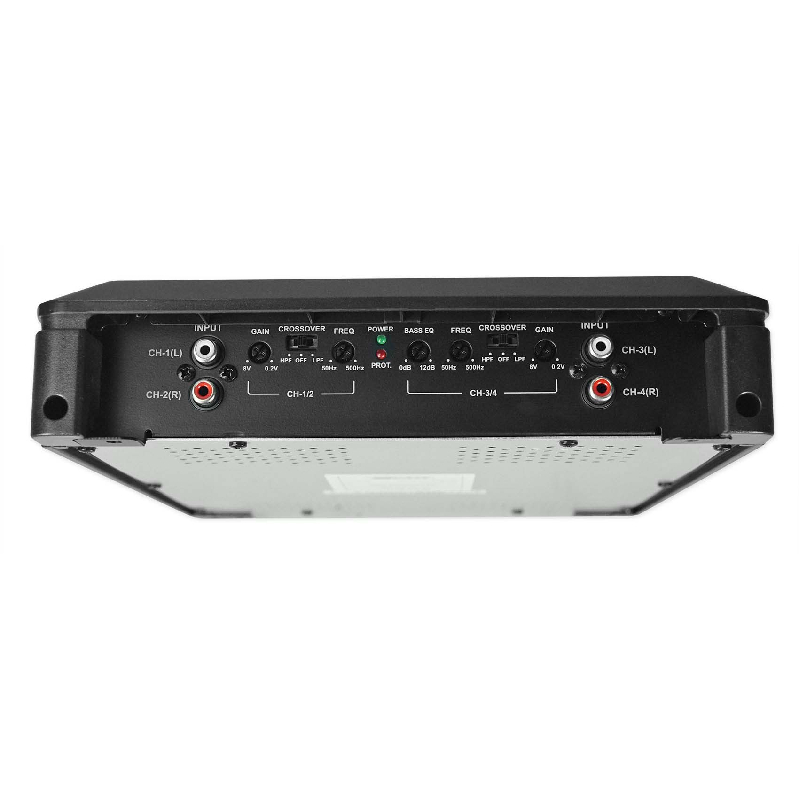

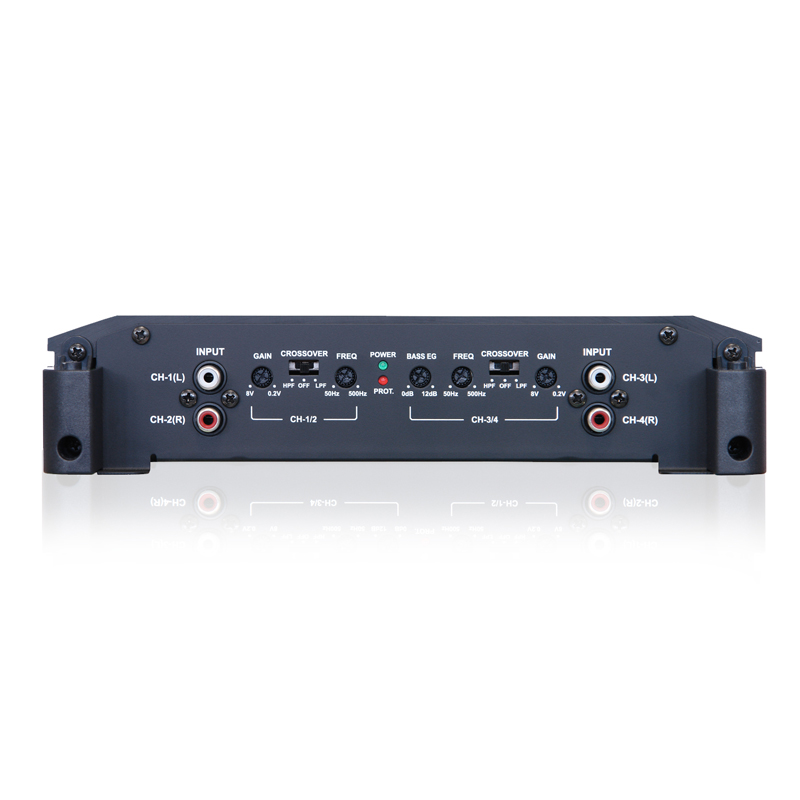

Crossover: Variable Low-Pass / High-Pass
Green/red status LED
2 pair RCA pre-inputs
Total Max Power: 600W
Per Channel into 4ohms (≤1%THD+N): 4 x 50W
Per Channel into 2ohms (≤1%THD+N): 4 x 70W
Bridged into 4ohms (≤1%THD+N): 2 x 130W
Crossover Frequency (Variable, OFF/LPF/HPF Selectable)1/2 Ch: LP/HP: 50Hz – 500Hz
3/4 Ch: LP/HP: 50Hz – 500Hz
EQ (Equalizer): Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain 0dB to +12dB (3/4 Ch only)
Footprint: 330 mm x 52 mm x 240 mm
Power Requirements: 14.4 V DC (11 V to 16 V)
Input Sensitivity: 0.2 - 8.0 V
Frequency Response: 5 Hz - 50 kHz (+ 0,-3 dB)
Speaker Impedance: 4 or 2 Ω
Signal to Noise: S/N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB
