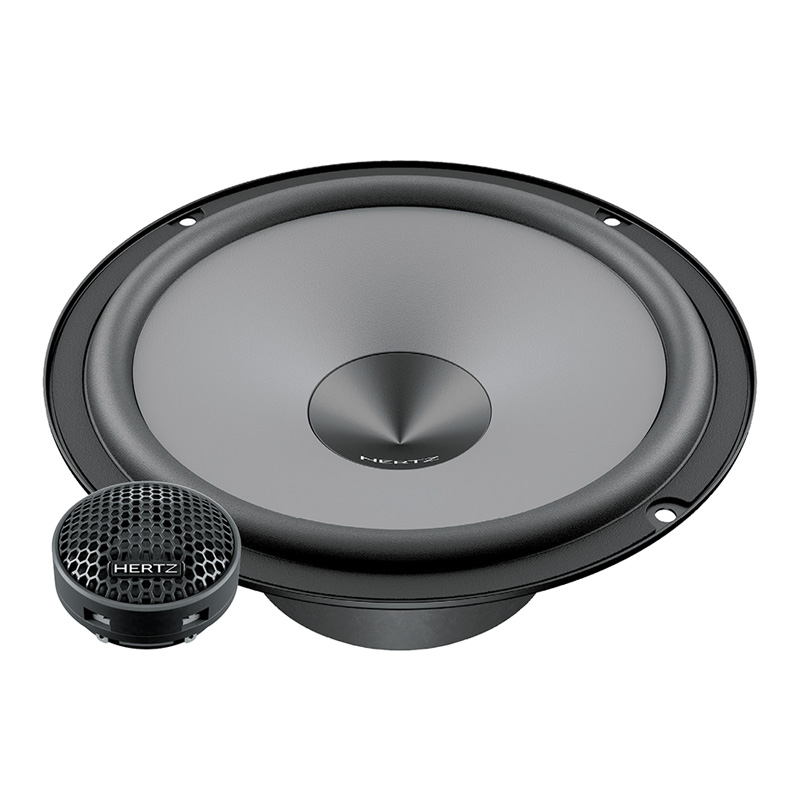

K 165 Component Speaker Kit
The K 165 Uno system features a 24 mm (0.9') diaphragm Neodymium tweeter with PEI dome, for a brilliant reproduction of high frequencies in a compact size. The annular acoustic lens is optimized for exceptional off-axis performance, ensuring an accurate stereo image. The 6.5” woofers features a pressed-paper cone with foam surround, for high SPL and solid bass. The 25 mm(1') woofer voice coil driven by a high-flux density ferrite magnet offers a highly dynamic power handling for a powerful undistorted sound. The 6dB/Oct crossover is integrated on the tweeter wiring for an easy OEM upgrade.
- Diameter : 6.5 Inch
- Sensitivity : 93.5 dB
- Frequency Response : 55-23000 Hz
- Peak Power Handling : 300 Watts
- RMS Power Handling : 75 Watts
Product Highlights:
- T 24 – Tweeter:
- 24mm diaphragm Neodymium tweeter with PEI dome, for a brilliant reproduction of high frequencies in a compact size.
- Annular acoustic lens optimized for exceptional off-axis performance.
- 6dB/Oct crossover integrated on tweeter wiring.
- Mounting accessories for external or embedded mounting included.
- V 165 – Woofer:
- V-cone® design for best off-axis response, clear mid-high frequency detail and powerful bass.
- Foam surround combining high sensitivity and deep bass response.
- Pure copper 25mm (1 in.) voice coil woofer for high dynamic power handling.
- High flux density 80mm (3.15 in.) ferrite magnet for a powerful undistorted sound.
- Easy-to-install DIN size basket protected by abrasion-resistant dust paint.
Specifications:
- Power Handling - Peak W: 300
- Power Handling - Continuous W: 75
- Impedance: 4-Ohms
- Frequency response Hz: 55 ÷ 23k
- Sensitivity dB SPL: 93,5
- Voice coil Ø mm (in.): 25 (1)
- Woofer size mm (in.): 165 (6.5)
- Tweeter size mm (in.): 24 (0.9)
- Woofer magnet: High density flux ferrite
- Tweeter magnet: Neodymium
- Woofer cone: Water-repellent pressed paper
- Tweeter dome: PEI
- Crossover type: 6 dB/Oct tweeter integrated
- Crossover cut off -
- UPC: 8018823120654
- Weight: 10
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
