Pioneer TS-A120S4E A Series 12” 400W RMS (1400W Peak Power Handling) Single 4 Ohms Voice Coil Impedance Car Subwoofer
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•1400W Peak (400W RMS) 12" A-series 4-Ohms Car Subwoofer
The Cone is Supported by a Rolled Rubber Surround
The Pioneer TS-A120S4E is a high-quality 12-inch subwoofer designed to deliver powerful and precise bass performance in-car audio systems. With its impressive features and reliable construction, it offers an enhanced audio experience that brings depth and impact to your music.

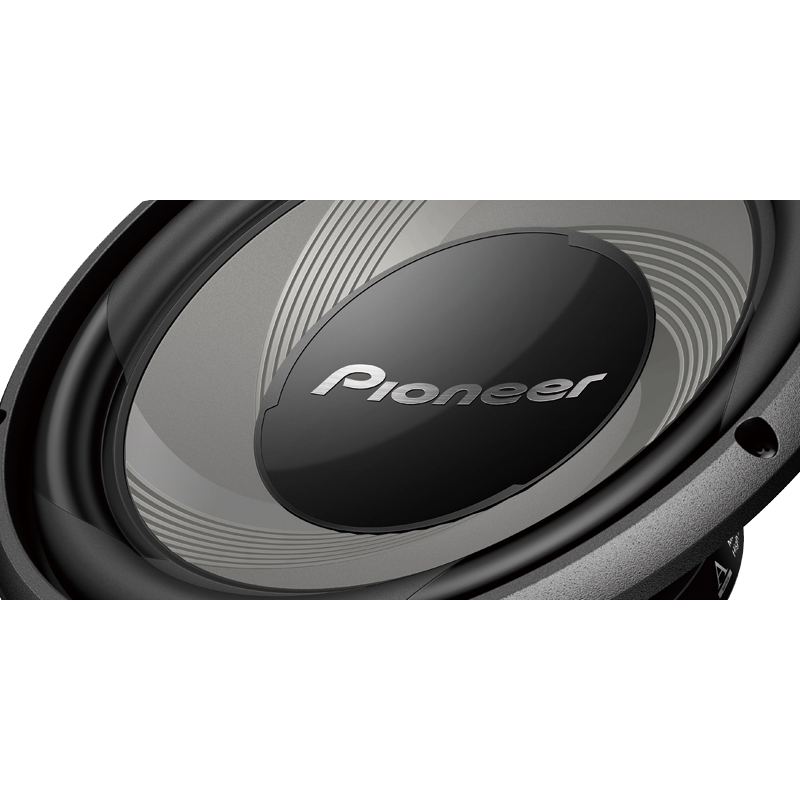

Featuring a rigid and lightweight cone made of injection-molded polypropylene, the TS-A120S4E ensures accurate and responsive bass reproduction. The cone is supported by a rolled rubber surround, which allows for controlled cone movement and minimizes distortion.
The Subwoofer Features a Compact and Shallow Design
This subwoofer is equipped with a 4-ohm single voice coil, capable of handling up to 1,400 watts of peak power and 400 watts of continuous power. Its heat-resistant voice coil ensures durability even during prolonged high-volume usage.
Designed with versatility in mind, the subwoofer features a compact and shallow design, making it easier to install in a variety of vehicles. It also offers flexible connectivity options, allowing integration with a wide range of car audio systems.
Reliable and Powerful Subwoofer
The Pioneer TS-A120S4E is a reliable and powerful subwoofer that elevates your car audio experience with its accurate bass reproduction, durable construction, and user-friendly design. Whether you enjoy crisp beats or thunderous lows, this subwoofer delivers the performance you desire.
Diameter : 12 Inch
Sensitivity : 96 dB
Impedance : 4 Ohm
Frequency Response : 20-125 Hz
Peak Power Handling : 1400 Watts
Top Mount Depth : 5-3/8 Inches
Number of Voice Coils : Single
RMS Power Handling : 400 Watts
Pioneer’s A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.

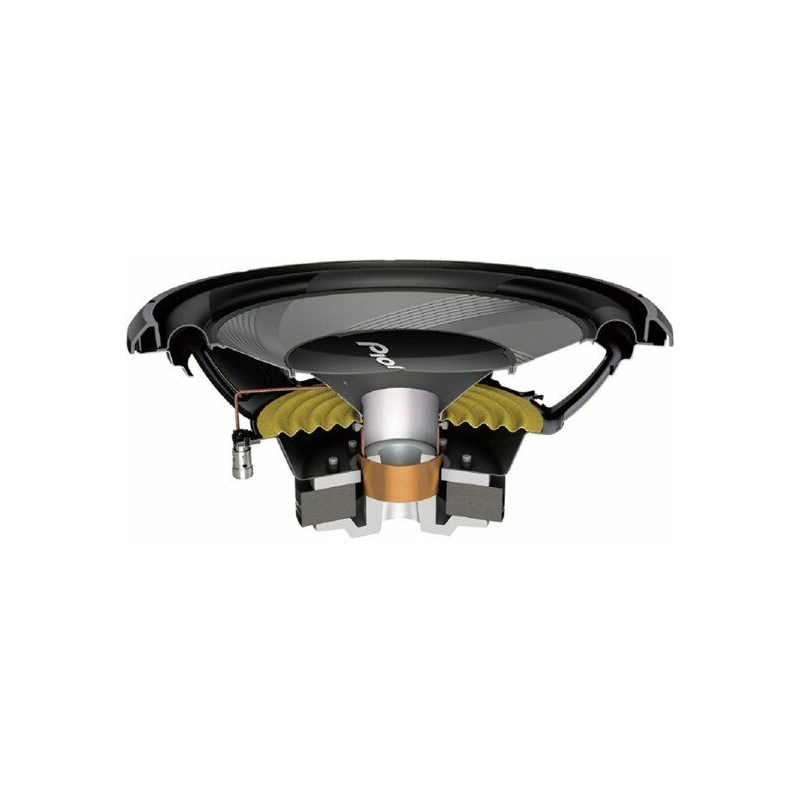

Specially designed voice coil offers higher power handling, linear movement and greater excursion for extreme bass output.
Cone provides increased strength and rigidity for optimized bass response.
System Type: Component Subwoofer
Sensitivity (1W/1m): 87 dB
Frequency Range: 22 Hz to 1.6 kHz
CTA-2031 Compliant: Yes
Warranty: 1 Year
Continuous Power handling (RMS) - Watts: 400 Watts
Maximum Peak Power Handling - Watts: 1400 Watts
Nominal Impedance - OHM: 4
Cone Material: IMPP - Composite
Center Cap Material: ABS
Surround Material: Rubber
Surround Type: Rolled
Basket Material: Stamped Metal
Magnet Material: Ferrite
Magnet Weight: 46 oz
Voice Coil Type: Single Voice
Voice Coil Bobbin: Alminum
Voice Coil wire: Copper
Damper: Poly cotton Aramid
Wire Terminals: Push Type
Unit Size (Dimensions): 12-1/2"
Mounting Depth: 5-3/8"
Cut Out dimensions: 11-1/8"
Equivalent Compliance (VAS) [L]: 56.1
Free Air Resonance (Fs) [Hz]: 32.1
Total Speaker "Q" (Qts): 0.7
Linear Excursion (Xmax) [mm]: 8.25
Recommended Sealed Box Volume [L]: 35.4
Port Box volume [L]: 42.5
Port Length: 6-1/2"
Port Diameter: 3"
