MB Quart MBQX-RAD-1 160 Watt STAGE 1 Audio System with LED Gauge Mount Radio (AM/FM/BT and Apple Control) with mounting accessory and harnessing
We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•Marine digital media receiver w/ inline 10A & 1A fuses

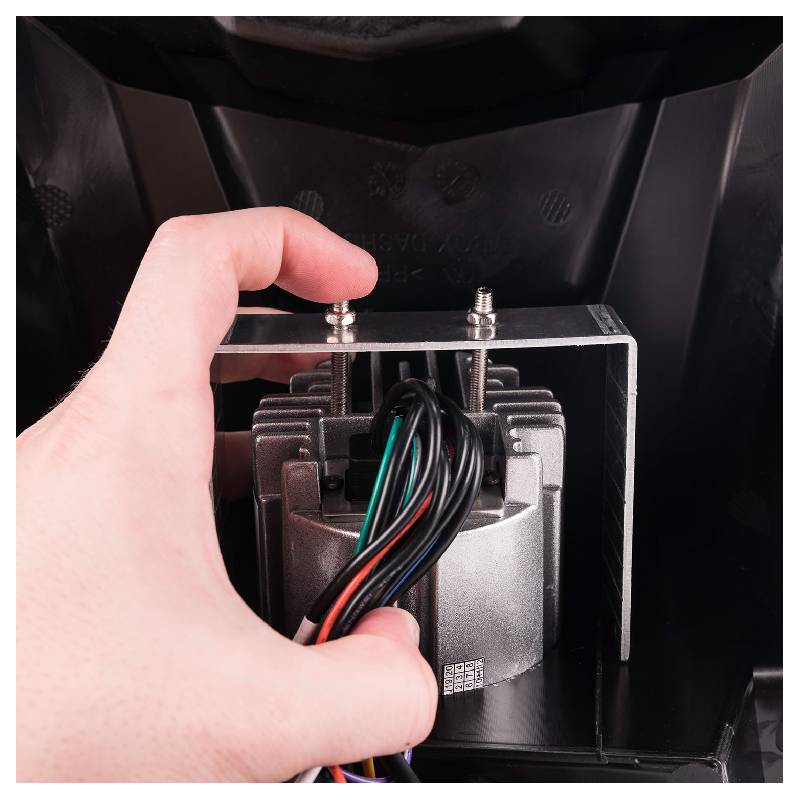

•Mounting bracket (pre-installed on radio)
•(2) Threaded studs/posts (pre-installed)
•(4) Nuts (pre-installed)
•(2) Lock-washers (pre-installed)
•(2) Front-covers (pre-installed)
•(4) 1-1/4" Screws
• Owner's Manual
You Won't Have to Worry About Your System Getting Swamped.

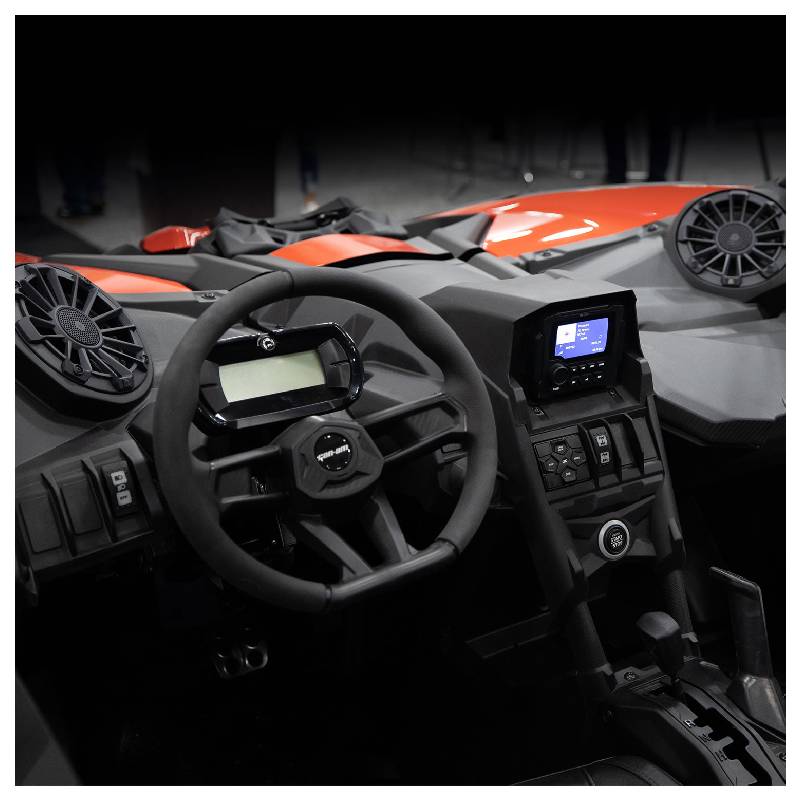

MB Quart designed this package to fit right into your Maverick X3, with no cutting and minimal hassle. It also comes with all the parts and pieces needed for a smooth, installation. All components are tough enough for trail duty, so you won't have to worry about your system getting swamped.
Digital Media Receiver
MB Quart's GMR-LED digital media receiver packs a lot of cool stuff into a compact, outdoor-ready package that's made for your Maverick. This AM/FM/WB receiver features built-in Bluetooth®, so you can pair up quickly and stream music stored on your phone. If you prefer to plug in, you'll find an AUX input and a charging USB input.

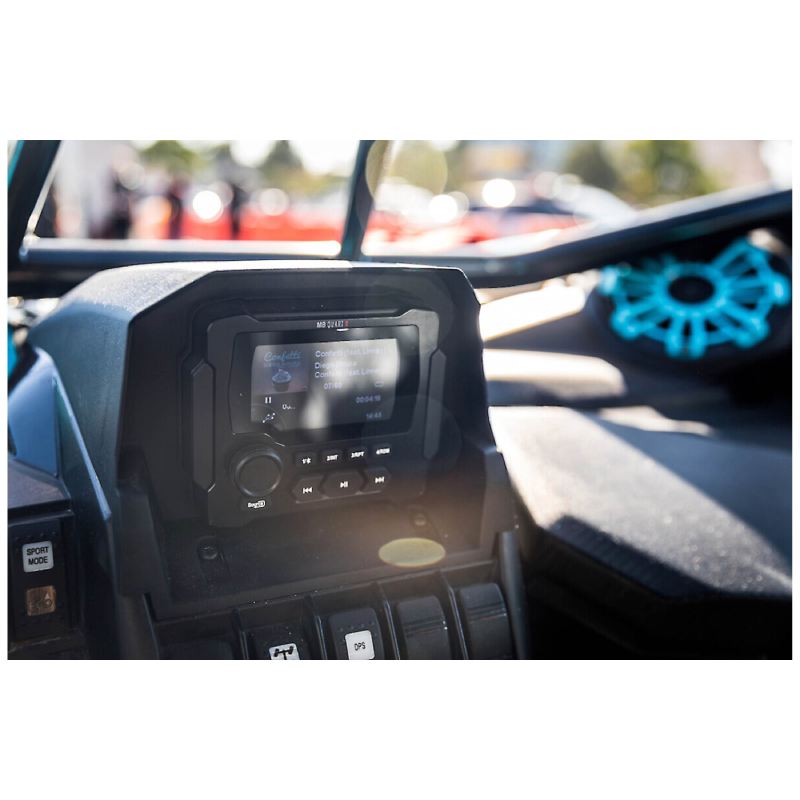

Overview: The MB Quart Nautic MBQX-RAD-1 Can-Am Maverick X3 radio package includes a GMR-LED AM/FM/BT powersports radio with Apple Control, pre-mounted into an installation kit that's designed to fit select Can-Am X3 vehicles.

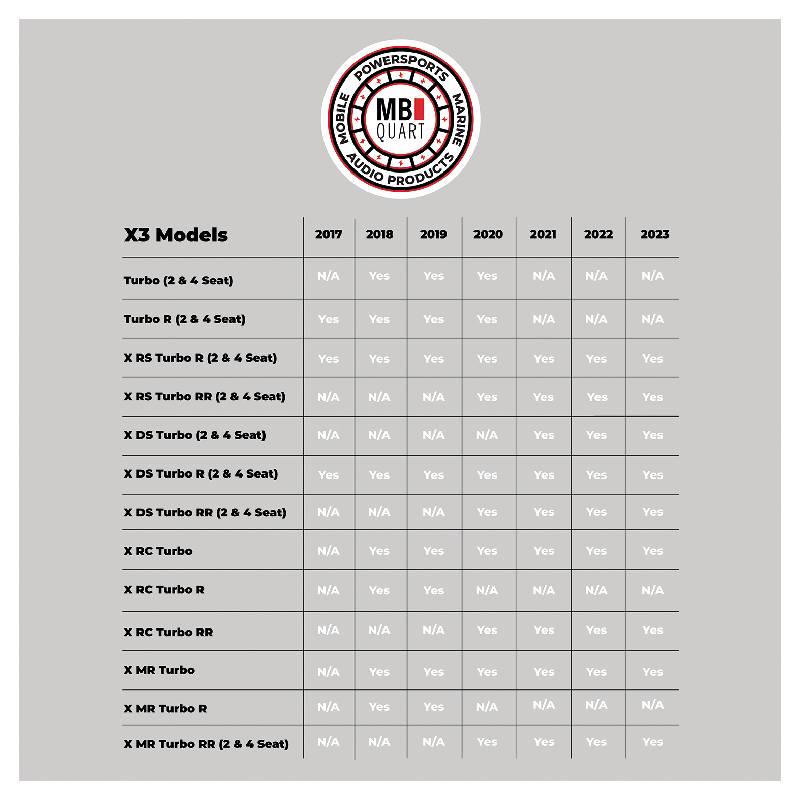

Compatibility: The MBQX-RAD-1 radio package is designed specifically for installation in 2017-2020 Can-Am Maverick X3 vehicles.

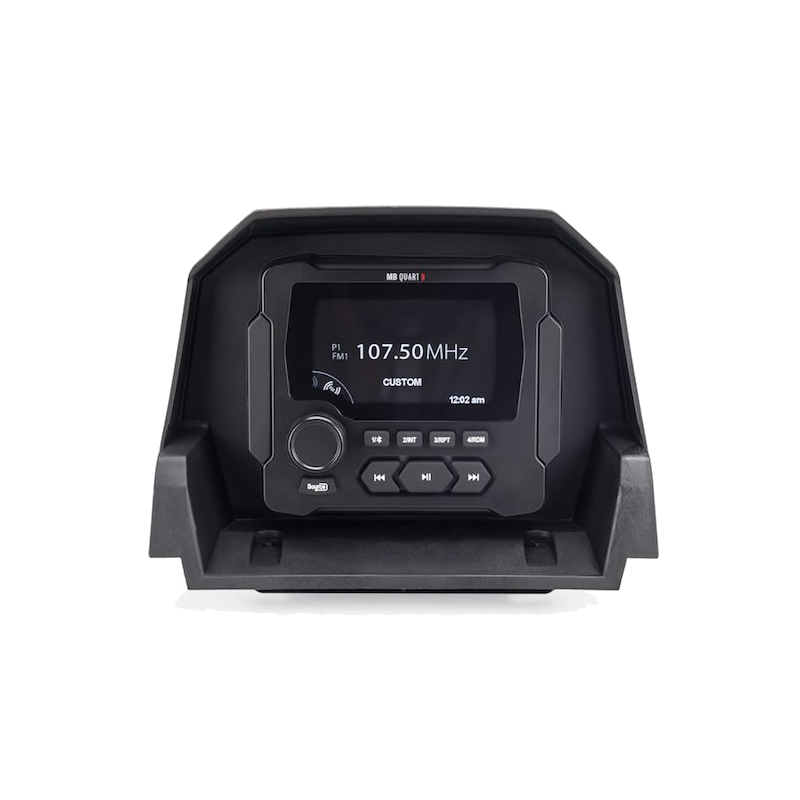

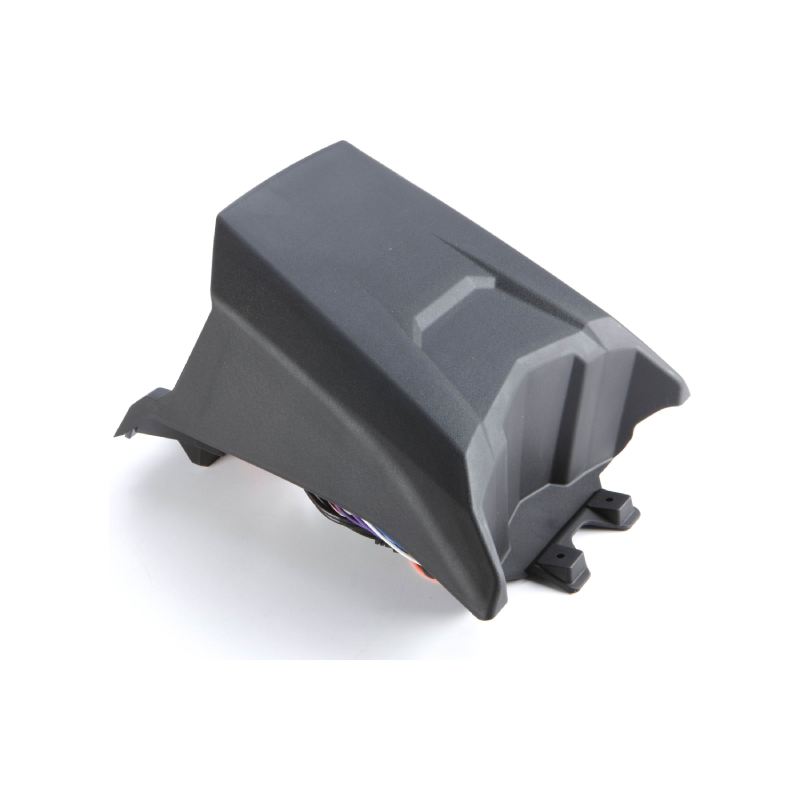

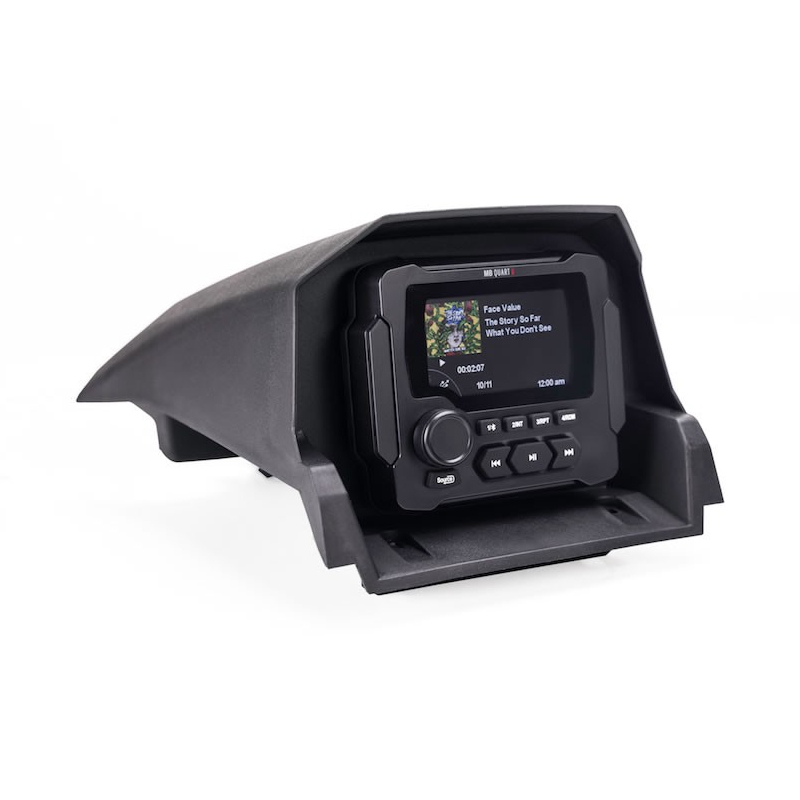

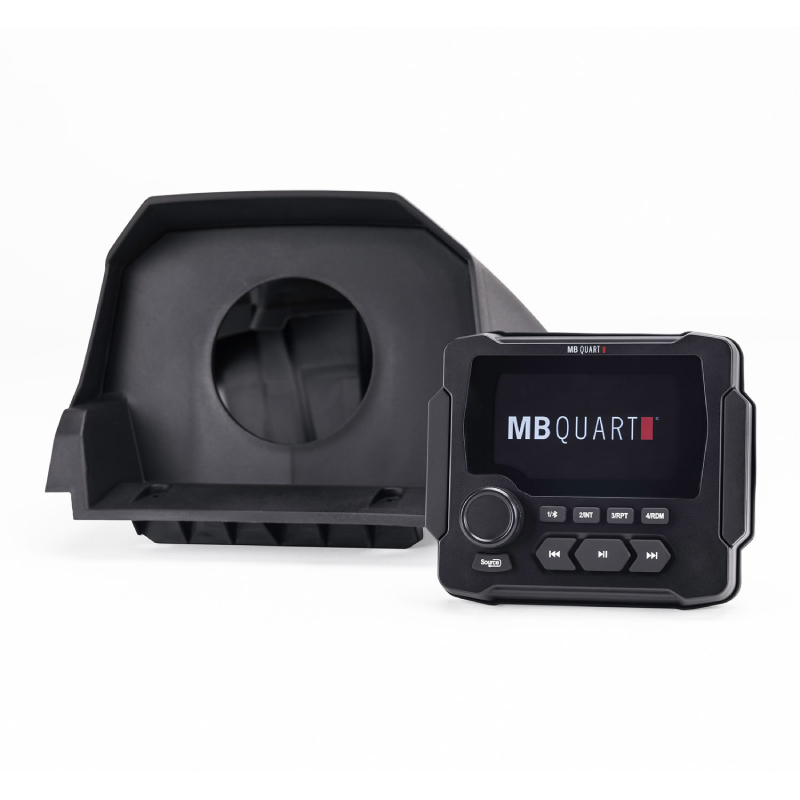

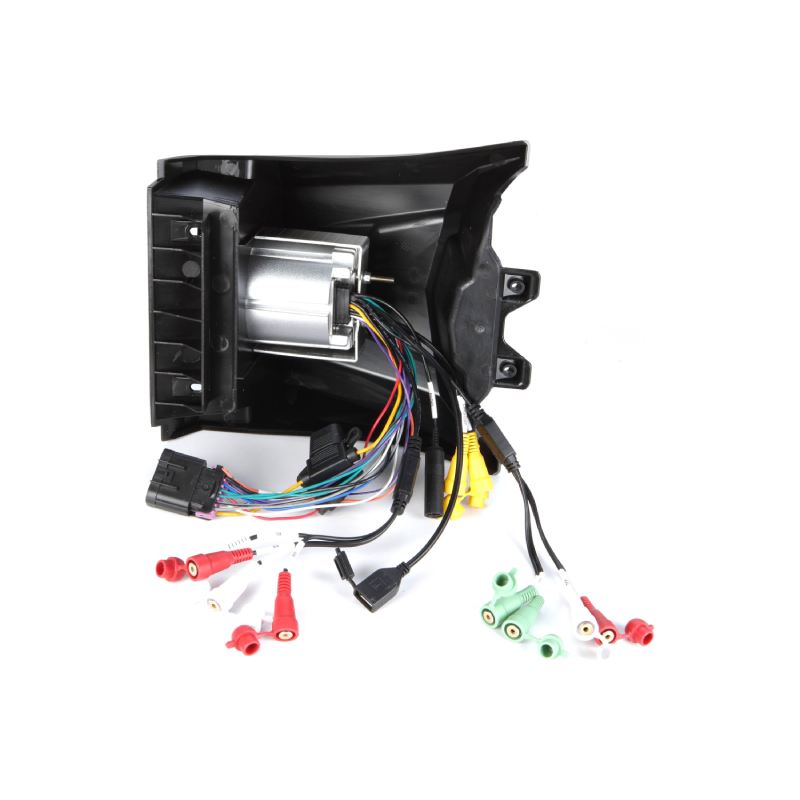

Can-Am X3 Mounting: The GMR-LED headunit comes pre-installed into the included mounting bracket that's designed to fit directly into the Can-Am X3 factory radio location.
Wiring: The radio wiring is terminated in a proprietary 12-pin harness that plugs directly into the X3 factory radio wiring, making installation much easier. The harness adapter can be cut off if installing the radio in another type of powersports vehicle.
Optional Mounting: The GMR-LED radio can be installed in other powersports vehicles, without using the included mounting bracket. The unit requires a round cutout in a bulkhead or dash for inserting the chassis, and will fit in standard 3" round gauge-style openings. The integrated protective gasket, supplied U-bracket, and included hardware secure the unit in place behind the mounting surface. Or, you can secure the unit to the front of the mounting surface using four screws (not included); the pre-installed front-covers must be removed to access the screw holes.
Chassis: 3.0" (diameter) x 3.0" (depth)
Face-Plate: 4.9375" (w) x 4.125" (h) x 1.5" (d)
Cutout: 3.0" (diameter) x 4.0" (depth)
Screw Hole Spacing: 4.5" (w) x 1.625" (h)
Marine Grade Protection (IPX67): The MB Quart Nautic GMR-LED meets or exceeds the American Boat and Yacht Council (ABYC) marine electronics standards and the American Society for Testing and Materials (ASTM). It has been designed and tested against the elements and built to handle the outdoors with an IPX67 rating. Its waterproof, dust proof, snow proof, and shock proof.

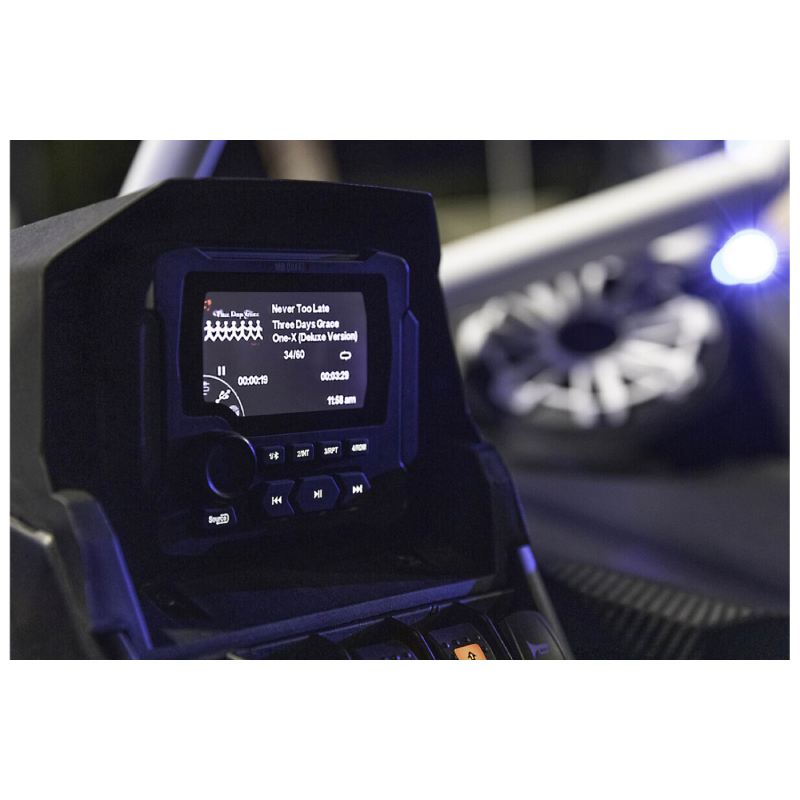

3.5" Display Screen: The MB Quart Nautic GMR-LED marine digital media receiver features a 3.5" high-contrast LCD screen with LED backlight to view song/artist/album information (including album art) and a connected external camera (sold separately). The backlight of the display can be set to High or Low. A rotary knob and large rubberized buttons provide Power On/Off, Volume Up/Down, Mute, Source Select, Play/Pause, Previous/Next Track, Repeat/Random, Intro (10-sec), and Preset functions. The size and space of the buttons and knob also makes them easy to operate with gloves on.
Optional Wireless Remote: The optional MB Quart RF remote control (049RFREM, sold separately) provides wireless operation of the GMR-LED marine digital media receiver.

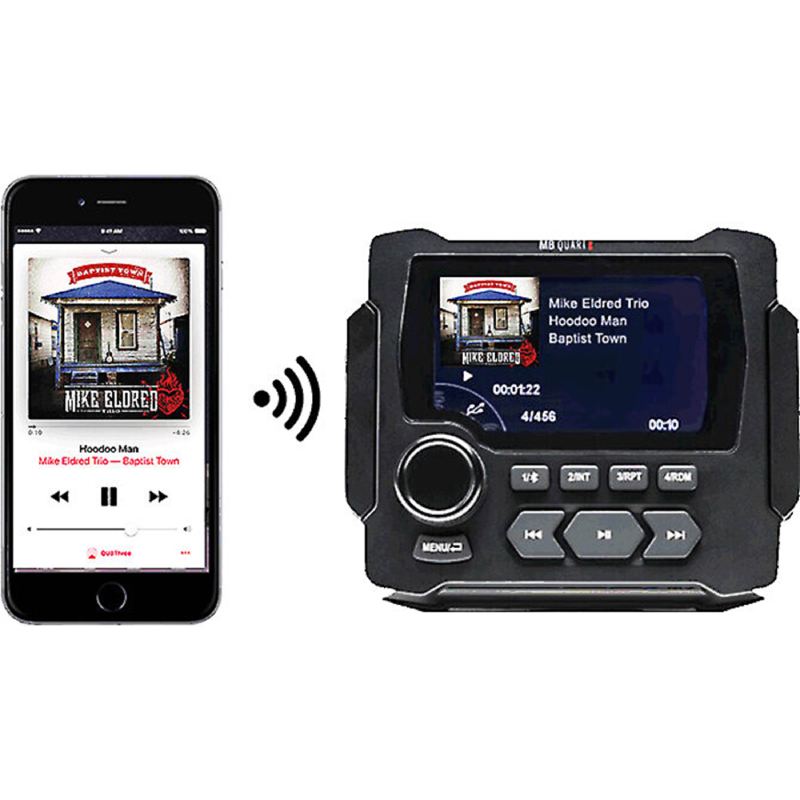

Bluetooth Audio Streaming: The MB Quart Nautic GMR-LED features built-in Bluetooth 4.0 with support for wireless audio playback (AD2P) and control (AVRCP) of a Bluetooth-enabled source device. The GMR-LED supports playback of stored music, music apps, and other audio content on your Bluetooth source device. The unit will be able to control basic playback functions, such as Play/Pause & Skip Next/Previous. Advanced music control of your music apps will still need be done via your Bluetooth source devices. You can also view song/artist/album information (including album art) on the receiver's LCD screen. The unit offers quick and easy wireless connection to your Bluetooth enabled device. When the unit powers up, it immediately connects to the last device connected. The wireless Bluetooth range is approximately 32' (10 meters).
USB Port: The MB Quart Nautic GMR-LED is equipped with a rear-panel USB (Type-A, 2.0) port. This allows you to connect a USB MSC (mass storage class) device, like a USB thumbdrive. The unit supports audio playback & control of MP3, WMA, AAC, and WAV audio files stored on a compatible USB thumbdrive or MSC device. The unit offers Play/Pause, Previous/Next Track, Intro (10-sec), and Random/Repeat playback functions; as well as song/artist/album display (including album art). The unit also charges your connected USB device (up to 0.5A).
iPhone Direct Connect: The dash-panel USB port can be used to connect your Lightning-connector or 30-pin dock connector iPod/iPhone with the cable that came with your Apple device. The GMR-LED supports audio playback, basic control (Play/Pause, Previous/Next Track, Random/Repeat), song/artist/album display (including album art), and charging of your compatible Apple device. You will continue to use your iPod/iPhone for advanced music browsing. The GMR-LED is "Made for iPod/iPhone" compatible and supports the following iPod/iPhone model features: (as of 4/25/2019)
Aux Input: The GMR-LED features a rear mounted, stereo RCA auxiliary input on a 5" pigtail, letting you connect a portable audio player, smartphone, or tablet using a 3.5mm to RCA cable (sold separately).
AM/FM/WB Tuner: The MB Quart Nautic GMR-LED features a built-in AM/FM tuner with manual, seek, and preset tuning. You can store up to 18 FM preset and 12 AM presets (for a total of 30 preset stations). You can select either US or European tuning. It also features a built-in weather band tuner, so you can stay up to date on the weather while you are out on the water.
USA Frequency: FM 87.9-107.9MHz / AM 530-1710kHz
Europe Frequency: FM 87.5-108MHz / AM522-1620kHz
NOAA NWR Weather Band Frequency: 162.400-162.550MHz
Camera Input: The MB Quart GMR-LED is equipped with a composite video camera input and a reverse trigger wire to connect an outboard camera (sold separately - see Accessories Tab). The camera input could be used for a front thermal imaging UTV camera or boat docking camera depending on the application. The unit's 3.5" LCD screen displays a clear picture of what the camera views. The camera image can be selected manually or triggered automatically. You'll need to connect the receiver's purple/white wire to a +12V reverse gear signal wire in your vehicle to automatically trigger the camera when the vehicle is put into reverse gear.
Video Output: The GMR-LED's composite video output will mirror the marine digital receiver's screen onto an external monitor. This is a useful feature to provide a secondary screen for passengers or in other zones within a larger space, such as a boat or RV.
4-Channel Speaker Output: The MB Quart Nautic GMR-LED digital media receiver is equipped with a 20W (RMS) / 40W (Peak) x 4ch amplifier. With quick heat dissipation the system can play loud and long for years of service.
4V/6Ch Preouts: The GMR-LED marine digital media receiver offers 4V/6Ch preouts (Front/Rear/Sub) for connecting external power amplifiers. The front & rear preouts have fade capability, while the sub preouts are non-fading.
Sub Control: The unit features a low-pass crossover and subwoofer level control to fine-tune the subwoofer preouts. The low-pass crossover can be set to 80Hz, 100Hz, or 120Hz. You can also adjust the subwoofer level from 0-40 independent from the unit's overall volume control.
Dual Zone Control: You can setup a dual zone system on you boat by connecting the head unit's built-in amplifier to your interior cabin speakers (zone 1) and the receiver's preouts to an external amplifier and tower speakers (zone 2). You'll be able to control volume in both areas (zones) independently - the captain/passenger area and the tower speakers facing the skiers or wake surfers. The same source is played back in both zones with independent volume control for each zone.
Equalizer: The GMR-LED features an 8-band EQ to customize your listening experience. The 8-band EQ consists of 62, 125, 250, 500, 1k, 4k, 10k, and 16k Hz frequencies. You can store up to two Custom EQ Presets. If you prefer simpler sound customization, you can simply adjust the receiver's Bass (100Hz) & Treble (10kHz) from -7 to +7. The unit also offers Balance & Fader control.
marine digital media receiver (does not play CDs)
includes harness and dash kit for Maverick X3
built-in amplifier (20 watts RMS/40 peak x 4 channels)
built-in Bluetooth connectivity
USB port works with Apple smartphones
global AM/FM/Weather tuner
inputs: AUX in, USB port, video/camera input
outputs: 6-channel preamp outs (4-volt front, rear, sub), video out
independent subwoofer level control with selectable low pass filter
warranty: 1 year
