MB Quart PS1-213 5.25" 120W RMS (240W Peak Power Handling) Premium 2-Way Component Speaker System (Grills Included)
We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•(2) Woofer grilles
•(2) Tweeters (each has 9" wire attached)
•(2) Flush-mount cups
•(2) Metal flush-mount clamps
•(2) Surface-mount bases
•(2) M4x8mm Machine screws
•(4) 1/2" Screws
•(8) Large speed clips
•(4) Small speed clips
•(2) MB Quart crossover badges
•(2) Adhesive backed hook and loop crossover
•(2) MB Quart stickers
• Owner's Manual
Unique Design and Responsive Construction

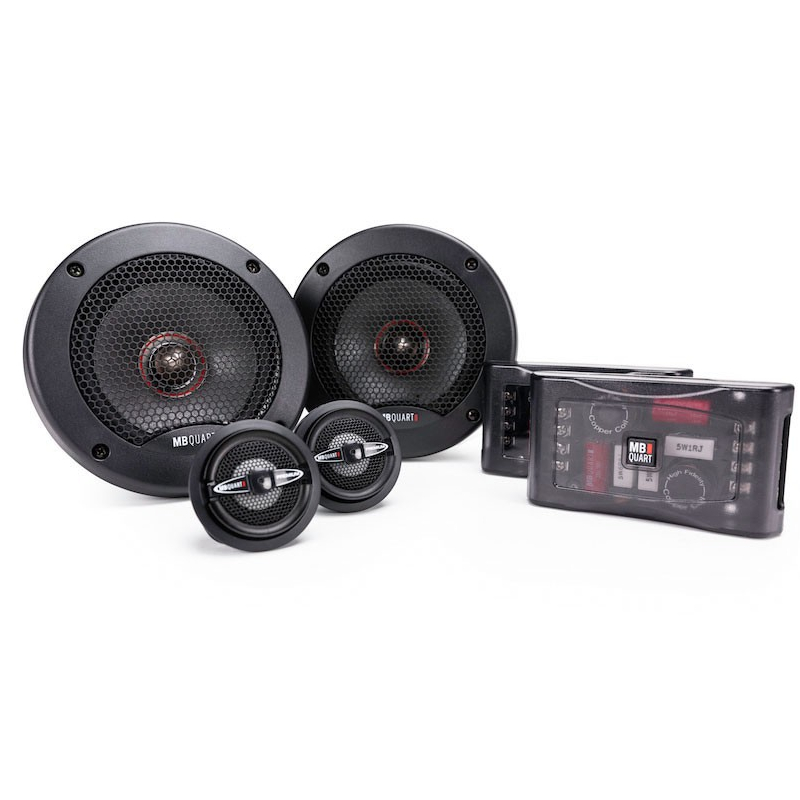

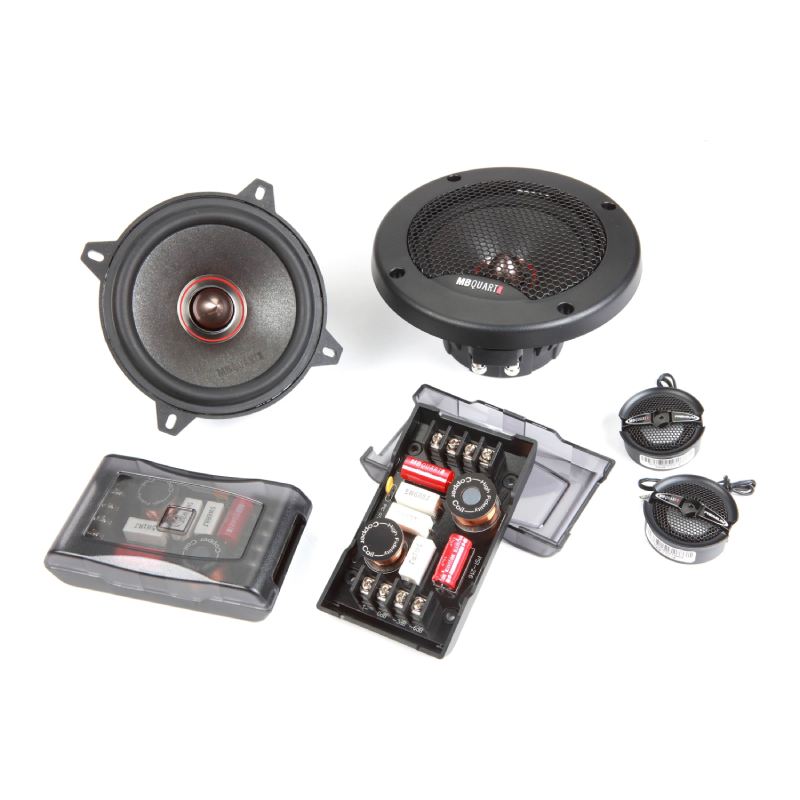

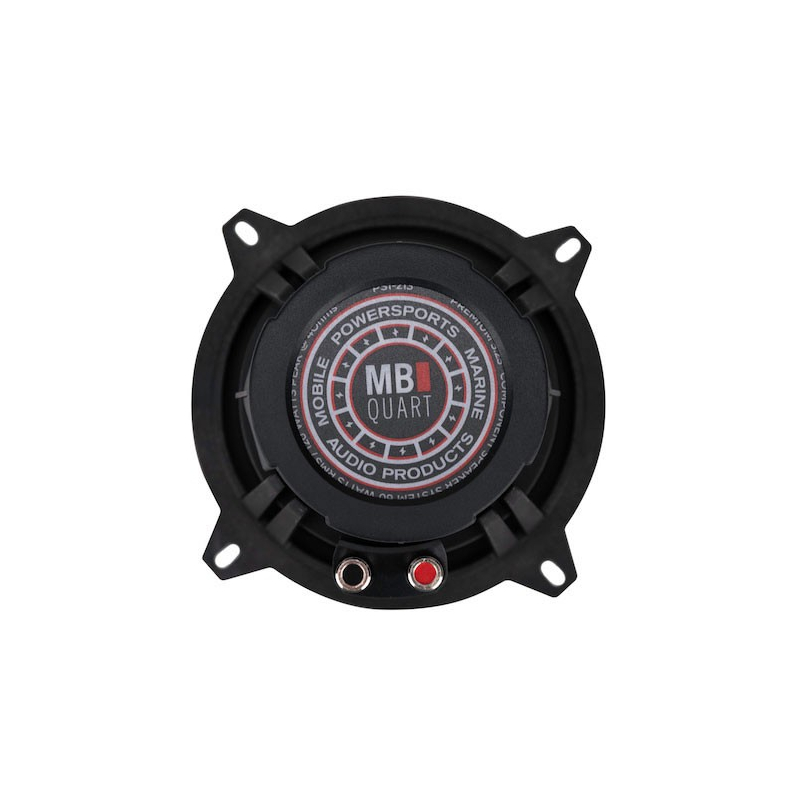

MB Quart's Premium Series car speakers provide the best possible sound from an audio industry mainstay. The MB Quart PS1-213 5-1/4" 2-way component system features two woofers, two 1" tweeters, and two external crossovers. The paper/mica hybrid woofer cone uses a unique design and responsive construction for a natural-sounding midrange and impactful bass response. The 1" magnesium dome tweeter handles the highs with precision and power, while MB Quart's WideSphere™ technology expands the tweeter's dispersion pattern for a wider, more lively soundstage.
Tweeter is Pointed Directly at the Listener

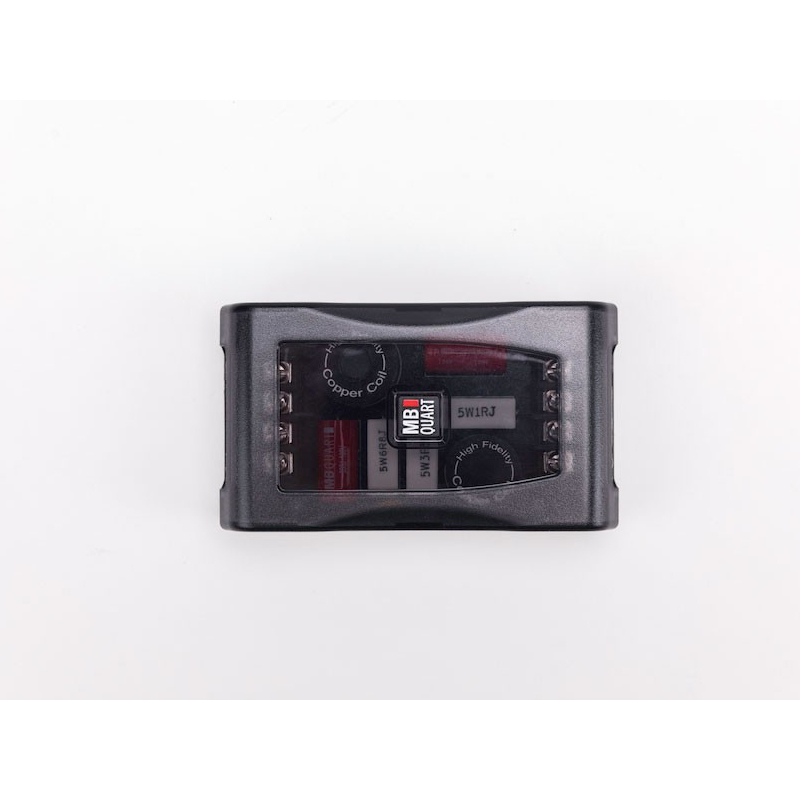

Each outboard 2-way crossover has a 12dB/octave slope. Depending on which positive terminal is used, the tweeter has three attenuation settings; choose 0 dB (flat), -3 dB, or -6 dB. The inputs and outputs are screw terminals that will accommodate bare wire or spade connectors up to 0.3" wide. There are four screw holes in the base of each crossover for mounting. The phase lens can be removed from the front of the tweeter, narrowing its dispersion pattern. This is useful when the tweeter is pointed directly at the listener.
Diameter : 5.25 Inch
Sensitivity : 86.5 dB
Frequency Response : 40-20000 Hz
Peak Power Handling : 240 Watts
Woofer Composition : Paper/Mica
Tweeter Composition : Magnesium
Shallow Mount : Yes
RMS Power Handling : 120 Watts

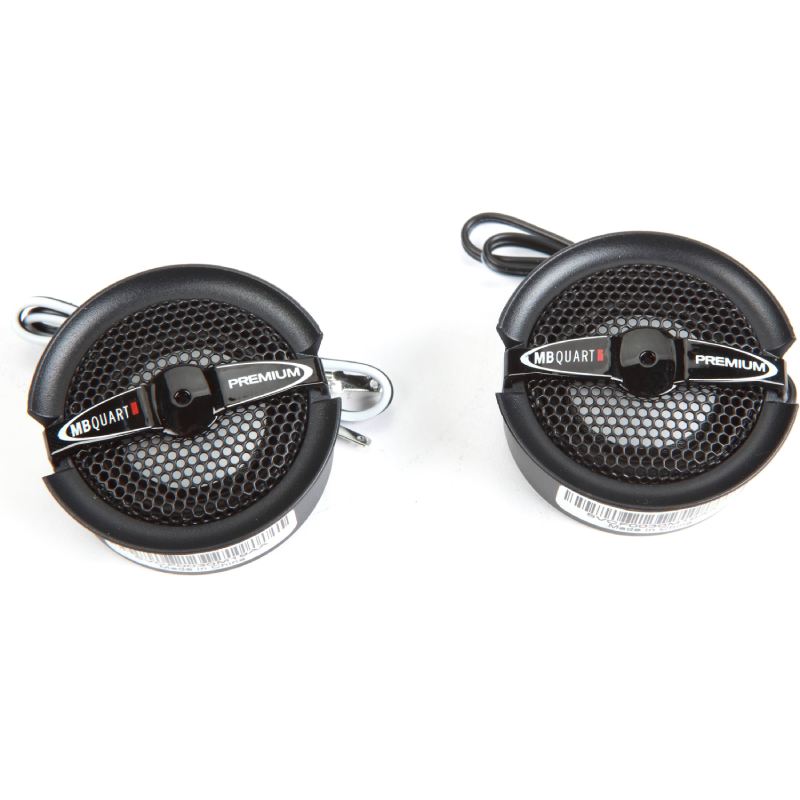

Tweeters: 1" magnesium dome tweeter for exceptional musical reproduction of high frequenices are the heart of the system. The innovative tweeter design develops an off-axis dispersion pattern that creates a larger sound stage which brings a concert in your car to life.

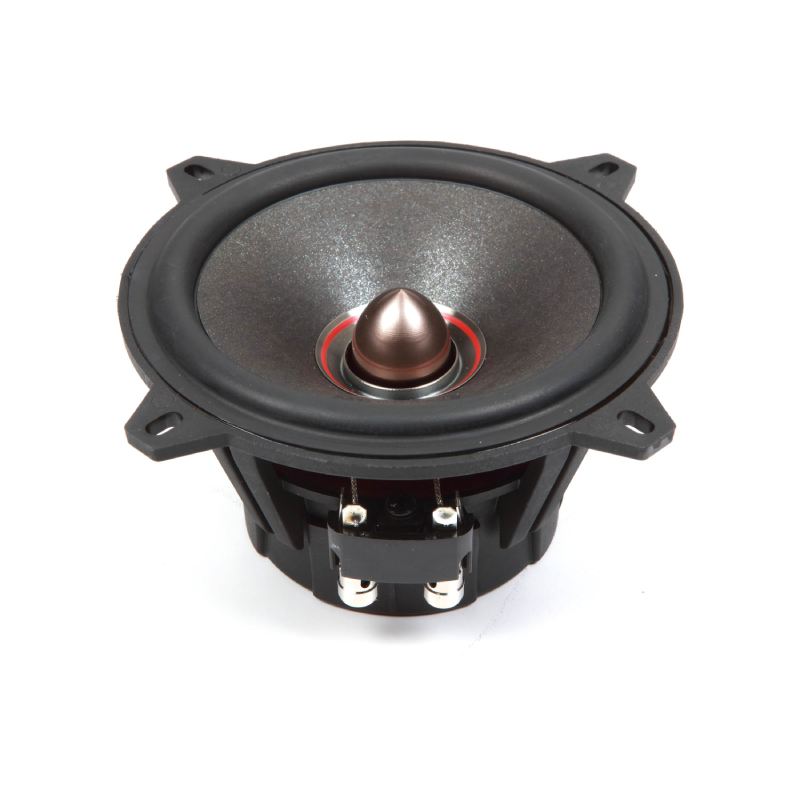

Cone Material: Lightweight aerated pop paper cone with Mica blend for strength and superior bass frequency reproduction. This design adds strength and superior bass frequency reproduction. This means that midrange and bass frequencies remain very musical without the distortions that can be caused by the cone flexing. With the curvilinear design the geometry is specifically engineered for best upper band midrange response which is critical for frequencies that are responsible for vocals and acoustic instruments like piano, guitar and percussion.
Surround / Cone Coupling: High temperature adhesives are utilized to keep the coupling from cone to surround fused. Adhesives are also impervious to cold weather.
Gasket: Molded Polymer Sealing gaskets are utilized to keep the speaker isolated from the mounting surface and improve protection from water and dust intrusion.
Voice Coil / Former Assembly: High temperature imported wire on Kapton former. The former is lighter than a standard speaker which allows the component to support slightly higher frequency extension and efficiency.

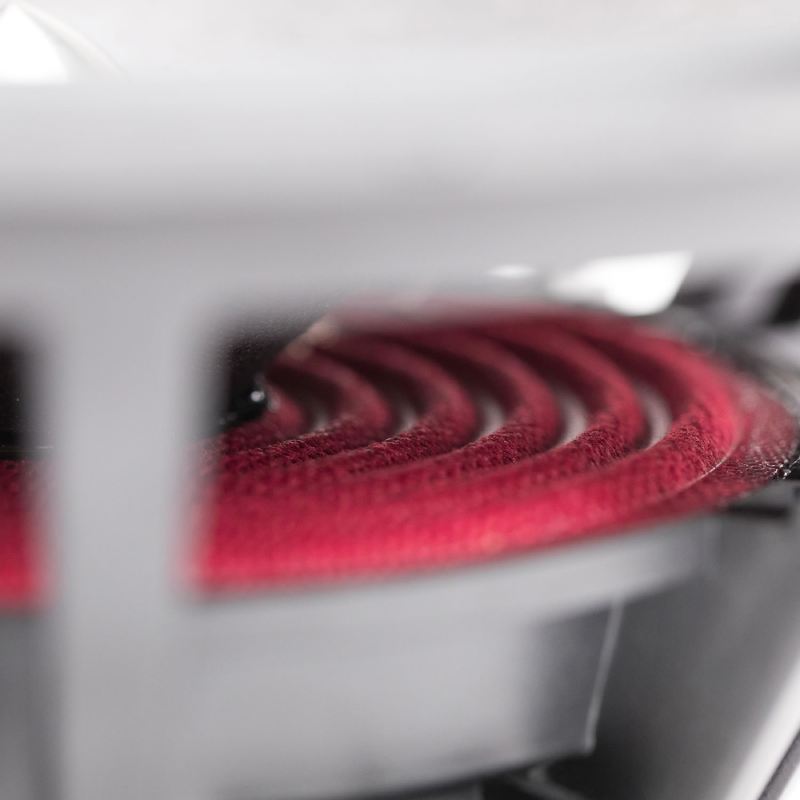

Spider: Red woven fiber cotton poly blend spider to stabilize the cone and voice coil in all musical situations.

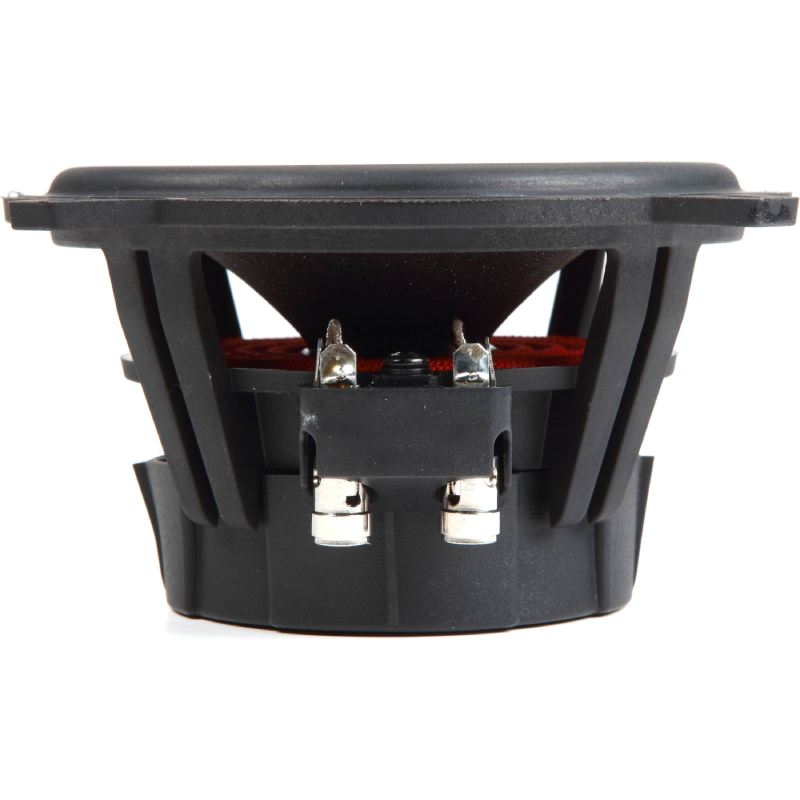

Cooling System: Venting allows air passage through the spider and speaker frame ribs to exchange air over the voice coil.

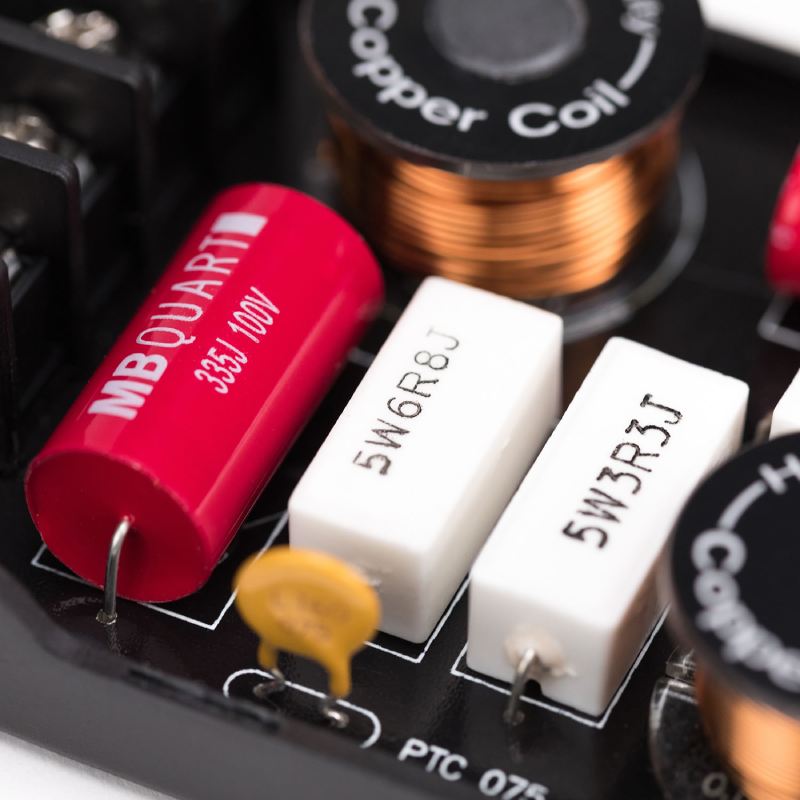

Crossover: Premium coax (2-way) designs feature a built-in audiophile crossover which guides the frequencies from the amplifier to each driver (speaker). This system is designed with tight tolerance components for superb sound quality.

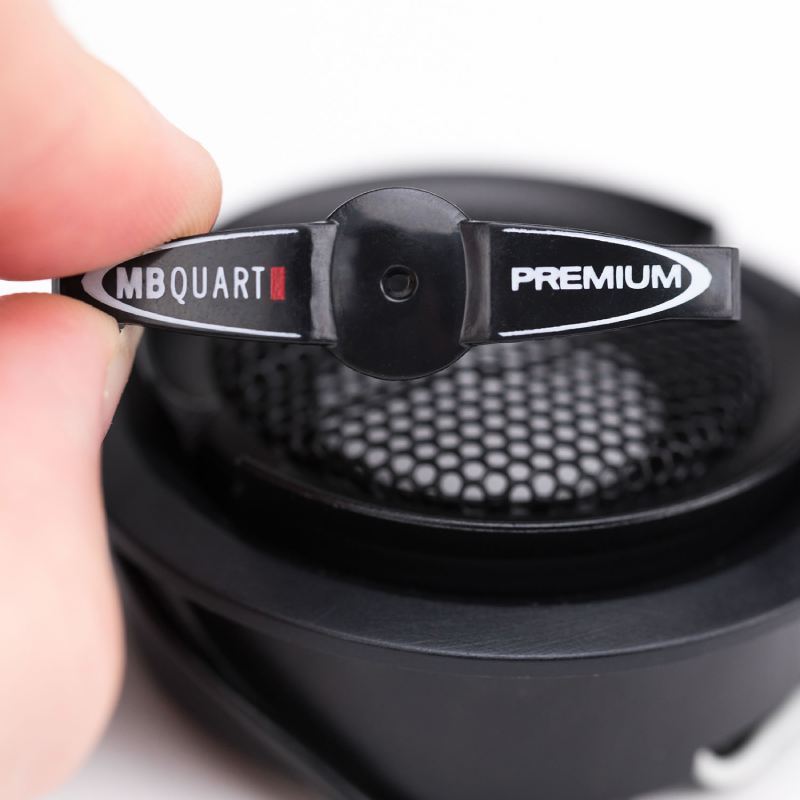

Tweeter Hardware: Tunable waveguide tweeter housing with removable phase lens creates larger than life sound stage.

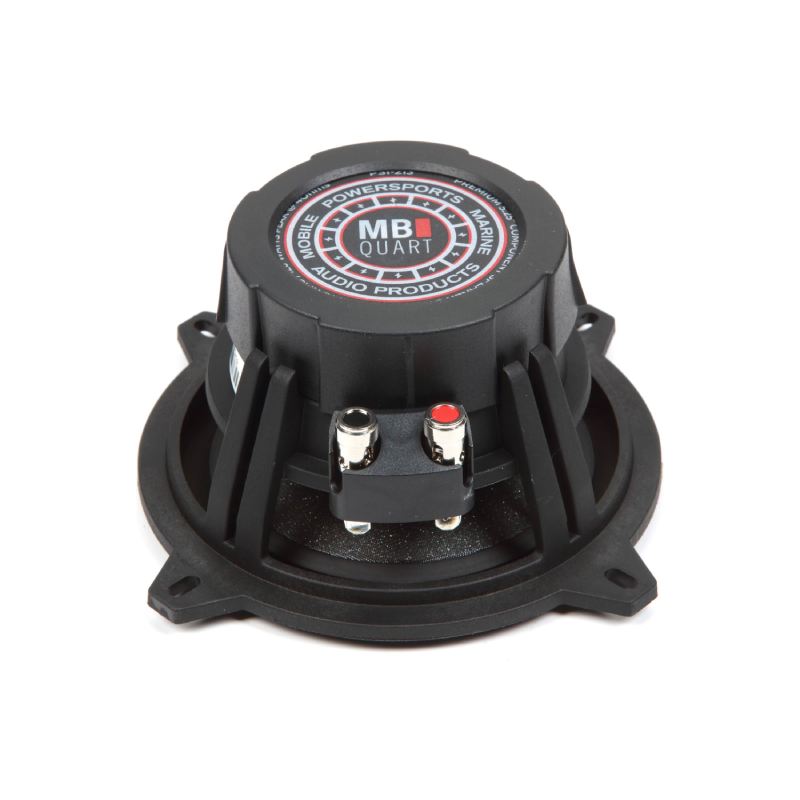

Frame: Aerospace grade PA66 composite with 30% glass fiber speaker frame to assure that no harmonic distortions affect the tone of the speaker.

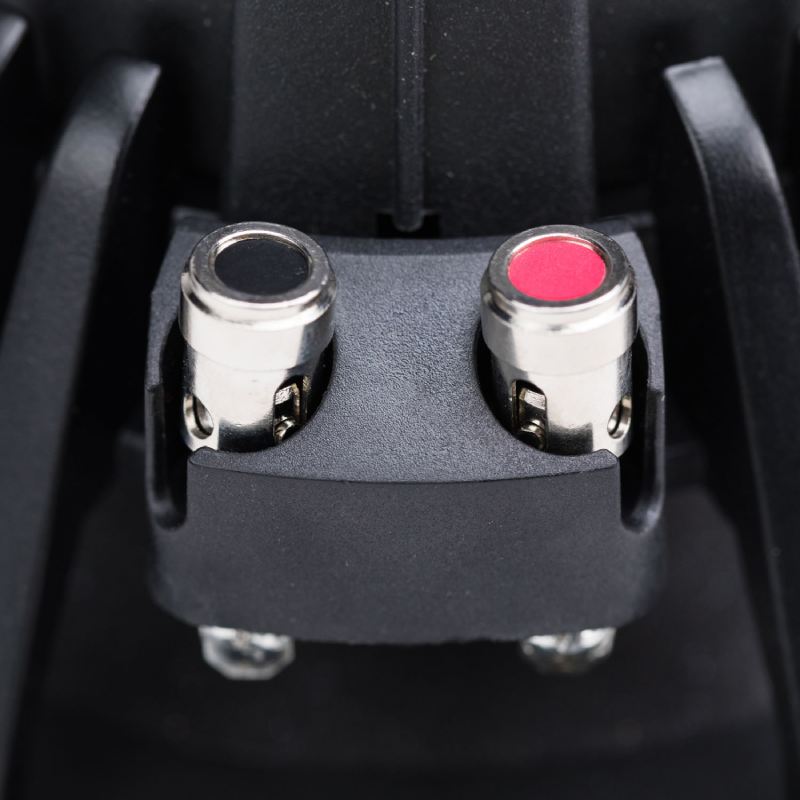

Connectors: Stainless steel, push and insert connectors resist corrosion and create a superior electrical connection.
Speaker Size: 5 1/4
Tweeter Design: 1" Dome
Impedance (Ohms): 4
Tweeter Composition: Magnesium
Woofer Composition: Paper/Mica
Woofer Surround: Rubber
Parts Warranty: 1 Year
Labor Warranty: 1 Year
Sensitivity (1W at 1 meter): 86.5
Sensitivity at 2.83 volts: N/A
Frequency Response: 40 - 20k Hz
Minimum RMS Wattage: ---
Maximum RMS Wattage: 60
Peak Power Handling (Watts): 120
Top-mount Depth (Inches): 2 1/2
Bottom-mount Depth (Inches): 2 11/16
Cutout Diameter or Length (inches): 4 9/16
Mounting Height (Inches): 0.35
