XS Power  Li1625

25A 16V High Frequency Lithium IntelliCharger

Item #56526

Condition:   Brand New

Product Highlights

  • 25A current
  • 16V voltage
  • High frequency
  • Lithium compatible
  • IntelliCharger

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$399.99

Reg. Price $402.99  Save 1%
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

Out of Stock Check out other products listed below
XS Power Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Morel Banner

XS Power Li1625 25A 16V High Frequency Lithium IntelliCharger


Morel Banner

We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Battery Charger
  • • Owner's Manual

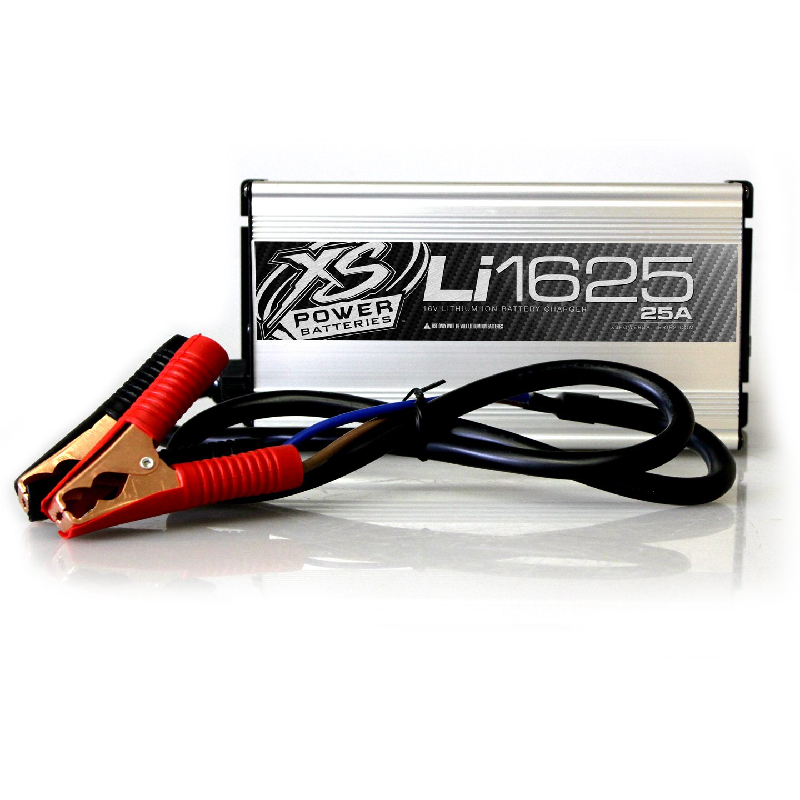

XS Power Li1625 16V 25A Lithium IntelliCharger

Power up your 16V lithium-ion battery with the XS Power Li1625, delivering fast and dependable 25A charging performance. High-frequency MOSFET technology and advanced microprocessor control help provide efficient, controlled recharging, while the heavy-duty AWG 8 DC cable supports strong power delivery. Its compact design makes it a smart choice for high-performance battery systems.




Frequently Asked Questions (FAQ)


  • • Why won't my Li1625 begin charging a battery that is almost completely dead?
    The charger has an under-voltage safety threshold and may not activate when the battery is below approximately 4 volts. A battery that has been deeply discharged may therefore appear completely unresponsive to the charger.
  • • Why does the Li1625 shut itself off before my lithium battery reaches a full charge?
    The Li1625 includes an automatic 10-hour shutdown. If the battery cannot reach the expected voltage within that period, the charger can stop the cycle rather than continuing indefinitely.
  • • Can I use the Li1625 on a regular AGM or lead-acid battery?
    No. The Li1625 is specifically intended for compatible 16V lithium-ion batteries. Using the wrong battery chemistry or voltage can create an unsafe charging condition.
  • • Why does my Li1625 seem to charge slowly even though it is rated at 25 amps?
    The 25A rating is the charger's maximum output, not a constant current guarantee throughout the entire cycle. Its microprocessor adjusts charging as the battery progresses toward full voltage.
  • • What should I check if the Li1625 powers on but the battery is not gaining voltage?
    Start with the battery connections, polarity, battery voltage, and any electrical loads still connected to the battery. XS Power recommends disconnecting loads when possible so the charger can work directly on the battery.
  • • Why does my Li1625 fan keep running during charging?
    The charger has an integrated cooling fan designed to control heat during operation. Continuous fan activity during a charging session is therefore not necessarily a malfunction.
  • • Can I leave the Li1625 connected while my car's electronics are still turned on?
    It is better to switch off or disconnect unnecessary electrical loads during charging. The manufacturer's instructions specifically recommend removing battery loads when possible because those loads can affect the charging process.
  • • What happens if I accidentally connect the Li1625 with the polarity reversed?
    The charger includes reverse-polarity protection, but the correct positive and negative connections should always be verified before powering the unit. Protection features are intended as safeguards, not a reason to intentionally make an incorrect connection.
  • • Why does my Li1625 stop after several hours even though the battery still isn't behaving normally?
    The automatic shutdown is particularly important when a battery cannot reach the required charging condition. A battery with an internal problem may prevent the charger from completing its normal CC/CV cycle, causing the protection timer to intervene.
  • • Is an unusual electrical noise from the charger something I should worry about?
    An unexpected high-pitched noise should not simply be ignored, especially if charging output disappears at the same time. XS Power charger users have reported situations where unusual noise occurred alongside a loss of charging output, so checking the actual DC output with a meter is a sensible first step.

SPECIFICATIONS



FEATURES


Features:

  • TYPE: 16V High Frequency Lithium Ion IntelliCHARGER, 25A
  • AC Input Connections: 5.0’ (1.5 m) AWG 16
  • DC Output Connections: 3.9’ (1.19 m) AWG 8
  • Dimensions (W x H x D) : 9.125” x 2.875” x 4.75” (231.8mm x 73mm x 120.7mm)



Physical Specifications:

  • Dimensions (W x H x D) : 9.125” x 2.875” x 4.75” (231.8mm x 73mm x 120.7mm)
  • AC Input Connections : 5.0’ (1.5 m) AWG 16
  • DC Output Connections : 3.9’ (1.19 m) AWG 8



AC Input Specifications:

  • AC Input Voltage : 100-120 VAC, 47-63 Hz
  • AC Input Current : 10A RMS fuse protected
  • UPC: 692209051671
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
