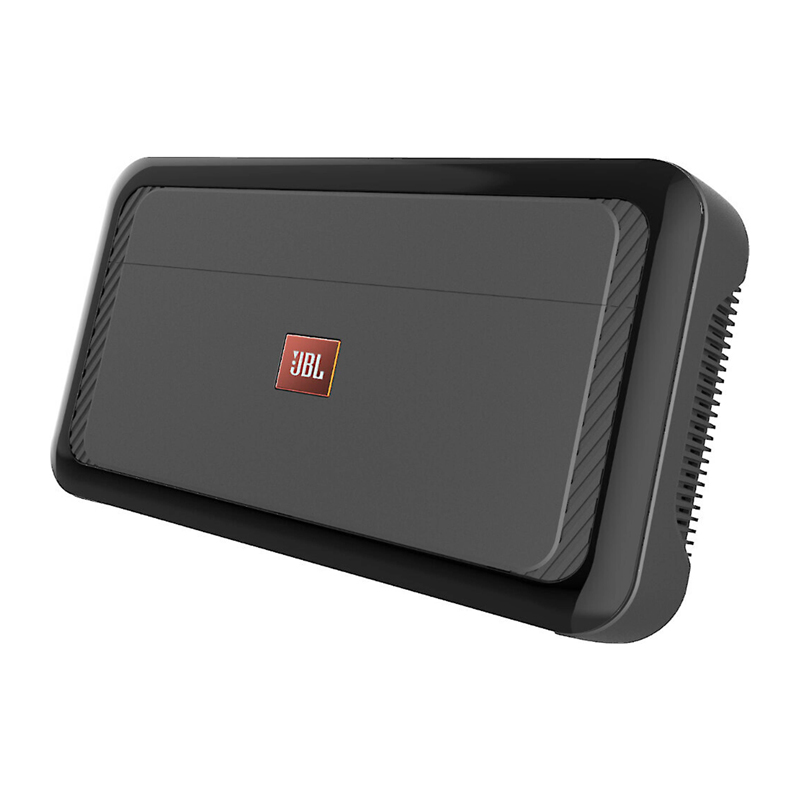

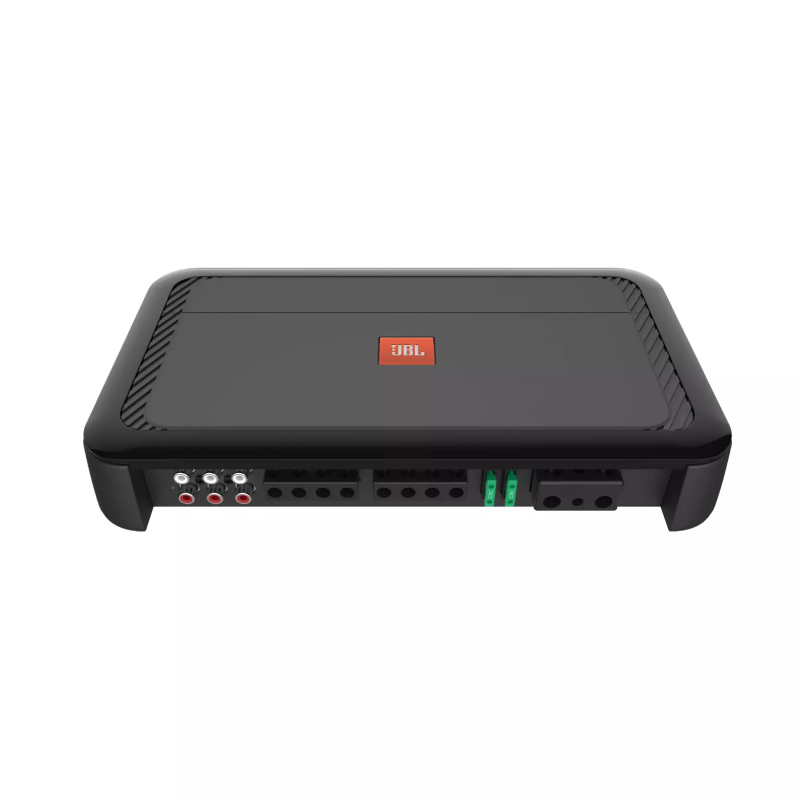

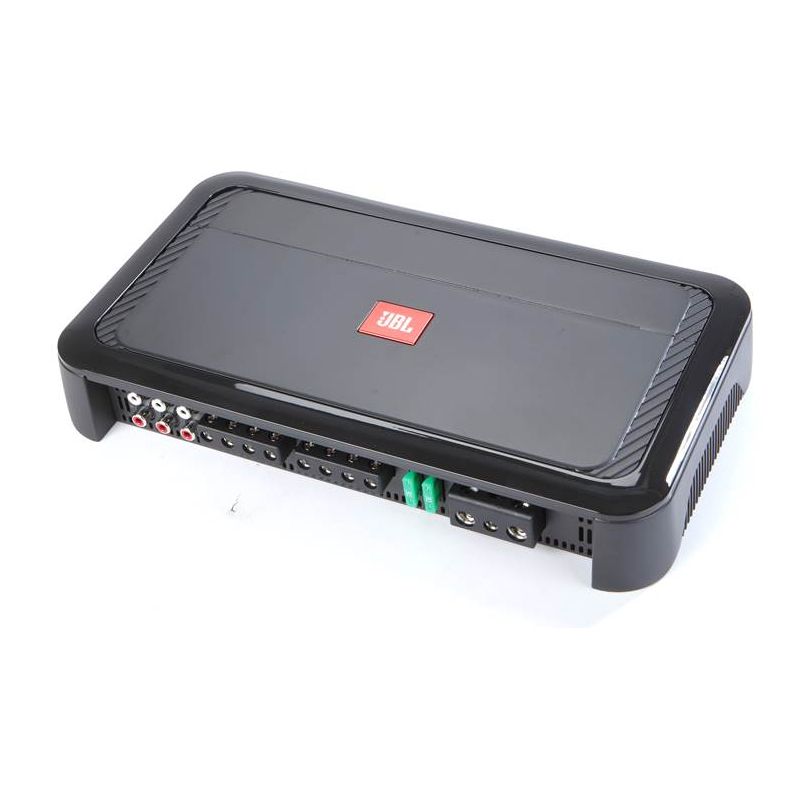

JBL Club A754 Club Series 100W x 4 2Ohms, 400W Max Power Class H 4-Channel Car Amplifier
We are a JBL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 4-Channel amplifier
- • (4) 30A fuses (2 installed/2 spares)
- • (4) Speaker wire to RCA adapters
- • (4) 2-1/8" screws
- • Logo badge w/ adhesive backing
- • Owner's manual (Eng/Span/Fren/Others)

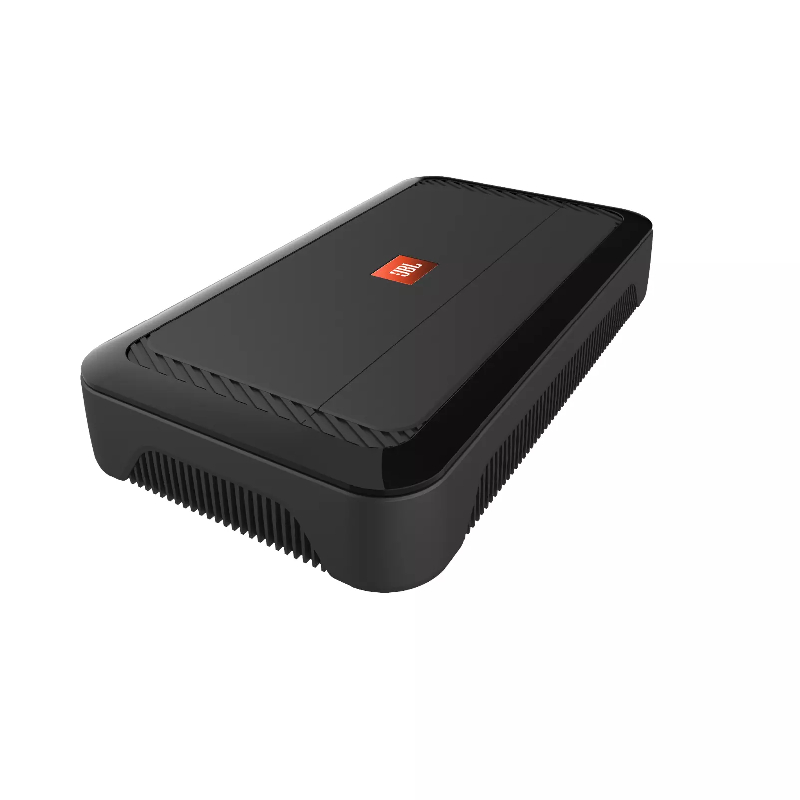

Compact size

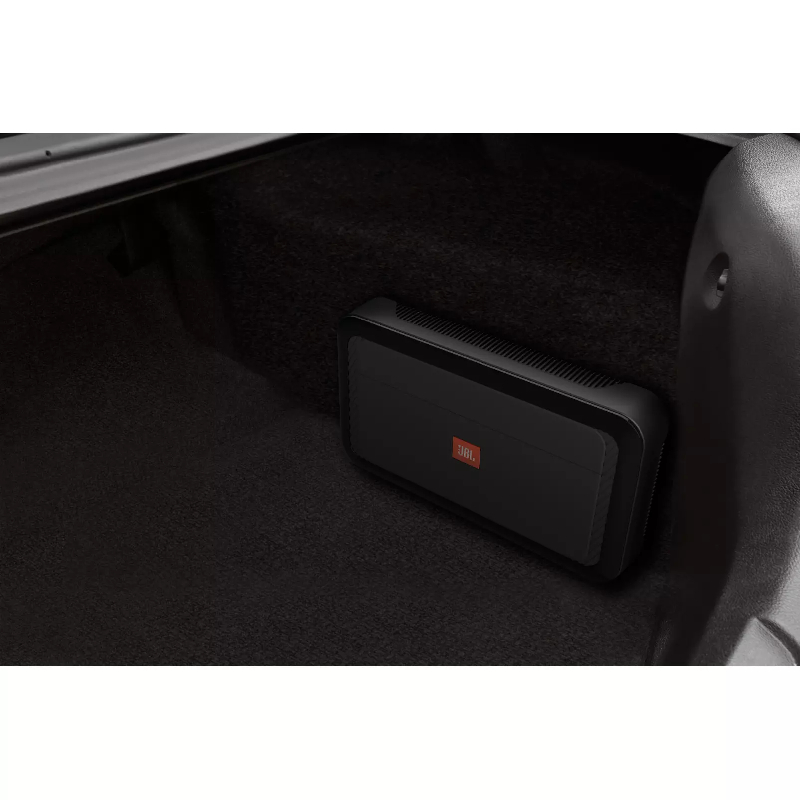

The JBL Club A754 amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.
High and low level input
Speaker-level and low-level inputs allow the Club A754 to integrate with both aftermarket and factory car stereo systems.
Variable crossover
Unlike many amplifiers available at similar prices, the JBL Club A754 features variable electronic crossovers for precise system tuning and performance.
Low noise and distortion
The Club A754 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced engine noise.

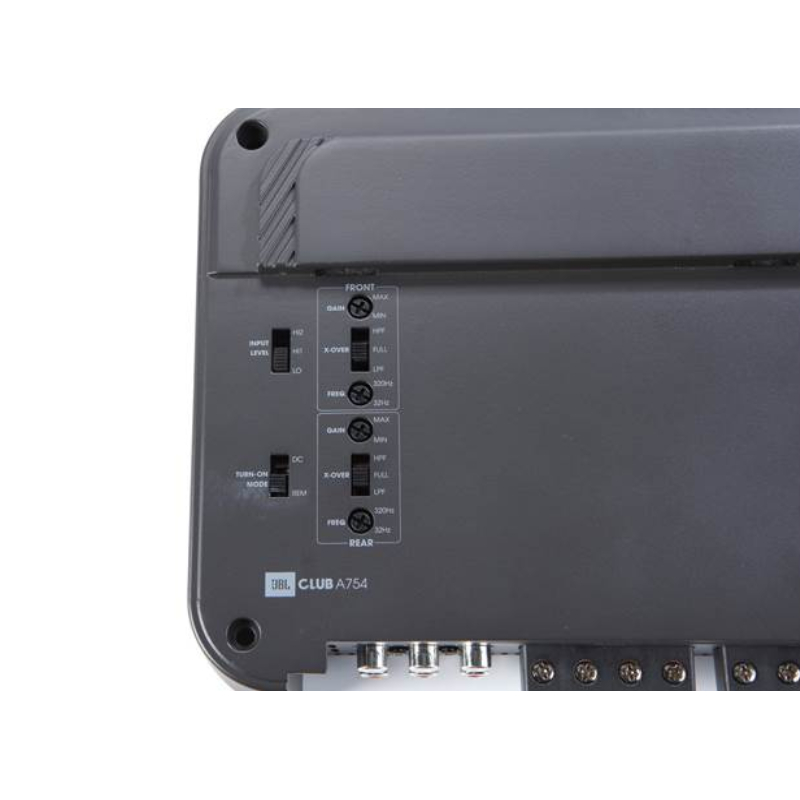

Input Level Control
When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.
Full on-board protection
On-board circuitry protects the Club A754 from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.
Preamp Outputs
Using multiple amplifiers, the Club A754 has full range preamp outputs allowing you to feed an additional amplifier without using splitters.
Class H amp technology
The JBL Club A754 4 channels subwoofer amplifier delivers 400-Watts RMS using a Class H amplifier design to ensure high output and minimum current draw.
Turn-on mode
This switch changes DC to REM to adapt with low-level signals or high-level signals, this is especially helpful as part of remote turn-on lead of your installation more choice. A selectable “Turn-on mode” can protect battery to avoid current drain, when you don’t expect to turn on your amplifier.
- Maximum Power : 400 Watts
- Number of Channels : 4
- Frequency Response : 10-40000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 100x4 Watts
- Amplifier Class : H
- Fuse Rating : 60 A
Features:
- Compact size
- High and low level input
- Variable crossover
- Low noise and distortion
- Input Level Control
- Full on-board protection
Specifications:
-
- Power Output:
- 4 ohms: 75 watts RMS x 4
- 2 ohms: 100 watts RMS x 4
- Bridged Mode: 200 watts RMS x 2 at 4 ohms
- Variable High- and Low-Pass Filters: 32-320 Hz, 12 dB/octave on front and rear channels

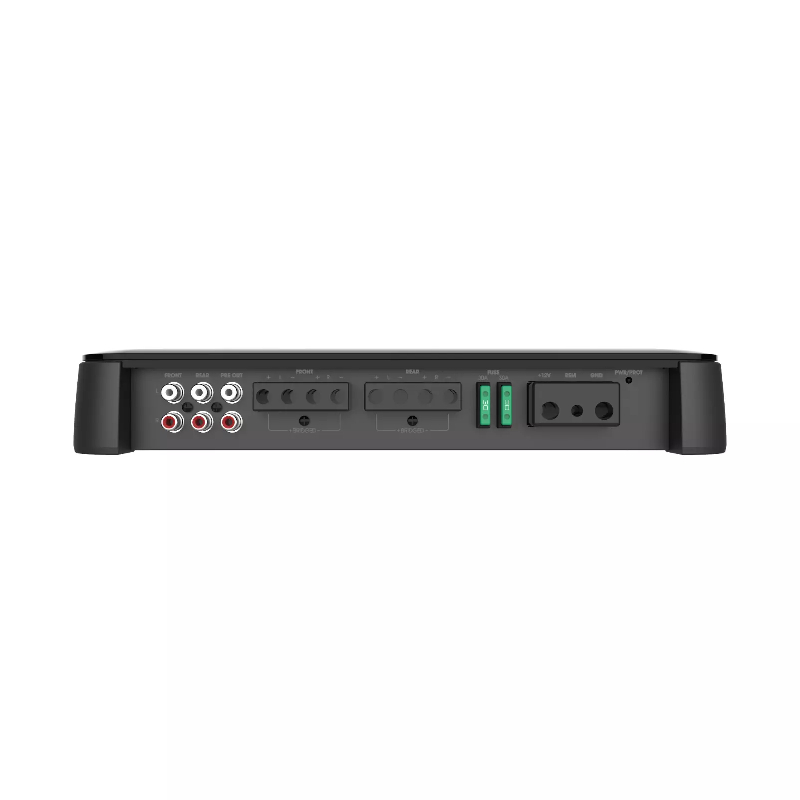

- Inputs: Preamp and Speaker-level
- Outputs: Preamp
- Fuse Rating: 30A x 2
- Recommended Power and Ground Leads: 8-gauge
- Dimensions:
- Width x Height x Depth: 320mm x 51.3mm x 180mm
- Width x Height x Depth: 12-5/8” x 2-1/16" x 7-1/8”
- UPC: 050036369190
- Weight: 9
