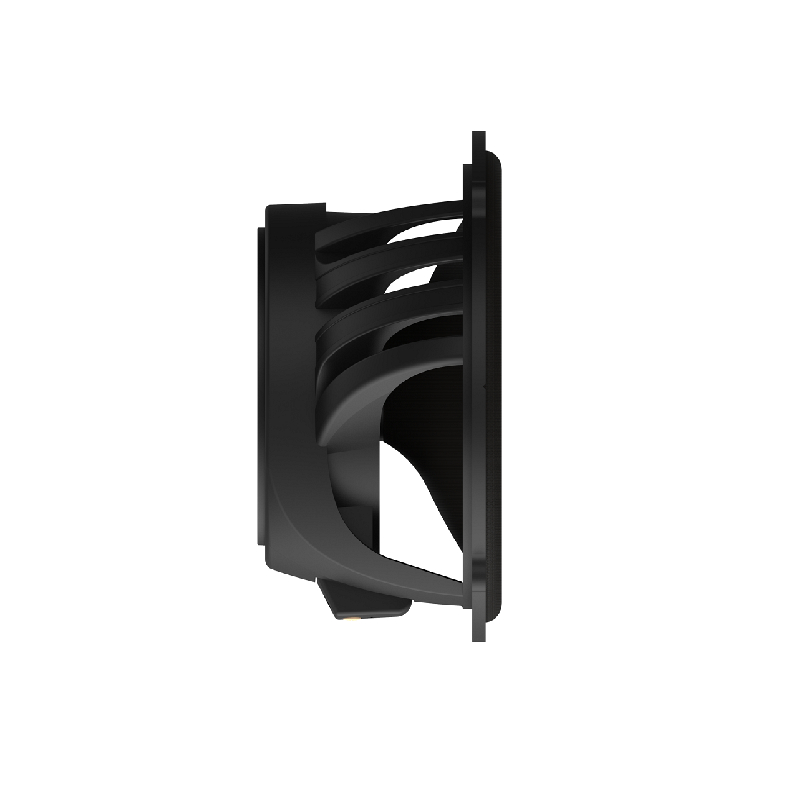

Infinity Kappa 693C Kappa Series 145W RMS 2-Way Component Speaker System
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •(2) Woofers
- •(2) Tweeters (each has a 6" speaker lead attached terminated with male quick-slides)
- • (2) Woofer bottom mount brackets
- •(2) Crossovers
- •(2) Threaded flush-mount cups
- •(2) Plastic locking nuts
- •(2) Surface-mount cups
- •(2) Starfish mounts
- •(8) 1-1/2" Allen head screws
- •3mm Allen head bit
- •(8) 1-3/8" Screws
- •(6) 3/8" Flat head screws
- •(16) Speed clips
- •(2) Adhesive backed Infinity logo badges
- •(2) Adhesive backed foam gaskets
- •Installation instructions
Kappa Edge-driven Silk Dome Tweeters
Kappa edge-driven silk dome tweeters equipped with oversized voice coils deliver silky smooth highs with impressive thermal power handling and 40kHz high resolution.Infinity’s glassfiber woofer cones are lighter and stiffer with more cone-area than the competition, delivering increased low-frequency output and higher efficiency. Hearing is believing.The push-button on the angled tweeter allows tweeter output level control of 0dB or -3dB to optimize system linearity based on installation location.
Component System Crossovers
For 5-1/4”, 6-1/2” and 6”x 8” coaxial models, the tweeters are angled and can be rotated 270° after installation on most models. This gives you imaging options and the ability to elevate the soundstage on low mounted speakers.Kappa 2-way component system crossovers are compact and equipped with 2-way and 3-way selections to accommodate a 2” or 3” midrange upgrade. The optional 2” or 3” midrange includes a bandpass crossover to upgrade a two-way system into a three-way system with perfect tonal balance.
Delivers Low-frequency Response
Kappa 3” midrange delivers low-frequency response to 300Hz while keeping high sensitivity over 89dB.The super compact design and premium performance allows the midrange to fit more vehicles without sacrificing any of your audio experience.The essence of form and function, Kappa tweeters are elegantly designed deliver a car audio experience as powerful as it is beautiful.Kappa component systems all have very slim crossovers, which equipped with connection cable for easy installation. The push-button on crossover allows tweeter output level control of 0dB or -3dB to optimize system linearity based on installation location.
- Diameter : 6x9 Inch
- Sensitivity : 94 dB
- Frequency Response : 35-40000 Hz
- Peak Power Handling : 435 Watts
- RMS Power Handling : 145 Watts
Features:

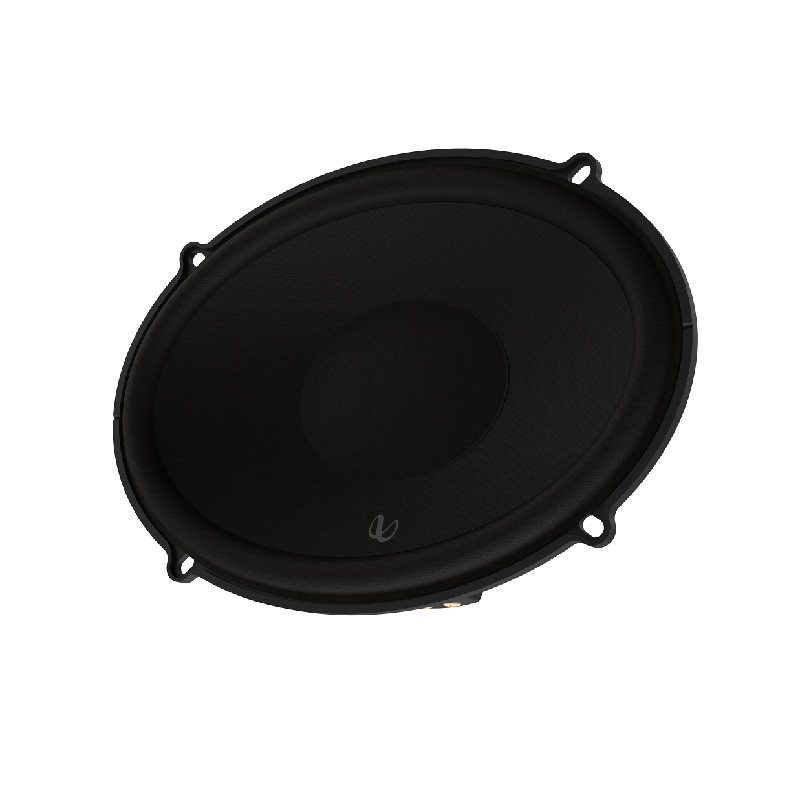

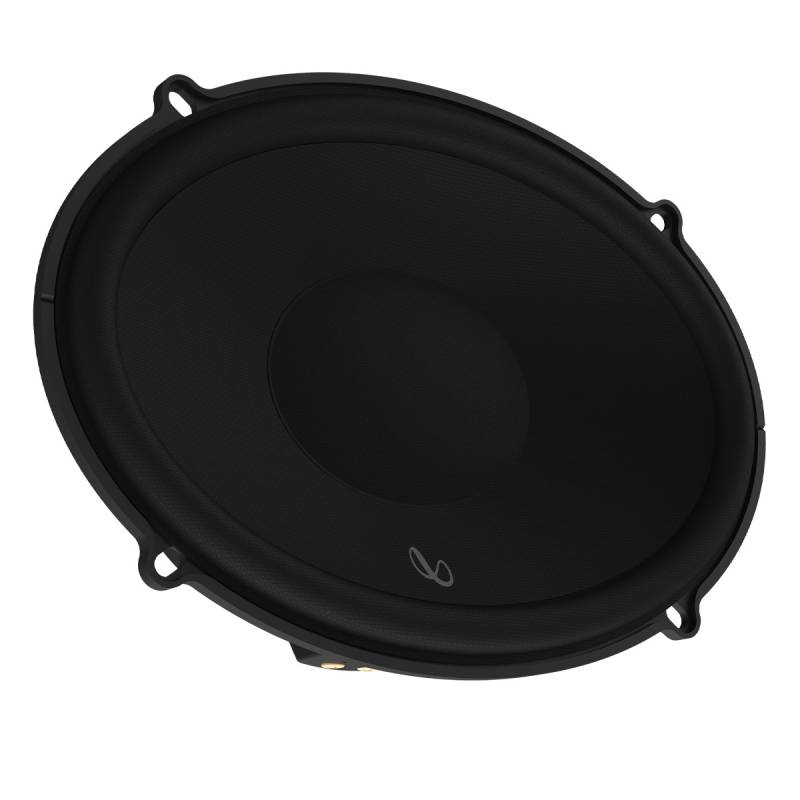

- Plus One Woofer Cones: The Plus One woofer cones offer more surface area than other speakers that fit in the same size opening. This is accomplished by using a new basket design and hi-roll surround. The result is greater bass output and an increase in efficiency.
- Terminals: The woofer input terminals are set screws that will accept up to 12 gauge bare wire.
- High-Output Design: The high output 3? voice coil design compensates for the high in-line resistance of small gauge factory wiring and extracts every watt from factory receivers, increasing overall system output and efficiency (relative to 4? speakers). The speakers also benefit from increased power when you upgrade the wire and add aftermarket amplifiers, designed to power a 3? load.
- Edge Driven Tweeters: The ¾" edge-driven tweeters use silk domes. An edge-driven tweeter has better dispersion characteristics and allows for a lower crossover frequency than typical tweeters of the same size, which improves imaging. The result is improved vocals and musical clarity. The 6" speaker wire attached to each tweeter is terminated with male quick-slides (0.187" positive and 0.110" negative).
- Tweeter Mounting: The I-Mount tweeter mounting system and Starfish mounting brackets give you several different ways to mount the tweeters:
- I-Mount Tweeter Mounting System: The tweeters can be surface or flush mounted with Infinity's innovative I-Mount system:
- Surface Mount: Surface mounting the tweeters involves screwing the surface-mount cup to the mounting location, then inserting and locking the tweeter into the cup.
- Flush Mount: Flush mounting is made easy through the use of the threaded flush-mount adapter and plastic locking nut. Once a cutout is made, the flush-mount adapter (with the tweeter installed) is inserted into the hole. The large plastic locking nut is threaded onto the adapter (from behind the mounting surface) to hold the complete assembly securely in place. When flush mounted, the tweeters may be angled for optimum response and imaging.
- Starfish Mounting Brackets: The Starfish mounting brackets allow the tweeters to be installed in factory locations behind the grilles:Surface Mount (behind grille panel)Flush Mount (behind grille panel)Bottom Mount (to grille panel)Flush Mount (in-dash location)

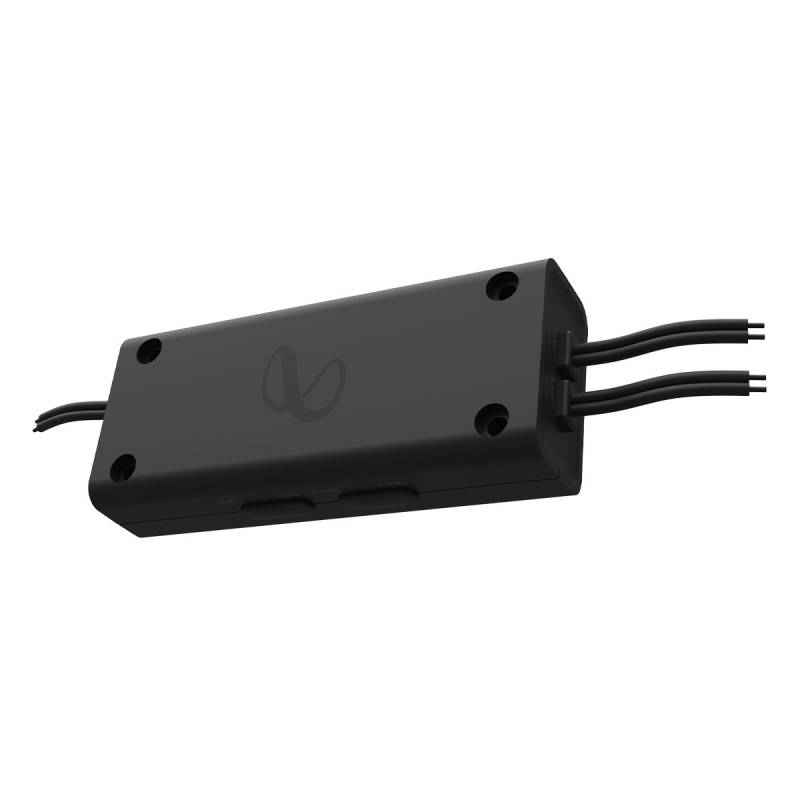

- Crossovers: The input, tweeter output, and woofer output wires are attached to the crossovers; each is 8" long and terminated with tinned bare wire. Each crossover has a tweeter output level switch; choose between flat and -3dB. Each also has a 2-way/3-way switch used when adding the matching midrange to upgrade the system to 3-way.
- 3-Way Upgrade: The included system crossovers are gap-selectable, to accommodate a midrange upgrade. The optional Kappa 203S and 303S midrange (item numbers 108K203S and 108K303S, both sold separately as a pair) include the band pass crossover to upgrade this two-way system to a three-way system with perfect tonal balance.
Specifications:
- 6" x 9" (168mm x 240mm) Two-way Component Speaker System
- Power Handling: 145Wrms, 435W peak
- Sensitivity (@ 2.83V): 94dB
- Frequency Response: 35Hz – 40kHz
- Impedance: 3.0 ohms
- Gross weight: 5.06kg
- 40kHz High-resolution Silk Dome Tweeter
- Patented Plus One™ Glass Fiber Woofers
- 0dB or -3dB Tweeter Output Level Control
- UniPivot and Angled Tweeter
- 3-way Upgradability
- Super Compact Design and High Sensitivity
- 3" Midrange Speaker
- Sleek and Powerful Industry Design
- Slim and Smart Crossover Design
- Speaker Size: 6X9
- Design: 2-way
- Tweeter Design: Edge-Driven Dome
- Impedance (Ohms): 3
- Tweeter Composition: Silk
- Woofer Composition: Glass Fiber
- Woofer Surround: Rubber
- Parts Warranty: 3 Years
- Labor Warranty: 3 Years
- Sensitivity (1W at 1 meter): N/A
- Sensitivity at 2.83 volts: 94
- Frequency Response: 35 - 40k Hz
- Minimum RMS Wattage: ---
- Maximum RMS Wattage: 145
- Peak Power Handling (Watts): 435
- Top-mount Depth (Inches): 3 3/16
- Bottom-mount Depth (Inches): 3 7/8
- Cutout Diameter or Length (inches): 0
- Mounting Height (Inches): 0.437
- UPC: 050667379841
- Weight: 15
