- Diameter : 12 Inch
- Sensitivity : 88 dB
- Impedance : 4 Ohm
- Peak Power Handling : 1200 Watts
- Top Mount Depth : 6.09 Inches
- Shallow Mount : No
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 0.9 Cubic ft.
- Suggested Ported Box Volume : 1.8 Cubic ft.
- Mounting Depth : 6.09 Inches
- RMS Power Handling : 600 Watts

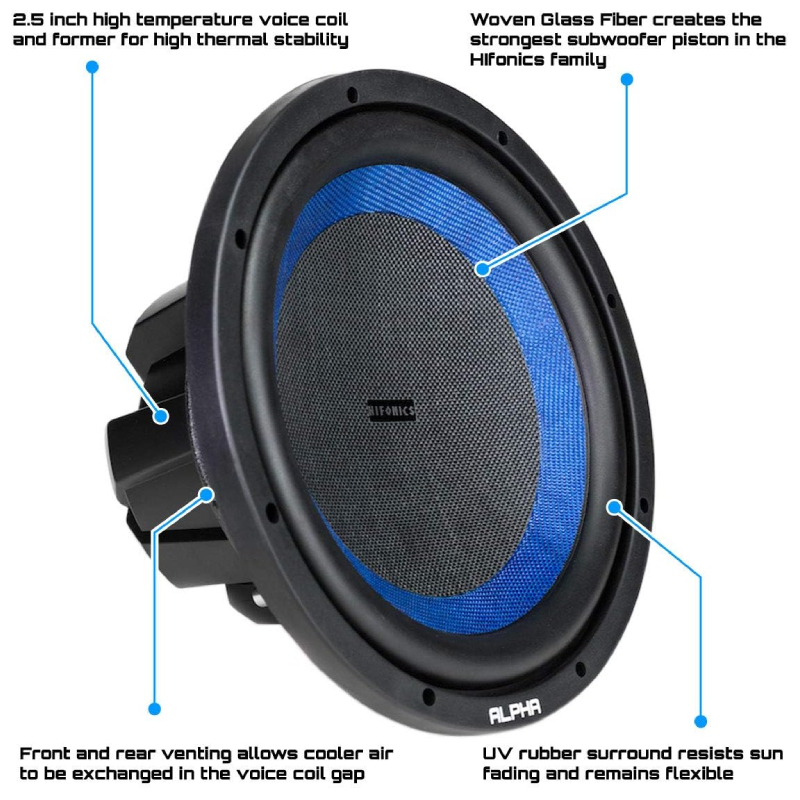

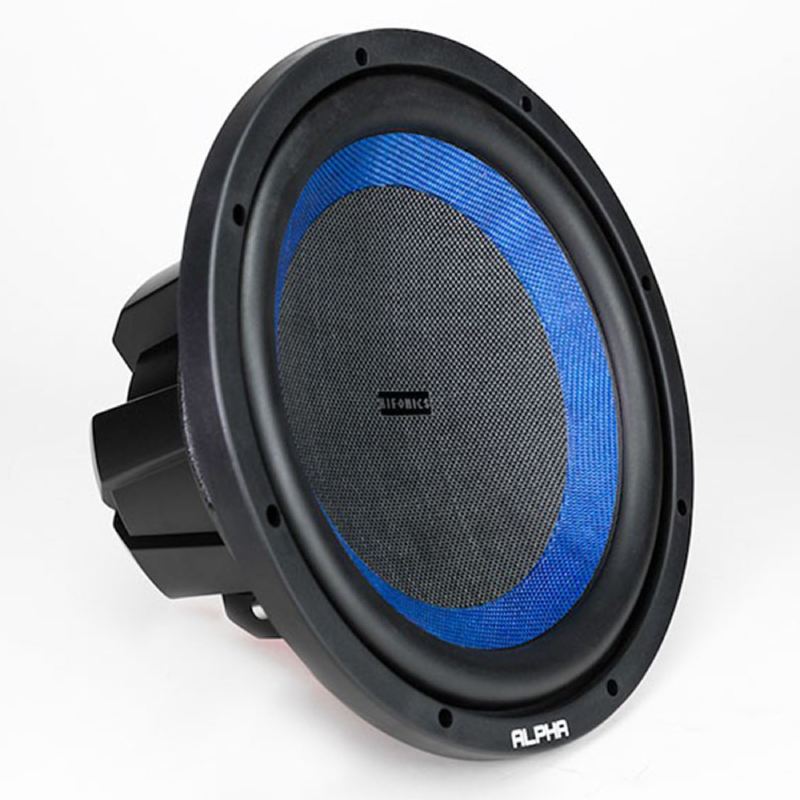

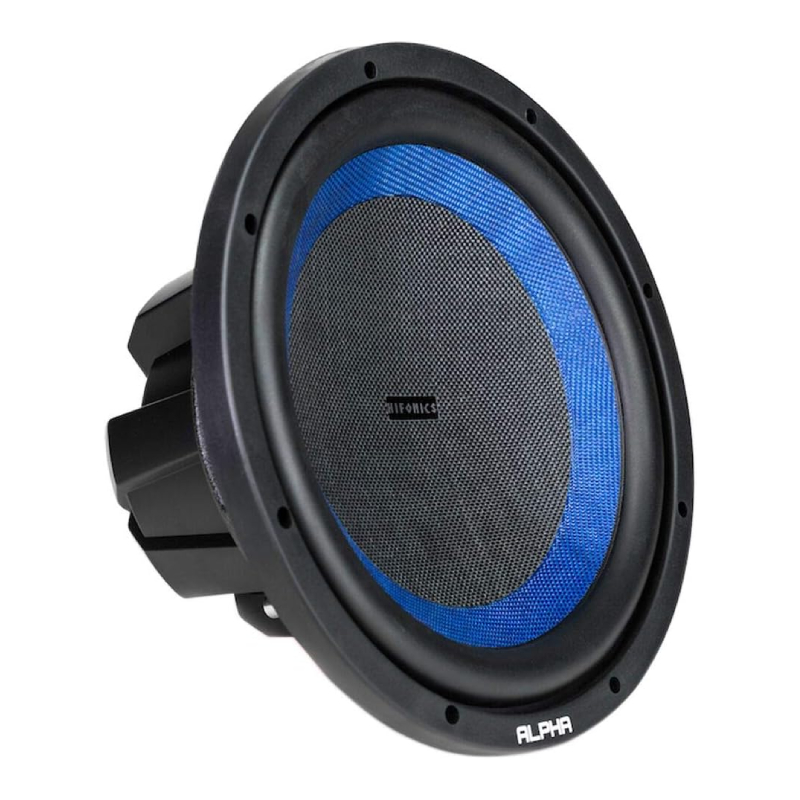

ALPHA’s distinctive subwoofer appearance features glass fiber cones and large concave dust caps. The use of these materials provides outstanding performance because they are light-weight and rigid at the same time. Featuring up to 2.5 inch voice coils, ALPHA subwoofers handle up to 1400 watt peaks of energy.

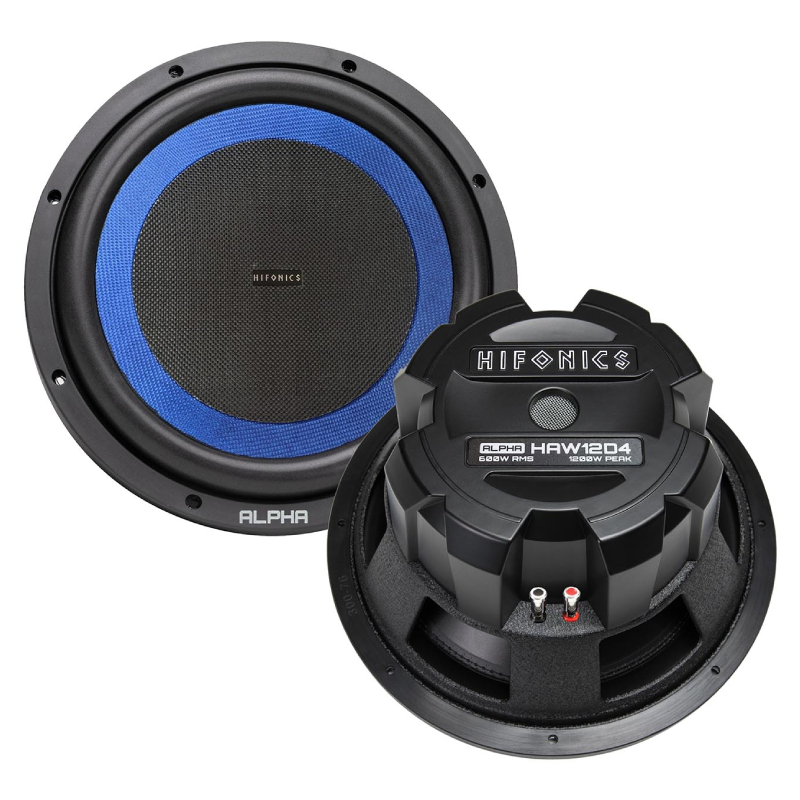

- SUBWOOFER TERMINAL TYPE
- Stainless Push & Insert for a very secure electrical connection with a high end fit and finish
- WOOFER CONFIGURATION
- Round, easy to choose a prefabricated enclosure
- VOICE COIL
- 2.5 inch high temperature voice coil and former for high thermal stability in small enclosure volumes where the internal box temperatures can rob you of performance
- VOICE COIL FORMER
- Vented former allows more dissipation of heat

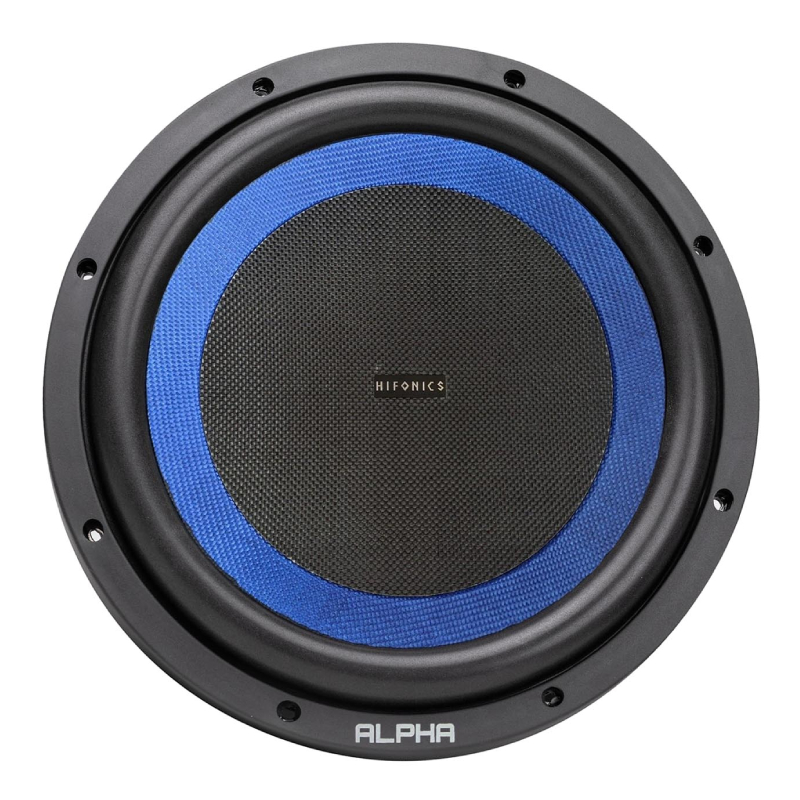

- CONE
- Woven Glass Fiber creates the strongest subwoofer piston in the HIfonics family
- DUST CAP
- The dust cap is integrated into woven glass cone
- BASKET
- powder coated, deep draw stamped steel basket
- VENTING
- Front and rear venting allows cooler air to be exchanged in the voice coil gap which helps the subwoofer make deep bass and extend the life of the component
- SPIDER
- Polyester and cotton blended spider resists softening and sagging over time so you can enjoy many years of listening pleasure
- SURROUND
- UV rubber surround resists sun fading and remains flexible

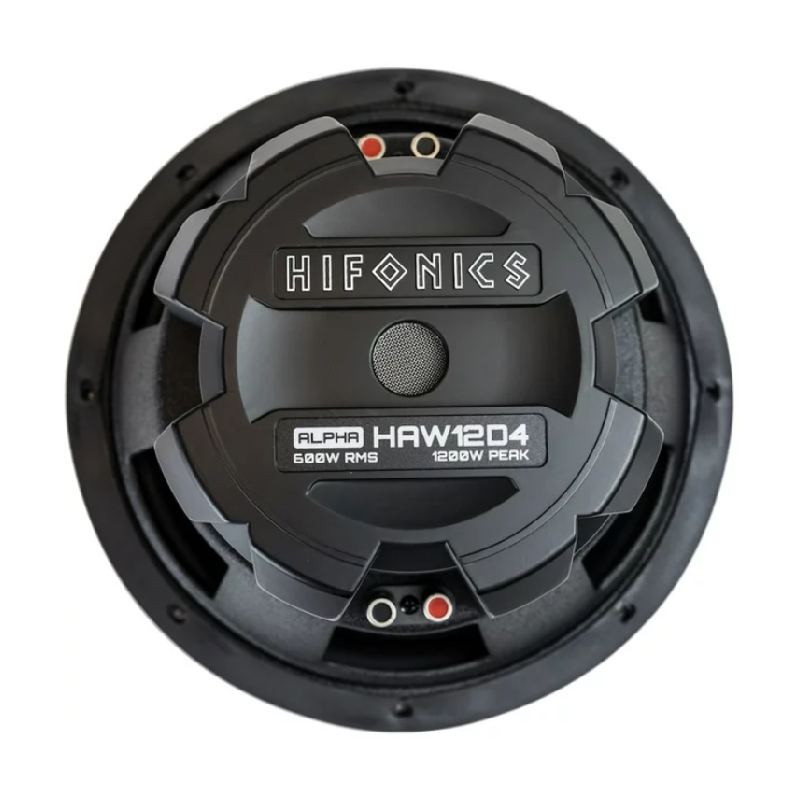

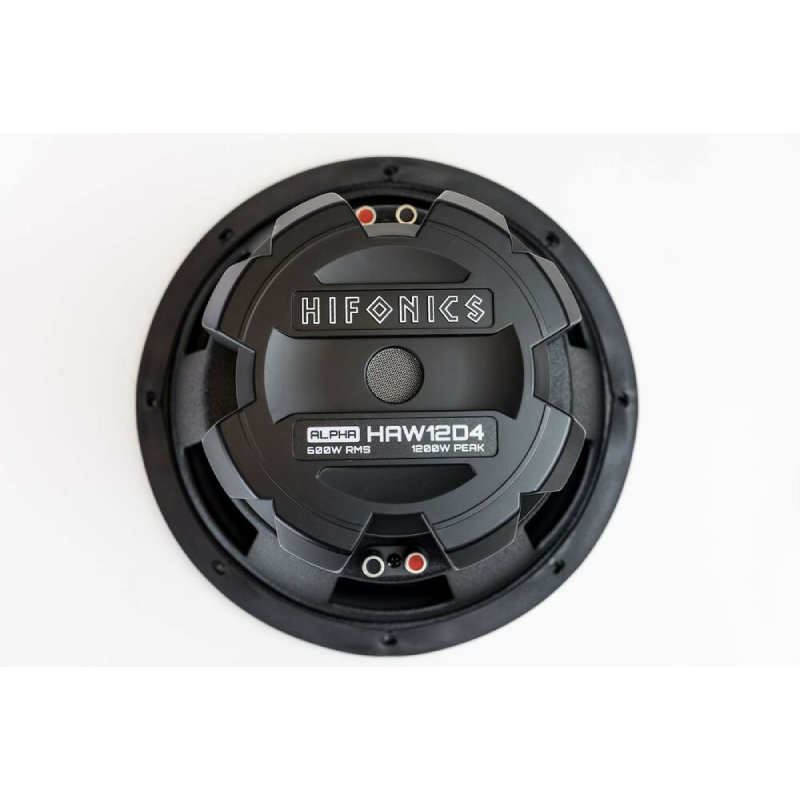

- TERMINALS
- Nickel plated push & insert to resist corrosion and aide in easy of installation
Features:
- CONFIGURATION: Round
- VOICE COILS: 2
- IMPEDANCE: 4 Ohm + 4 Ohm
- RMS POWER HANDLINGL: 600 Watts
- PEAK POWER HANDLING: 1200 Watts

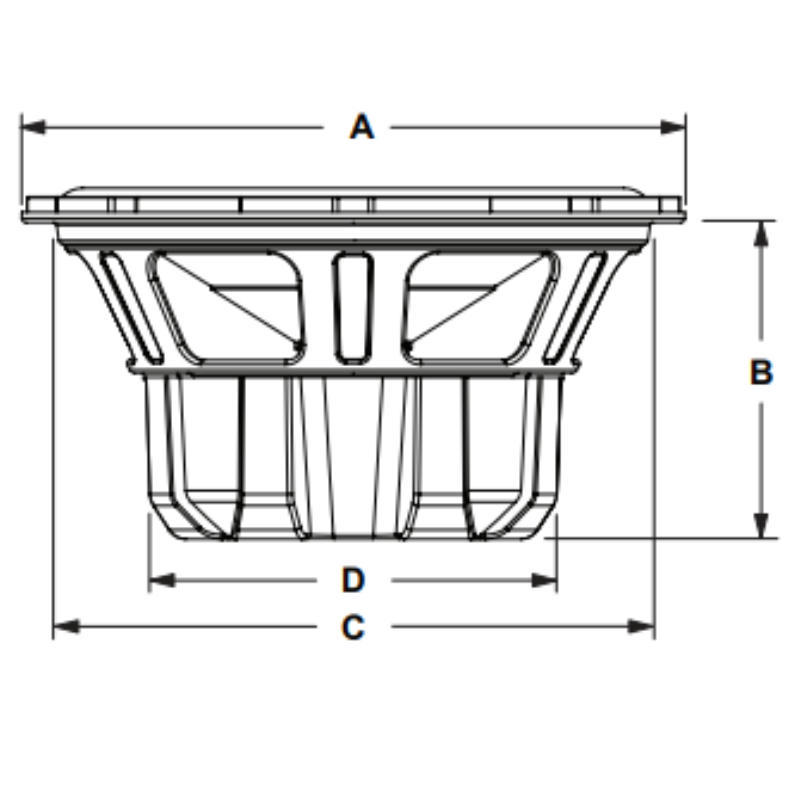

- CUT-OUTP: 11 inches
- MOUNTING DEPTH: 6.09 inches
- OUTSIDE DIAMETER: 12.19 inches
- SENSITIVITY (1 WATT / 1 METER): 88dB
- ENCLOSURE RECOMMENDATION: Medium Vented and Medium Sealed (See Manual for Recommendation)
- UPC: 806576229667
- Weight: 7
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
