- Diameter : 10 Inch
- Sensitivity : 84 dB
- Impedance : 4 Ohm
- Peak Power Handling : 400 Watts
- Top Mount Depth : 2.95 Inches
- Shallow Mount : No
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 0.65 Cubic ft.
- RMS Power Handling : 200 Watts

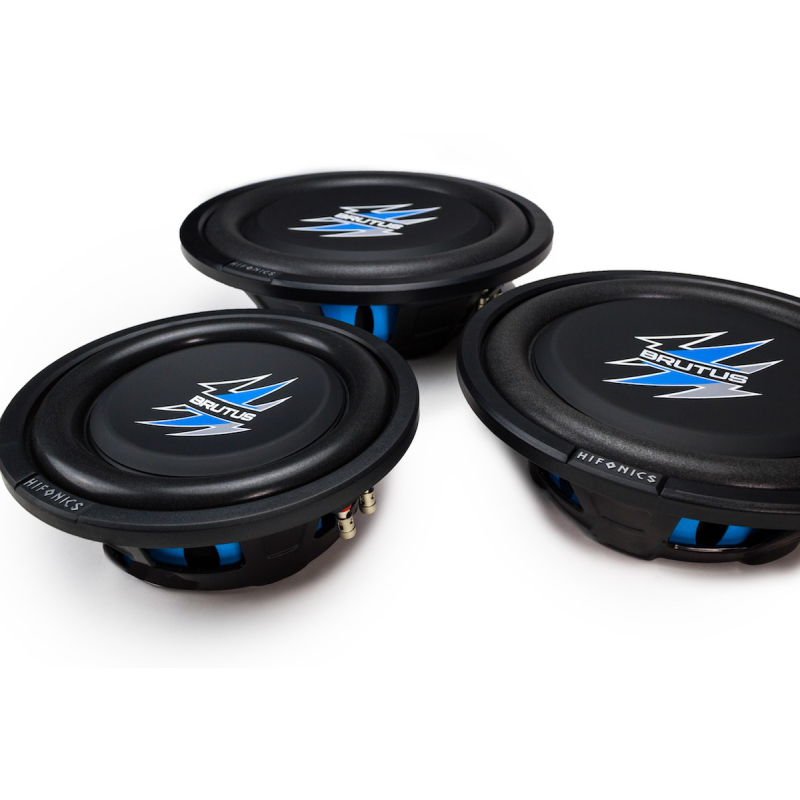

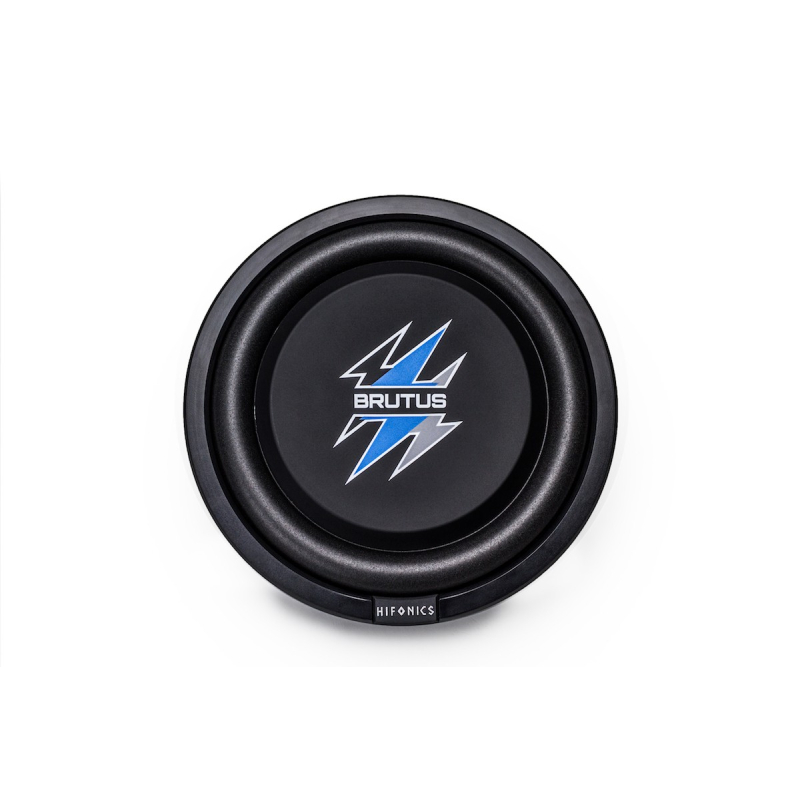

This dual voice coil shallow mount subwoofer has been designed for applications where space can be an issue. With less than 3 inches of mounting depth, this subwoofer can fit under any bench seat or shallow compartment. Designed to perform optimally in small sealed applications.
- SUBWOOFER TERMINAL TYPE
- Stainless Push & Insert for a very secure electrical connection with a high end fit and finish
- WOOFER CONFIGURATION
- VOICE COIL
- 2 inch high temperature voice coil and former for high thermal stability in small enclosure volumes where the internal box temperatures can rob you of performance
- VOICE COIL FORMER
- Vented aluminum voice coil former allows more dissipation of heat
- SURROUND
- UV rubber surround resists sun fading and remains flexible
- CONE
- Molded polypropylene cone and FEA design inner-cone are UVA protected and water resistant. The Polyether foam surround and FEA designed inner-cone resists damaging UV rays found in automotive applications
- DUST CAP
- Round, reinforced dust cap adds necessary weight to the mechanical function of the woofer and keeps the cone rigid
- BASKET
- Heavy gauge powder coated stamped steel basket provides a solid base for the motor system and moving parts and delivers big bass in a small space that does not totally consume your cargo space
- VENTING
- Front and rear venting allows cooler air to be exchanged in the voice coil gap which helps the subwoofer make deep bass and extend the life of the component
- SPIDER
- Polyester and cotton blended spider resists softening and sagging over time so you can enjoy many years of listening pleasure
- SURROUND
- UV rubber surround resists sun fading and remains flexible

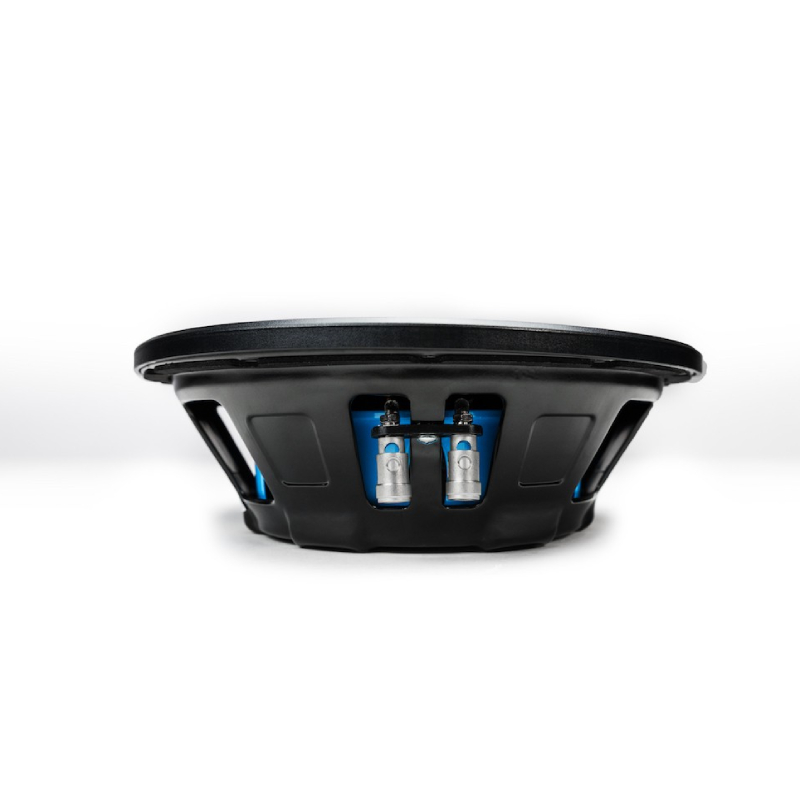

- TERMINALS
- Nickle plated push & insert to resist corrosion and aide in easy of installation
Features:
- RMS POWER HANDLING: 200
- PEAK POWER HANDLING: 400
- VOICE COILS: 2
- IMPEDANCE: 2 x 4 Ohms
- CUT-OUT: 9.13" (232mm)
- MOUNTING DEPTH: 2.95" (75mm)
- SENSITIVITY (1 WATT / 1 METER): 84dB
- UPC: 806576228424
- Weight: 8
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
