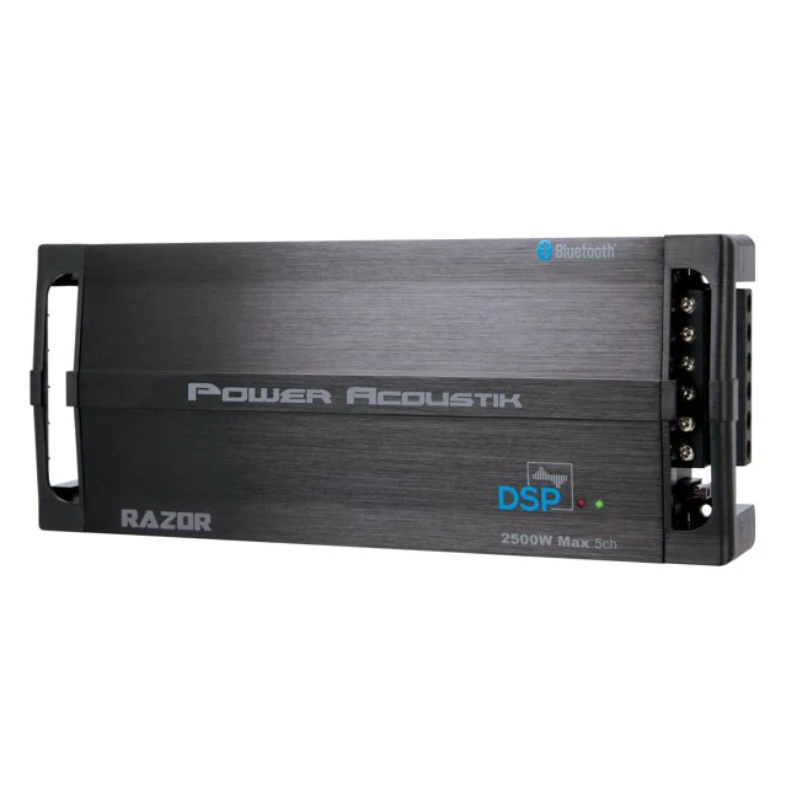

Power Acoustik RZ5-2500DSP RAZOR Series Class D 5-Channel Amplifier
We are a Power Acoustik authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• RAZOR Series 5 Channel Amplifier
• Owner's Manual

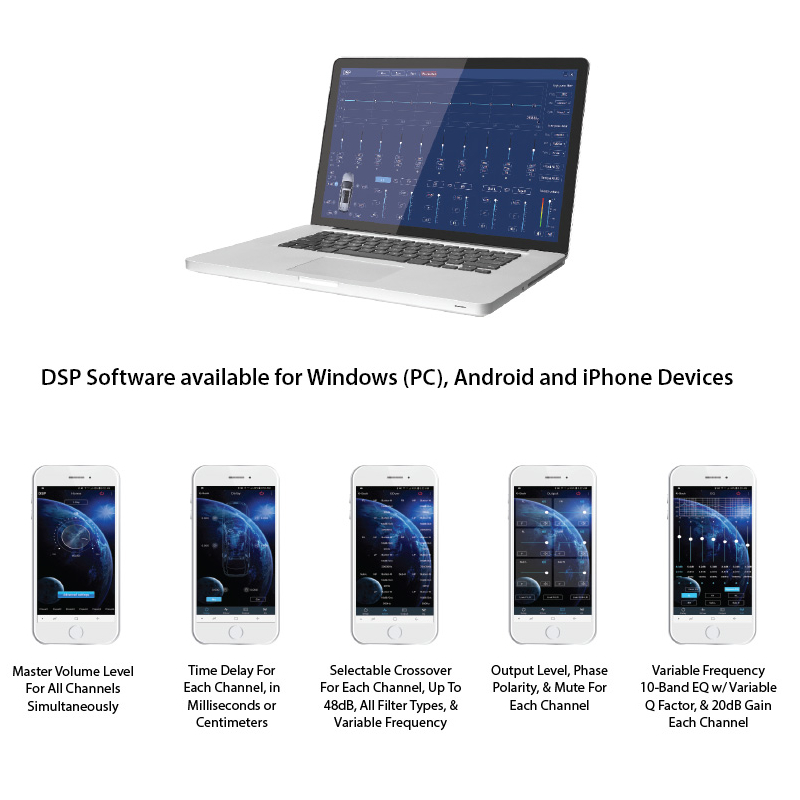

For those who want the most out of their car audio system, quality sound processing is necessary. Razor DSP amplifiers offer similar sound processing options by including the functions of a Digital Sound Processor. Adjusting the DSP is easy, using an intuitive user interface. After some slight adjustments, your system can sound like audio professionals have tuned it. Connection to the DSP module is possible via USB connection to personal computers or Bluetooth to an available Android & iOS device App. Unlock the best from any system with Razor DSP amplifiers.
Are you using an original or factory radio? No problem, these amplifiers are equipped with an Automatic Hi-Level Signal Sensing Turn-On. There is no need to run a remote wire turn on; this amplifier will automatically detect the sound signal and turn on and off the amplifier. (Hi-Level Input only)
Maximum Power : 2500 Watts
Number of Channels : 5
Frequency Response : 20-20000 Hz
Built In Crossovers : Yes
Channel Separation : Yes
Amplifier Class : D
Fuse Rating : 40x1 A
High Efficiency Class D Full Range
Compact 4.75” Chassis Design for Installation Versatility
MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
Military Grade SMT PCB Maintains Dynamic Performance
2-ohm Stereo & 4-ohm Bridged Full Range Operation
1-ohm Stable Monoblock Operation for MAX Power (3500D)
Die-Cast Aluminum Alloy Heatsink for Optimum Dissipation
Direct Short, Thermal, & Overload Circuits Protect Amplifier
Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
200mV-6V Low Level RCA Inputs
4g Power Wire & 8g Speaker Wire Outputs
High Level Input w/ Signal Sense Auto Turn-on
12dB Bass Boost Increases Low Octave Harmonics
12.25"L x 4.75”W x 1.625”H
4 Ohms: 100 Watts x 4 + 400 Watts x 1
2 Ohms: 150 Watts x 4 + 600 Watts x 1
Bridged 4 Ohms: 300 Watts x 2 + 300 x 1
Integrated 100dB Dynamic Range, -80dB THD+N ADC
Integrated 104dB Dynamic Range, -90dB THD+N DAC
User Friendly SigmaStudioTM User Interface w/ Response Display
30V MAX 4-ch High Level & 4V MAX RCA Input Voltage
2ch. RCA output for Subwoofer Amplifier Integration
Optional High Level Input from Hands-Free Bluetooth Module
Optional Independent Input or Channel Mixing/Summing
Up to +6dB / -60dB Master Input Level
Up to -60dB Independent Channel Level Cut
Up to 20ms Independent Channel Delay, 0.05ms Incriments
Independent Channel 0°/180° Phase Control
Independent Channel High, Low or Bandpass Crossover
