•(1) 10" Subwoofer
•Screw cover trim ring
•Adhesive-backed foam gasket
•(8) 1" Screws
SSI™ (Selectable Smart Impedance)
Most car audio system designs call for 2- or 4-ohm impedance. Kappa Series subwoofers put the choice in your hands. A proprietary HARMAN technology, SSI lets you reconfigure your system by simply flipping a switch.
Aero-cooled voice coil
The Kappa Series voice coil employs a two-sided, ducted airflow design that cools the voice coil, increases power handling and improves reliability. This aero-cooling design is unique among aftermarket subwoofers.
Oversized voice coil
Kappa subwoofer cones incorporate glass-fibers for exceptional accuracy and detail. Inherently non-resonant, the glass-fiber cones eliminate distortion so your music—and nothing but your music—comes through loud and clear.
Premium integrated push terminals
Power is the lifeblood of any subwoofer. The terminals on the Kappa subwoofers accommodate up to 8-guage wire (8.37mm 2 cross section), which transfers low-resistance, low-loss power to the woofer, even over long wire runs.
Learn how to wire subwoofers

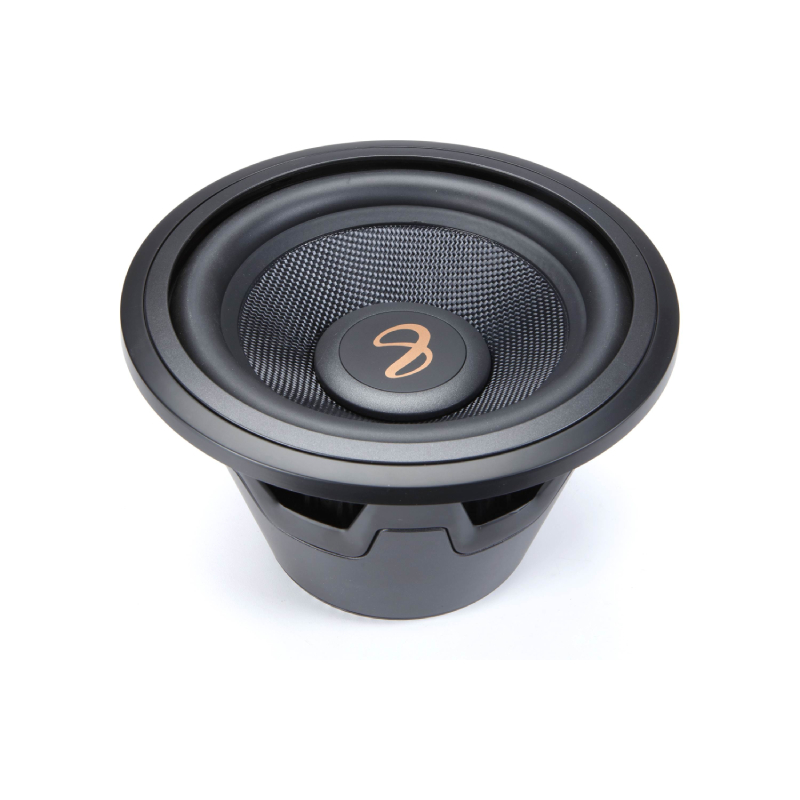

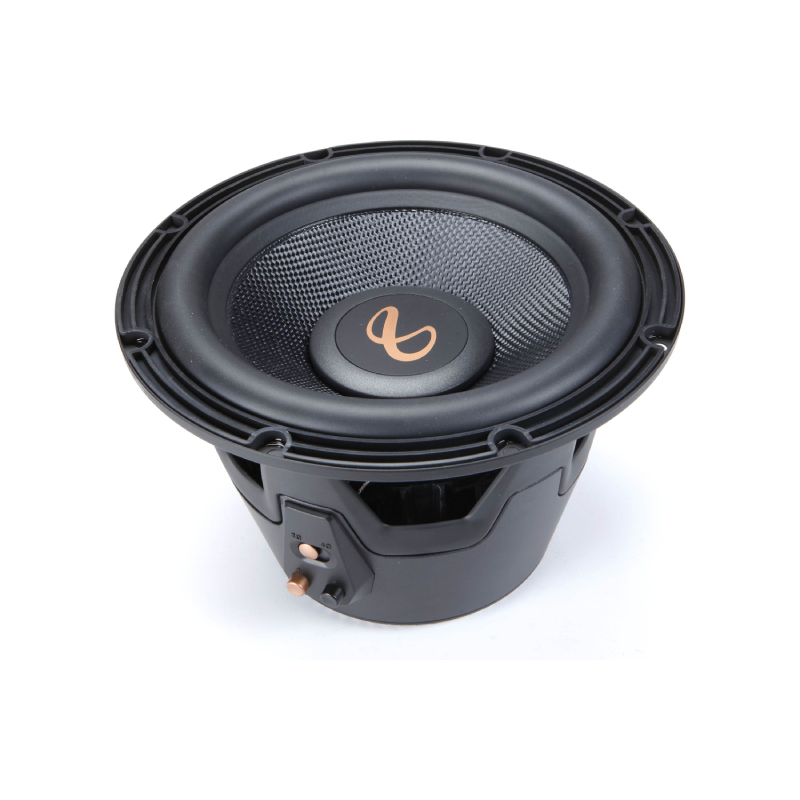

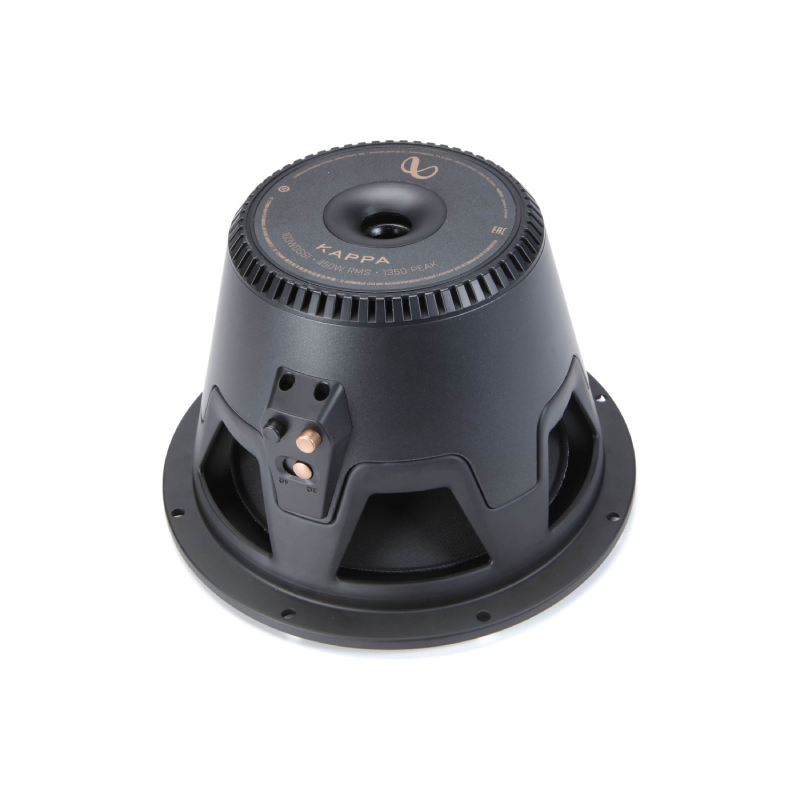

Diameter : 10 Inch
Sensitivity : 91 dB
Impedance : 2/4 Ohm
Frequency Response : 30-175 Hz
Peak Power Handling : 1350 Watts
Top Mount Depth : 6-1/4 Inches
Number of Voice Coils : Single
Suggested Sealed Box Volume : 0.8 Cubic ft.
Suggested Ported Box Volume : 1.5 Cubic ft.
Mounting Depth : 6-1/4 Inches
RMS Power Handling : 450 Watts
Free Air : Yes

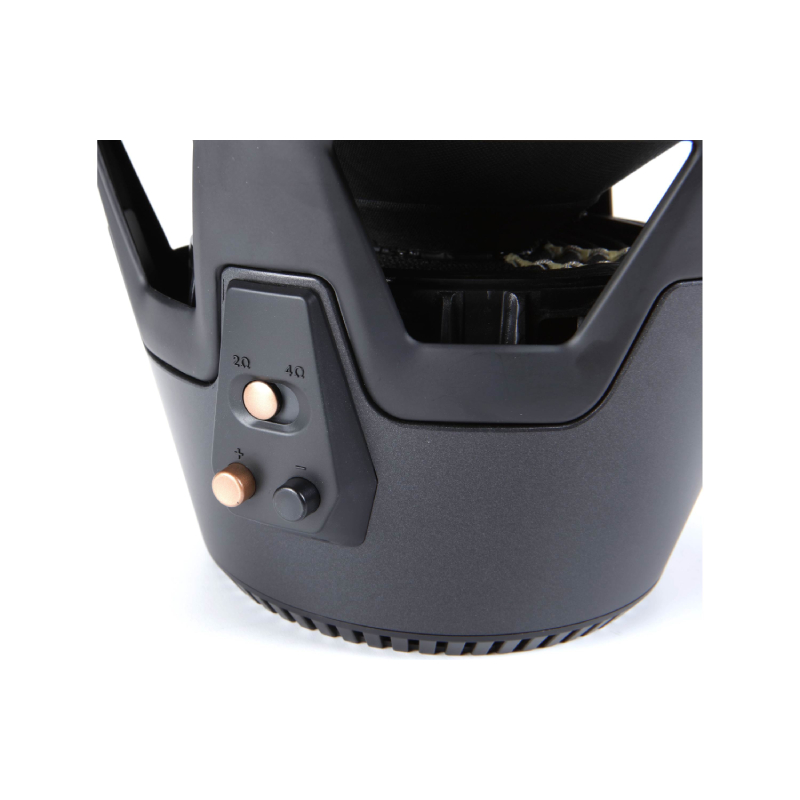

Selectable Smart Impedance (SSI): A switch on the input terminal allows you to easily change the woofer's impedance between 2Ω and 4Ω settings. (The connected amplifier should be off when changing the impedance.) The power handling is the same for either setting; 450 watts RMS/1350 watts peak.

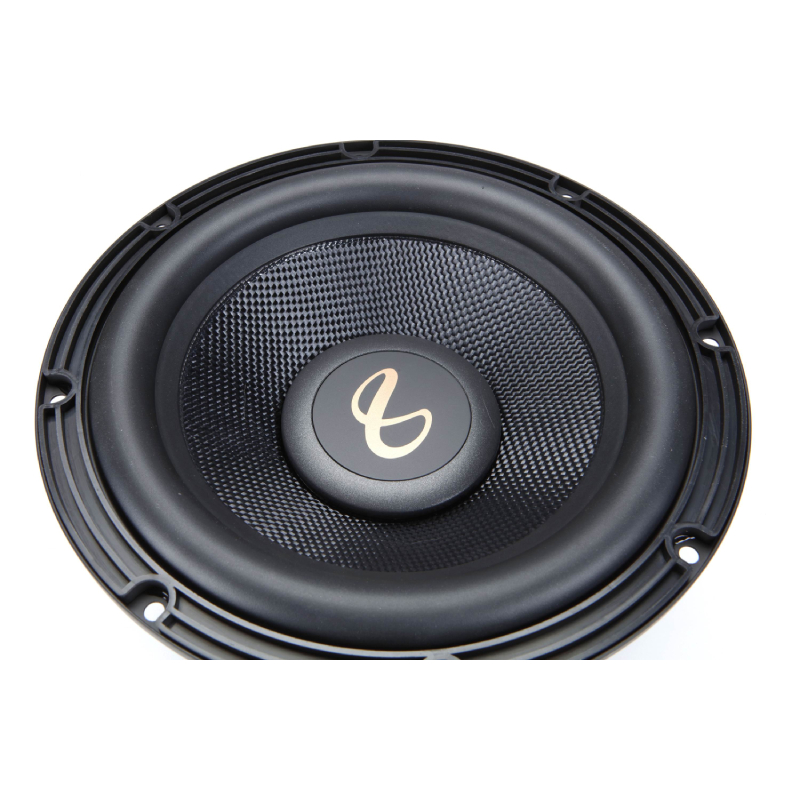

Cone: The cone material is a composite of glass fiber over a paper pulp material. Adding the glass fiber layer increases cone rigidity to improve bass accuracy, while the pulp base improves the sub's damping characteristics.
Terminal: The spring terminals will accept bare wire up to 8 gauge.
Sealed Box: Infinity recommends a sealed enclosure with an internal volume of 0.8 ft³. Sealed enclosures provide the most control over a woofer and provide accurate sonic reproduction, making them suitable to all types of music.
Ported Box: Infinity recommends a ported enclosure with an internal volume of 1.5 ft³ with one 3" diameter x 6" long port, resulting in a tuning frequency of 43 Hz. They also recommend using a sub-sonic filter. Ported enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from a given amount of power.
Free-air Mounting: In addition to being compatible with sealed and ported enclosures, the woofer can be used in free-air applications. A free-air subwoofer is designed to be mounted on a baffle board, which separates the front of the speaker from the back. For instance, you could mount this woofer to a board attached to the rear deck or placed in the trunk against the rear seat. The trunk acts as the enclosure housing the subwoofer. Because there is no specific volume of air to stiffen the suspension, the free-air power handling is approximately half that of the woofer in a box, in this case 225 watts RMS.
Size: 10 -inch
Impedance (Ohms): 2, 4
Cone Material: Glass Fiber over Paper
Surround Material: Rubber
Ideal Sealed Box Volume (cubic feet): 0.8
Ideal Ported Box Volume (cubic feet): 1.5
Port diameter (inches): 3
Port length (inches): 6
Dual Voice Coil: No
Sensitivity: 91 dB at 2.83 volts
Frequency Response: 30 - 175 Hz
Max RMS Power Handling: 450
Peak Power Handling (Watts): 1350
Top Mount Depth (inches): 6 1/4
Bottom Mount Depth (inches): 6 9/16
Cutout Diameter or Length (inches): 9
Vas (liters): 12.17
Fs (Hz): 45.4
Xmax (millimeters): 10.25
Parts Warranty: 3 Years
Labor Warranty: 3 Years
