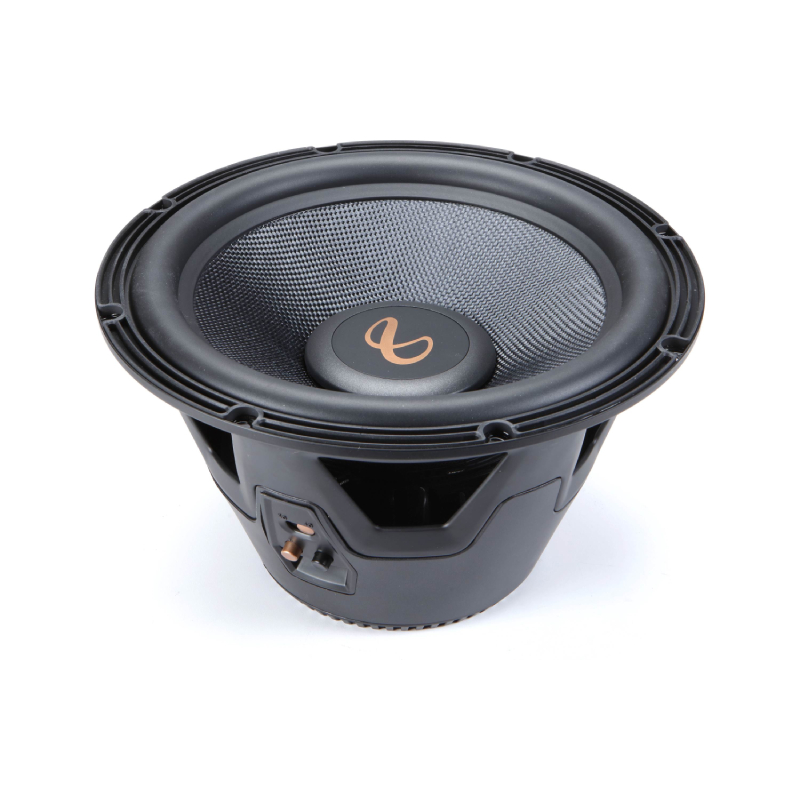

Infinity Kappa 123WDSSI Kappa Series 12" Car Subwoofer
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •(1) 12" Subwoofer
- •Screw cover trim ring
- •Adhesive-backed foam gasket
- •(1) 1" Screws
- •Installation instructions
SSI™ Unparalleled Sound Quality
Experience breathtaking bass and unparalleled sound quality with the Infinity Kappa 123WDSSI subwoofer. Engineered with precision and built to deliver exceptional performance, this subwoofer redefines low-frequency reproduction, taking your car audio experience to new depths.
Advanced Materials Minimize Distortion
The Infinity Kappa 123WDSSI features a 12-inch cone and a maximum power handling of 1200 watts, ensuring every bass note is felt precisely and clearly. Its innovative design and advanced materials minimize distortion, providing an accurate and deep bass response that enhances the overall audio experience.
High-quality Components
Crafted with high-quality components and a robust build, the Infinity Kappa 123WDSSI subwoofer is built to withstand the demands of intense audio reproduction. Its dual voice coils offer versatile wiring options, while its rugged construction ensures long-lasting durability and reliable performance.
Precise Bass Reproduction
Elevate your car audio experience with the Infinity Kappa 123WDSSI subwoofer. With its powerful and precise bass reproduction, durable construction, and easy integration, this subwoofer is a must-have for audiophiles. Immerse yourself in deep, resonating bass and enjoy a truly immersive audio experience on the road. Upgrade to the Infinity Kappa 123WDSSI subwoofer and let the music come alive with unmatched clarity and depth.
FOR SUBWOOFER:
Learn how to wire subwoofers

- Diameter : 10 Inch
- Sensitivity : 92 dB
- Impedance : 2/4 Ohm
- Frequency Response : 25-175 Hz
- Peak Power Handling : 1500 Watts
- Top Mount Depth : 7-1/16 Inches
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : 1.3 Cubic ft.
- Suggested Ported Box Volume : 2.5 Cubic ft.
- RMS Power Handling : 500 Watts
- Free Air : Yes
Features:

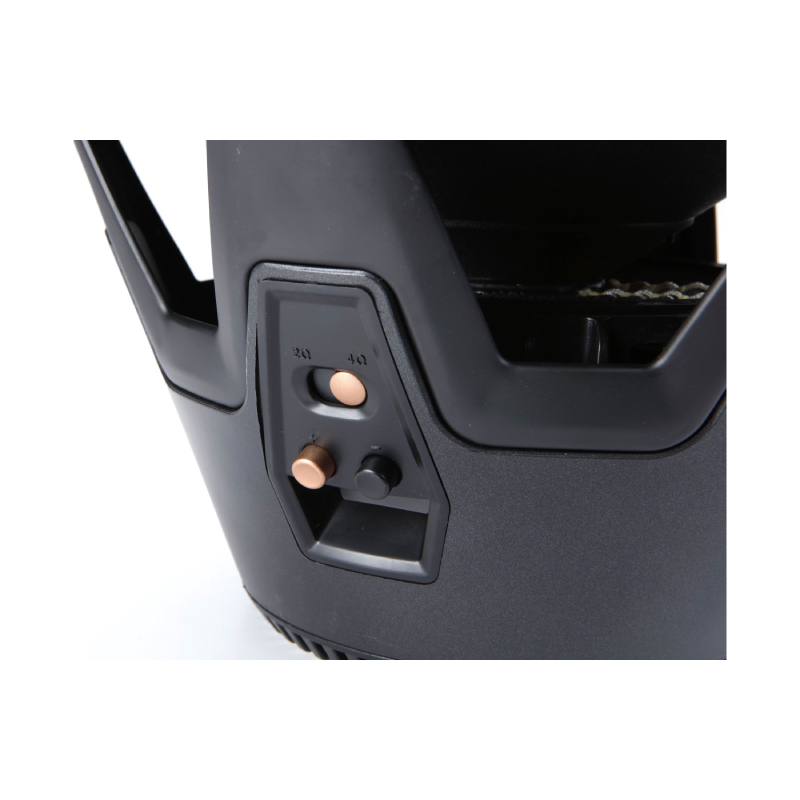

- Selectable Smart Impedance (SSI): A switch on the input terminal allows you to easily change the woofer's impedance between 2Ω and 4Ω settings. (The connected amplifier should be off when changing the impedance.) The power handling is the same for either setting; 500 watts RMS/1500 watts peak.

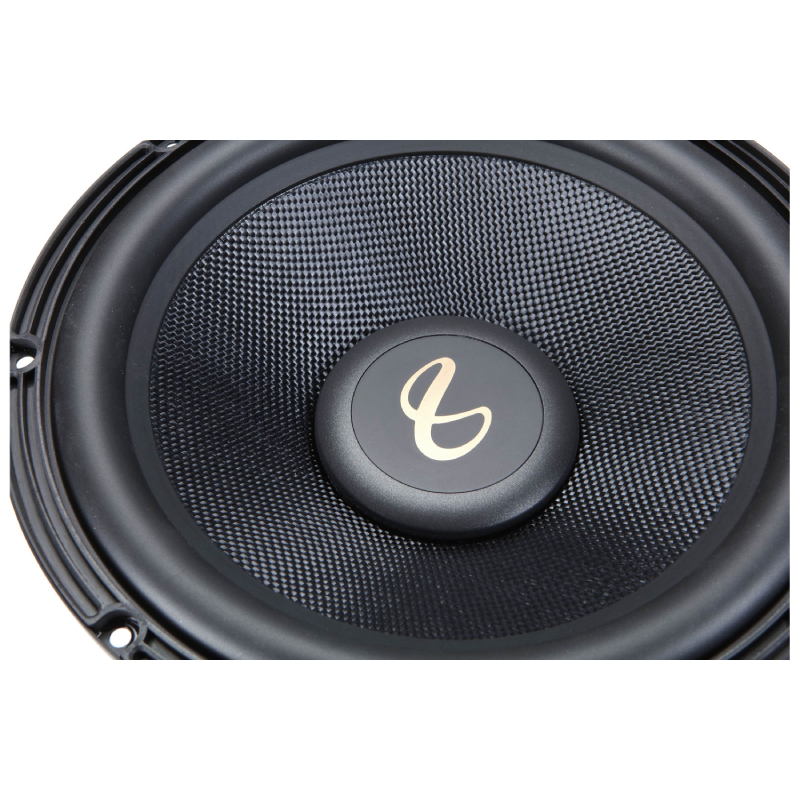

- Cone: The cone material is a composite of glass fiber over a paper pulp material. Adding the glass fiber layer increases cone rigidity to improve bass accuracy, while the pulp base improves the sub's damping characteristics.
- Terminal: Although the spring terminals will accept bare wire up to 8-gauge, the angle makes inserting an 8-gauge wire very difficult. As a practical matter I consider these 10-gauge terminals.
- Sealed Box: Infinity recommends a sealed enclosure with an internal volume of 1.3 ft³. Sealed enclosures provide the most control over a woofer and provide accurate sonic reproduction, making them suitable to all types of music.
- Ported Box: Infinity recommends a ported enclosure with an internal volume of 2.5 ft³ with one 4" diameter x 10" long port, resulting in a tuning frequency of 35 Hz. They also recommend using a sub-sonic filter. Ported enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from a given amount of power.
- Free-air Mounting: In addition to being compatible with sealed and ported enclosures, the woofer can be used in free-air applications. A free-air subwoofer is designed to be mounted on a baffle board, which separates the front of the speaker from the back. For instance, you could mount this woofer to a board attached to the rear deck or placed in the trunk against the rear seat. The trunk acts as the enclosure housing the subwoofer. Because there is no specific volume of air to stiffen the suspension, the free-air power handling is approximately half that of the woofer in a box, in this case 250 watts RMS.
Specifications:
- Size: 12 -inch
- Impedance (Ohms): 2, 4
- Cone Material: Glass Fiber over Paper
- Surround Material: Rubber
- Ideal Sealed Box Volume (cubic feet): 1.3
- Ideal Ported Box Volume (cubic feet): 2.5
- Port diameter (inches): 4
- Port length (inches): 10
- Free-Air: Yes
- Dual Voice Coil: No
- Sensitivity: 92 dB at 2.83 volts
- Frequency Response: 25 - 175 Hz
- Max RMS Power Handling: 500
- Peak Power Handling (Watts): 1500
- Top Mount Depth (inches): 7 1/16
- Bottom Mount Depth (inches): 7 3/8
- Cutout Diameter or Length (inches): 11 1/4
- Vas (liters): 58.7
- Fs (Hz): 34.2
- Qts: 0.778
- Xmax (millimeters): 10.25
- Parts Warranty: 3 Years
- Labor Warranty: 3 Years
- UPC: 050667376819
- Weight: 10
