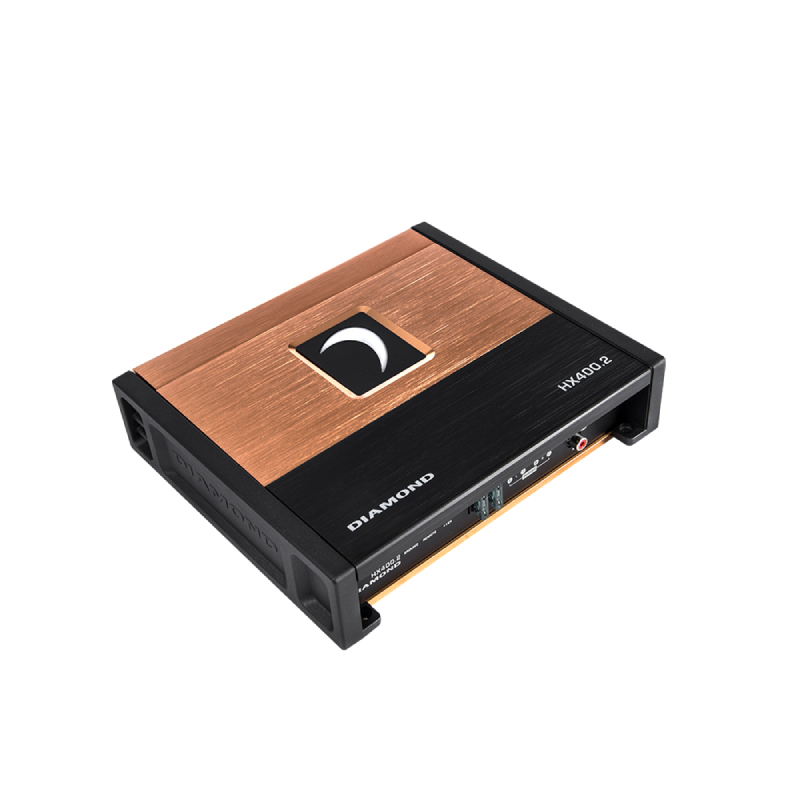

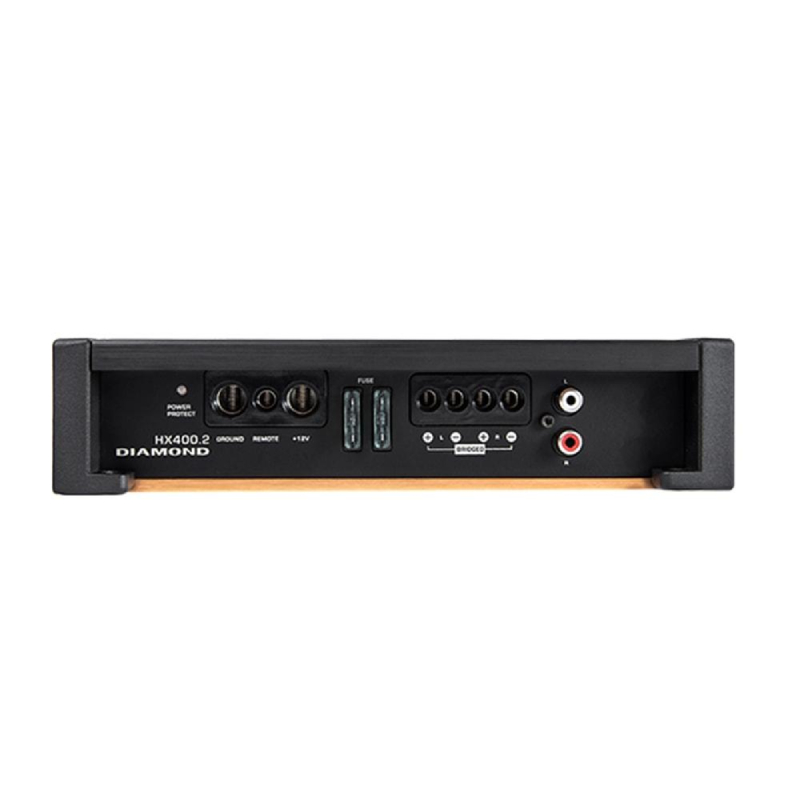

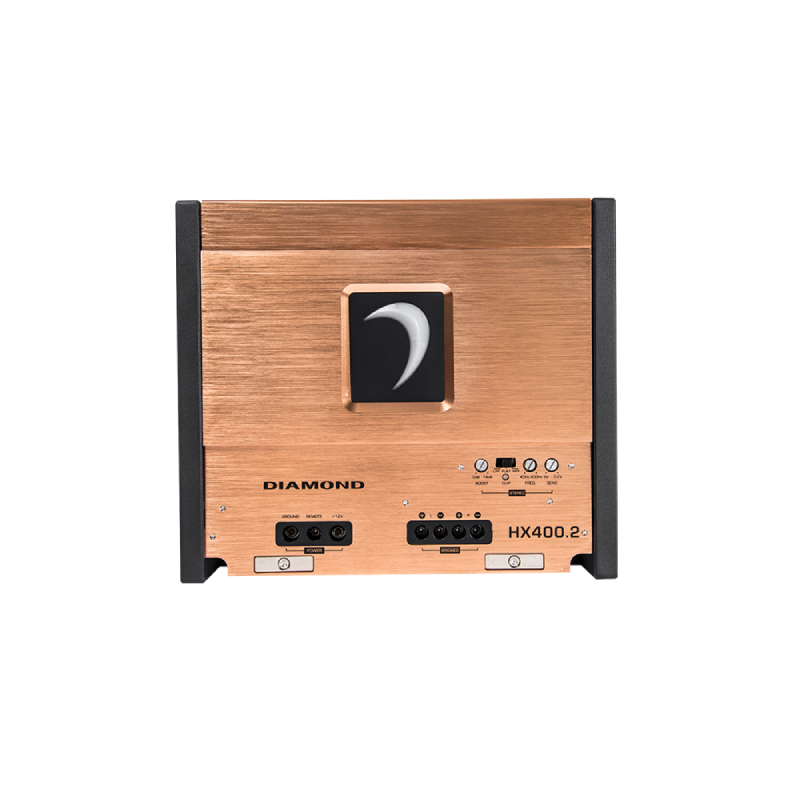

Diamond Audio  HX400.2

HEX Series 200WX2 @4Ohms, 350WX2 @2Ohm Class D 2-Channel Amplifier

Item #80558

Condition:   Brand New

Product Highlights

  • HEX Series 2-Channel Amplifier
  • 200W x2 @4 Ohms
  • 350W x2 @2 Ohms
  • Class D

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$569.99

Reg. Price $669.99  Save $100.00

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 700 Watts
  • Number of Channels : 2
  • Frequency Response : 10-35000 Hz
  • Amplifier Class : D
  • Fuse Rating : 25x2 A

FEATURES


Features:

  • Anodized Extruded Aluminum Heat Sink Provides Superior Thermal Performance
  • 4-Layer PCB Board with Balanced Differential Inputs
  • Full Range Class D IR Chipset
  • “SNAP” Capacitors used Throughout the Circuit
  • Audiophile Grade High Tolerance Components
  • Spring Steel FET Clips Provide a Cleaner Board Design
  • Illuminated Logo / Fully Concealed Mounting
  • Output Clip Indicators for Precise Set-Up
  • Fine Tuned Fully Variable Crossovers and Phase Control
  • Top Mounted Controls for Convenient Amplifier Adjustment



Specifications:

  • RMS Power (4 Ω): 200 W X 2
  • RMS Power (2 Ω): 350 W X 2
  • Bridged (mono 4 Ω): 700 W X 1
  • Topology: Class D
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0DVC – 17.0DVC
  • Idle Current: (0.7A)
  • THD (1KHz @4Ω): 0.06%
  • S-N Ratio (A-weighted @ 1W): -80dBA
  • S-N Ratio (A-weighted @ 1W): -95dBA
  • Input Sensitivity – Low Input Level: 200mV – 5.0V
  • Input Sensitivity – High Input Level: N/A
  • Input Impedance – Low Input Level: 20 KΩ
  • Impedance – High Input Level: N/A
  • Output Impedance: 0.011Ω
  • Damping Factor (50Hz @ 4Ω): >250
  • Bandwidth (-3dB): 10Hz-35kHz
  • Crossover (-12 dB/ Oct) – Variable High Pass: 40Hz-400Hz
  • Crossover (-12 dB/ Oct) – Variable Low Pass: 40Hz-400Hz
  • Crossover (-12 dB/ Oct) – Variable Sub-Sonic: N/A
  • Fuse Rating (ATC): 25A X 2
  • Dimentions- Length x Width x Height (inches): 8.75″ x 6.8″ x 2″
  • Dimentions- Length x Width x Height (mm): 222 x 195 x 51.5 mm

For more Information:

HX400.2 Owner's Manual

  • UPC: 847169024146
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
