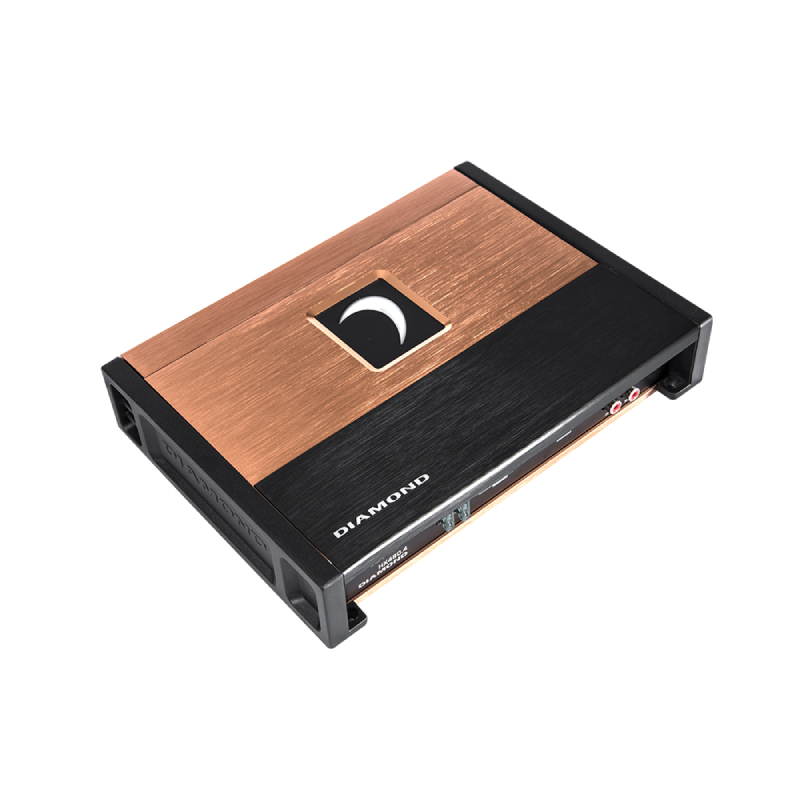

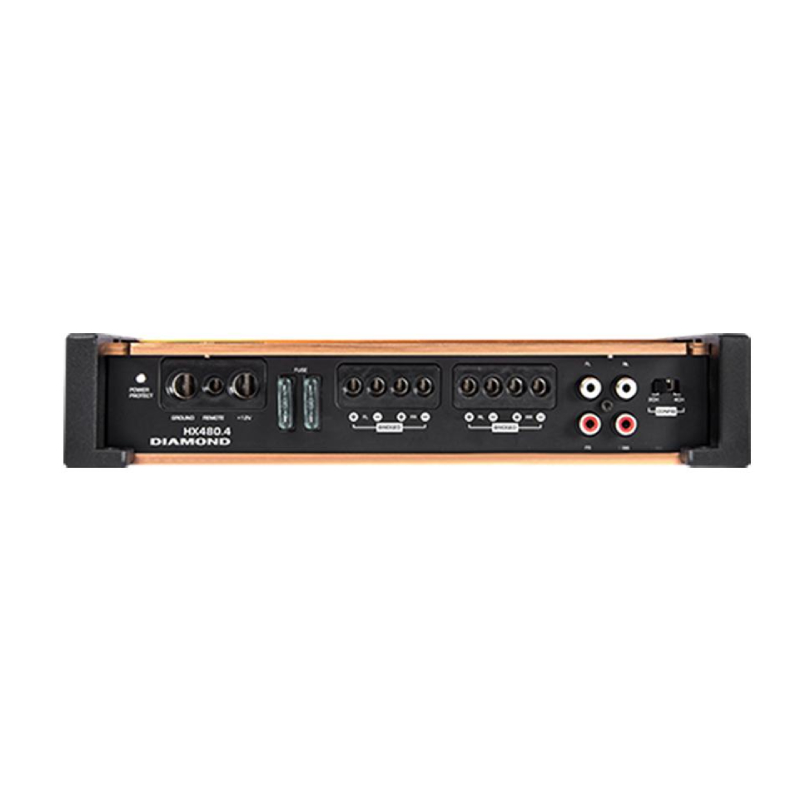

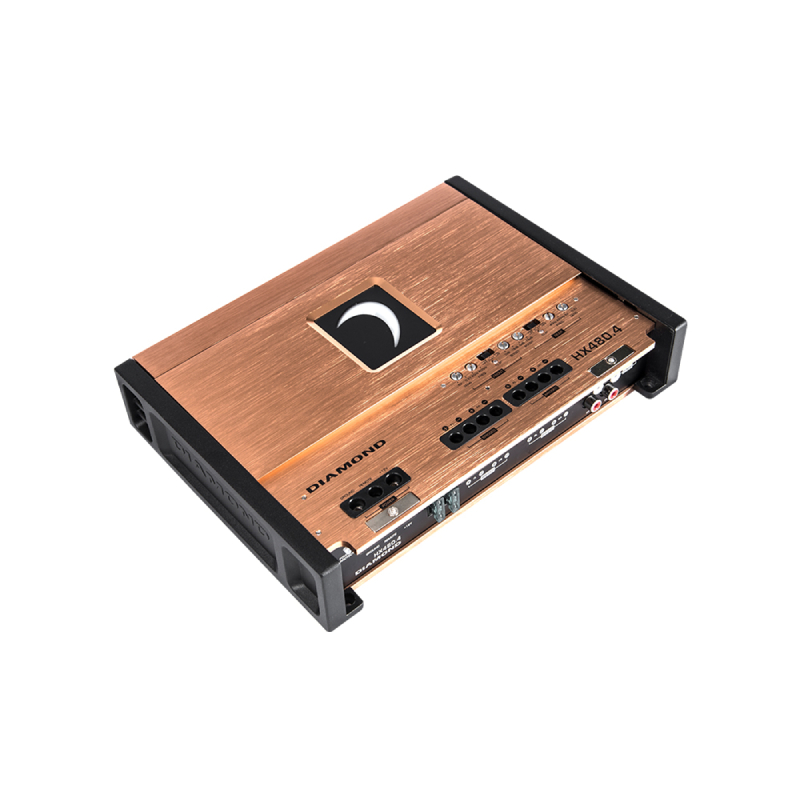

Diamond Audio  HX480.4

HEX Series 120WX4 @4Ohms 185WX4 @2Ohm Class D 4-Channel Amplifier

Item #80561

Product Highlights

  • HEX Series Class D 4-Channel Amplifier
  • 120W x 4 @ 4 Ohms
  • 185W x 4 @ 2 Ohms

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 740 Watts
  • Number of Channels : 4
  • Frequency Response : 10-35000 Hz
  • Amplifier Class : D
  • Fuse Rating : 25x2 A

FEATURES


Features:

  • Anodized Extruded Aluminum Heat Sink Provides Superior Thermal Performance
  • 4-Layer PCB Board with Balanced Differential Inputs
  • Full Range Class D IR Chipset
  • “SNAP” Capacitors used Throughout the Circuit
  • Audiophile Grade High Tolerance Components
  • Spring Steel FET Clips Provide a Cleaner Board Design
  • Illuminated Logo / Fully Concealed Mounting
  • Output Clip Indicators for Precise Set-Up
  • Fine Tuned Fully Variable Crossovers and Phase Control
  • Top Mounted Controls for Convenient Amplifier Adjustment



Specifications:

  • RMS Power (4 Ω): 120 W X 4
  • RMS Power (2 Ω): 185 W X 4
  • Bridged (mono 4 Ω): 370 W X 2
  • Topology: Class D
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0DVC – 17.0DVC
  • Idle Current: (0.7A)
  • THD (1KHz @4Ω): 0.06%
  • S-N Ratio (A-weighted @ 1W): -80dBA
  • S-N Ratio (A-weighted @ 1W): -95dBA
  • Input Sensitivity – Low Input Level: 200mV – 5.0V
  • Input Sensitivity – High Input Level: N/A
  • Input Impedance – Low Input Level: 20 KΩ
  • Impedance – High Input Level: N/A
  • Output Impedance: 0.011Ω
  • Damping Factor (50Hz @ 4Ω): >250
  • Bandwidth (-3dB): 10Hz-35kHz
  • Crossover (-12 dB/ Oct) – Variable High Pass: 40Hz-400Hz
  • Crossover (-12 dB/ Oct) – Variable Low Pass: 40Hz-400Hz
  • Crossover (-12 dB/ Oct) – Variable Sub-Sonic: N/A
  • Fuse Rating (ATC): 25A X 2

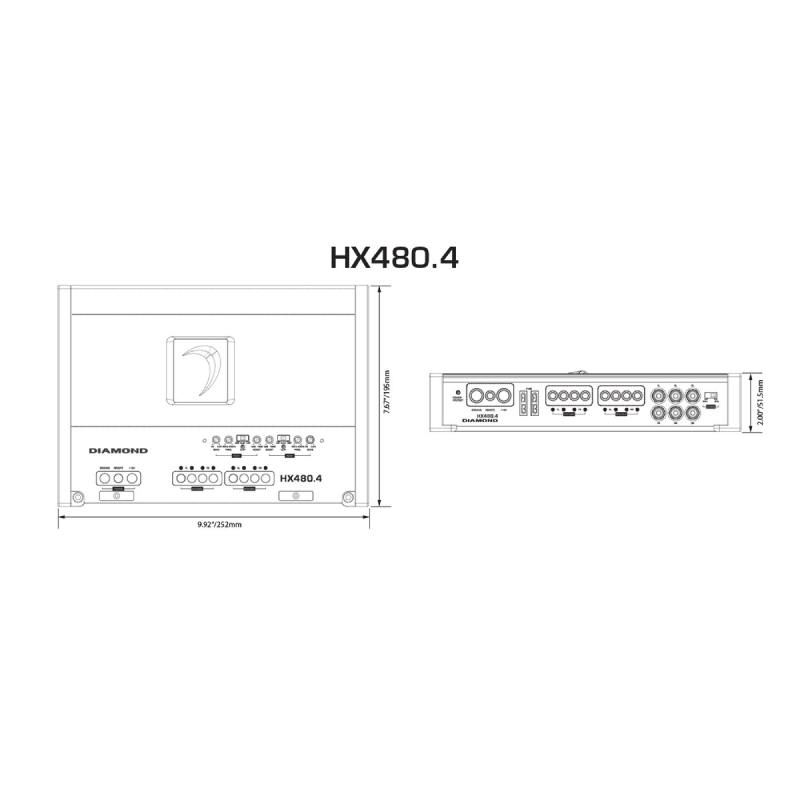

  • Dimentions- Length x Width x Height (inches): 9.92″ x 7.67″ x 2″
  • Dimentions- Length x Width x Height (mm): 252 x 195 x 51.5 mm
  • UPC: 847169020056
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
