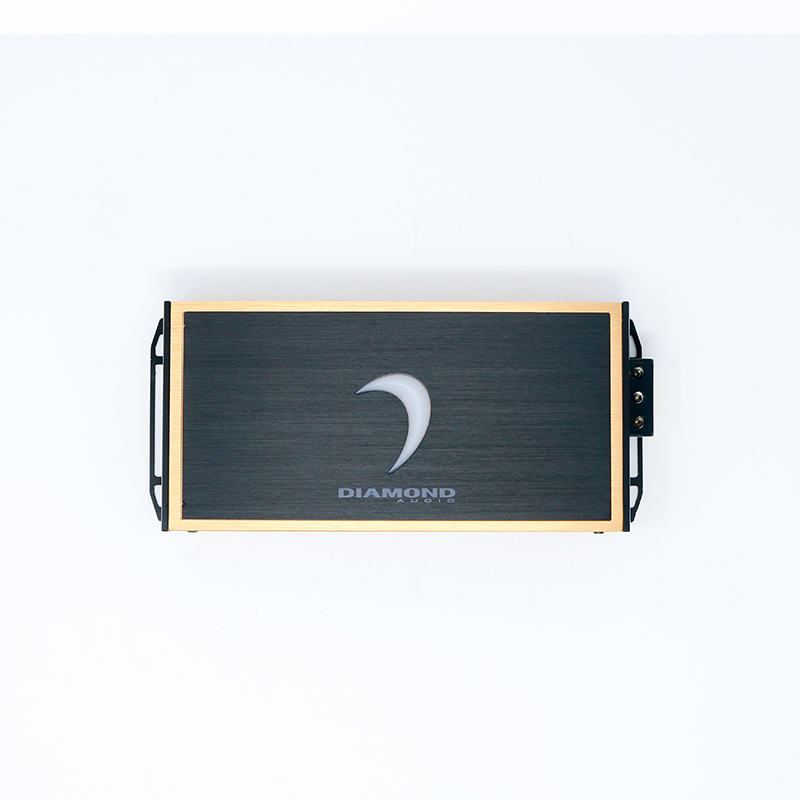

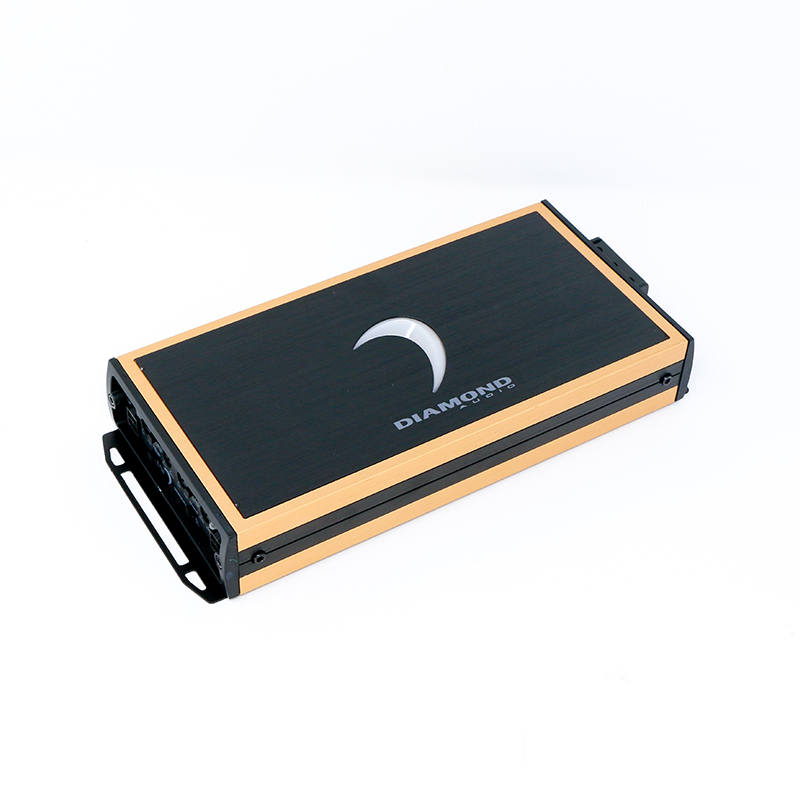

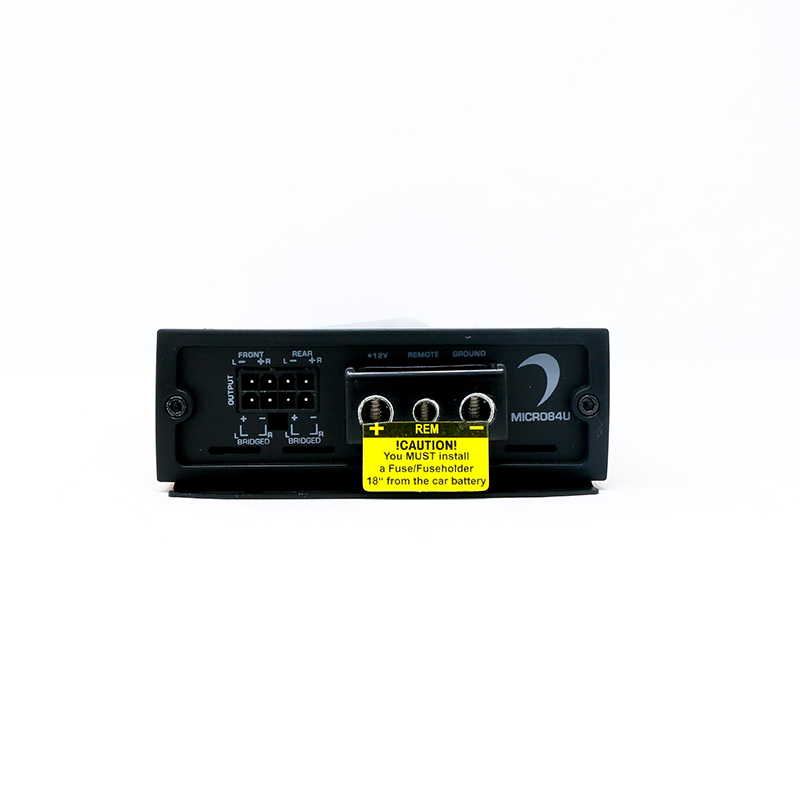

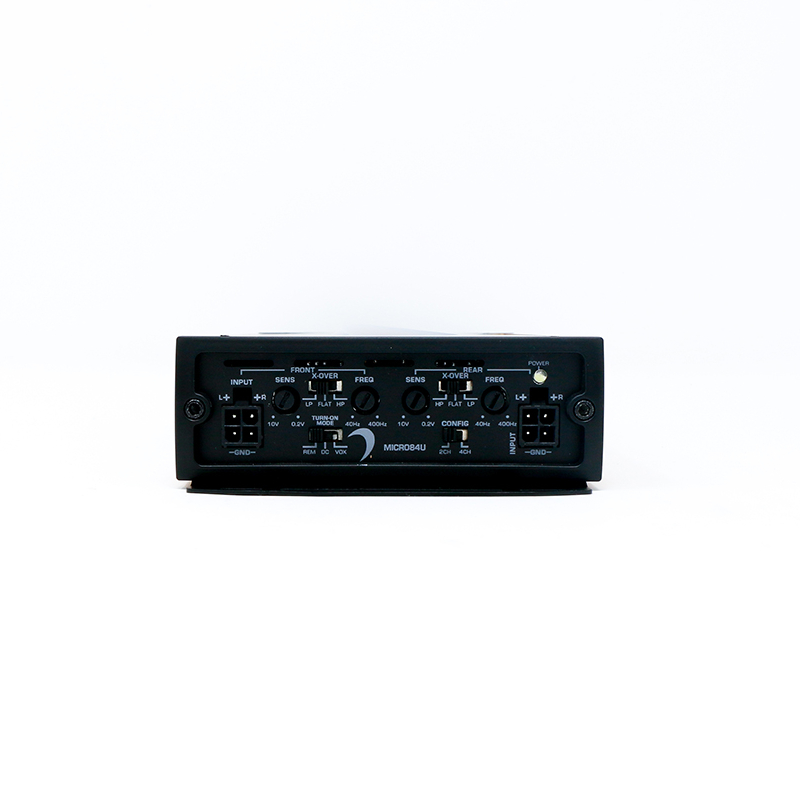

Diamond Audio  MICRO84U

Micro Series 600W Max Power, 4-Channel Full Range Amplifier, Class-D

Item #80579

Condition:   Brand New

Product Highlights

  • Micro Series 4-Channel Full Range Amplifier
  • 600W Max Power
  • Class-D

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$649.99

Reg. Price $749.99  Save $100.00

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio MICRO84U -Micro Series 600W Max Power, 4-Channel Full Range Amplifier, Class-D


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 4-Channel Full Range Amplifier, Class-D
  • • Owner's Manual
Diamond Audio's Ultimate Amplifiers for Power and Elegance

Diamond Audio is setting new standards with the MICRO8U series amplifiers for 2018, enhancing the successful MICRO series with even greater power and performance. These amplifiers are engineered from scratch, offering increased power while being conformal-coated for all-weather and outdoor use, ensuring durability and reliability in various conditions. The MICRO8U models, excluding the MICRO85U and MICRO88U, feature a consistent platform and dimensions for a sleek, uniform installation. Their refined design and Diamond Audio's signature aesthetics deliver not only exceptional performance but also an attractive appearance in any setup. Upgrade to the MICRO8U series and experience superior sound quality and resilience, both indoors and outdoors.


SPECIFICATIONS


  • Maximum Power : 660 Watts
  • Number of Channels : 4
  • Frequency Response : 10-33000 Hz
  • Amplifier Class : D
  • Fuse Rating : 40 A

FEATURES


Features:

  • Full Range Class D IR Chipset
  • DirectFET Power Mosfet Output Stage
  • SMD Technology on 4 layer Glass PC Board
  • Conformal Coated PCB assembly for added water resistance
  • ICAD circuit provides superior overload protection
  • Frequency response 10 Hz – 30kHz (Mono Block 10 Hz – 350Hz)
  • Variable 12db crossovers
  • MICRO Bass boost +12DB @45HZ
  • Premium 8 gauge power connections
  • Multi channels / Mono channel



Specifications:

  • RMS Power (2 Ohms): 160Wx4
  • RMS Power (4 Ohms): 90Wx4
  • Bridged (mono 4 Ohms): 275Wx2
  • Topology: Full Range Class D
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0DVC – 17.0DVC
  • Idle Current: (0.7A)
  • THD 4 (1KHz @4Ω): 0.5%
  • S-N Ratio (A-weighted @ 1W): -85dBA
  • S-N Ratio (A-weighted @ 1W): -101.1dBA
  • Input Sensitivity – Low Input Level: 200mV – 10V
  • Input Sensitivity – High Input Level: N/A
  • Input Impedance – Low Input Level: 20 KΩ
  • Impedance – High Input Level: 20 KΩ
  • Output Impedance: 0.018Ω
  • Damping Factor (50Hz @ 4Ω): >70
  • Bandwidth (-3dB): 10Hz-30kHz
  • Crossover (-12 dB/ Oct) – Variable High Pass: 40Hz-400Hz
  • Crossover (-12 dB/ Oct) – Variable Low Pass: 40Hz-400Hz
  • Crossover (-12 dB/ Oct) – Variable Sub-Sonic: N/A
  • Fuse Rating (ATC): 40A
  • Dimentions- Length x Width x Height (inches): 9.0″ x 4.06″ x 1.52″
  • Dimentions- Length x Width x Height (mm): 228.6 x 103 x 38.6 mm
  • UPC: 0847169044731
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
