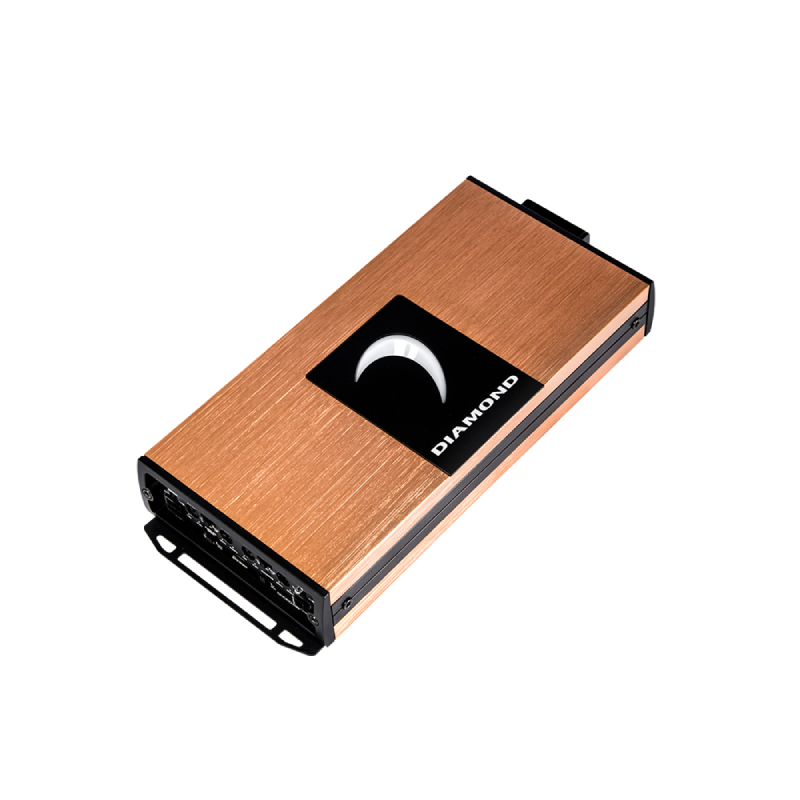

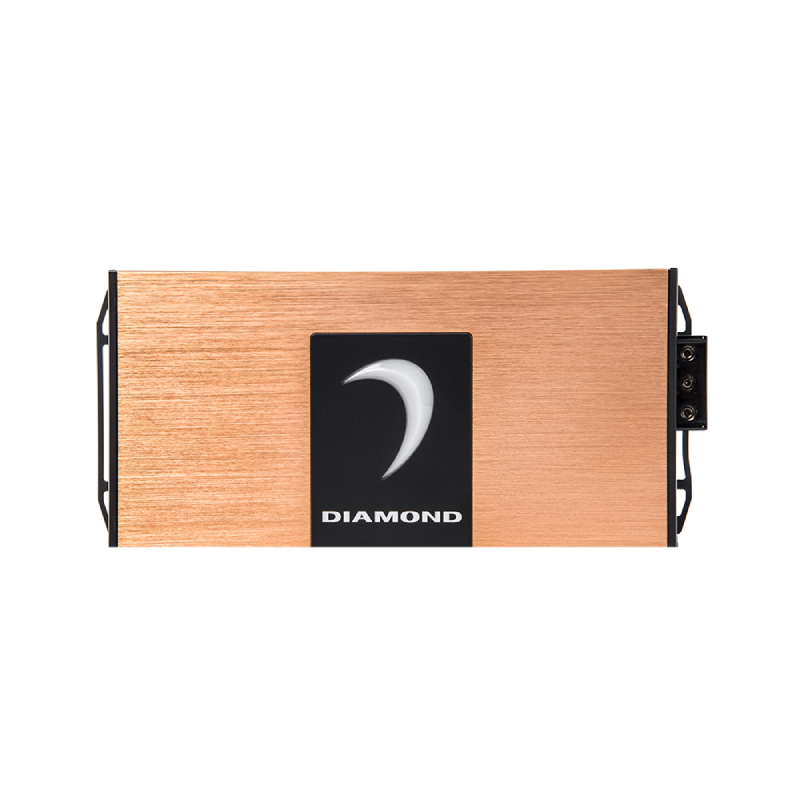

Diamond Audio  MICRO4V2

MICROV2 Series 150WX4 @2Ohms, 80W4 @4Ohms Full Range Class D 4-Channel Amplifier

Item #80596

Product Highlights

  • MICROV2 4-Channel Amplifier
  • 150W x 4 @2Ohms
  • 80W x 4 @4Ohms
  • Full Range Class D
  • High-Performance Car Audio

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 600 Watts
  • Number of Channels : 4
  • Frequency Response : 20-30000 Hz
  • Amplifier Class : D
  • Fuse Rating : 40 A

FEATURES


Features:

  • Full Range Class D IR Chipset
  • DirectFET Power Mosfet Output Stage
  • SMD Technology on 4 layer Glass PC Board
  • ICAD circuit provides superior overload protection
  • Frequency response 20 Hz – 30kHz

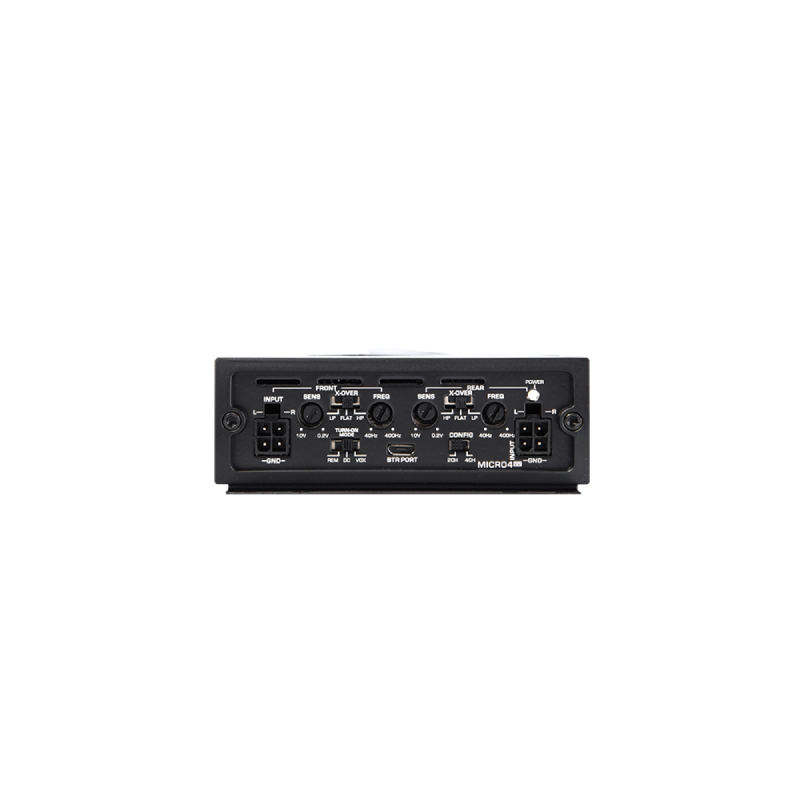

  • Variable 12db crossovers
  • Bridgeable / 2ch-4ch switch control
  • BTR (BlueTooth Receiver enabled)
  • MICRO Bass boost +12DB @45Hz

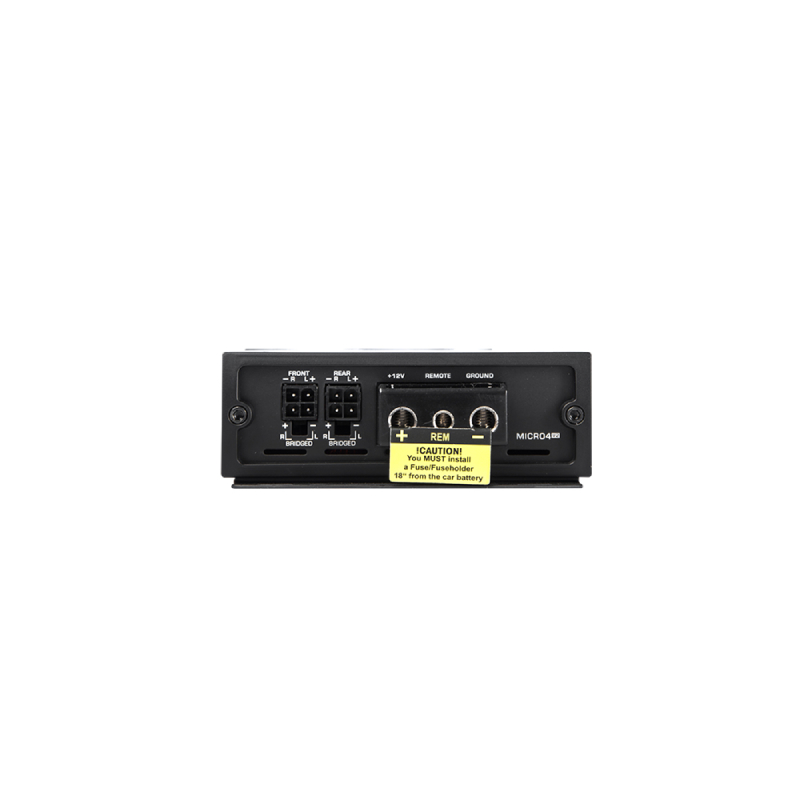

  • Premium 8 and 4 gauge power connections
  • Multi channels / Mono channel



Specifications:

  • RMS Power (2 Ω): 150 W X 4
  • RMS Power (4 Ω): 80 W X 4
  • Bridged (mono 4 Ω): 300 W X 2
  • Topology: Full Range Class D
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0DVC – 17.0DVC
  • Idle Current: (0.7A)
  • THD 4 (1KHz @4Ω): 0.5%
  • S-N Ratio (A-weighted @ 1W): -85dBA
  • S-N Ratio (A-weighted @ 1W): -101.1dBA
  • Input Sensitivity – Low Input Level: 200mV – 10.0V
  • Input Sensitivity – High Input Level: N/A
  • Input Impedance – Low Input Level: 20 KΩ
  • Impedance – High Input Level: 20 KΩ
  • Output Impedance: 0.018Ω
  • Damping Factor (50Hz @ 4Ω): >70
  • Bandwidth (-3dB): 10Hz-35Hz
  • Crossover (-12 dB/ Oct) – Variable High Pass: 40Hz-400Hz
  • Crossover (-12 dB/ Oct) – Variable Low Pass: 40Hz-400Hz
  • Crossover (-12 dB/ Oct) – Variable Sub-Sonic: N/A
  • Fuse Rating (ATC): 40A
  • Dimentions- Length x Width x Height (inches): 9.07″ x 4.0″ x 1.46″
  • Dimentions- Length x Width x Height (mm): 230.5 x 103 x 37.2 mm
  • UPC: 0847169024146
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
