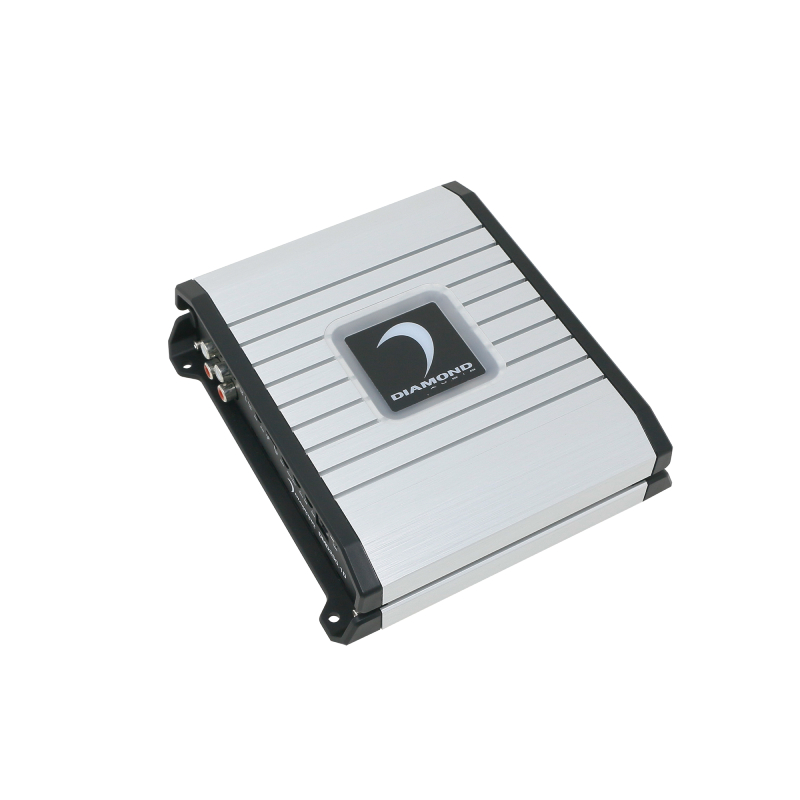

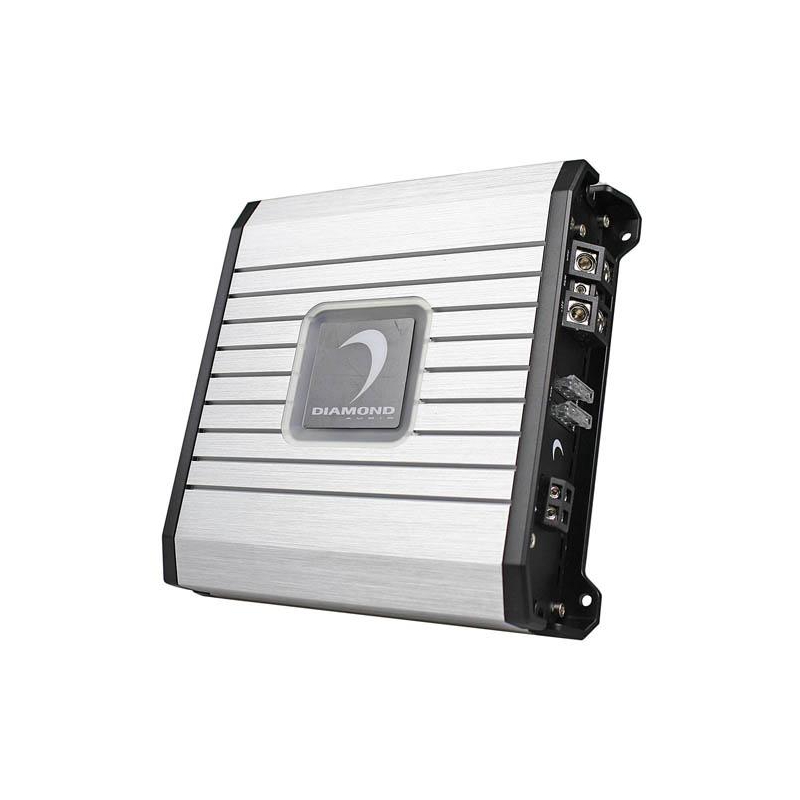

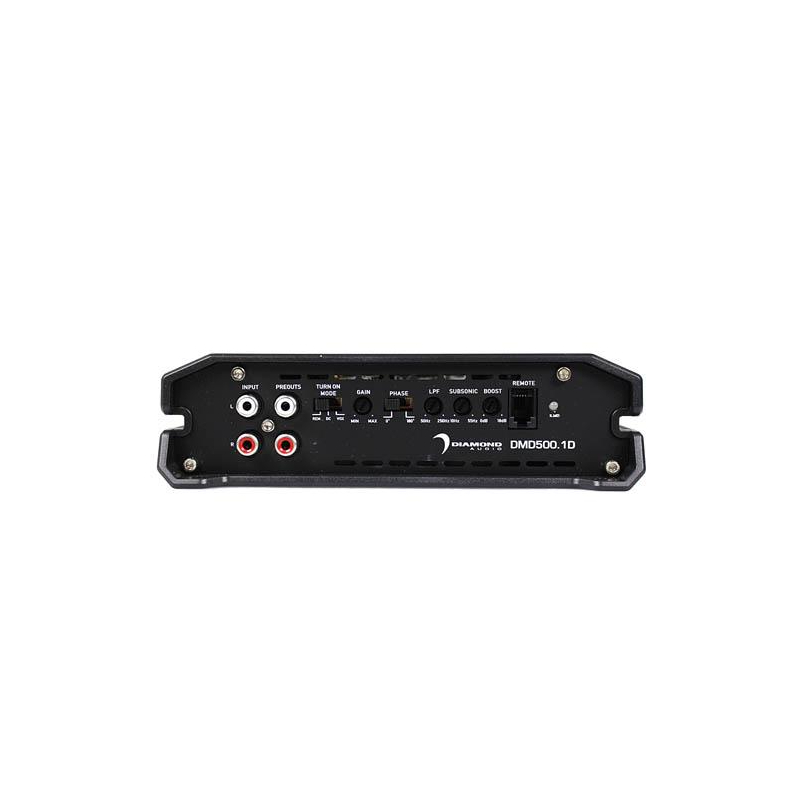

Diamond Audio  DMD500.1D

Diamond Series 500W Max Power, Monoblock Amplifier, Class-D

Item #80608

Product Highlights

  • Diamond Series Monoblock Amplifier
  • 500W Max Power
  • Class-D

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio DMD500.1D - Diamond Series 500W Max Power, Monoblock Amplifier, Class-D


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Monoblock Amplifier, Class-D
  • • Owner's Manual
Compact Power and Exceptional Value for Mobile Audio Systems

The DMD Series Amplifiers from Diamond Audio offer exceptional performance and value, ideal for budget-friendly mobile audio systems. Featuring five models—including a 4-channel, three mono-channel, and one 6-channel amplifier—these compact yet powerful units leverage the latest IR chipset and innovative SMD technology on 4-layer FR4 PC boards. The amplifiers ensure noise-free operation with balanced differential inputs and include features such as a subsonic filter, bass boost, and an LED-lit logo for power/protection status. With rigorous audio precision quality control, the DMD Series guarantees high performance and reliability, setting a new standard that competitors can't match. Upgrade to the DMD Series and elevate your mobile audio experience with unparalleled power, technology, and value.


SPECIFICATIONS


  • Number of Channels : 1
  • Frequency Response : 20-250 Hz
  • Amplifier Class : D
  • Fuse Rating : 30x2 A

FEATURES


Features:

  • 500Watts @ 2 ohms RMS Output
  • 340Watts @ 4 ohms RMS Output
  • Frequency Response: 20-250Hz
  • Signal To Noise Ratio: >90dB
  • Dampening Factor: > 250
  • Overall Operation Efficiency: >88%
  • Subsonic Filter:10-55Hz
  • LPF Filter:50-250Hz
  • Bass Boost:0-18dB
  • Level Input Range:0.2-10V
  • Hidden Led Lights under Logo Badge indicate working status: Power/Protection
  • Gain Input Sensitivity Clipping Indicators
  • Bass Level Remote Controller
  • Monoblock IR Chipset Digital Circuit Design
  • DirectFET power Mosfet Output Stage
  • Compact Size to easy Installation
  • SMD Technology on 4 Layers FR4 PC Board
  • Balanced Differential Inputs for Noise-Free Operation Regardless of the Source
  • Audio Precision Quality Control Verification



Specifications:

  • RMS Power (2 Ω): 500 W
  • RMS Power (4 Ω): 340 W
  • Bridged (mono 4 Ω): 400 W X 2(4 Ω ONLY)
  • Topology: Full-Range Class D
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0VDC – 17.0VDC
  • Idle Current: (0.7A)
  • THD (1KHz @4Ω): 0.07%
  • S/N Ratio (A-weighted @1W):-77.4dBA
  • S/N Ratio (A-weighted @ FP): -97.4dBA
  • Input Sensitivity – Low Input Level: 0.2mV – 10.0V
  • Input Sensitivity – High Input Level: YES – UP to 25 W RMS
  • Input Impedance – Low Input Level: 22 KΩ
  • Impedance – High Input Level: 22 KΩ
  • Output Impedance: 0.047Ω
  • Damping Factor (50Hz @ 4?): >250
  • Bandwidth (-3dB): 10Hz-35KHz
  • Crossover (-12 dB/ Oct) – Variable High Pass: 35Hz – 350Hz
  • Crossover (-12 dB/ Oct) – Variable Low Pass: 35Hz – 350Hz
  • Crossover (-12 dB/ Oct) – Variable Sub-Sonic: N/A

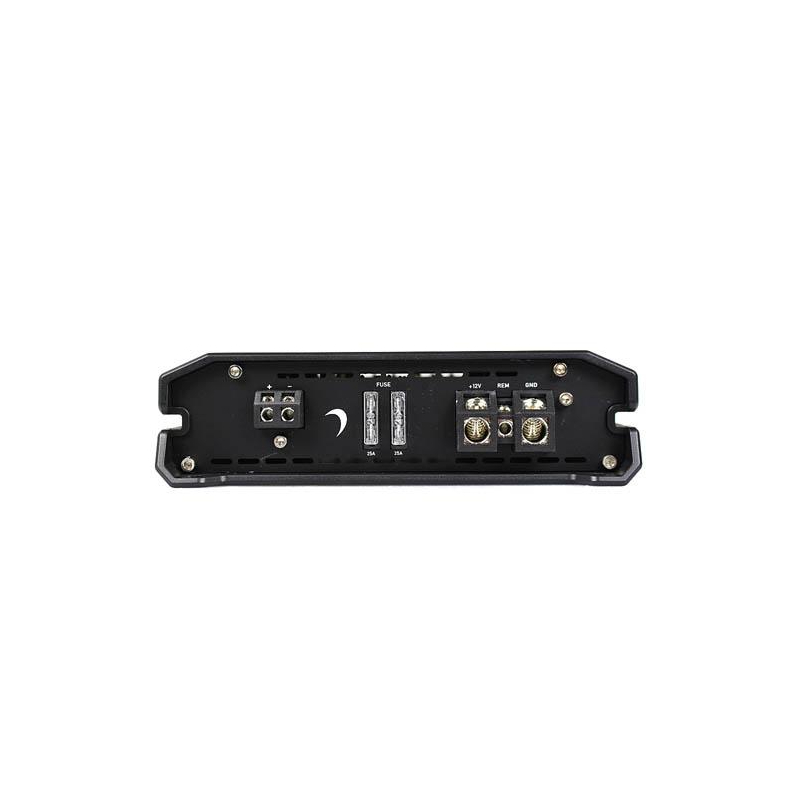

  • Fuse Rating (ATC): 2 X 30A
  • Dimensions- Length x Width x Height (inches): 7.2” x 6.85” x1.9”
  • Dimensions- Length x Width x Height (mm): 183.1 x 174 x 48.4
  • UPC: 847169057441
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
