Diamond Audio  H122

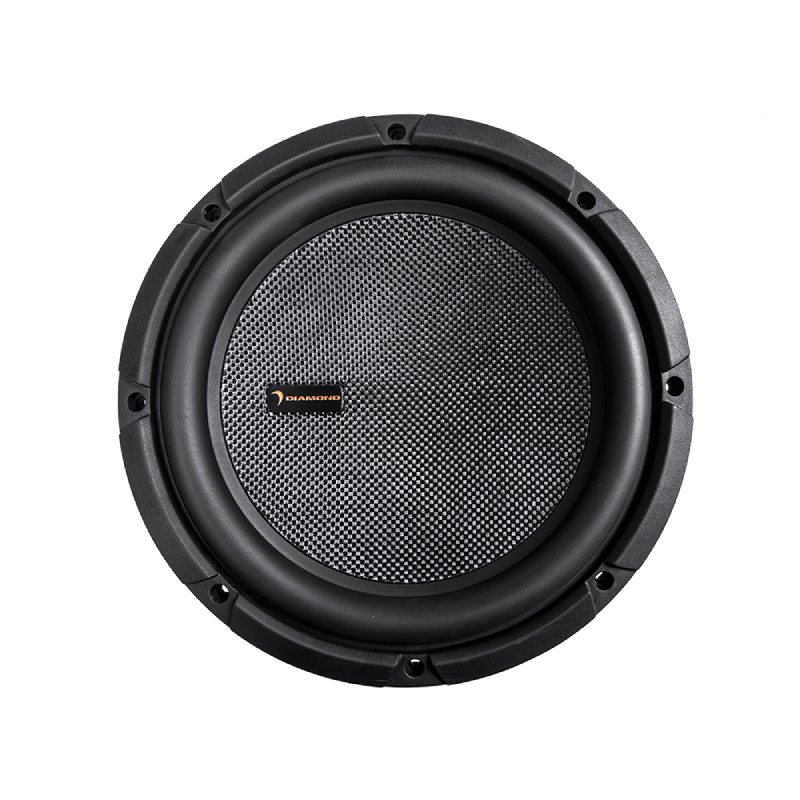

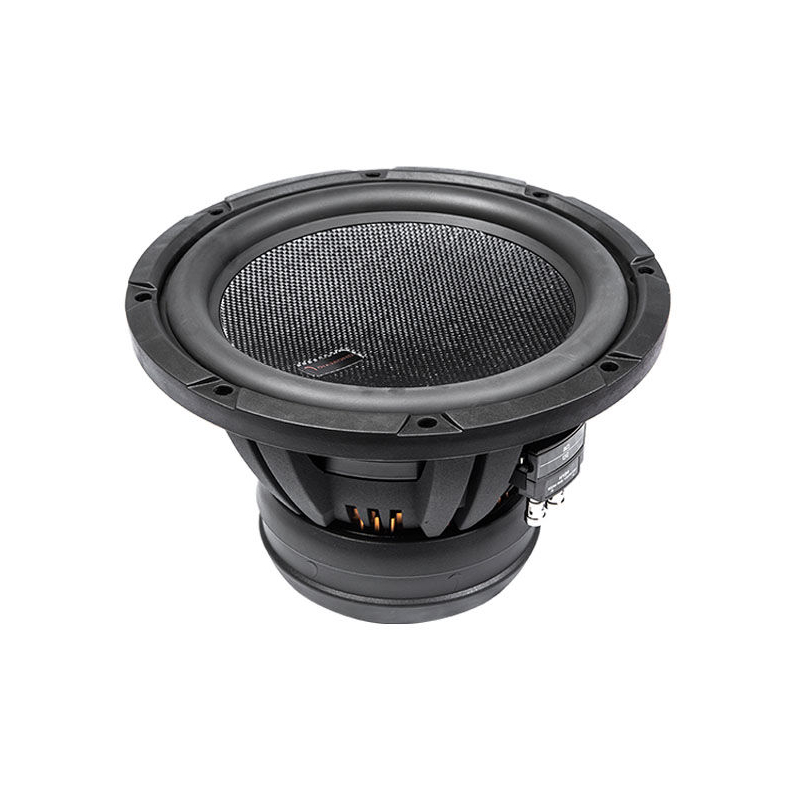

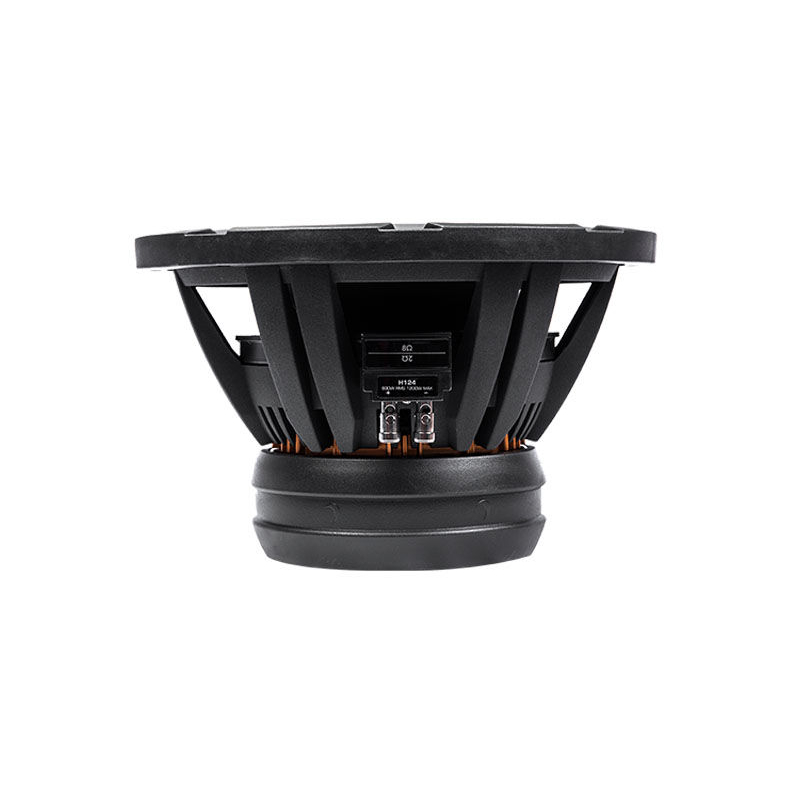

Hex Series 12" 1200W Peak Power Handling, 2 Ohms, Dual Voice Coil Subwoofer

Item #80636

Product Highlights

  • Hex Series
  • 12" Subwoofer
  • 1200W Peak Power Handling
  • 2 Ohms Impedance
  • Dual Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio H122 - Hex Series 12" 1200W Peak Power Handling, 2-Ohms, Dual Voice Coil Subwoofer


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 12" 2-Ohms, Dual Voice Coil Subwoofer
  • • Owner's Manual
Advanced Thermal and Performance Features

Diamond Audio's H122 HEX 12" 600W RMS 2-Ohm Subwoofer features a robust high-density cast aluminum alloy basket and a ridged two-part cone made from treated paper and fiberglass laminate. It is engineered with an FEA-optimized high-power motor that includes a vented pole piece and a copper-anodized aluminum heat sink for effective thermal management. The subwoofer also includes an impedance-selectable high-power terminal and a 3-inch high-temperature copper voice coil mounted on a durable, treated black aluminum former. Additionally, it benefits from Klippel® DA optimized motor and suspension symmetry for enhanced performance.


SPECIFICATIONS


  • Diameter : 12 Inch
  • Maximum Power : 1200 Watts
  • Sensitivity : 84 dB
  • Depth : 7.4 Inch
  • Impedance : 2 Ohm
  • Peak Power Handling : 1200 Watts
  • Shallow Mount : No Inch
  • Number of Voice Coils : Dual
  • Mounting Depth : 7.4 Inches
  • RMS Power Handling : 600 Watts

FEATURES


Features

  • Construction:

    • Improved High-Density Cast Aluminum Alloy Deep Drawn Basket
    • Ridged 2-Part Treated Paper/Fiberglass Laminated Cone
  • Motor Design:

    • FEA Optimized High Power Motor with Vented Pole Piece
    • Unique High-Strength 3 Point Triple Bond Neck Joint Technique
    • Copper Anodized Aluminum Elevated Radiating Heat Sink
    • 3” High Temp Copper Voice Coil on Treated Black High-Strength Aluminum Former
  • Optimization:

    • Klippel DA Optimized Motor and Suspension Symmetry
  • Impedance Configuration:

    • Impedance Selectable High Power Terminal



Specifications

  • Power Handling:

    • RMS: 600 Watts
    • Peak: 1200 Watts
  • Impedance:

    • 2 Ω
  • Performance:

    • SPL @ 2.83v: 85.5 dB
    • Re: 3.9 Ω
    • Qms: 5.24
    • Qes: 0.56
    • Qts: 0.51
    • Fs: 32.4 Hz
    • Vas: 12.6 Hz
    • Xmax: 17.8 mm

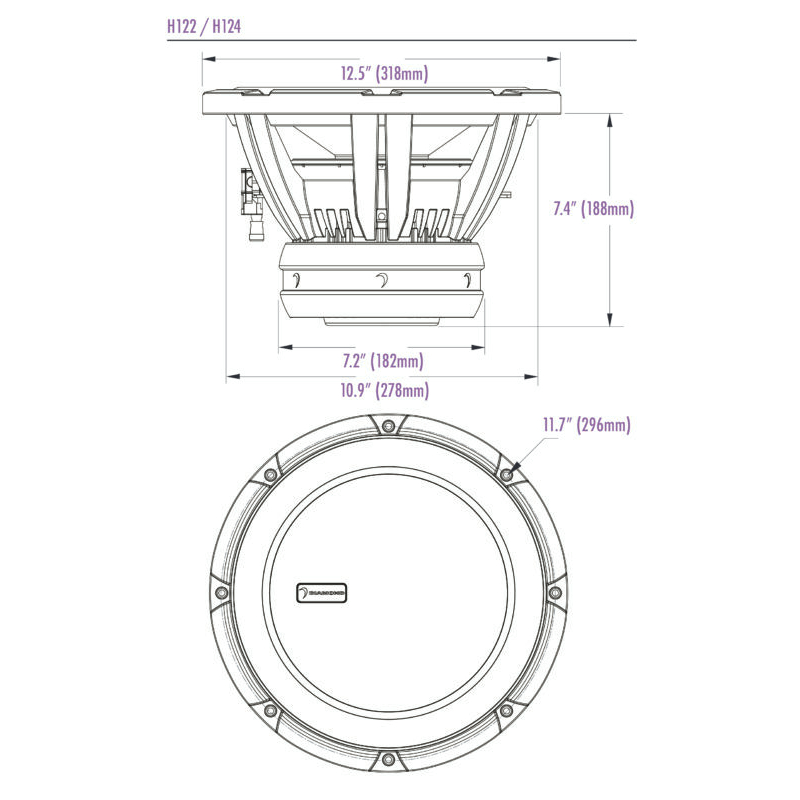

  • Dimensions:

    • Total Diameter: 12.5 inches (318 mm)
    • Mounting Diameter: 10.9 inches (277 mm)
    • Hole Diameter: 11.7 inches (297 mm)
    • Mounting Depth: 7.4 inches (188 mm)
    • Magnet Diameter: 7.1 inches (180 mm)
  • UPC: 847169020285
  • Weight: 22
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
