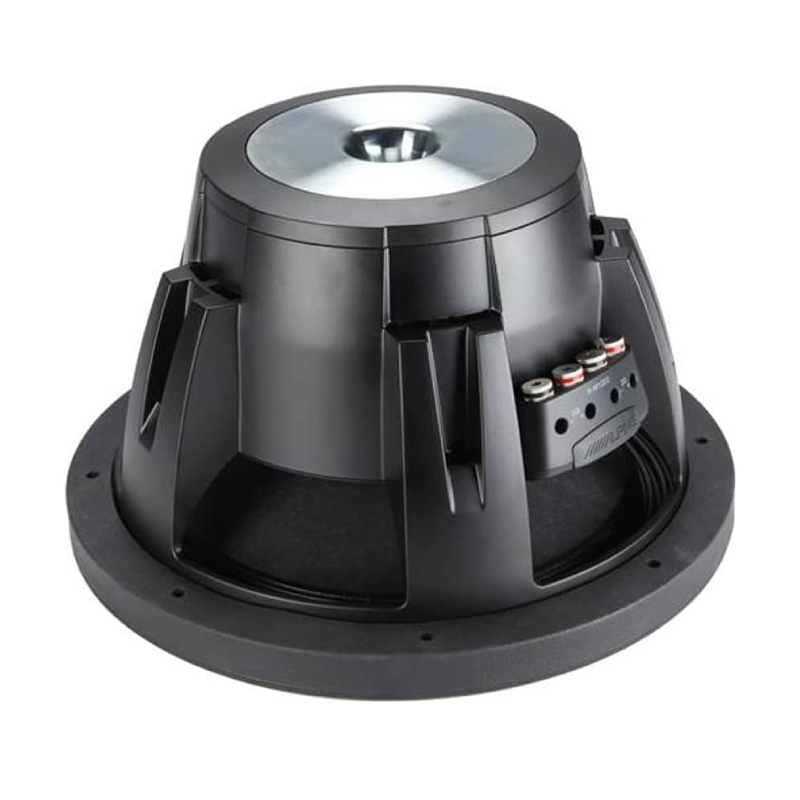

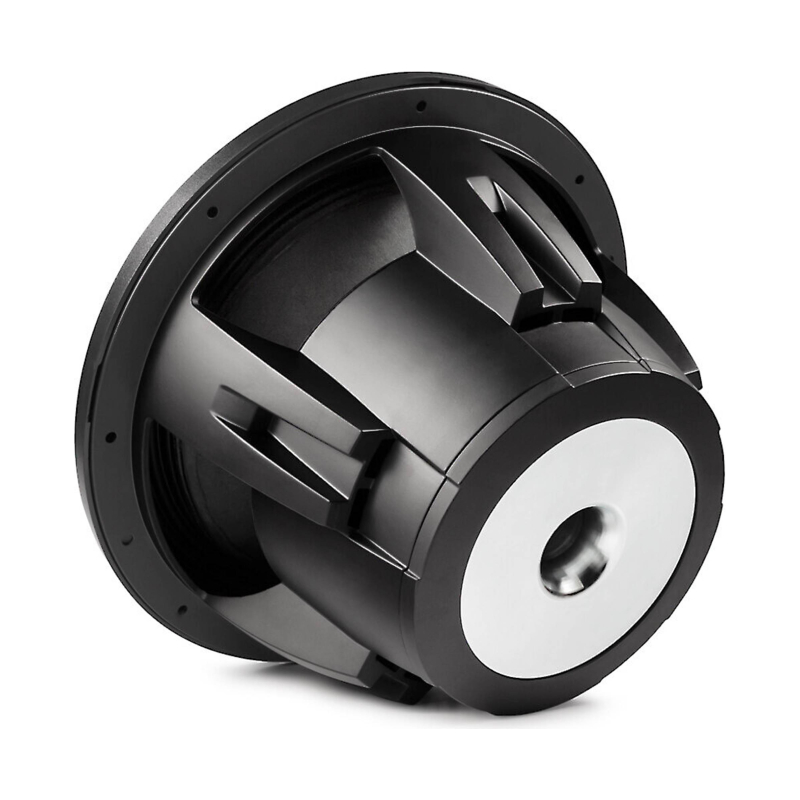

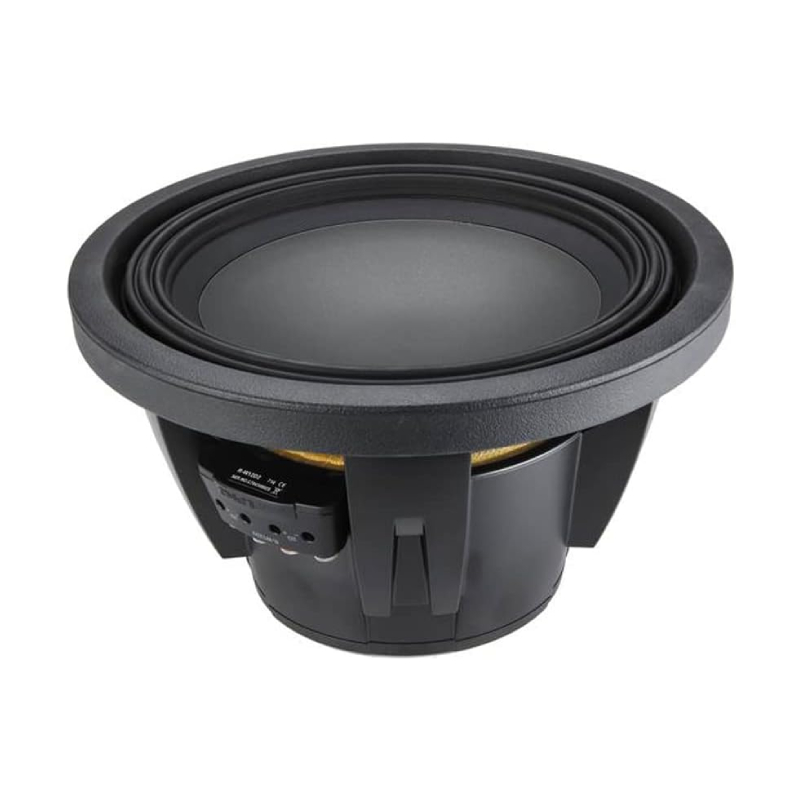

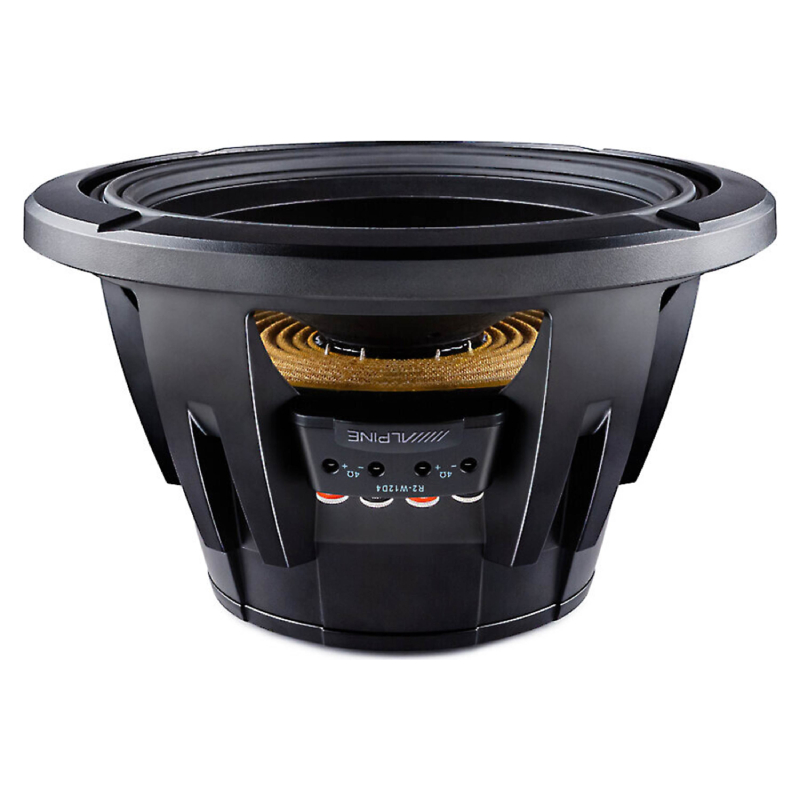

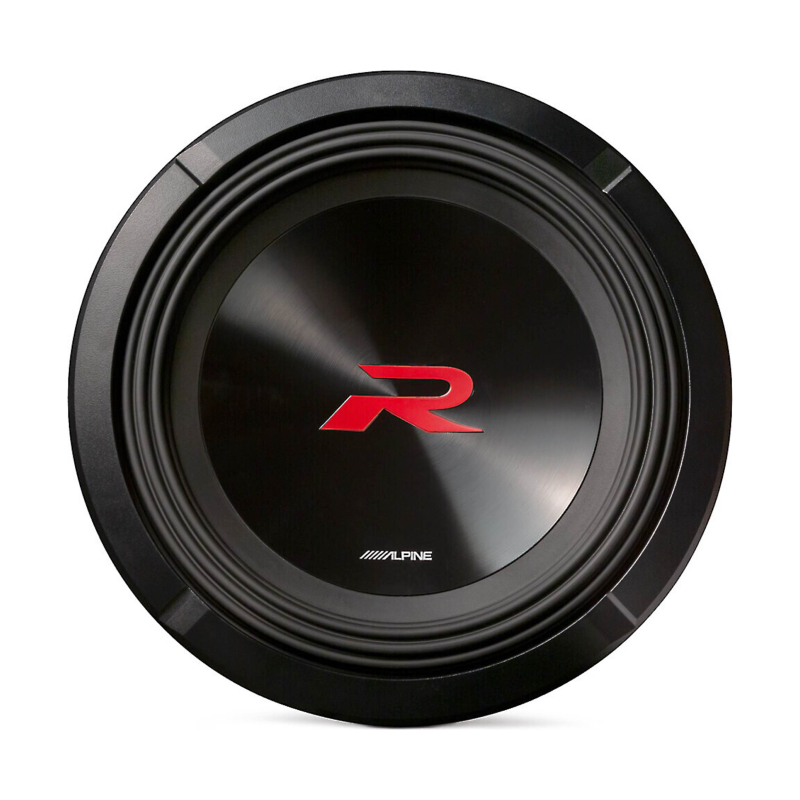

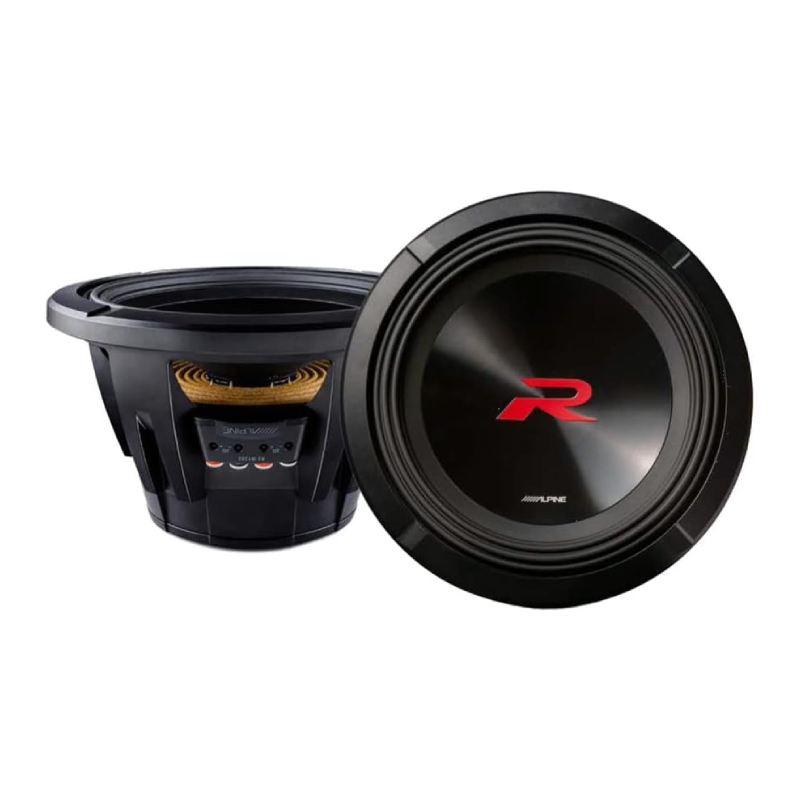

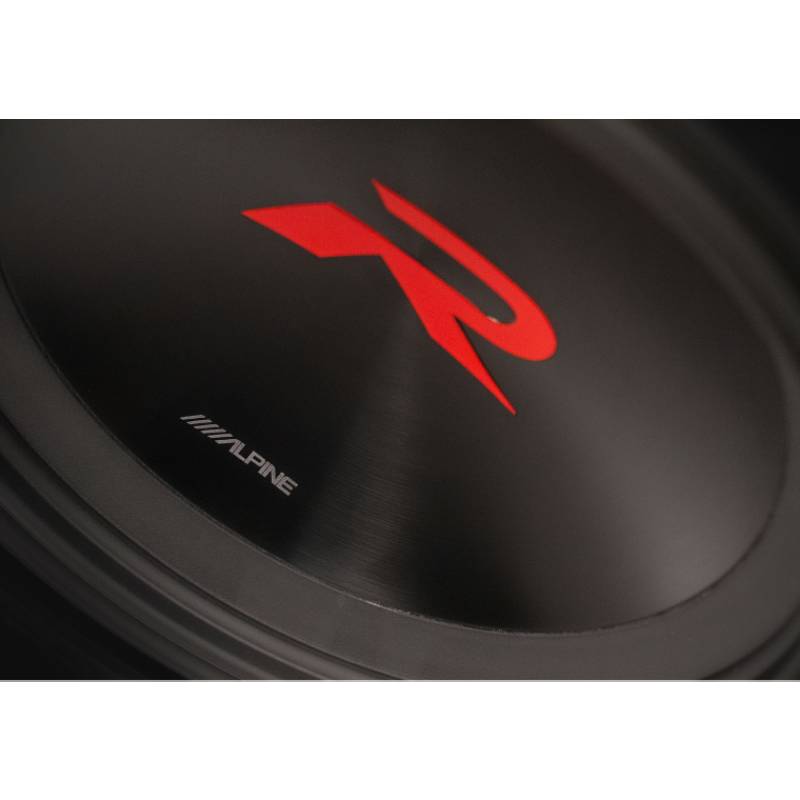

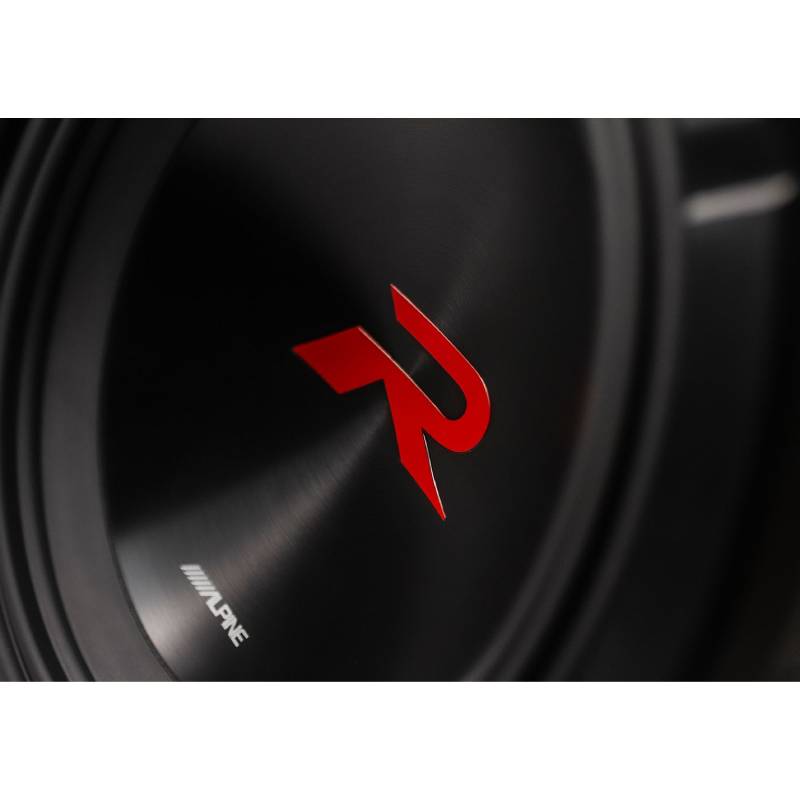

Alpine R2-W12D2 R Series 12" 750W RMS (2250W Peak Power Handling) 2 Ohm, Dual Voice Coil Car Subwoofer
We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12" Dual 2-ohm voice coil subwoofer
- • Plastic trim ring
- • (2) 4.5" jumper wires (each wire has a single banana connector on both ends)
- • On-line product registration information
- • Warranty information (English/ French)
- • Important Notice (English /French)
- • Application Guide
- • Owner's Manual
Why Choose Alpine R2-W12D2 Component Car Subwoofer?
Bring the Bass. Bring the R-Series.
Want serious bass without stepping up to a larger subwoofer? The Alpine R2-W12D2 brings 750W RMS and 2,250W peak power handling to a 12" R-Series subwoofer built for deep, powerful bass. Its dual 2-ohm voice coils give you flexible wiring options, while the larger double-stacked magnet structure helps deliver deeper bass and tighter cone control.
Built to Hit Hard, Built to Stay Tight
The R2-W12D2 is designed for car audio enthusiasts who want more than just loud bass. Alpine uses a Kevlar-reinforced pulp cone, polypropylene/ceramic composite dust cap, and H.A.M.R. surround to handle high-output bass while maintaining accurate cone movement. With 20mm of X-Max and a 24Hz-200Hz frequency response, this 12" subwoofer can dig deep while keeping the bass controlled.
Turn Your System Up with R-Series Power
Pair the Alpine R2-W12D2 with a properly matched mono amplifier and the right enclosure, and you have a strong foundation for a powerful bass system. The dual 2-ohm voice coils and configuration jumpers make installation more flexible, while Alpine's R-Series design gives you the output and control needed for a serious car audio setup. If you want deep, hard-hitting bass from a proven 12" subwoofer, the R2-W12D2 is an easy R-Series choice.
Alpine 12-Inch Subwoofer Comparison Chart | S2-W12 vs R2-W12 vs RS-W12 vs HDZ-W12 vs W12S4
| Ultimate Alpine 12" Subwoofer Performance Comparison |
Alpine S2-W12D4 / S2-W12D2 Next-Gen S-Series 12" Subwoofer – Powerful Bass
BEST VALUE
- • 12" S-Series Subwoofer
- • 600W RMS / 1,800W Peak
- • DVC 4Ω or DVC 2Ω options
- • 15mm X-Max
- • Excellent daily-driver bass
- • Great performance for the price
|
Alpine R2-W12D4 / R2-W12D2 Next-Gen R-Series 12" Subwoofer – High-Output Bass
HIGH PERFORMANCE
- • 12" R-Series Subwoofer
- • 750W RMS / 2,250W Peak
- • DVC 4Ω or DVC 2Ω options
- • 20mm X-Max
- • High-output bass performance
- • Ideal for serious car audio builds
|
Alpine RS-W12D4 / RS-W12D2 R-Series Shallow 12" Subwoofer – Powerful Bass in a Slim Design
SHALLOW PERFORMANCE
- • 12" R-Series Shallow Subwoofer
- • 600W RMS / 1,800W Peak
- • DVC 4Ω or DVC 2Ω options
- • 20mm X-Max
- • 3.25" shallow mounting depth
- • Ideal for space-limited installations
|
Alpine HDZ-W12 Alpine Status 12" Subwoofer – Premium Bass & High-Power Performance
PREMIUM PICK
- • 12" Alpine Status Subwoofer
- • 800W RMS / 2,400W Peak
- • 20mm X-Max
- • Premium carbon-fiber dust cap
- • Cast-aluminum frame construction
- • Designed for premium systems
|
Alpine W12S4 12" Single Voice Coil Subwoofer – Affordable Bass Upgrade for Entry-Level
BUDGET PICK
- • 12" Single Voice Coil Subwoofer
- • 250W RMS / 750W Peak
- • Single 4Ω voice coil
- • 5.31" mounting depth
- • Simple amplifier pairing
- • Great for entry-level systems
|
Alpine R2-W12D2 Highlights
POWERFUL BASS
750W RMS Power Handling
Experience powerful, hard-hitting bass with 750 watts RMS power handling and up to 2,250 watts of peak power for an impressive low-end upgrade.
R-SERIES PERFORMANCE
High-Output 12" Subwoofer
The 12-inch R-Series design delivers deep, strong bass with the high output and control needed for serious car audio systems.
FLEXIBLE WIRING
Dual 2-Ohm Voice Coils
Dual 2-ohm voice coils provide flexible wiring options, allowing you to configure the subwoofer to work with different amplifier setups.
DURABLE CONSTRUCTION
Kevlar-Reinforced Pulp Cone
The Kevlar-reinforced pulp cone provides added strength and durability while helping deliver controlled, powerful bass at high output levels.
HIGH EXCURSION
H.A.M.R. Multi-Roll Surround
The H.A.M.R. surround supports large cone movement for deep bass, strong air movement, and smooth control during demanding music playback.
ADVANCED MOTOR

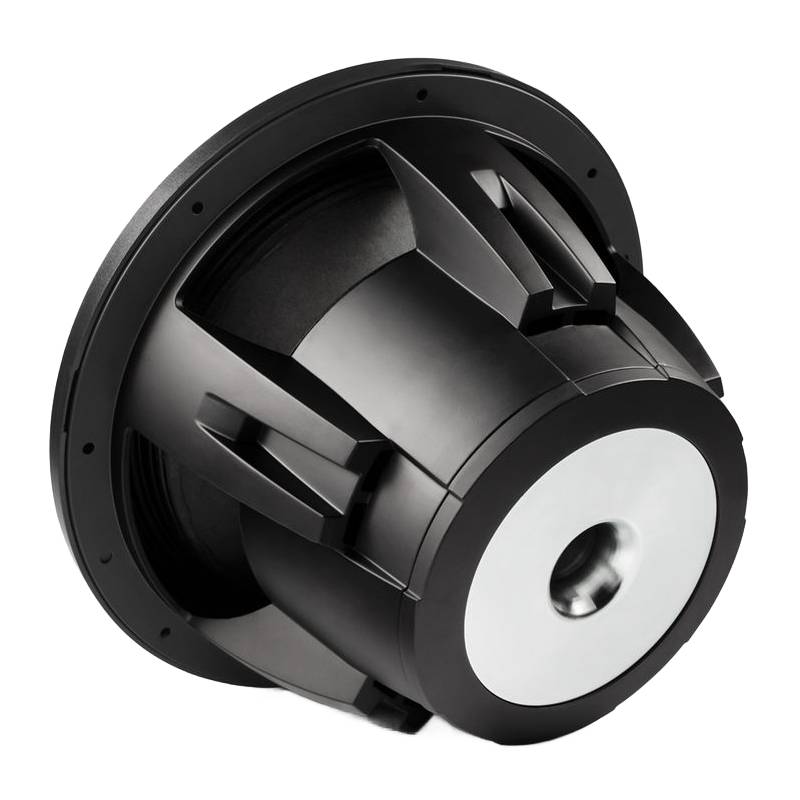

Large Double-Stacked Magnets
The large double-stacked magnet structure delivers strong motor force for deep bass, tighter control, and powerful output.
LOW-DISTORTION DESIGN
Polypropylene & Ceramic Composite Dust Cap
The polypropylene and ceramic composite dust cap adds rigidity and helps reduce unwanted cone movement for clean, controlled bass at high volume.
Alpine R2-W12D2 Recommended Amplifiers | Best 12" R-Series Subwoofer Amp Pairings for Powerful Bass
Build Your Alpine R-Series Subwoofer System
Real-world amplifier recommendations for the Alpine R2-W12D2, from balanced single-subwoofer builds to high-output bass systems
Amplifier Matching Overview
R2-W12D2 Power Rating: 750W RMS / 2,250W Peak
Voice Coil Configuration: Dual 2Ω voice coils
Ideal Amp Target: Approximately 750W RMS for a single R2-W12D2
Best Setup: Alpine R2-A75M 750W mono amplifier at 2Ω
Best Overall Match – 750W R-Series Mono Amplifier
The R2-A75M is the best overall match for a single Alpine R2-W12D2. With the dual 2Ω voice coils wired for a 2Ω load, the amplifier delivers 750W RMS, matching the subwoofer's 750W RMS power handling. This makes it a simple and well-balanced R-Series pairing.
High-Output Option – 1200W RMS at 2Ω
The R2-A150M is a higher-powered option for those who want more amplifier headroom. It produces up to 1,200W RMS at 2Ω, so the gain should be properly adjusted when powering a single R2-W12D2 to keep the 750W RMS subwoofer within its recommended power range.
Why the R2-A75M Is the Recommended Choice
Exact Power Match: The R2-A75M provides 750W RMS at 2Ω, matching the R2-W12D2's 750W RMS rating
R-Series Pairing: The R2-A75M and R2-W12D2 are both part of Alpine's R-Series lineup
DVC Compatibility: The R2-W12D2's dual 2Ω voice coils can be configured for a 2Ω final load
Efficient Class-D Design: The R2-A75M uses Alpine's Class-D amplifier circuit for efficient subwoofer power
Simple Setup: One R2-W12D2 paired with one R2-A75M creates a straightforward single-subwoofer system
Recommended R2-W12D2 Amplifier Settings
Gain Setting: Set the gain for clean output and avoid pushing the R2-W12D2 beyond its 750W RMS power handling
Low-Pass Filter: Start around 80Hz and adjust according to the enclosure and front-stage response
Bass EQ: Keep bass boost moderate to reduce unnecessary stress on the subwoofer
Subsonic Filter: Use a subsonic filter with a ported enclosure, typically set below the enclosure's tuning frequency
Phase: Adjust phase for the strongest and smoothest bass integration with the vehicle's front speakers
Pro Tip: For a single Alpine R2-W12D2, the R2-A75M is the easiest amplifier match because its 750W RMS output at 2Ω matches the subwoofer's 750W RMS rating. The R2-A150M is the higher-output alternative for customers who want additional amplifier headroom.
Frequently Asked Questions (FAQ)
- • What enclosure type provides the best performance for this 12-inch subwoofer?
The subwoofer performs exceptionally well in either a sealed or ported enclosure when built to the recommended internal volume. Choosing the correct enclosure allows you to prioritize either tighter bass response or greater low-frequency output.
- • Why doesn't the bass hit as hard as I expected after installation?
Weak bass is often caused by improper amplifier gain, incorrect crossover settings, or an enclosure that does not meet the recommended specifications. Carefully tuning the amplifier and confirming the enclosure dimensions usually improves overall bass performance.
- • Can I wire the dual 2-ohm voice coils in different configurations?
Yes, the dual voice coil design offers multiple wiring options to match compatible amplifier impedance requirements. Following the recommended wiring diagrams helps maximize output while protecting both the amplifier and the subwoofer.
- • Why does the amplifier shut off or enter protection mode during heavy bass?
This is commonly caused by an incorrect speaker load, insufficient electrical power, overheating, or wiring mistakes. Verifying the voice coil wiring and ensuring proper amplifier ventilation usually prevents this issue.
- • How much amplifier power should I pair with this?
For the best performance, use an amplifier whose RMS output closely matches the subwoofer's recommended continuous power rating. A properly matched amplifier delivers cleaner bass while reducing the risk of distortion or equipment damage.
- • Why does the subwoofer make a popping or bottoming-out sound at high volume?
This can happen when the amplifier is clipping, the enclosure is not properly designed, or the subwoofer is being pushed beyond its intended limits. Reducing the gain and verifying the enclosure specifications usually solves the problem.
- • Can I install two of these subwoofers in the same audio system?
Yes, many enthusiasts use a pair of subwoofers to increase bass output and achieve more even low-frequency response throughout the vehicle. Be sure your amplifier, enclosure, and vehicle's electrical system are designed to support the additional power demand.
- • Does this require a break-in period before it performs its best?
Yes, many owners notice smoother bass response after several hours of moderate listening. This allows the suspension components to loosen naturally and operate more efficiently over time.
- • Why does my trunk or interior vibrate so much after installing the subwoofer?
The increased low-frequency output can cause loose trim panels, license plates, and interior components to resonate. Installing sound-deadening material and tightening loose panels can greatly reduce unwanted vibrations.
- • How do I troubleshoot a lack of sound?
First, check your signal cables and verify that your amplifier is receiving both a remote turn-on signal and power. If those are correct, use a multimeter to check the continuity of the voice coils at the terminal cups.
Alpine R2-W12D2 Related Videos
← Swipe left or right to browse videos →
Learn How To Wire Subwoofers

- Diameter : 12 Inch
- Sensitivity : 85 dB
- Impedance : 2 Ohm
- Frequency Response : 24-200 Hz
- Peak Power Handling : 2250 Watts
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : .55 Cubic ft.
- Suggested Ported Box Volume : 1.5 Cubic ft.
- Mounting Depth : 6.5 Inches
- RMS Power Handling : 750 Watts
Features:
- Dual Voice Coil Design: 12" DVC subwoofer with configuration jumpers for flexible wiring and optimal power delivery.
- Kevlar Reinforced Pulp Cone: Durable, high-performance cone provides accurate, hard-hitting bass response with reduced distortion.
- Polypropylene/Ceramic Composite Dust Cap: Adds structural rigidity, ensuring precise cone movement even under high power.
- H.A.M.R. Surround Technology: High-Amplitude Multi-Roll Santoprene™ surround allows greater cone excursion for powerful, controlled bass output.
- Double-Stacked Magnet Motor: Large dual magnet structure enhances motor strength and efficiency, producing deeper and tighter low frequencies.
Specifications:
- Subwoofer Size: 12-inch
- Voice Coil Configuration: Dual 2-Ohm (Selectable 1Ω or 4Ω wiring)
- Cone Material: Kevlar Reinforced Paper
- Surround Material: Santoprene Rubber (H.A.M.R. Surround)
- Basket Material: Cast Aluminum Frame
- Grille: Not Included
- Free-Air Operation: No
- Sensitivity: 85 dB (1W/1m)
- Frequency Response: 24 – 200 Hz
- RMS Power Handling: 750 Watts (Continuous)
- Peak Power Handling: 2250 Watts

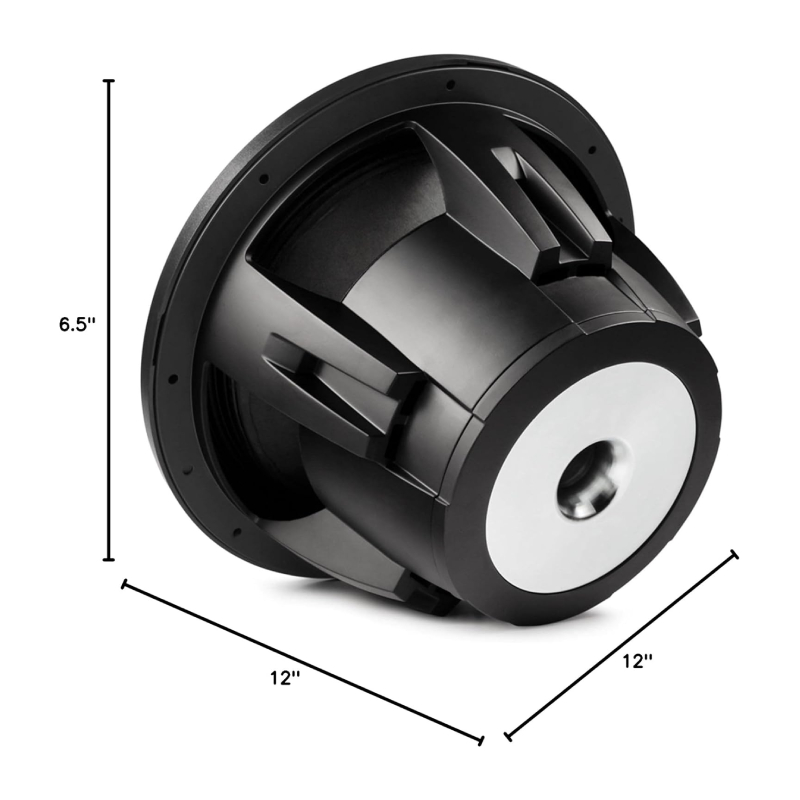

- Top-Mount Depth: 6.47" (6-1/2")
- Cutout Diameter: 10-7/8"
- Frame Dimensions: 12.395" (Width) × 12.395" (Length)
- Vas (Equivalent Compliance Volume): 36.9 Liters
- Fs (Resonant Frequency): 29 Hz
- Qts (Total Q Factor): 0.41
- Xmax (Maximum Linear Excursion): 20 mm
- Recommended Sealed Enclosure: 0.65 – 1.1 cu. ft.
- Recommended Ported Enclosure: 1.1 – 1.6 cu. ft.
- UPC: 793276084668
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
Man, these 12's are absolute beasts! I've always been loyal to Alpine, and these bad boys just solidified that love. Had them placed in a ported box and they truly hit hard and they hit consistently. If you're in the market, trust me, these are the ones to go for. Highly, highly recommend them.
-
Exceptional subs. Clean, pure bass. Love how it hits hard that you can really to the chest. Would totally buy another one
-
Got it a day earlier, and immediately had it set up by my friend with the custom box he made for my truck. Bass is superb and it's loud when cranked up. Perfect for hip hop tracks
-
I brought this soaker to replace my older r series 12" and the sound quality doesn't disappoint at all.
