Diamond Audio  DES122

Diamond Elite Series 12" 1000W Peak Power Handling, 2-Ohms Dual Voice Coil Subwoofer

Item #80647

Product Highlights

  • Diamond Elite Series 12" Subwoofer
  • 1000W Peak Power Handling
  • 2-Ohms
  • Dual Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio DES122 - Diamond Elite Series 12" 1000W Peak Power Handling, 2-Ohms Dual Voice Coil Subwoofer


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 12" 2-Ohms Dual Voice Coil Subwoofer
  • • Owner's Manual
Exceptional Performance and Versatility of Diamond Elite DES Series Subwoofers

The Diamond Elite DES series subwoofers exemplify top-notch craftsmanship and precision engineering, setting a new standard in performance. Designed for versatility, these subwoofers excel in various enclosure types, delivering dynamic sound and the renowned Diamond Audio bass even during extended listening sessions. Featuring a high-grade reinforced hybrid paper fiber cone for handling extreme power, along with an impedance switch for added flexibility, the DES subwoofers are built to impress. They come equipped with a true fiber weave backed parabolic cone, a durable black powder-coated stamped frame, dual mirror image spiders with woven tinsel leads, and a vented pole piece for cooler operation. The Klippel® DA optimized motor and suspension symmetry ensure exceptional performance and reliability.


SPECIFICATIONS


  • Diameter : 12 Inch
  • Sensitivity : 82.8 dB
  • Impedance : 2 Ohm
  • Peak Power Handling : 1000 Watts
  • Number of Voice Coils : Dual
  • Mounting Depth : 6.63 Inches
  • RMS Power Handling : 500 Watts

FEATURES


Features:

  • 2Ω Impdance
  • 500W RMS, 1000W MAX
  • Dual Voice Coil
  • Mounting Diameter: 11 “ / 279.5mm
  • Mounting Depth: 6.63 “ / 168.5mm
  • True-fiber weave paper backed parabolic cone
  • High-grade rolled edge six leg black powder coated stamped frame
  • Dual mirror image spider with woven tinsel leads
  • Black PVC wrap-around mounting gasket
  • Vented pole and voice coil gap for cooler operation
  • Klippel® DA optimized motor and suspension symmetry



Specifications

  • SPL (dB): 82.8
  • Re (Ω) [series]: 3.20
  • Qms: 8.0
  • Qes: 0.83
  • Qts: 0.75
  • Fs (Hz): 32.0
  • Vas(L): 31.0
  • Cms (mm/N): 0.09
  • Mms (g): 286
  • Sd (m2): 0.050
  • BL (T*M): 14.8
  • Xmax: 15.7
  • Pwr (W) nom/max: 500/1000

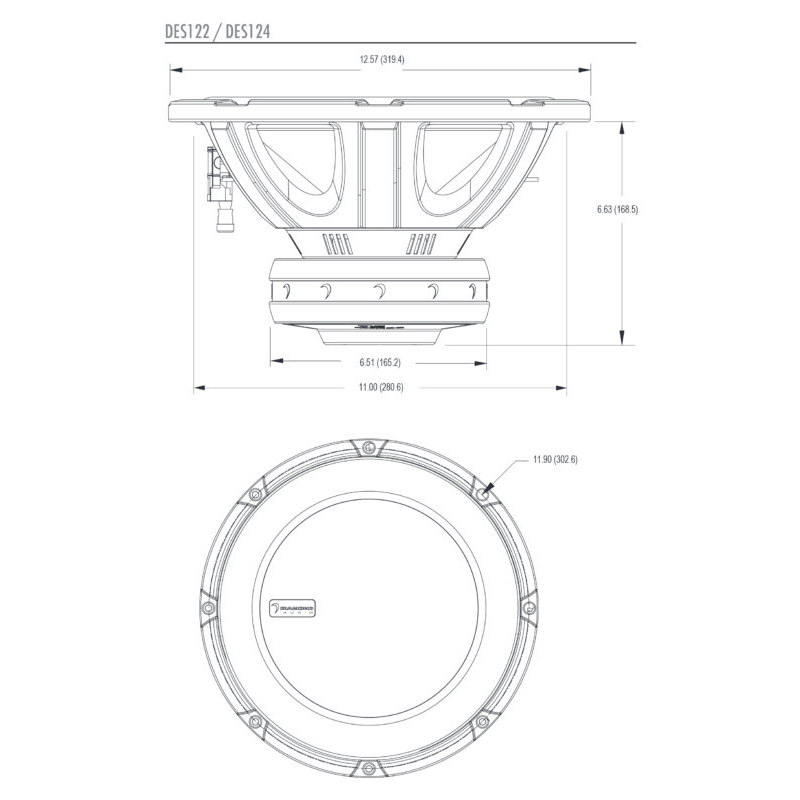

  • Total Diameter: 12.57” (319.4) in. (mm)
  • Mounting Diameter: 11.0” (280.6) in. (mm)
  • Screw Hole Dia.: 11.90” (302.6) in. (mm)
  • Mounting Depth: 6.63” (168.5) in. (mm)
  • Magnet Dia.: 6.51” (165.2) in. (mm)
  • UPC: 847169035067
  • Weight: 22
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
