Diamond Audio  DMD104

Diamond DMD Series 10" 400W Peak Power Handling, 4-Ohms Dual Voice Coil Subwoofer

Item #80662

Condition:   Brand New

Product Highlights

  • Diamond DMD Series 10" Subwoofer
  • 400W Peak Power Handling
  • 4-Ohms
  • Dual Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$145.99

Reg. Price $245.99  Save $100.00

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio DMD104 - Diamond DMD Series 10" 400W Peak Power Handling, 4-Ohms Dual Voice Coil Subwoofer


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 10" 4-Ohms Dual Voice Coil Subwoofer
  • • Owner's Manual
Maximum Bass Clarity and Performance

The Diamond Audio 10" full-size Dual 4 Ohm subwoofer is engineered to deliver maximum bass clarity and performance. It features a high-temperature 2" copper voice coil wound on an aluminum high-strength former. With a Klippel optimized motor and suspension symmetry, along with a high-density NBR half-roll surround, this subwoofer is designed for optimal linear travel. The vented pole piece ensures cooler operation, allowing you to experience the subwoofer's peak output of 400 watts max power wherever you go.


SPECIFICATIONS


  • Diameter : 10 Inch
  • Sensitivity : 84 dB
  • Impedance : 4 Ohm
  • Peak Power Handling : 400 Watts
  • Number of Voice Coils : Dual
  • Mounting Depth : 5.18 Inches
  • RMS Power Handling : 200 Watts

FEATURES


Features:

  • 4Ω Impedance
  • 200W RMS, 400W MAX
  • Dual Voice Coil
  • Black plypropylene fiber weave cone
  • High grade rolled edged 4 leg black powder coat stamped frame
  • Oversized black chrome push terminals
  • Black spider with woven tinsel leads
  • Black PVC wrap around mounting gasket
  • Vented pole piece for cooler operation
  • Klippel Optimized motor and suspension symmetry



Specifications:

  • SPL (dB): 84.0
  • Re (Ω) [series]: 6.70
  • Qms: 6.0
  • Qes: 0.68
  • Qts: 0.61
  • Fs (Hz): 36.0
  • Vas(L): 23.6
  • Cms (mm/N): 0.16
  • Mms (g): 124
  • Sd (m2): 0.0325
  • BL (T*M): 16.6
  • Xmax: 8.1
  • Pwr (W) nom/max 200/400

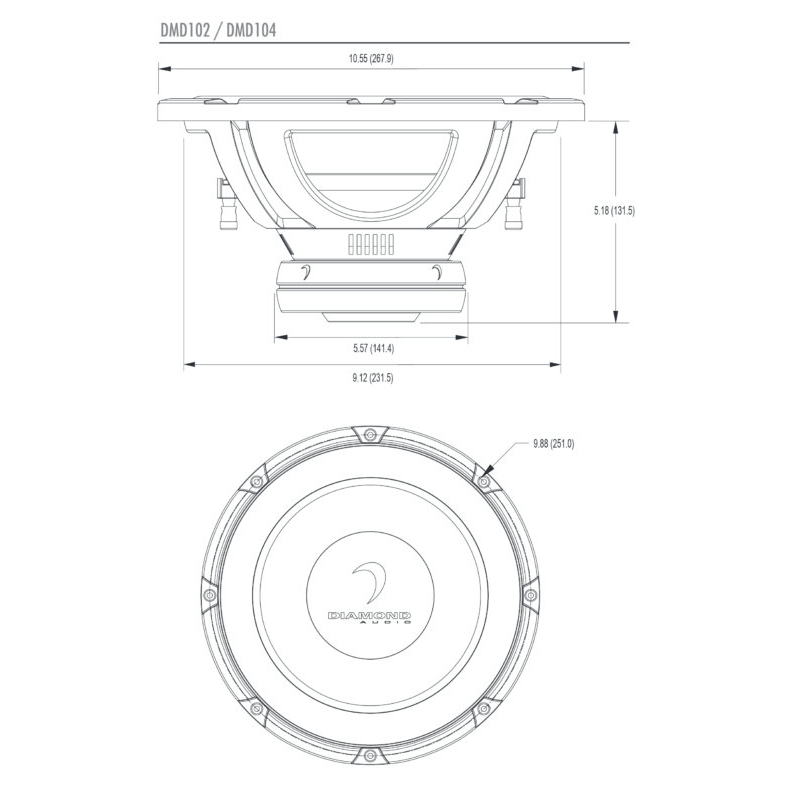

  • Total Diameter: 10.55” (267.9) in. (mm)
  • Mounting Diameter: 9.12” (231.5) in. (mm)
  • Screw Hole Dia.: 9.88” (251.0) in. (mm)
  • Mounting Depth: 5.18” (131.5) in. (mm)
  • Magnet Dia.: 5.57” (141.4) in. (mm)
  • UPC: 847169035135
  • Weight: 20
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
