Diamond Audio  H600S

Hex Series 6" 340W Peak Power Handling, 4-Ohms, 2-Way Component Speaker System

Item #80681

Condition:   Brand New

Product Highlights

  • 6" 2-way
  • 340W peak power
  • 4-ohms
  • Durable design

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$699.99

Reg. Price $799.99  Save $100.00

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio H600S - Hex Series 6" 340W Peak Power Handling, 4-Ohms, 2-Way Component Speaker System


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • (2) Woofers
  • • (2) Tweeters (with attached 14" wires)
  • • (2) Crossovers
  • • (2) Woofer grilles
  • • (2) Woofer grille frames
  • • (2) Flush-mount tweeter mounting cups
  • • (2) Metal spring clips for flush-mount tweeter cups
  • • (2)Tweeter clamp rings
  • • (2) Surface-mount tweeter housings
  • • (2) Adhesive backed woofer gaskets
  • • 3mm Allen wrench
  • • 2mm Allen wrench
  • • (2) M4x30mm Machine screws
  • • (4) 5/8" Self-tapping screws
  • • (12) 1" Self-tapping screws
  • • (12) Speed clips
  • • Putty for woofer grilles
  • • Owner's Manual
Choose your tweeter

The experts at Diamond Audio understand that tweeter material makes a big difference in the way your music sounds. If you like your highs to sound smooth and organic, then you'll love how these silk dome tweeters dish out focused, mellow notes. If you prefer your music to sound crisp and bright, check out the H600A 6-3/4" component speaker system — it offers the same performance, but with the extended highs of aluminum tweeters.

Non-resonant frame

Diamond uses a unique energy-absorbent cast aluminum frame that resists unwanted resonance, so your favorite music sounds just as the artist intended. These woofers can fit in more cars too, thanks to a frame that measures less than 2-1/2 inches deep.


SPECIFICATIONS


  • Diameter : 6 Inch
  • Sensitivity : 87 dB
  • Frequency Response : 42-24000 Hz
  • Peak Power Handling : 340 Watts
  • RMS Power Handling : 170 Watts

FEATURES


Features

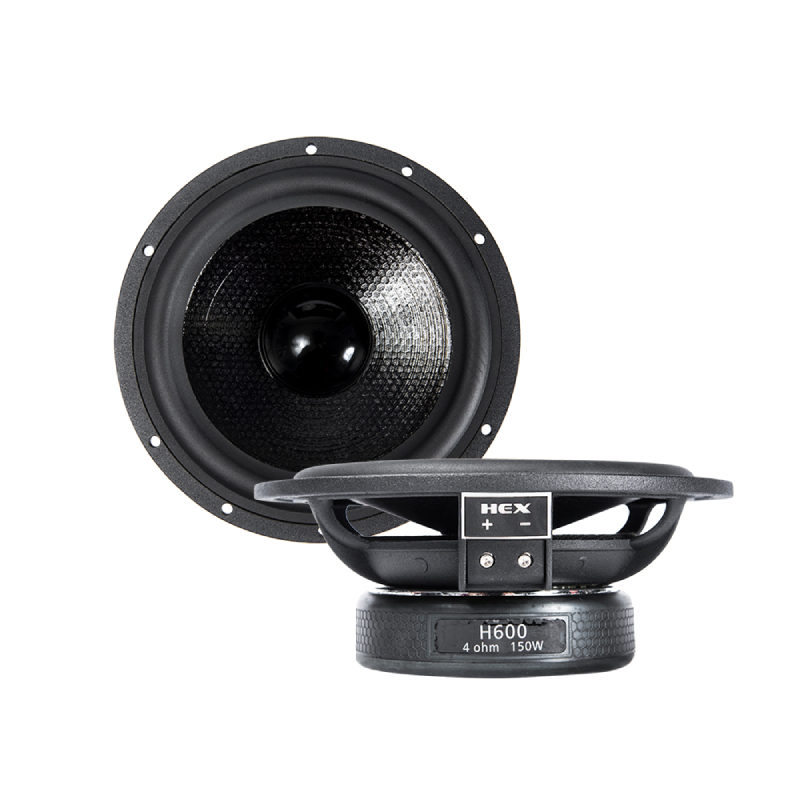

Woofers

  • Cast Aluminum Baskets: Rigid and non-resonant, help reduce voice coil temperature for improved power handling.
  • Woofer Cones: Made from Kevlar composite, lightweight, and rigid.
  • Surrounds: Made from butyl rubber to withstand harsh environments.
  • Terminals: Set-screw terminals accept bare wire up to 12-gauge; includes a 2mm Allen wrench.

Tweeters

  • Silk Domes: Offer smooth, warm high frequency output.
  • Mounting Options: Can be surface or flush mounted with included housings.
  • Tweeter Dimensions:
    • Flush Mount: Frame Diameter 2.27", Cutout Diameter 1.98", Mounting Height 0.33", Mounting Depth 0.82"
    • Angled Surface Mount: Frame Diameter 2.12", Mounting Height 1.07", Screw Depth

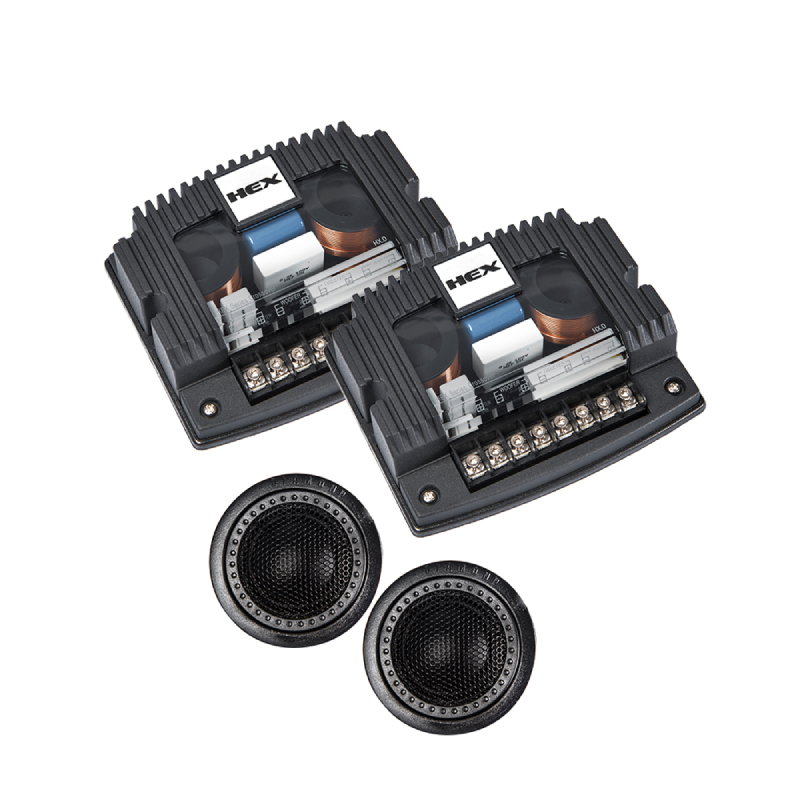

Crossovers

  • Tweeter Output Levels: Three settings via internal jumper (-2 dB, flat, +2 dB).
  • Rear Acoustic Fill (RAF): Additional output for RAF speaker with settings (-10 dB, -5 dB, off).
  • Barrier Strips: Screw terminals accommodate spade connectors up to 0.375"; includes a 3mm Allen wrench.
  • Dimensions: Width 5.942", Height 1.659", Depth 4.905"



Specifications

  • Priced Per: Pair
  • Number of Speakers: 2 Woofers + 2 Tweeters
  • Speaker Size: 6-3/4"
  • Design: 2-way Component System
  • Tweeter Design: Dome
  • Tweeter Size: 1"
  • Tweeter Composition: Silk
  • Woofer Composition: Kevlar composite hexagonal honeycomb
  • Woofer Surround: Rubber
  • Peak Power Handling: 170 watts per speaker
  • RMS Power Handling: 85 watts per speaker
  • Total PEAK Power Handling per Pair/Set: 340 watts
  • Total RMS Power Handling per Pair/Set: 170 watts
  • Sensitivity: 87 dB
  • Frequency Response: 42 - 24000 Hz
  • Impedance (Per Voice Coil): 4 ohms
  • Shallow Mount Installation: No

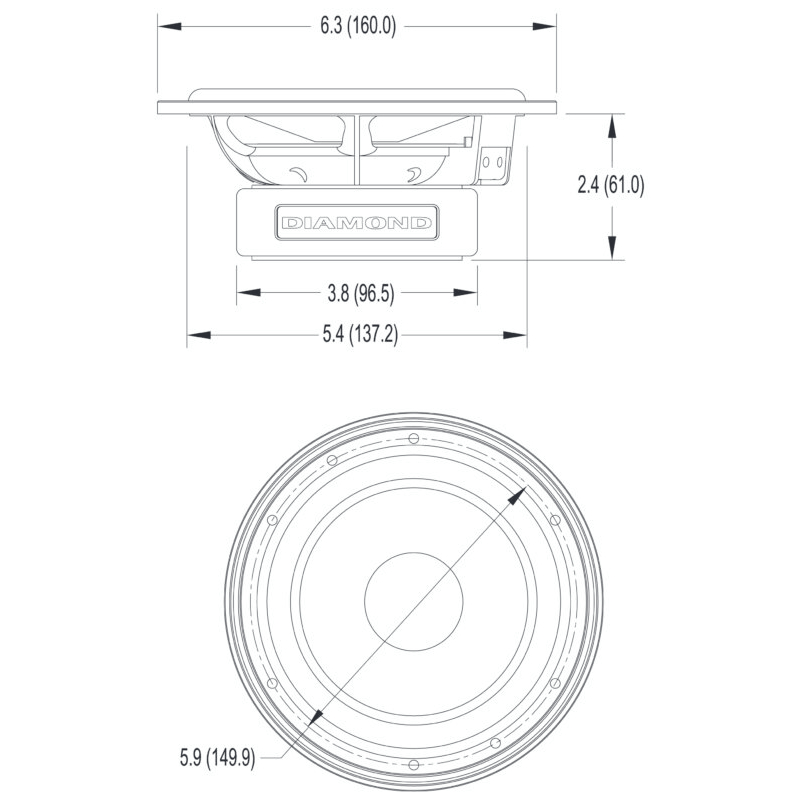

  • Top-Mount Depth (Mounting Depth): 2-15/16"
  • Bottom-Mount Depth: 2-9/16"
  • Cutout Dimensions: 5-5/16"
  • CTA-2031 Compliant: No
  • Marine Certified: No
  • Hi-Res Certified: No
  • Color: Black
  • Illumination: None
  • Speaker Grilles: Not included
  • UPC: 660715219359
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
