We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•(1) 10" Dual 4-ohm voice coil subwoofer
• Owner's Manual
High-quality Car Audio Equipment

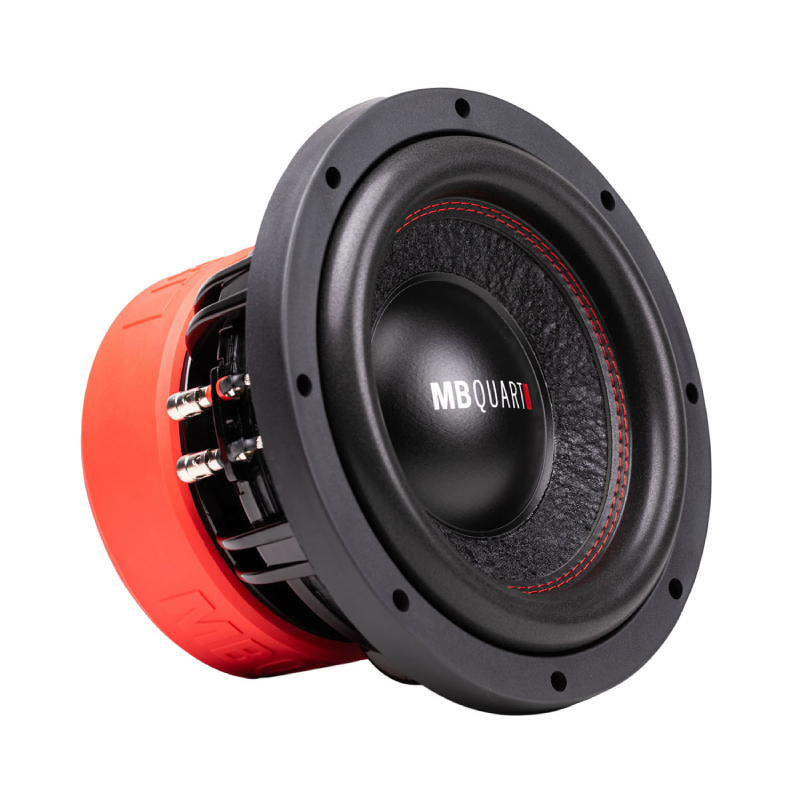

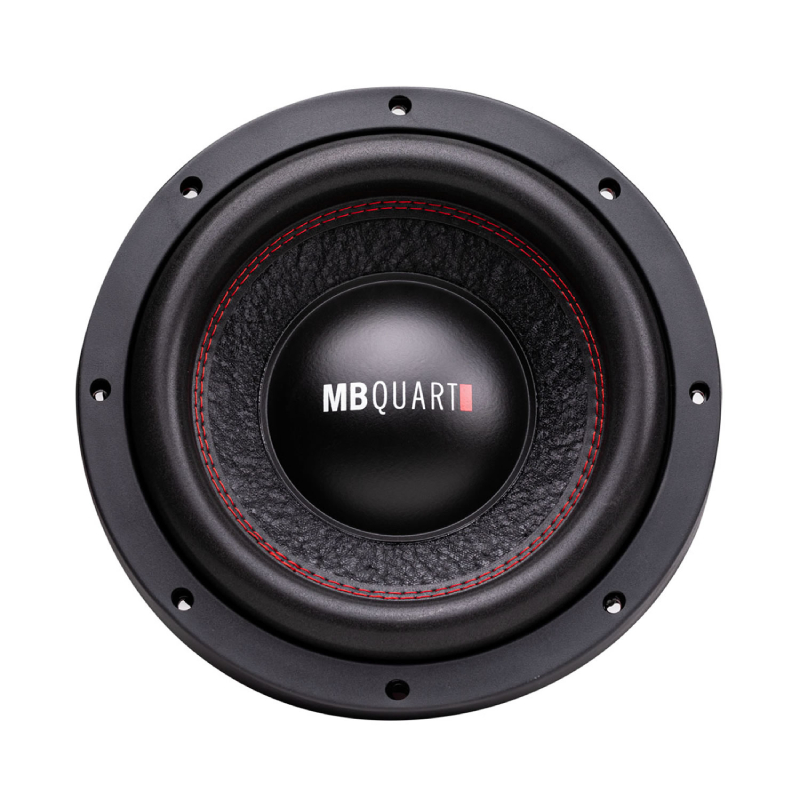

MB Quart has been turning out high-quality car audio equipment for over 50 years, creating the immersive experience that listeners crave. Now they bring you their Reference Series subwoofers, made to deliver the kind of low end that captures attention inside and outside your vehicle. The RW1-254 is a 10" component subwoofer with dual voice coils that can be wired for 2-ohm or 8-ohm impedance, giving you a wide array of system options.
Higher Power Handling With Minimal Distortion
The non-pressed coated paper cone is made to deliver warm bass, while the double-stitched foam surround and specially-designed spider keep the cone in check for higher power handling with minimal distortion. A heavy-gauge black powder-coated die-cast aluminum basket holds everything together with stability and style. The 3" voice coil and dual 70-ounce magnets allow this sub to handle up to 800 watts RMS for impressive low-frequency performance. This sub will take all the power your music can dish out.
Pressure Treated Double Stitched Foam
The pressure treated double stitched foam surround along with the dual poly cotton spider helps keep the piston motion of the subwoofer linear and distortion free. Vented aluminum former holds a 3" voice coil while allowing the heat to be exchanged. (Less heat means less distortion) Specialized MB Quart dual poly cotton spider with double centering allows the woofer to handle more power with minimum distortions.Heavy duty aluminum die-cast basket allows back venting, which exchanges heat with cool air, resulting in more power handling and increased reliability.
Diameter : 10 Inch
Sensitivity : 83.3 dB
Impedance : 4 Ohm
Peak Power Handling : 1600 Watts
Top Mount Depth : 6.53 Inches
Number of Voice Coils : Dual
Mounting Depth : 6.53 Inches
RMS Power Handling : 800 Watts

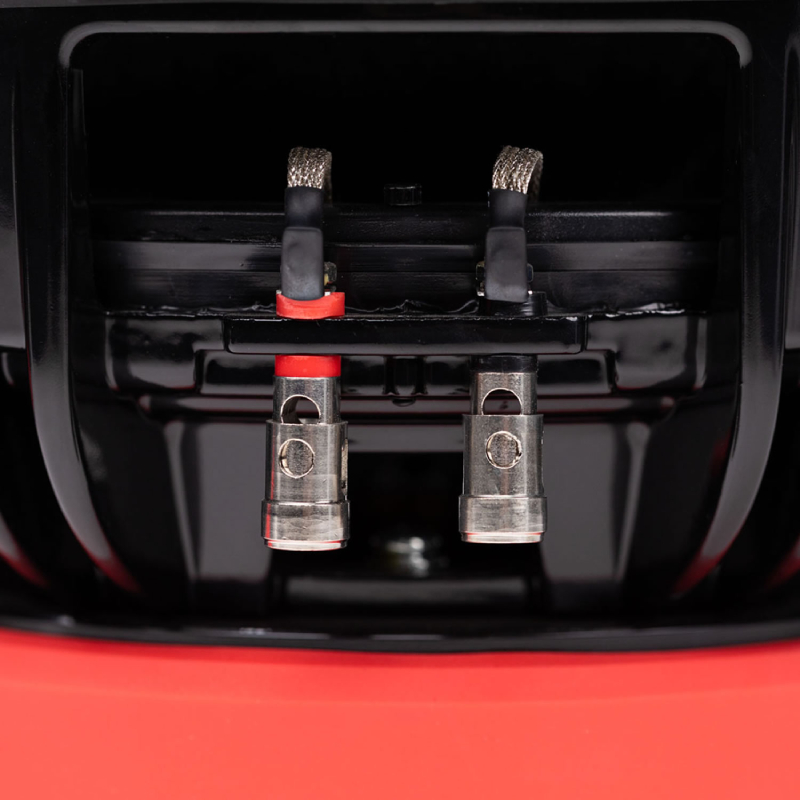

Terminal Type: Push & insert style terminals for easy installation.
Surround / Cone Coupling: The pressure treated double stitched foam surround along with the dual poly cotton spider helps keep the piston motion of the subwoofer linear and distortion free.
Voice Coil / Former Assembly: Vented aluminum former holds a 3" voice coil while allowing the heat to be exchanged. (Less heat means less distortion)

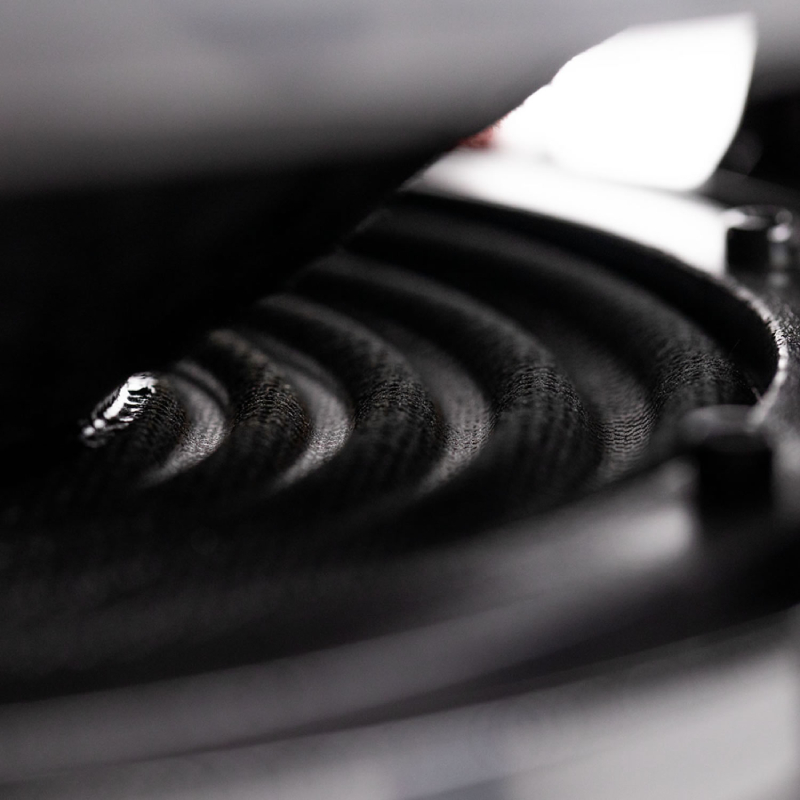

Spider: Specialized MB Quart dual poly cotton spider with double centering allows the woofer to handle more power with minimum distortions.

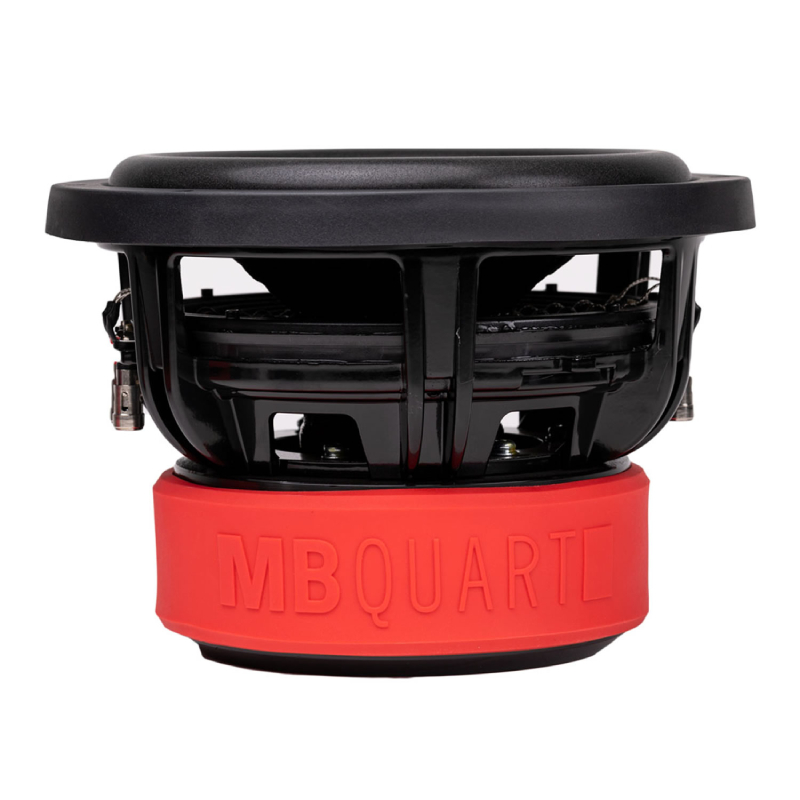

Frame / Venting: Heavy duty aluminum die-cast basket allows back venting, which exchanges heat with cool air, resulting in more power handling and increased reliability.

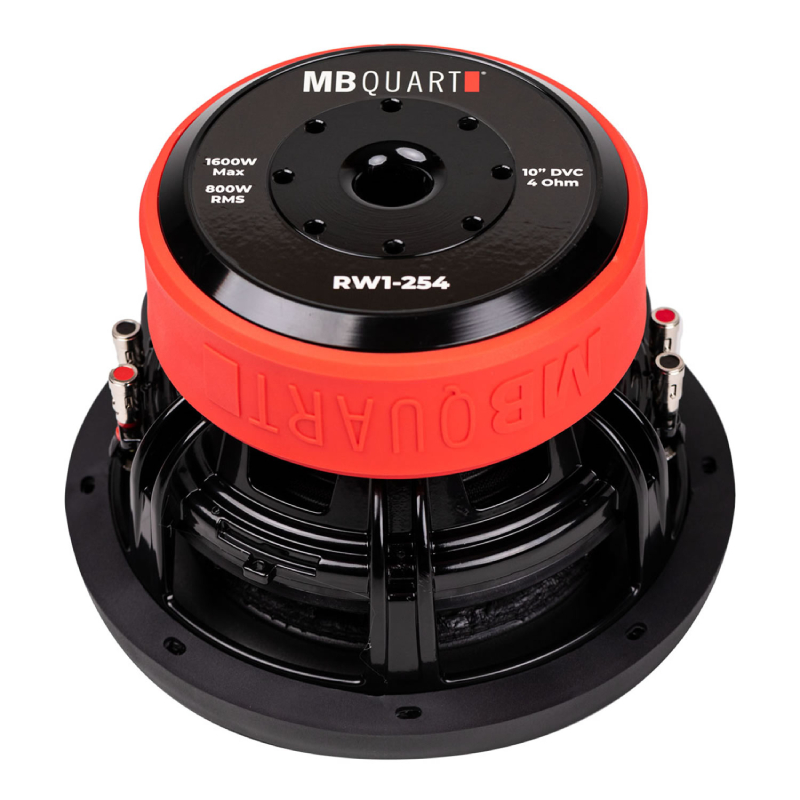

Motor: Vented high energy motor assembly with dual 70oz magnets increases power handling and increases SPL.
Cone: Non-Pressed Paper Cone with Coating
Weight: 30.75 lbs
Dimensions: 13.0 × 12.75 × 11.0 in
Brand : MB Quart
Series : Reference
Warranty: 1 Year
Compatible Vehicles: Universal
Subwoofer Configuration: Round
Subwoofer Voice Coils: 2
Subwoofer Impedance (ohms): 4
Subwoofer RMS Power Handling (watts): 800
Subwoofer Peak Power Handling (watts): 1600
Subwoofer Cut-Out (in): 9.44
Subwoofer Mounting Depth (in): 6.53
Subwoofer Outside Diameter (in): 10.78
Subwoofer Sensitivity (1 watt/1 meter): 83.3dB
Subwoofer Size (in): 10
