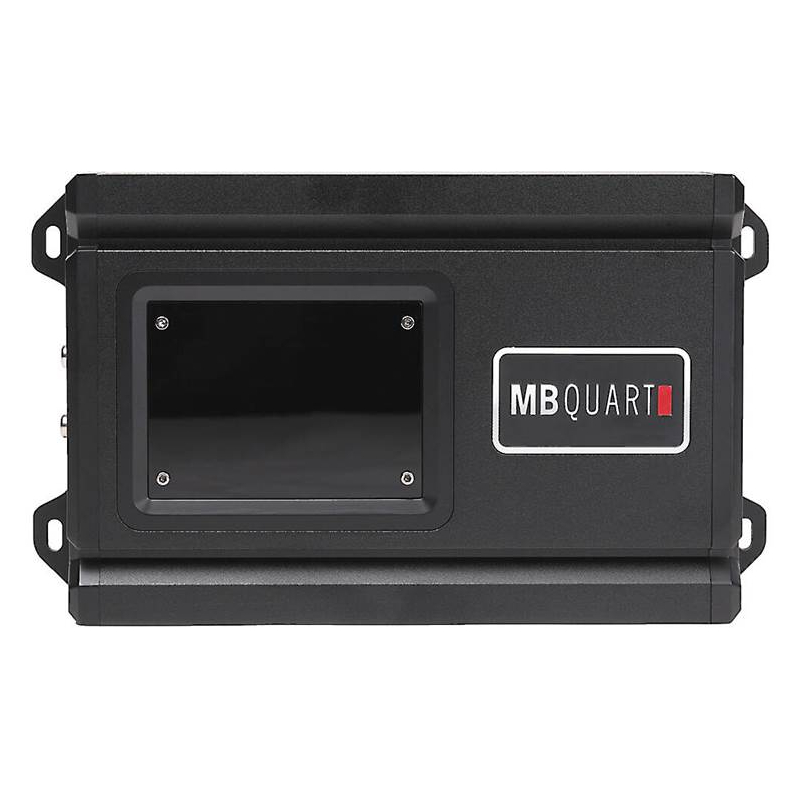

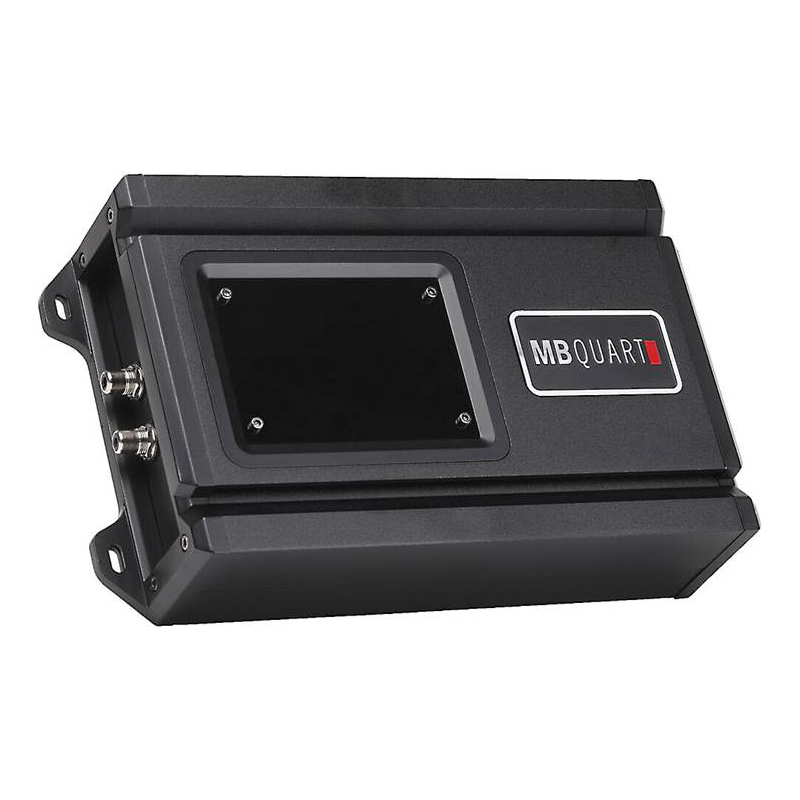

MB Quart RA1-150.2 Reference Series 100W x 2 RMS @2 Ohms 2-Channel Class D Car Amplifier
We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•4mm Hex key
•2mm Hex key
•Four 5/8" screws
•MB Quart logo badge
• Owner's Manual
Hear and Feel Your Music Clearly Over Road and Engine Noise
MB Quart's Reference Series RA1-150.2 two-channel amplifier provides 50 watts of power to a pair of speakers, so you can hear and feel your music clearly over road and engine noise. Designed to power high-quality aftermarket speakers, like their Reference Series speakers and components, this Class D amplifier utilizes MB Quart's unique Q-Stasis (Class SQ) circuitry to improve the accuracy and clarity of your music.
High-pass Filter Shapes
The amplifier's features include speaker-level inputs with signal-sensing amp turn-on, so it's ready to work in almost any system. A high-pass filter shapes the signal to fit your full-range speakers for their best-sounding output. You can also configure this amp for one-channel operation to power a subwoofer with up to 200 watts RMS. A low-pass filter and a bass boost EQ help dial in just the right amount of bass bump.
Innovative Sound Quality and Power Technology
MB Quart Reference series two channel car audio amplifier featuring innovative sound quality and power technology. The RA1-150.2 is a 150 watt car audio amplifier. Reference amplifiers feature DC Sensing to allow any amplifier to be easy integrated into an OEM system by simply adapting a RCA cable from the source unit. Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.
High Temperature Impact Resistant
Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier.Class SQ: Multi-channel amplifiers utilize the unique MB Quart Class SQ topology. Matched with Q-Stasis the sonic accuracy and clarity exceeds standard Class D amplifiers.
Low Frequency Response : 50-250 Hz
High Frequency Response : 50-250 Hz
Number of Channels : 2
Built In Crossovers : Yes
RMS Power Output : 100x2 Watts
Channel Separation : Yes
Amplifier Class : D
Fuse Rating : 20 A
Low Noise Preamplifier Circuit: Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.

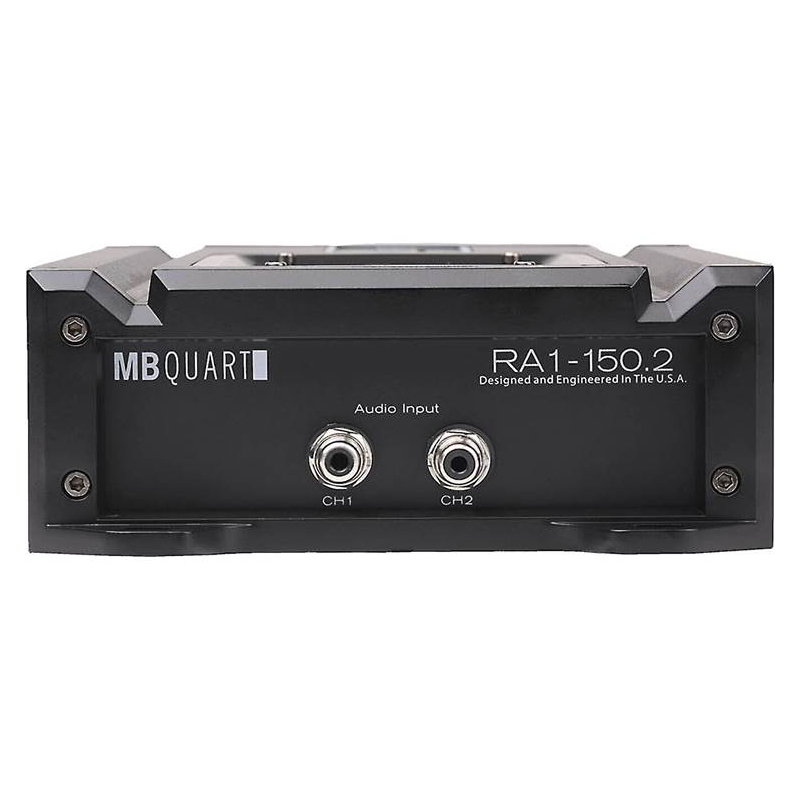

RCA Inputs: Nickel-Plated - High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.
High Level Inputs: See Auto-Sense Feature.
Operation Mode: 2 Channel

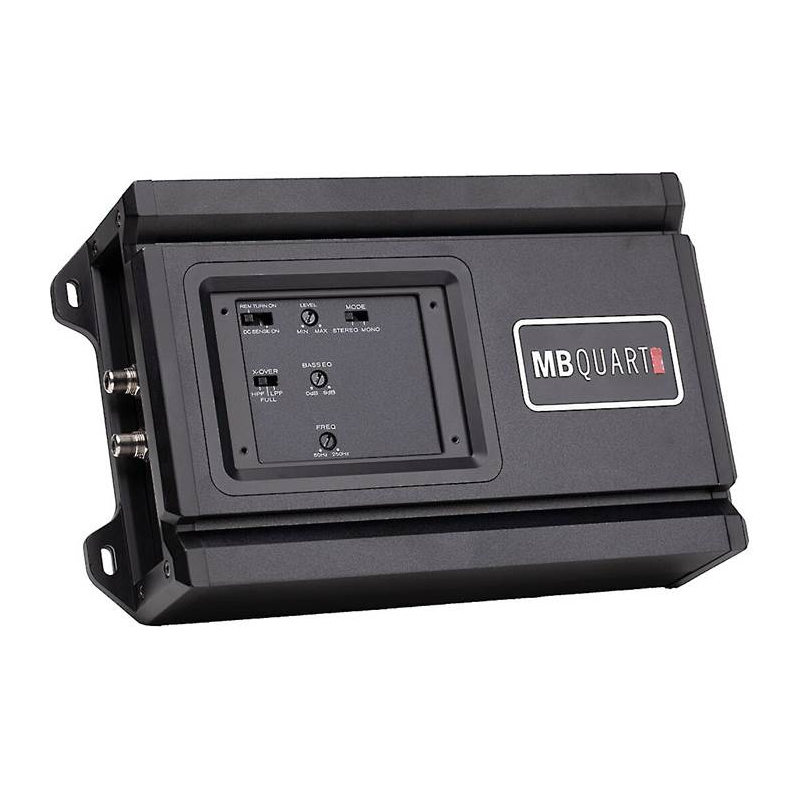

Crossover Type: Variable electronic crossovers allow for complete control of the sound.
Electronic Equalizer: Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier.
Class / Topology: Class SQ - Multi-channel amplifiers utilize the unique MB Quart Class SQ topology. Matched with Q-Stasis the sonic accuracy and clarity exceeds standard Class D amplifiers.
Output Device Technology: FLUID-FETS - MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers.
Heat Sink: Aluminum - Quickly dissipates heat to allow the amplifier to run lower impedance for longer duration.
Power Supply: Rugged MOSFET Pulse Width Modulation power supply: Allows amplifier to produce efficient power without taxing the vehicle electrical system.

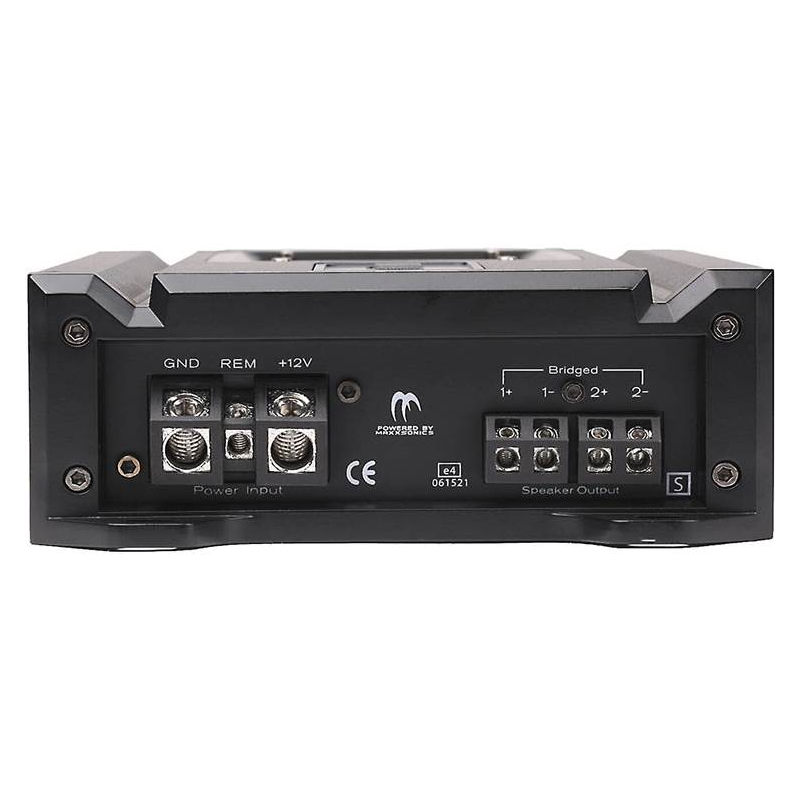

Output Connections: Heavy duty connections allow for secure electrical signal to pass into wiring and resist erosion which will add longevity to the amplifier.
Connection Type: Secure connection for all power, ground and speaker connections.
Auto Turn-On: DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off.
Weight: 4.6 lbs
Dimensions: 13 × 8.5 × 4 in
Compatible Vehicles: Universal
Amp Class: Class SQ (Class D)
Amp Total Channels: 2
Amp Max Power (watts): 150
Amp Power @ 2 Ohms (ch x watts): 2 x 100
Amp Power @ 4 Ohms (ch x watts): 2 x 50
Amp Mono Bridged @ 4 Ohms (ch x watts): 1 x 200
Amp Crossover: Electronic
Amp Variable High Pass Crossover 12dB per Octave: CH1 & CH2: Switched Full/HPF/LPF 50Hz-250Hz
