- Maximum Power : 10000 Watts
- Number of Channels : 1
- RMS Power Output : 5000x1 Watts
- Amplifier Class : D
- Fuse Rating : 200 A
What's Inside?

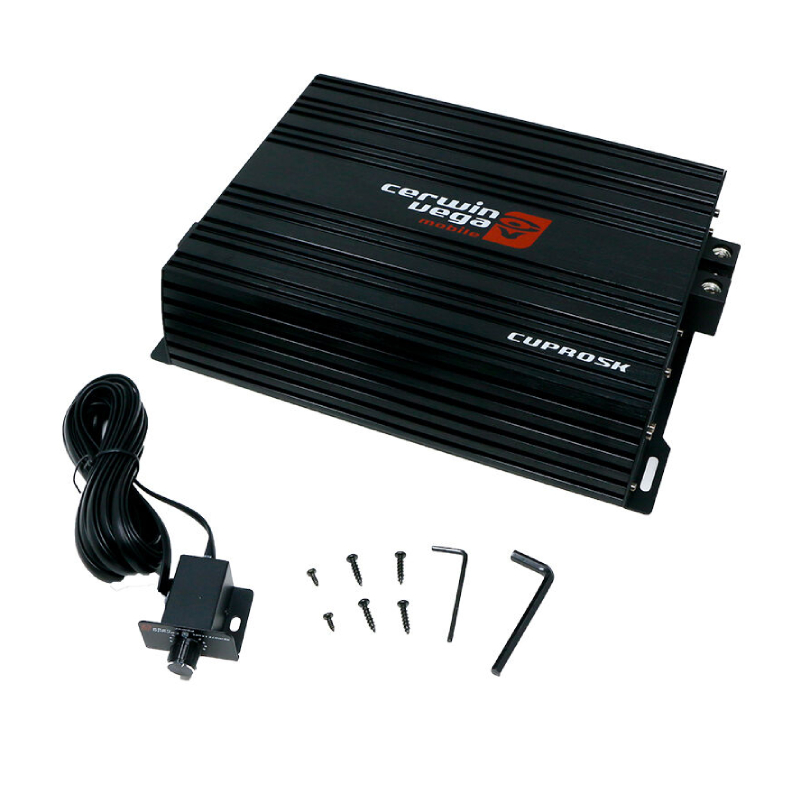

- 1 CVPRO5K Mono Block Car Amplifier
Features:
- Latest High-Efficiency Class A/B Topology
- Compact Size with Ambient backlit logo
- RCA “Pass Thru” output for easy system expansion
- Fully Variable Crossovers (12dB per octave)
- Handles HI and LO level input to 12V
- 2 Ω Stable Stereo and 4Ω Mono (CH3/4) for 3 CH mode
- Proprietary Vega Bass Boost EQ Up To 12dB
Specifications:
- MAX Power Rating: 10000W MAX
- 5000W X 1 @1Ω
- 3300W X 1 @2Ω
- 1900W X 1 @4Ω
- Types: Full Range, Class D
- Power Supply: Full PWM
- Power Supply (Threshold): 10.0DVC – 17.0DVC
- Idle Current: (2.6A)
- Distortion - THD ([email protected]Ω): 0.1%
- Distortion - S/N Ratio (A weight @ 1W): -90dBA
- Distortion - S/N Ratio (A weight @ FP): -105dBA
- Input Sensitivity - Hi/Low Input Level: 0.2V – 5V
- Input Impedance - Low Input Level: 20 KΩ
- Output Impedance: 0.018 Ω
- Damping Factor ([email protected]Ω): >150
- Bandwidth (-3dB): 15Hz-20KHz
- Crossover (-12 dB/ Oct) Variable High-Pass: 50Hz-20KHz
- Crossover (-12 dB/ Oct) Variable Low-Pass: 15Hz-1KHz
- Crossover (-12 dB/ Oct) Variable Sub-Sonic: 15Hz-1KHz
- FUSE Ratings - ATC: 200A
- Dimension - Length x Width x Height - Inches(mm): 10.4 x 8.85 x 2.61 (265 x 225 x 66.5)
- UPC: 847169054099
- Weight: 10
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
