- Diameter : 15 Inch
- Maximum Power : 3600 Watts
- Sensitivity : 93.8 dB
- Impedance : 2 Ohm
- Peak Power Handling : 3600 Watts
- Number of Voice Coils : Dual
- Mounting Depth : 8.15 Inches
- RMS Power Handling : 1200 Watts
What's Inside?

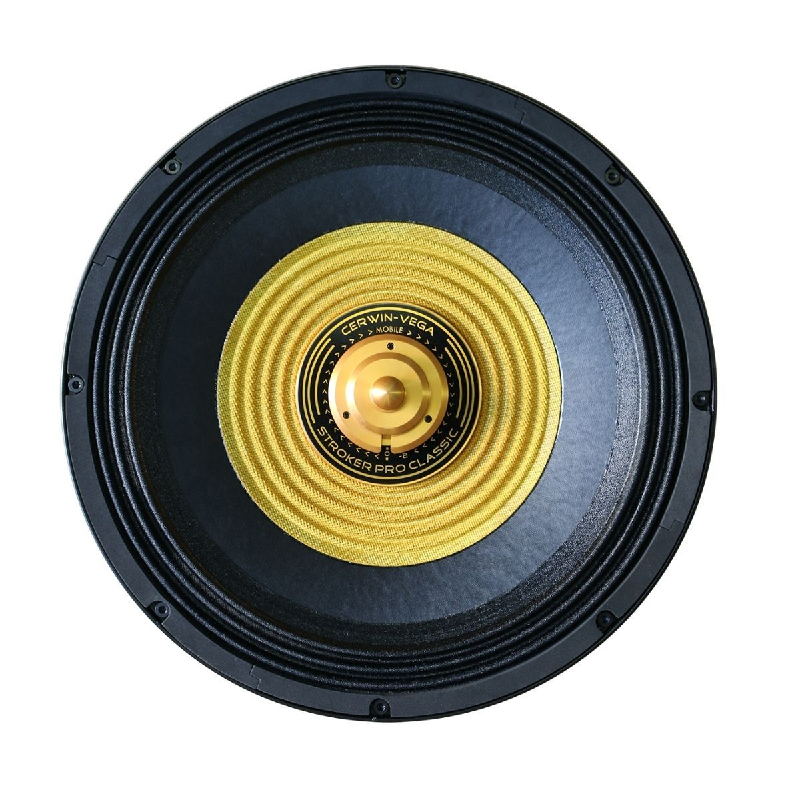

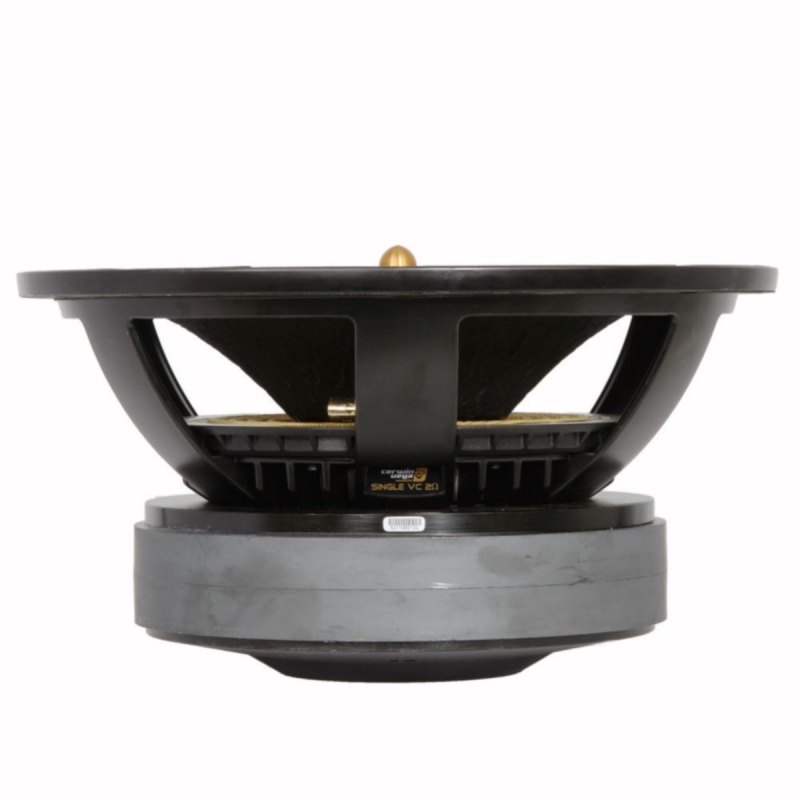

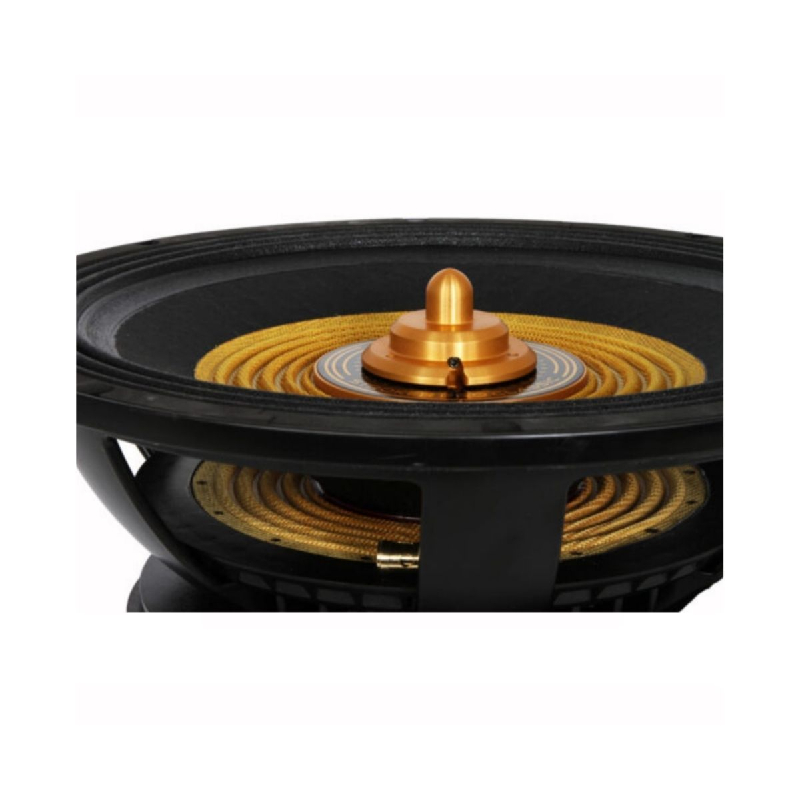

- 1 15" SPCL Series Dual 2 Ohm Car Subwoofer
Features:
- Heavy-duty industrial cast aluminum basket
- Advanced Voice coil heat sink design for better heat dissipation
- 4” Single Layer High Temp voice coil with black coated Voice coil former
- Detented Adjustable Voice coil Xmax control for precise tuning +/-15 Percent in 5% increments
- High Density, High B/L motor structure for high power handling
- Patent Pending design
Specifications:
- 15” Dual 2-ohm SPL Subwoofer
- 1200W RMS / 3600W MAX Power Handling
- Mounting Depth: 9.375 in./ 238.13mm
- Nominal Impedance (ohms): N/A
- Xmax - Inch(mm): 24.0
- Fs-Free Air Resonance (Hz): 44.0
- Vas (Liter): 62.0
- Qts: 0.34
- Qes: 0.35
- Qms: 16.0
- Re (Ω)[series]: 1.68
- Sd (cm²): 881
- Cms (mm/N): 0.06
- Mms (g): 232
- BL (T*M): 17.6
- SPL (db): 93.8
- Pwr (W) NOM/MAX: 1200/2400
- Mounting Depth: 8.15” (207mm)
- Total Diameter: 15.5” (394mm)
- Mounting Diameter (inch/mm): 13.85” (352mm)
- Screw Hole Diameter: 0.33” (8.5mm)
- Displacement (ft3/L): 0.183 ft3 (5.2)
- UPC: 0847169034558
- Weight: 15
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
