- Maximum Power : 1100 Watts
- Number of Channels : 1
- RMS Power Output : 500x1 Watts
- Amplifier Class : D
- Fuse Rating : 30x3 A
Features:
- RMS Power: 500W x 1 @ 1 ohms
- Total Peak Power: 1100W
- Variable Low-Pass Filter
- Pulse Width Modulated MOSFET Power Supply
- Heavy-Grade Aluminum Alloy Extruded Heatsink
Specifications:
- RMS Power (1Ω) 1000W
- RMS Power(2Ω) 700W
- RMS Power (4Ω) 450W
- RMS Bridge (stereo 4Ω) N/A
- Power Supply 12-14.4V
- Power Supply (Threshold) 8.4V-16.5V
- Idle Current 1.1A
- Distortion - THD (1KHz@4Ω) <0.3%
- Distortion - S/N Ratio (A weight @ 1W) >90dB
- Distortion - S/N Ratio (A weight @ FP) -88dBA
- Input Sensitivity - Hi/Low Input Level 0.3-8.5V
- Input Impedance - Low Input Level 22Kohm
- Output Impedance 1ohm
- Damping Factor (50Hz@4Ω) >100
- Bandwidth (-3dB) 10Hz-300Hz

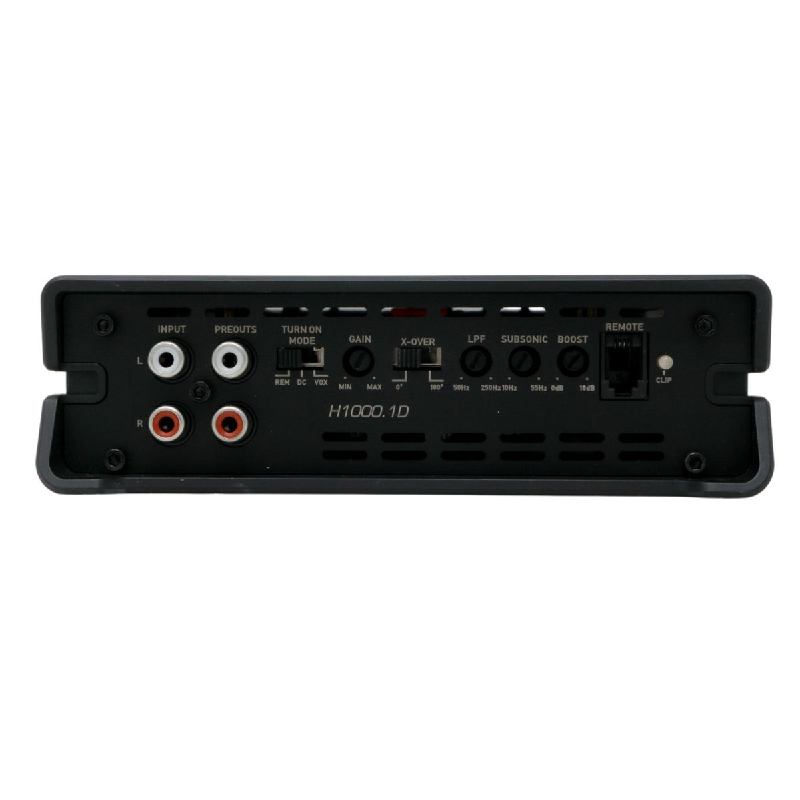

- Crossover (-12 dB/ Oct) Variable Low-Pass 50-250Hz
- Crossover (-12 dB/ Oct) Variable Sub-Sonic 10-55Hz

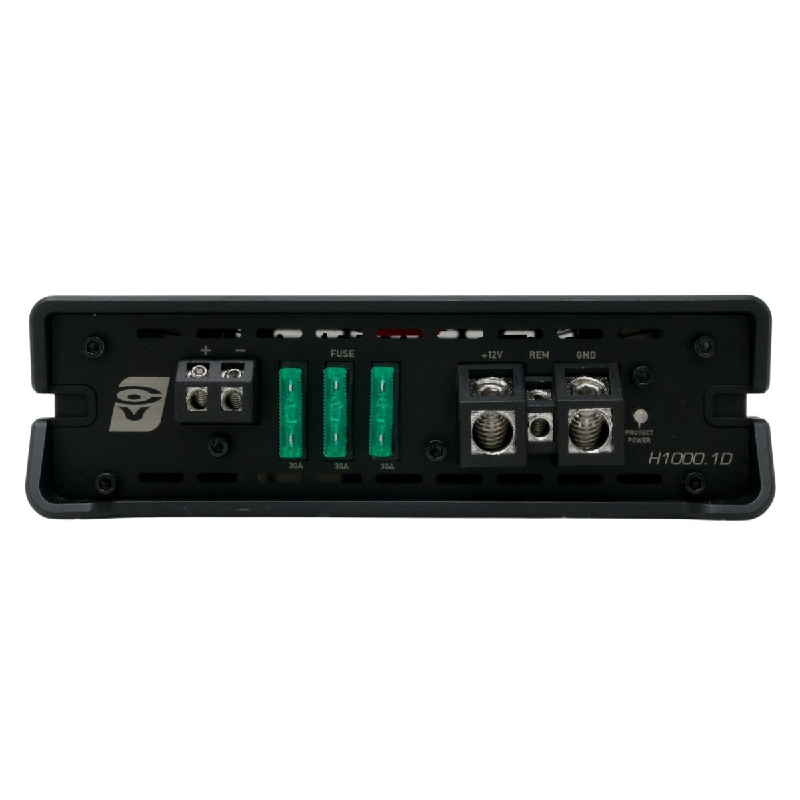

- FUSE Ratings - ATC 30Ax3
- Dimension - Length x Width x Height - Inches(mm) 9 Inches x 6.3 Inches x 1.9 Inches (229.5mm x 160mm x 48.3mm)
- UPC: 847169059117
- Weight: 10
