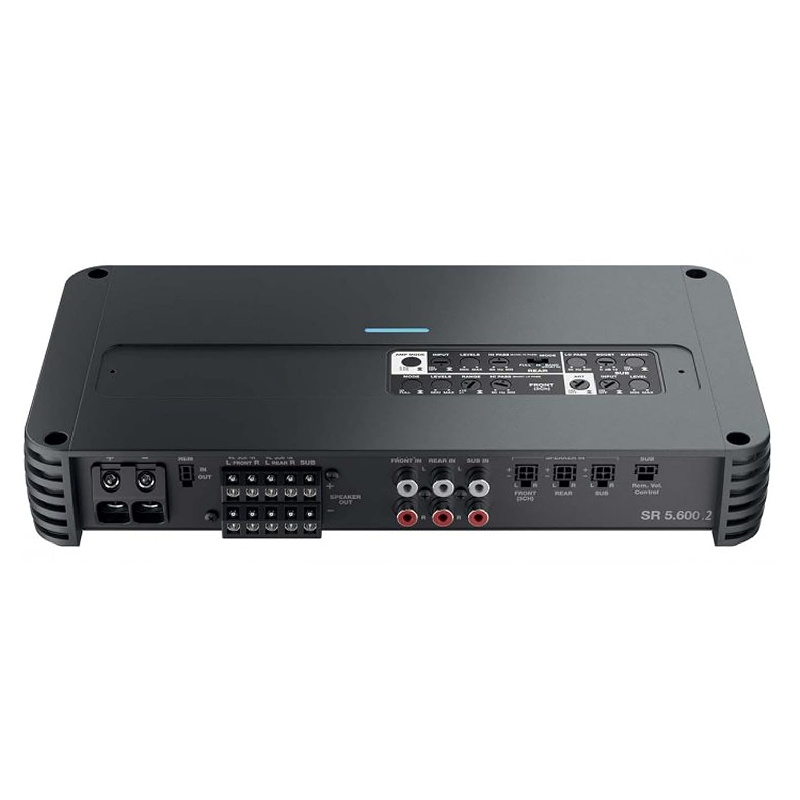

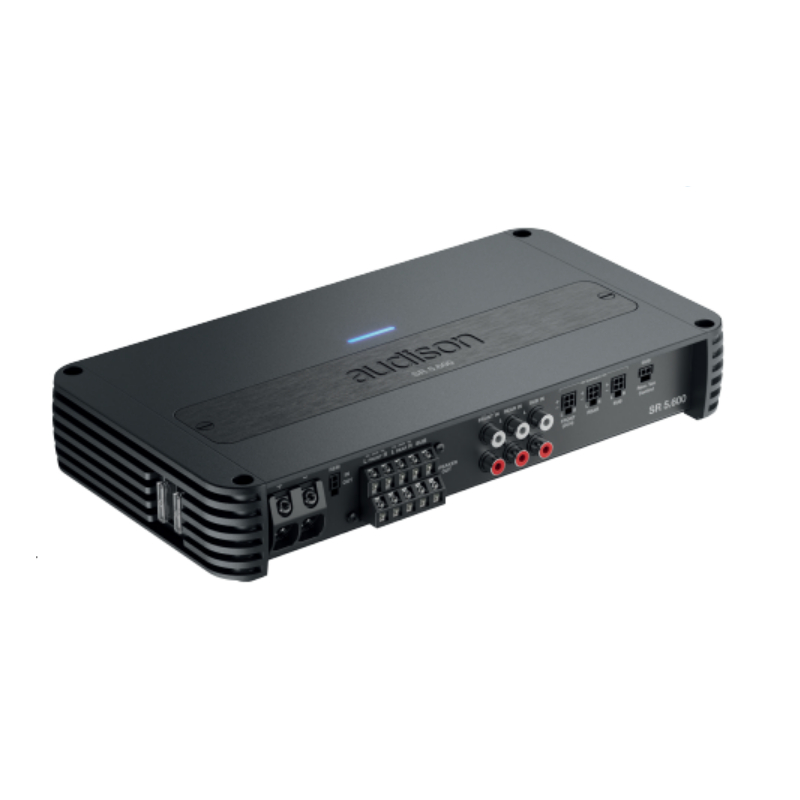

Audison  SR5.600.2

SR.2 Series 5-Channel 115W RMS x 4 at 2-Ohms + 5th Channel 550W RMS x 1 at 2 Ohm, Class-D Car Amplifier

Item #84633

Condition:   Brand New

Product Highlights

  • SR.2 5-Channel
  • 115W x4 (2O)
  • 550W Sub (2O)
  • Class-D Amplifier
  • Premium Car Audio

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
CYBER WEEK DEALS!
Save 5% on 5 Channel Amplifiers!

Use Code: CYBW5

Ends in:

$599.99

Reg. Price $660.00  Save $60.01
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Audison Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Audison Banner

Audison SR5.600.2 SR.2 Series 5-Channel 115W RMS x 4 at 2-Ohms + 5th Channel 550W RMS x 1 at 2 Ohm, Class-D Car Amplifier


We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
AF M12.14 bit
High-Performance Class-D 5-Channel Amplifier

Delivering ultra-clean sound with just 0.02% THD and an impressive 105 dBA signal-to-noise ratio, this amplifier ensures unmatched clarity and precision. Its wide bandwidth, strong damping factor, and flexible input sensitivity guarantee deep bass, crisp highs, and full control across all channels. Built with efficient power management and smart features like Automatic Remote Turn-On/Off (ART), it’s the perfect blend of power, reliability, and innovation for car audio enthusiasts.


SPECIFICATIONS


  • Maximum Power : 1000 Watts
  • Number of Channels : 5
  • Frequency Response : 10-35000 Hz
  • Amplifier Class : D
  • Fuse Rating : 44x1 A

FEATURES


Features:

  • Power and Ground wire terminals updated from 8 AWG to 4 AWG
  • Discrete MOSFET output devices used in the F/R amplifier channels

Specifications:

  • Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 25A
  • Operating power supply voltage:  6.5 ÷17 VDC
  • Idling current: 2.2 A
  • Idling current when off: 0.04 mA
  • Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 44 A
  • Remote IN:  6.5 ÷ 15 VDC (1 mA)
  • Remote OUT:  6.5 ÷ 15 VDC (150 mA)
  • ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable):  1.5 ÷ 7 VDC
  • Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power 0.02 %
  • Damping factor @ 1 kHz, 4Ω, 2 VRMS, FRONT/REAR: 100
  • Damping factor @ 100 Hz, 4Ω, 2 VRMS, SUB: 300
  • Bandwidth @ -3 dB FRONT / REAR; SUB: 10 Hz ÷ 35 kHz; 10Hz ÷ 500Hz
  • S/N ratio (A weighted @ 1 V Input): 105 dBA
  • Pre-In sensitivity: 0.2 ÷ 5 VRMS
  • Speaker-In sensitivity: 0.8 ÷ 20 VRMS
  • Minimum load impedance:
    • 5Ch: 2Ω
    • 3Ch: 4Ω + 4Ω + 2Ω
  • OUTPUT POWER (RMS) @14.4 VDC, 1% THD:
    • 5Ch 75 W x 4 + 330 W x 1 (4Ω)
    • 5Ch 115 W x 4 + 550 W x 1 (2Ω)
    • 3Ch 230 W x 2 (4Ω) + 310 W x 1 (4Ω)
    • 3Ch 230 W x 2 (4Ω) + 550 W x 1 (2Ω)
  • UPC: 8018823138567
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
