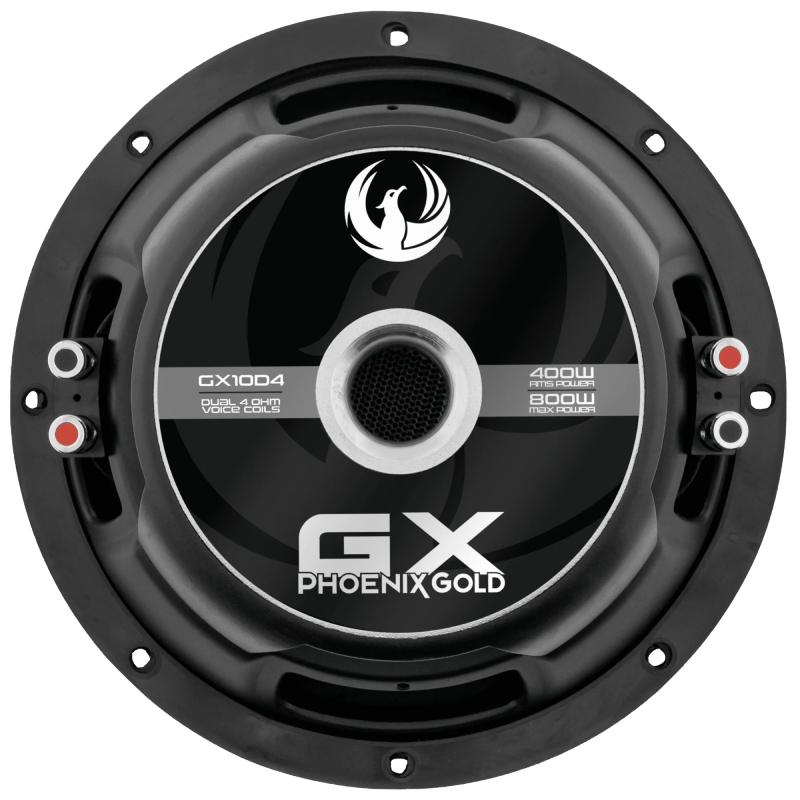

Phoenix Gold GX10D4 10" Dual 4 Ohm GX Series Subwoofer
We are a Phoenix Gold authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Dual Cone Design
- • Magnetic FEA High-Efficiency Motor
- • Thermal Efficient Design via Vented Motor
- • Double Looped and Sleeved Lead Wires for High Excursion
- • Bent Edge Enhanced Frame
- • L³ Technology Voice Coil
- • MLB Collar Technology
- • Linear Long Throw Spider Suspension
- • Black Anodized Voice Coil Former
Dual Cone Design
The GX10D4 features a magnetic FEA high efficiency vented motor and CFL3 voice coil technology for optimal performance. This 10” subwoofer also features a dual cone design with MLB collar technology and linear long throw spider suspension for enhanced output and power handling.
Features:
- Dual Cone Design
- To strengthen the rigidity of the subwoofer’s cone body to minimize the distortion while increasing the handling of high pressure produced within an enclosure
- Magnetic FEA High-Efficiency Motor
- provides highest possible, efficient motor design
- Thermal Efficient Design via Vented Motor
- providing better thermal efficiency, reduces motor compression and extended low-frequency response
- Double Looped and Sleeved Lead Wires for High Excursion
- Reduces wire roping and allows high excursion, increased flexibility and long life
- Bent Edge Enhanced Frame
- minimizes overall resonance and provides accurate sound with less distortion
- L³ Technology Voice Coil
- 3x more structurally rigid, prolonging the life of voice coil
- MLB Collar Technology
- Enables micro level bonding with cone & spider for increased strength
- Linear Long Throw Spider Suspension for increased output and power handling
- Black Anodized Voice Coil Former- heat dissipation
Specifications:
- Nominal Impedance: 3.50 ohms
- DC Resistance (Re): 7.00 ohms
- Resonance Frequency (Fs): 27.53 Hz
- Piston Area (Sd): 0.0314 m2
- Force Factor (BL): 21.04 Tm
- Mechanical Q Factor (Qms): 3.47
- Electrical Q Factor (Qes): 0.30
- Total Q Factor (Qts): 0.27
- Sensitivity 1W/M (SPL): 86.78 dB
- Mechanical Compliance (Cms): 0.31 mm/N
- Moving Mass (Mms): 108.37 g
- Linear Excursion (Xmax): 9 mm
- Volume Acoustic Compliance (Vas): 42.50 Ltr / 1.50 cu ft
- Reference Efficiency (NO.): 0.29%
- Nominal Power (Pe): 400 Watts
- Peak Power: 800 Watts
- Frequency Response: 30-500 Hz
- Voice Coil Diameter: 2.5in/63.5mm
- Displacement: 0.07 cu ft/1.84 Ltr
- Overall Diameter: 10.43 in/265 mm
- Cut Out Diameter: 9.125 in/231.77 mm
- Mounting Depth: 5.47 in/139 mm
- UPC: 609098832915
- Weight: 1
