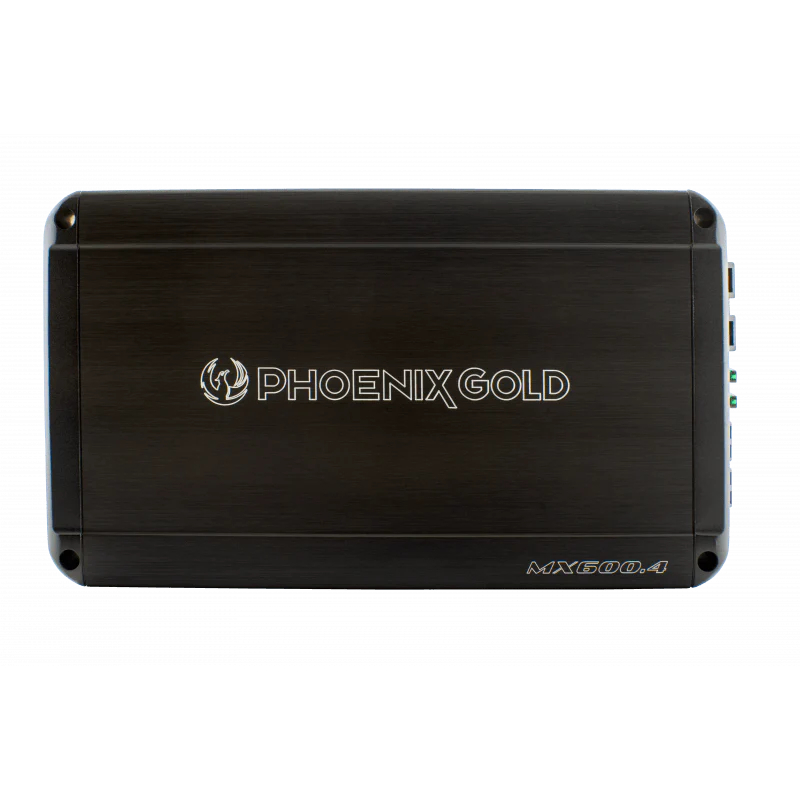

Phoenix Gold MX600.4 MX 600Watts 4 Channel Full Range Class-D Sub Compact Amplifier
We are a Phoenix Gold authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Class-D Topology
- • Small Footprint Chassis Design
- • Robust Unregulated Power Supplies
- • Remote Bass Controller Included
- • Audio Precision® Quality Control Verification
- • Balanced Flow Dissipation (BFD
- • Balanced/Unbalanced Inputs
- •Direct Insert Power and Speaker Terminals
Versatile System Amplifier
This is designed to fit, without compromising power and sound quality, MX600.4, a versatile system amplifier delivers 600 watts of efficient, clean power to drive your entire system, delivering hard-hitting, articulate bass, warm, studio quality mids and highs, and a listening experience with full tonal accuracy that any audiophile would love.
- Maximum Power : 600 Watts
- Low Frequency Response : 10 Hz
- High Frequency Response : 40 Hz
- Number of Channels : 4
- Frequency Response : 10-40 Hz
- Amplifier Class : D
- Fuse Rating : 60 A
Features:
- Class-D Topology
- Small Footprint Chassis Design
- Robust Unregulated Power Supplies:
- Automotive grade, High Current MOSFETs with high amperage capability and heat tolerance.
- Remote Bass Controller Included:
- Provides remote level control of bass from listening position. With a sleek flush-mount knob for ease of installation.
- Audio Precision® Quality Control Verification
- Balanced Flow Dissipation (BFD):
- Component layout and chassis design are optimized to evenly distribute heat across the entire chassis, avoiding hotspots and increasing thermal efficiency.
- Balanced/Unbalanced Inputs:
- Provides input matching flexibility for noise rejection from source signal components.

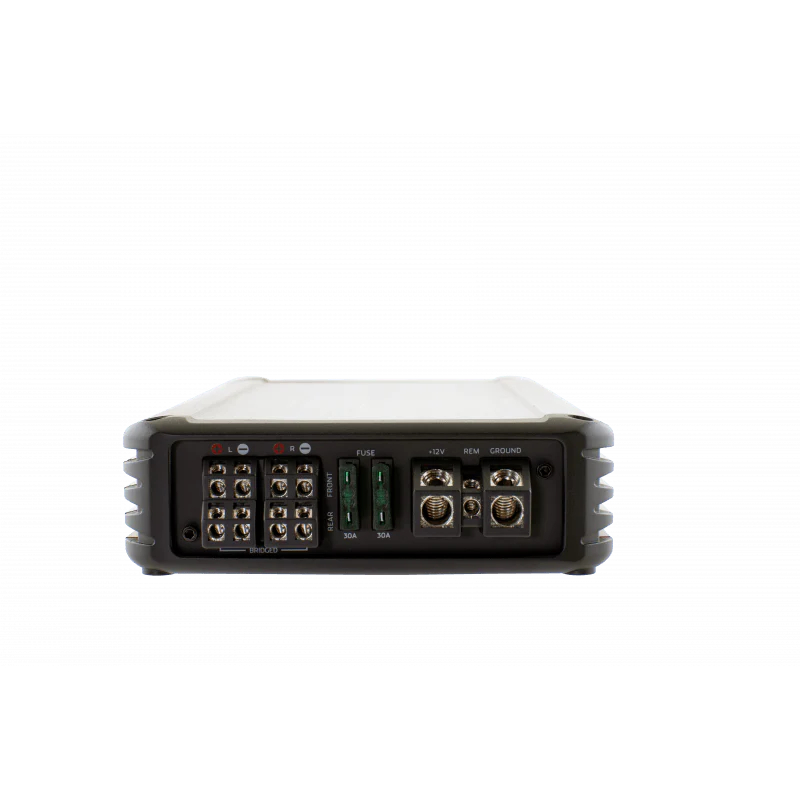

- Direct Insert Power and Speaker Terminals:
- Decreased resistance for higher power transfer and efficiency
- High level inputs via RCA (balances / unbalanced) using the Stinger X12LINE
Specifications:
-
- Number of Channels: 4
- 4Ω: CH 1 - 4 100W x 4
- 2Ω: CH 1 - 4 150W x 4
- 2CH Mode: 1+2 4Ω Bridged & 3+4 4Ω Bridged 300W x 2
- 3CH Mode: 1/2 4Ω Stereo & 3+4 4Ω Bridged 100W x 2 / 300W x 1
- 3CH Mode: 1/2 2Ω Stereo & 3+4 4Ω Bridged 150W x 2 / 300w x 1
- Total RMS Power (Sum of rated power): 600W
- Bridgeable: Yes

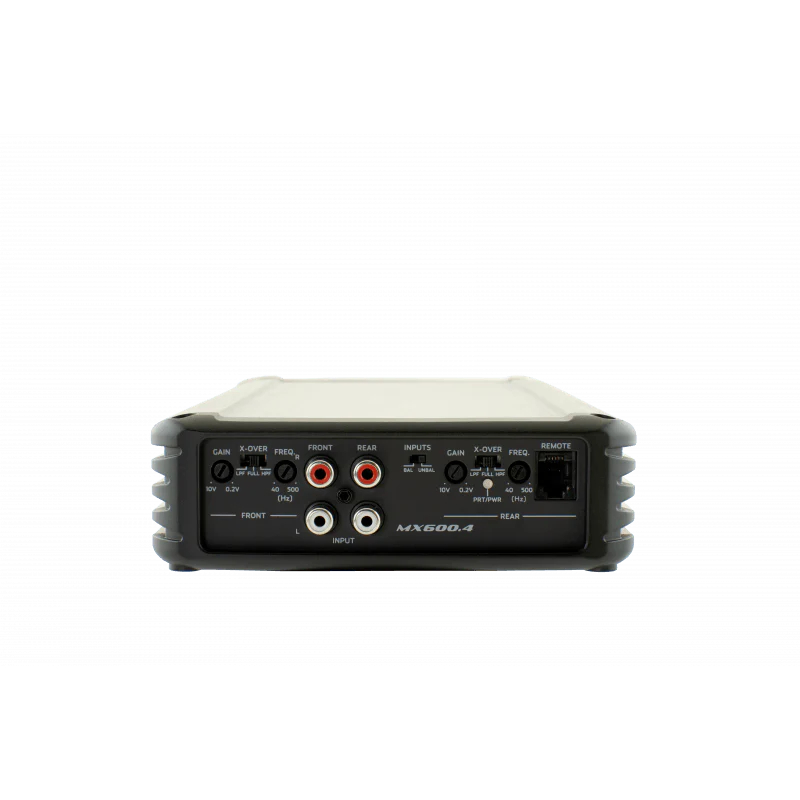

- Crossover Mode: FLAT/HP/LP
- CH 1 - 4 40Hz - 500Hz @ 12dB / Oct Linkwitz Riley
- Input Channels: 4CH F/R
- Input Mode: Switchable Unbalanced / Balanced
- Input Sensitivity:
- .2v - 5v Unbalanced RCA Low-Level
- .5v - 10v Balanced RCA Hi-Level
- Signal to Noise (@ CEA Standard): >80dB
- Frequency Response: Full Range CH 1 - 4 10Hz - 40kHz
- Topology Class: D
- Heatsink Type: Extruded Aluminum
- Cooling Type: Radiation
- Operating Voltage: 8V to 16V
- Switchable Auto-Turn On: No
- Power Supply Type: Unregulated
- Power Terminals: 4 Gauge
- Speaker Terminal: 10 Gauge
- On Board Fusing: 2 x 30A ATC
- Recommended Input Fuse: 50A
- Dimensions (L x W x H): 10.16” x 5.91” x 1.91” - 258mm x 150mm x 48.5mm
- UPC: 609098828932
- Weight: 1
