Phoenix Gold RX21000.1 RX 1000 Watt Class D Monoblock Amplifier
We are a Phoenix Gold authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Class-D Topology
- • Small Footprint Chassis Design
- • Robust Unregulated Power Supplies

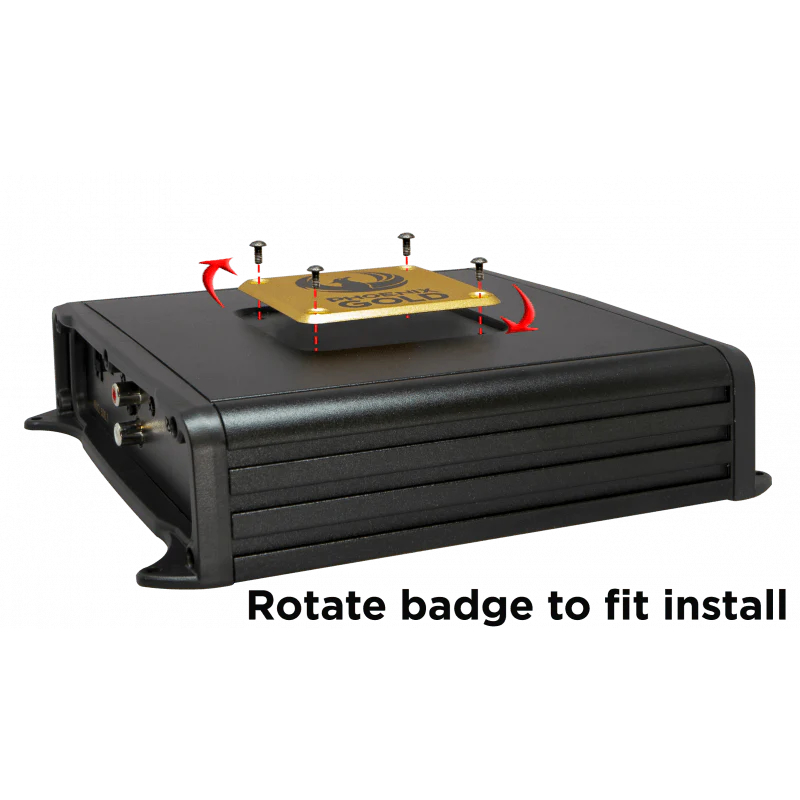

- • Rotatable Badging for installation flexibility
- • High level Inputs for Easy OEM Integration

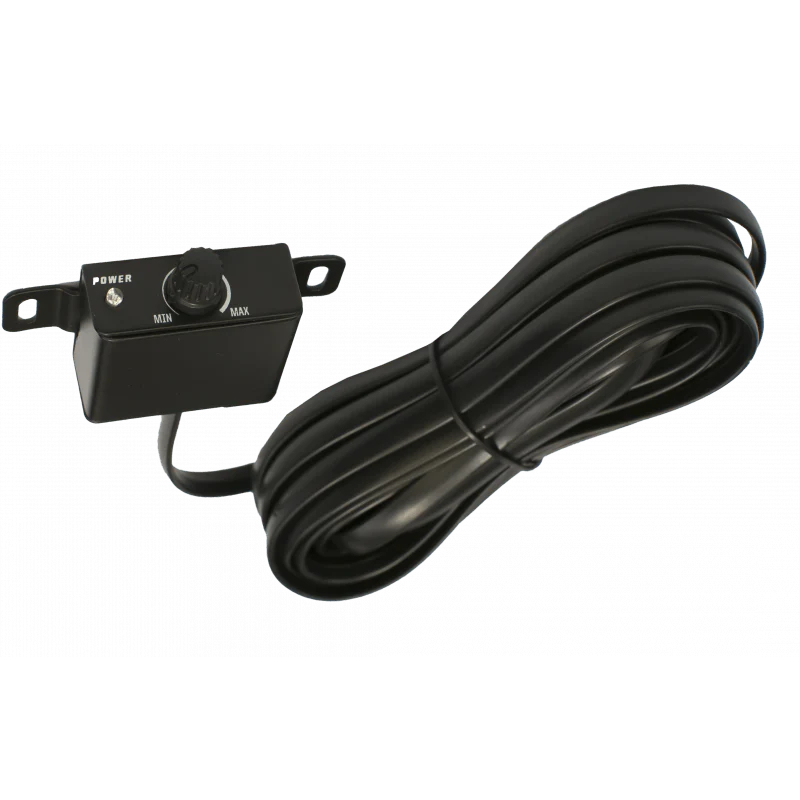

- • Remote Bass Controller Included
- • Audio Precision® Quality Control Verification
RX21000.1 RX21000.1
Power your subs with precision. RX2 1000.1 monoblock amplifier drives clean power with efficiency to your subwoofer. When your jam comes on, sometimes it calls for taking your bass up to the next level; and with RX2 1000.1's bass knob you can.
High level Inputs for Easy OEM Integration
RX2 series amplifiers are the reference for style and value in any installation. Built with the legendary Phoenix Gold reliability, they feature heavy duty heatsinks, robust unregulated power supplies, and oversized direct input power and speaker terminals. They also sound sweet thanks to the audiophile-grade output transistors.
- Maximum Power : 1000 Watts
- Number of Channels : 1
- Frequency Response : 15-250 Hz
- Amplifier Class : D
- Fuse Rating : 100 A
Features:
- Class-D Topology
- Small Footprint Chassis Design
- Robust Unregulated Power Supplies
- Rotatable Badging for installation flexibility
- High level Inputs for Easy OEM Integration
- Remote Bass Controller Included
- Audio Precision® Quality Control Verification
Specifications
- Number of Channels: 1
- 4Ω: CH 1 400W x 1
- 2Ω: CH 1 700W x 1
- 1Ω: CH 1 1000W x 1
- Total RMS Power (Sum of rated power): 1000Watts
- Bridgeable: NO
- Crossover Mode: LP
- CH 1 40Hz - 200Hz @ 12dB / Oct Linkwitz Riley
- Subsonic 10Hz - 40Hz @ 12dB / Oct Linkwitz Riley
- Input Channels: 2CH L/R
- Input Mode: Unbalanced / Balanced
- Input Sensitivity:
- .2v - 5v Unbalanced Low-Level RCA
- .5v - 15v Balanced Hi-Level Harness
- Processing: Bass Boost 0dB / +6dB / +12dB @45hz
- Signal to Noise (@ CEA Standard): >70dB
- Frequency Response: Full Range CH1 15Hz - 250Hz
- Topology Class: D
- Heatsink Type: Extruded Aluminum
- Cooling Type: Radiation
- Operating Voltage: 8V to 16V
- Switchable Auto-Turn On: No
- Power Supply Type: Unregulated
- Power Terminals: 4 Gauge
- Speaker Terminal: 10 Gauge
- On-Board Fusing: 3 x 35A ATC
- Recommended Inline Fuse: 100A
- Dimensions (L x W x H): 11.81” x 8.11” x 1.98” - 258mm x 150mm x 48.5mm
- UPC: 609098827591
- Weight: 3
