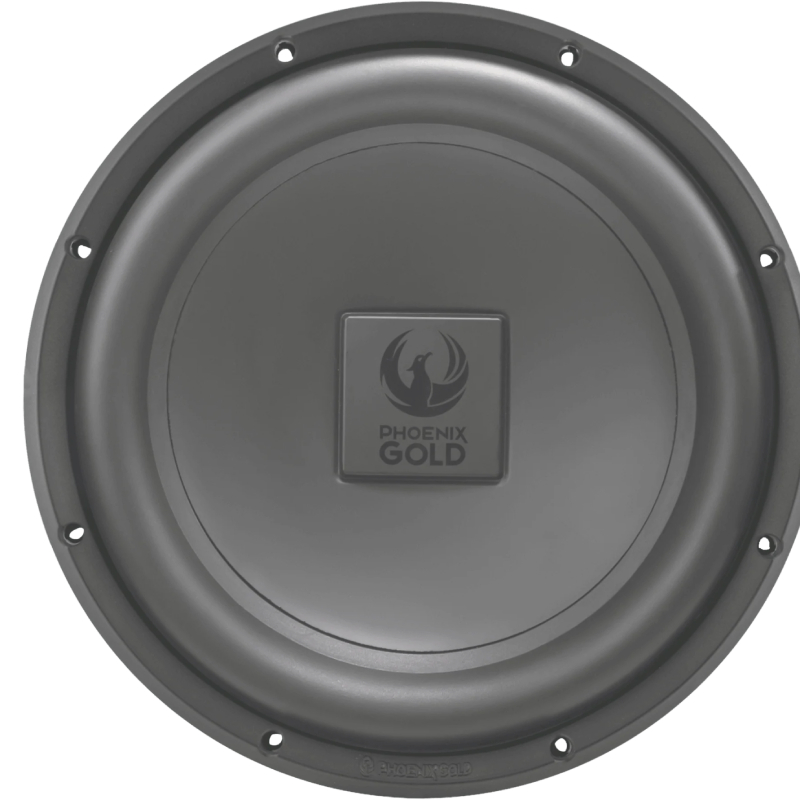

Phoenix Gold RX2 12s RX2 12" 200W Single 4-Ohm Subwoofer
We are a Phoenix Gold authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 25mm of Peak to Peak Excursion
- • Single 4 Ohms Voice Coil
- • High Excursion CAE/CAD Motor Design
- • KlaraForm Vented Kapton Former
- • UNICAP Technology
- • Phoeniroll Surround Technology
- • Torriform Voice Coil Technology
- • Nickel Plated 12 Gauge Speaker Terminal
- • Optimized for Sealed or Vented Enclosures
- • Powder Coated Anti-Resonant Steel Basket
RX2 12s Subwoofer
Features long wound 2.0” coils which allows for 25mm of peak to peak excursion. This results in an ability to create deep, accurate bass in vented or sealed enclosures.It also conservatively rated at 200w RMS and available in single and dual 4 Ohm configurations.
- Diameter : 12 Inch
- Sensitivity : 87.1 dB
- Depth : 5.7 Inch
- Impedance : 4 Ohm
- Peak Power Handling : 400 Watts
- Shallow Mount : No Inch
- Number of Voice Coils : Single
- Mounting Depth : 5.7 Inches
- RMS Power Handling : 200 Watts
- Free Air : Yes
Features:
- 25mm of Peak to Peak Excursion
- Single 4 Ohms Voice Coil
- High Excursion CAE/CAD Motor Design
- KlaraForm Vented Kapton Former technology reduces distortion by reducing heat and resistance
- UNICAP Technology provides a stiff piston for pronounced SPL
- Phoeniroll Surround Technology promotes linear motion
- Torriform Voice Coil Technology: Effectively dissipates heat and minimizes distortion
- Nickel Plated 12 Gauge Speaker Terminal
- Optimized for Sealed or Vented Enclosures
- Powder Coated Anti-Resonant Steel Baske
Product Details:
Subwoofer Specifications
- Subwoofer Series: RX2 Series
- Subwoofer Size: 12"
- Peak Power Handling: 400 watts
- RMS Power Handling: 200 watts
- Voice Coil(s): Single
- Impedance (Per Voice Coil): 4 ohms
- Voice Coil Diameter: 2"
- Sensitivity: 87.1 dB
- Xmax (millimeters): 25 mm
- Subwoofer Design: Round / Circle
- Main Cone Color: Dark Gray
- Woofer Surround: Phoeniroll Surround Technology
- Subwoofer Grille: No
- Re-Cone Kit Available: No
Recommended Enclosure Specifications
- Recommended Enclosure Type: Ported / Vented / Sealed
- Top-Mount Depth (Mounting Depth): 5.7"
- Cutout Diameter: 11 1/8"
- Shallow Mount Installation: No
Electromechanical Parameters
- Free-Air Resonance (Fs): 28 Hz
- Equivalent Compliance (Vas): 69.35 liters
- Total Speaker Q Value (Qts): 0.43
- Electrical Q Value (Qes): 0.46
- Electrical Resistance of Voice Coil (Re): 3.4 ohms
- Mechanical Q Value (Qms): 6.6
- UPC: 609098827508
- Weight: 4
