Infinity PR603CF 6.5" 150W Peak Power Handling 3 Ohms Component Car Speaker System
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •(2) 6.5" Woofers
- •(2) Tweeters (each has attached 6" speaker leads with male quick-slides)
- •(2) 18" Tweeter wires with in-line crossovers

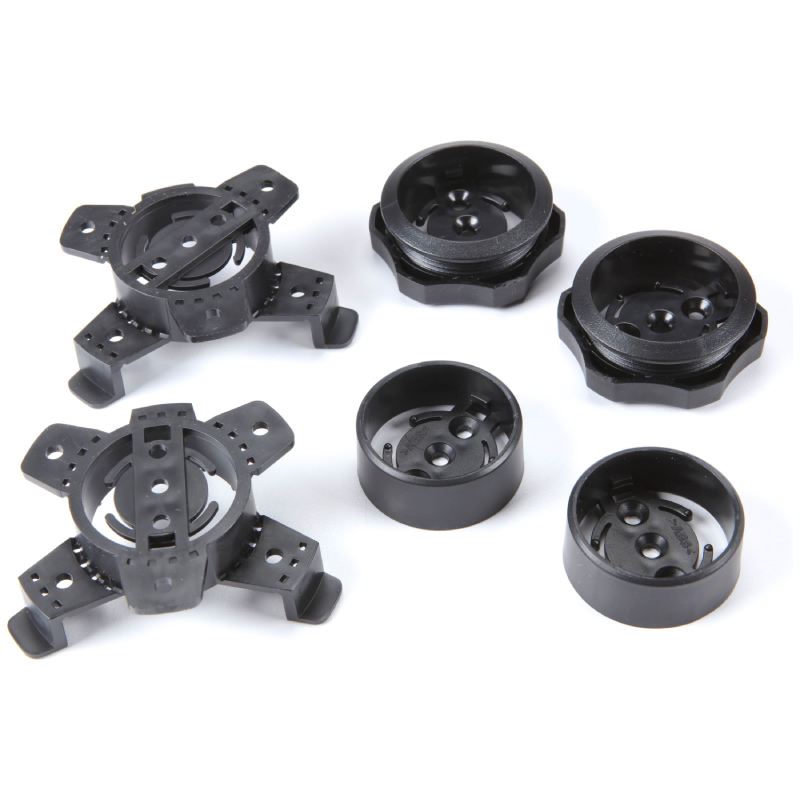

- •(2) Threaded tweeter flush-mount cups
- •(2) Plastic locking nuts
- •(2) Surface-mount cups
- •(2) Starfish tweeter mounts
- •(8) 1" Pan head screws
- •(6) 5/8" Flat head screws
- •(8) Speed clips
- •(2) Adhesive backed foam gaskets
- •Installation instructions
Smooth Vocals
Infinity knows what music should sound like in the car, and their Primus PR603CF 6-1/2" component speaker system fits more vehicles than ever.
Plus, new technology, like Infinity's cooling vented basket frame, ensures maximum output with less wear and tear over the life of these speakers. Ditch the uninspired vocals, muddy cymbals, and flabby bass of your factory sound and experience what Infinity quality is all about. Smooth vocals, crisp cymbals, and rich bass await you.
Edge-driven Design
Infinity employs an edge-driven design for an open sound and minimal distortion at high volume. Prepare for a more clearly defined soundstage as the natural details in your music come alive.
The included external crossovers are tuned to Infinity's exceptional standards so that you're treated to this system's best possible sound.
Primus Polypropylene Woofer
The Primus polypropylene woofer employs Infinity's proprietary Plus One woofer design for solid, punchy bass. Infinity extends the cone right up to the edge of the basket, for more surface area — and a bigger cone means more bass when your music needs it.
Stronger and Clearer Sound
Infinity's special "true 4-ohm architecture" uses a low-impedance voice coil to safely draw extra power out of your factory radio, aftermarket stereo, or an external amplifier, so you'll get a stronger and clearer sound.
Weather Resistant
The speakers are specially designed for the IPX5 for front side, weather resistant for the back side, which give you the freedom to use both in car or motorcycle.
Inky Gloss/satin Black Color
Infinity Kappa Perfect’s design is inspired by motorcycles & the rider culture. Their inky gloss/satin black color motif with broadly spaced “KAPPA PERFECT” branding is reminiscent of popular motorcycle brands & logo treatments, and sinuous tribal tattoos as seen in the tweeter grip pattern and equalizer.
- Diameter : 6.5 Inch
- Sensitivity : 92 dB
- Frequency Response : 55-20000 Hz
- Peak Power Handling : 180 Watts
- RMS Power Handling : 60 Watts
Features:
- Plus One Woofer Cones: The Plus One speaker cones offer more surface area than other speakers that fit in the same size opening. This is accomplished by using a different basket design and hi-roll surround. The result is greater bass output and an increase in efficiency.
- Mounting: Infinity markets these speakers as having a 6½" woofer, and they will fit in standard 6½" speaker openings (approximately 5" diameter), but they do not use the standard 6½" speaker bolt pattern. The woofers are also easily installed in many standard 4-hole 6¾" applications with no modification. Please enter your vehicle information to confirm fit.
- I-Mount Mounting System: The tweeters can be surface or flush mounted:
- Surface Mount: Surface mounting the tweeters involves screwing the surface-mount cup to the mounting location, then inserting and locking the tweeter into the cup.
- Flush Mount: Flush mounting is made easy through the use of the threaded flush-mount housing and plastic locking nut. Once a cutout is made, the tweeter is installed in the flush-mount adapter, then into the flush mount housing and inserted into the hole. The large plastic locking nut is threaded onto the adapter (from behind the mounting surface) to hold the complete assembly securely in place. When flush mounted, the tweeters may be angled for optimum response and imaging.
- Starfish Mounting Brackets: The Starfish mounting brackets allow the tweeters to be installed in factory locations behind the grilles:
- Bottom Mount: Once the Starfish bracket is trimmed, it is secured to the underside of the grille panel. The tweeter must be inserted into the bracket and locked into place before the bracket is mounted.
- Surface Mount: Once the Starfish bracket is trimmed, it is screwed to the top of the mounting surface behind the grille panel. Then, the tweeter is inserted into the bracket and locked into place.
- Flush Mount: There are two sets of tabs to flush mount the tweeter in the Starfish bracket, yielding different mounting dimensions. The upper tabs mount the tweeter completely below the opening and are glued in place. The lower mounting tabs are screwed in place and result in a mounting height just over 1/3 inch. Once the bracket is mounted, the tweeter is inserted into the bracket and locked into place.
Specifications:
- Speaker Size: 6 1/2
- Design: 2-way
- Tweeter Design: Edge-Driven Dome
- Impedance (Ohms): 3
- Tweeter Composition: Silk
- Woofer Composition: Polypropylene
- Woofer Surround: Rubber
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- Sensitivity (1W at 1 meter): N/A
- Sensitivity at 2.83 volts: 92
- Frequency Response: 55 - 20k Hz
- Minimum RMS Wattage: ---
- Maximum RMS Wattage: 60
- Peak Power Handling (Watts): 180
- Top-mount Depth (Inches): 1 15/16
- Bottom-mount Depth (Inches): N/A
- Cutout Diameter or Length (inches): 5 1/16
- Mounting Height (Inches): 0.5
- UPC: 050667379766
- Weight: 7
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
