Alpine R2-S653 Next Gen R-Series 6.5" 100W RMS (300W Peak Power Handling) 4 Ohms, 3-Way Car Component System with Two Magnesium Hard-Dome Tweeters and Two Premium-Grade Full Passive Performance Crossover Networks
We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

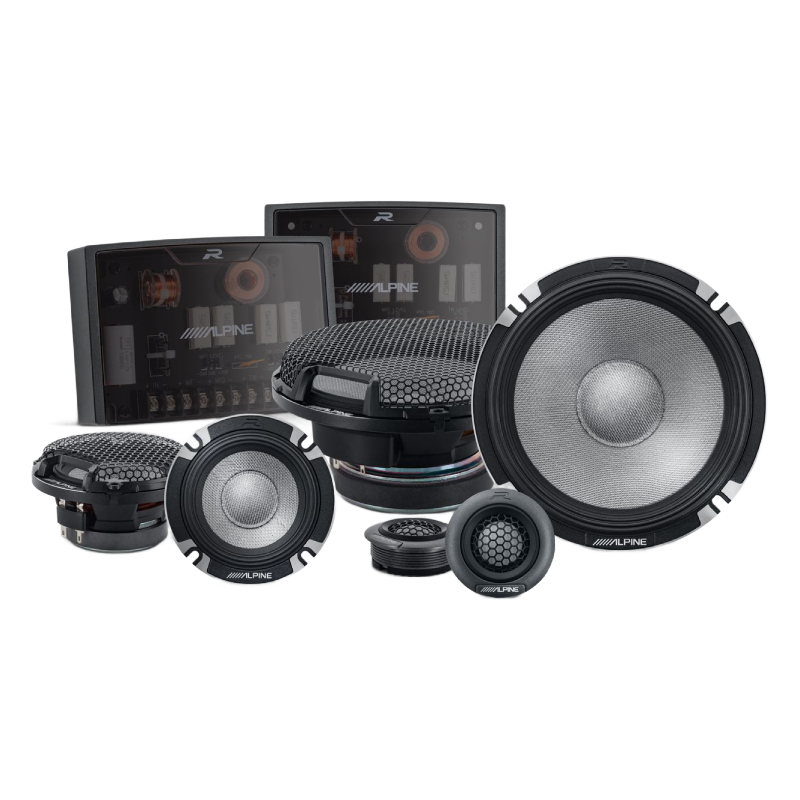

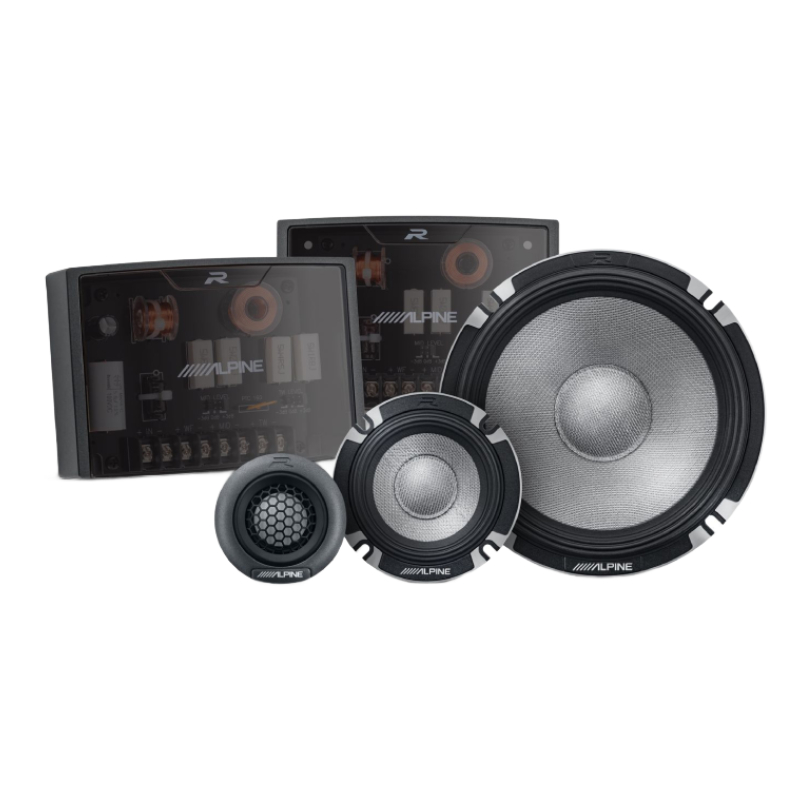

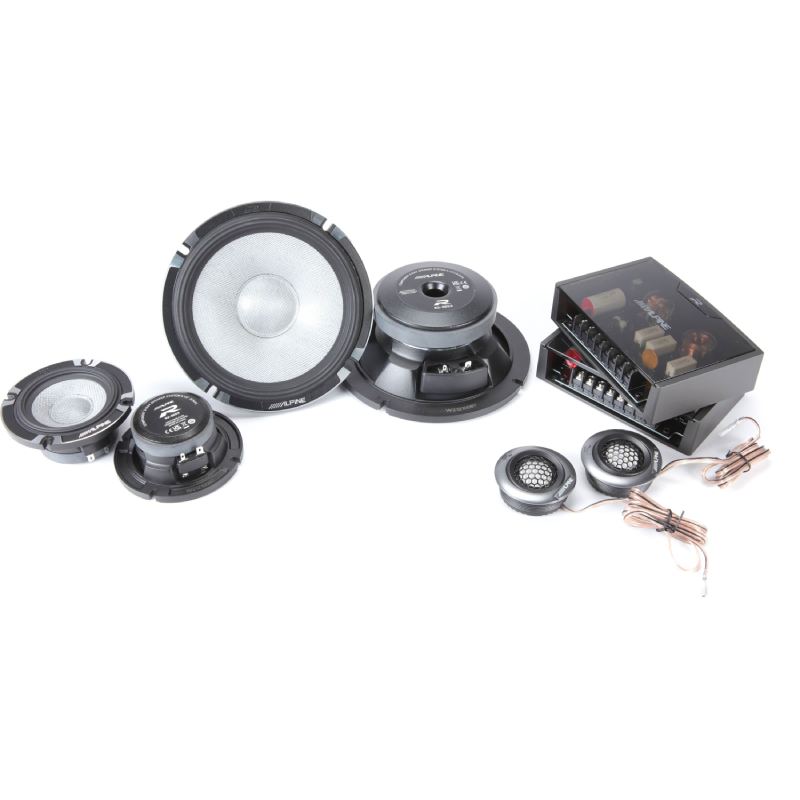

What's Inside?

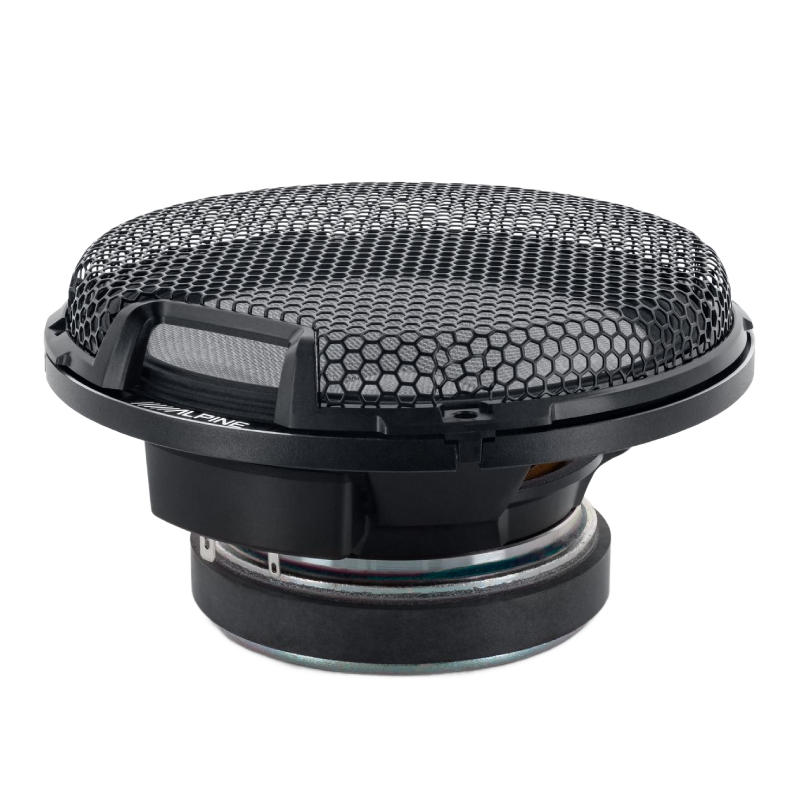

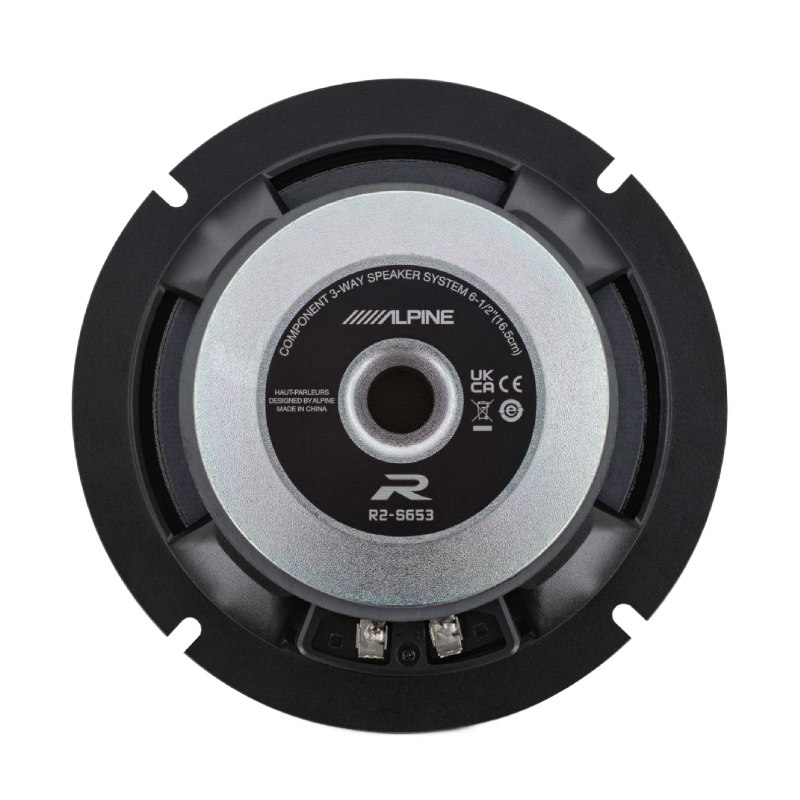

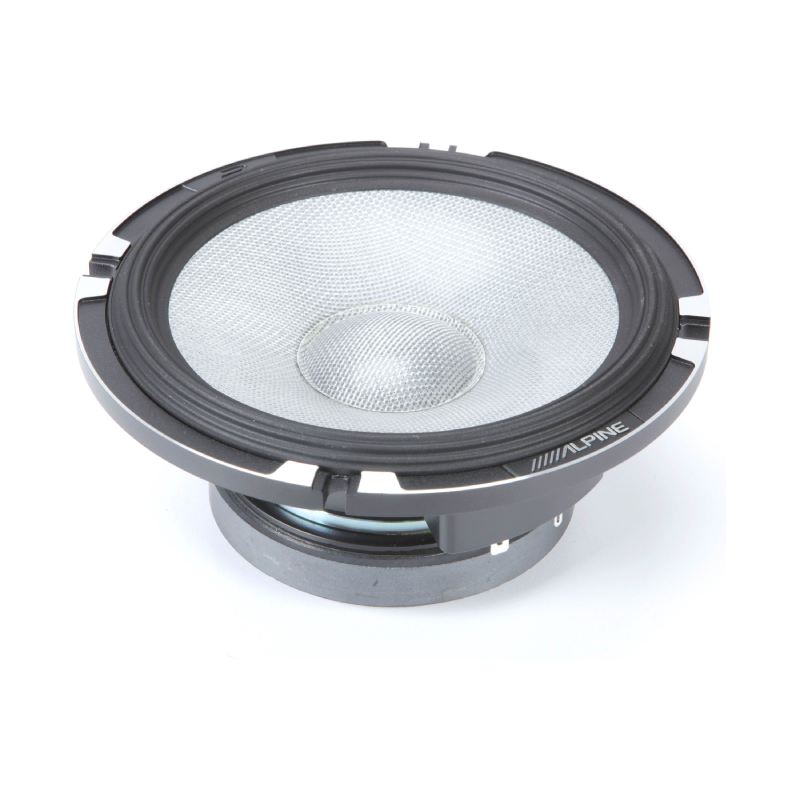

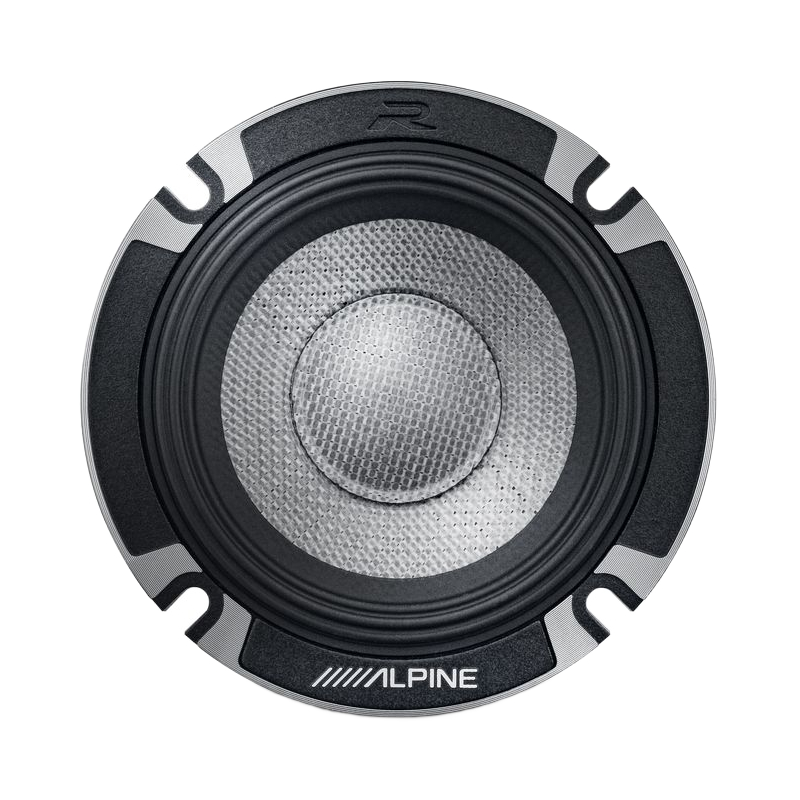

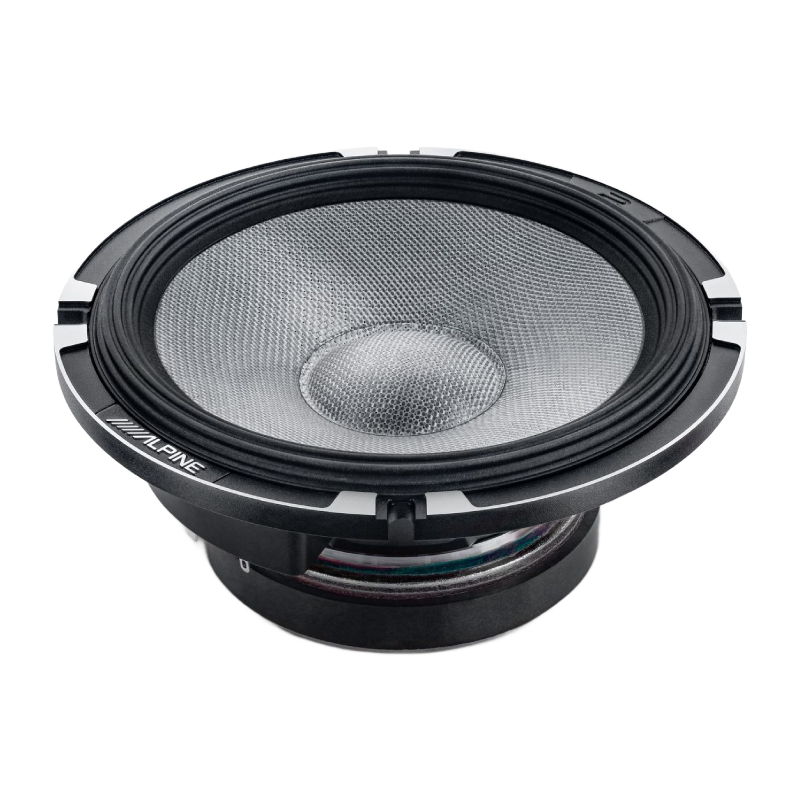

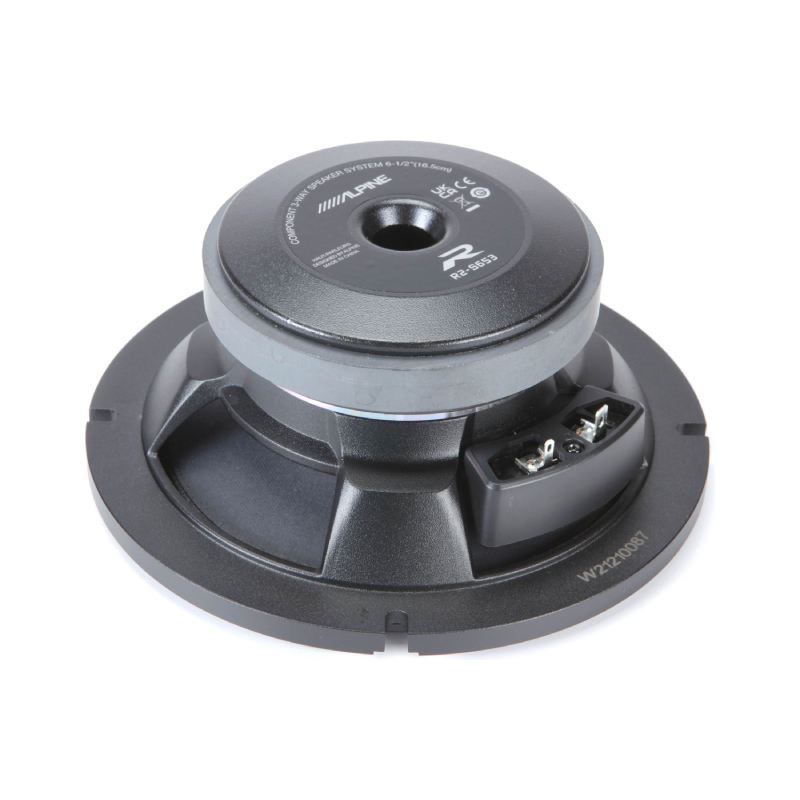

- • (2) Woofers

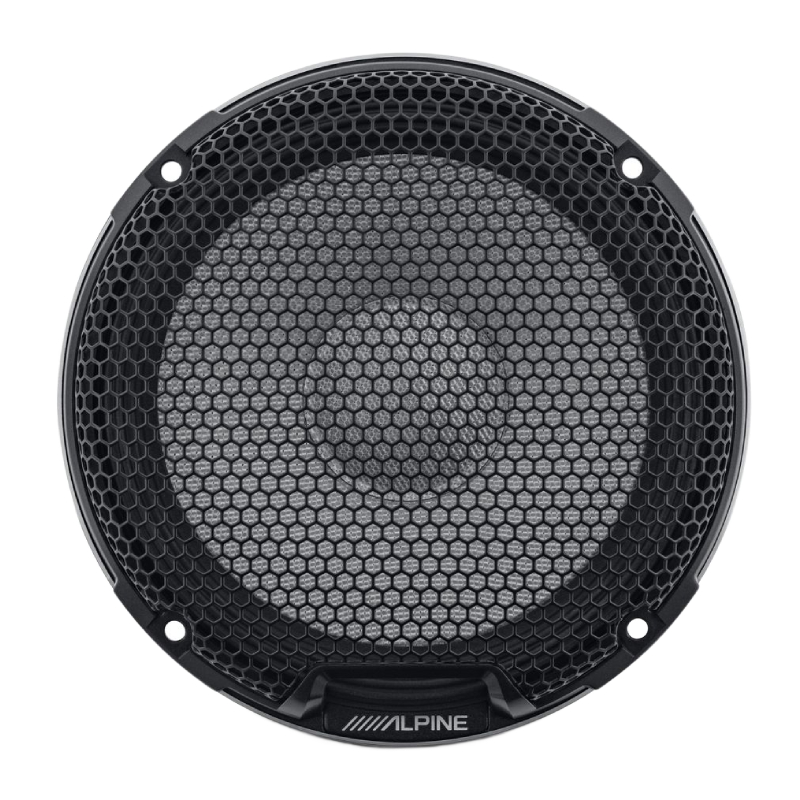

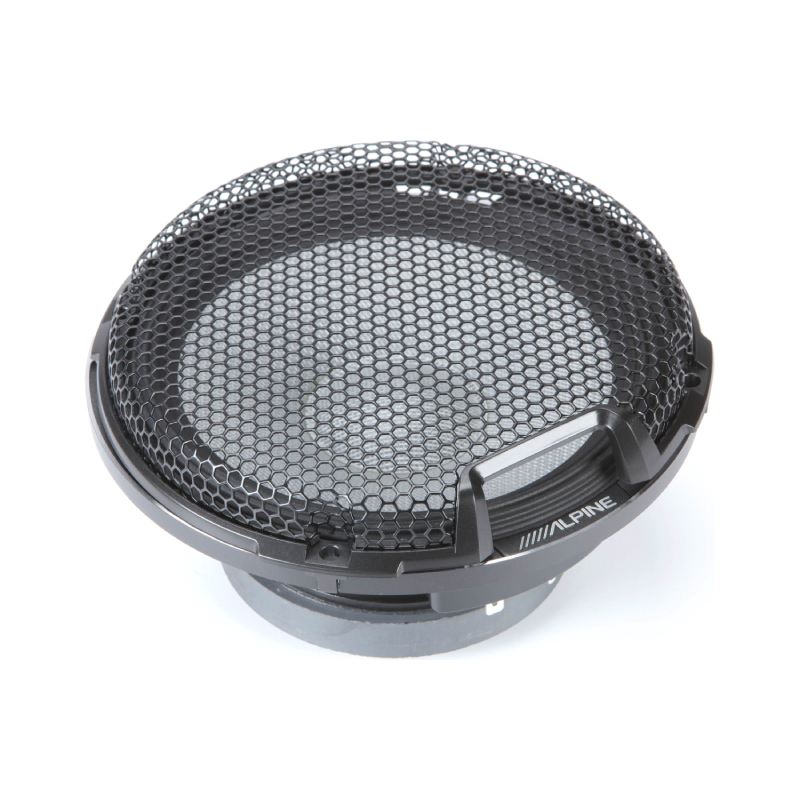

- • (2) Woofer grilles

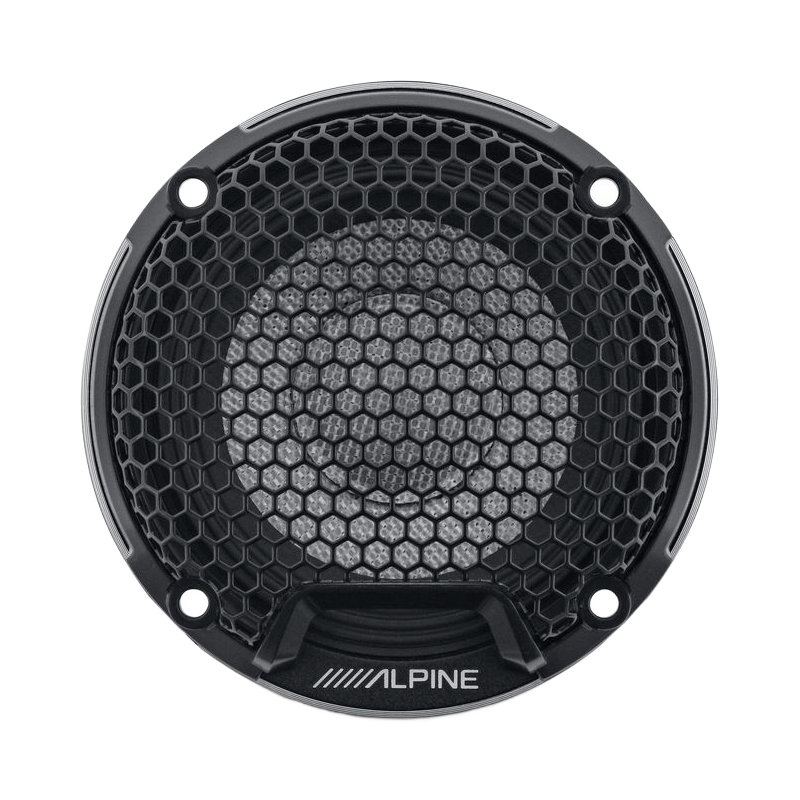

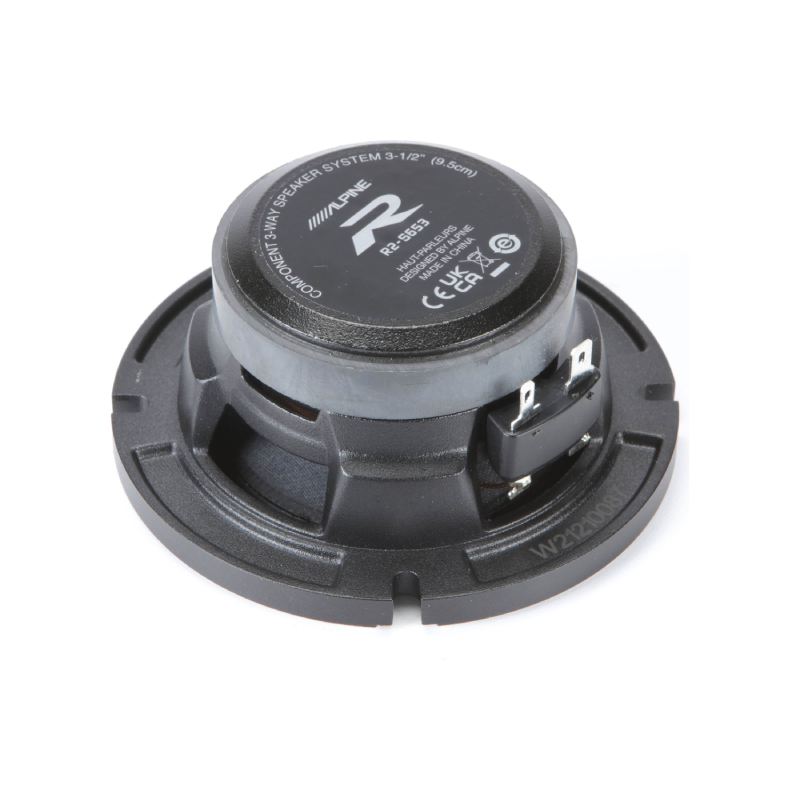

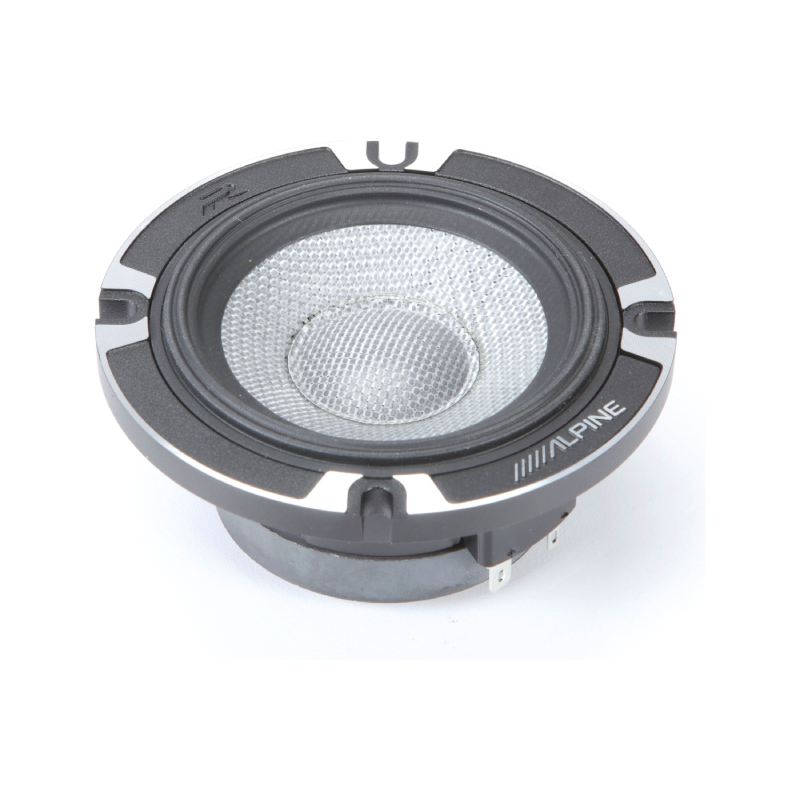

- • (2) Midrange

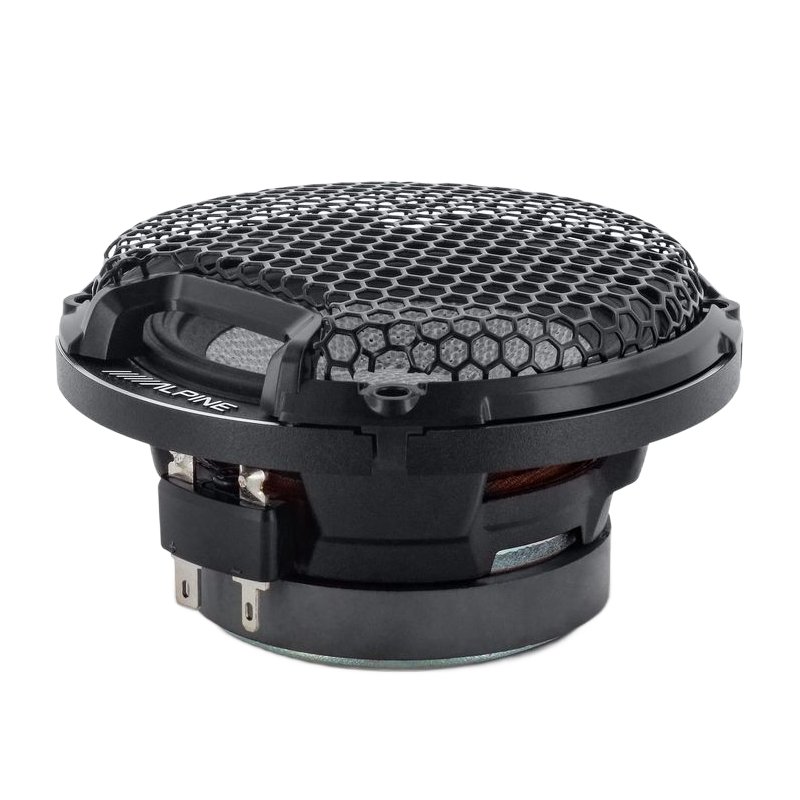

- • (2) Midrange grilles

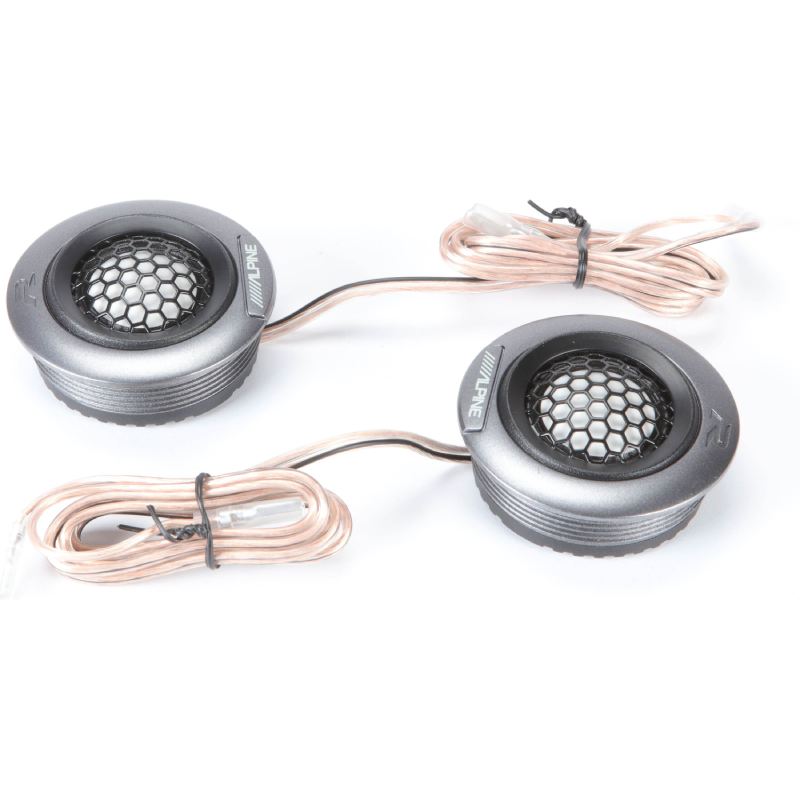

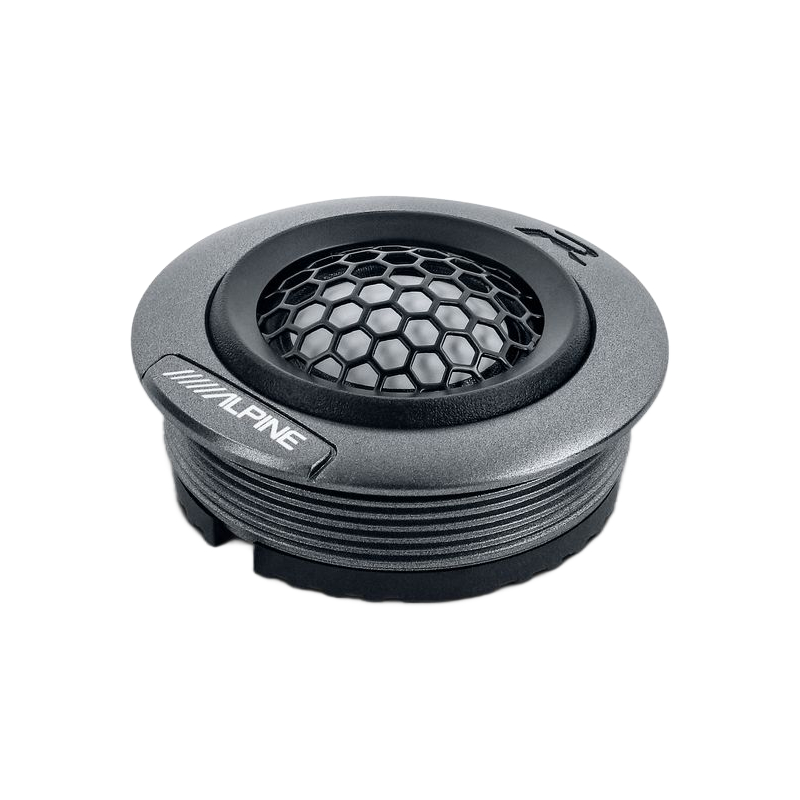

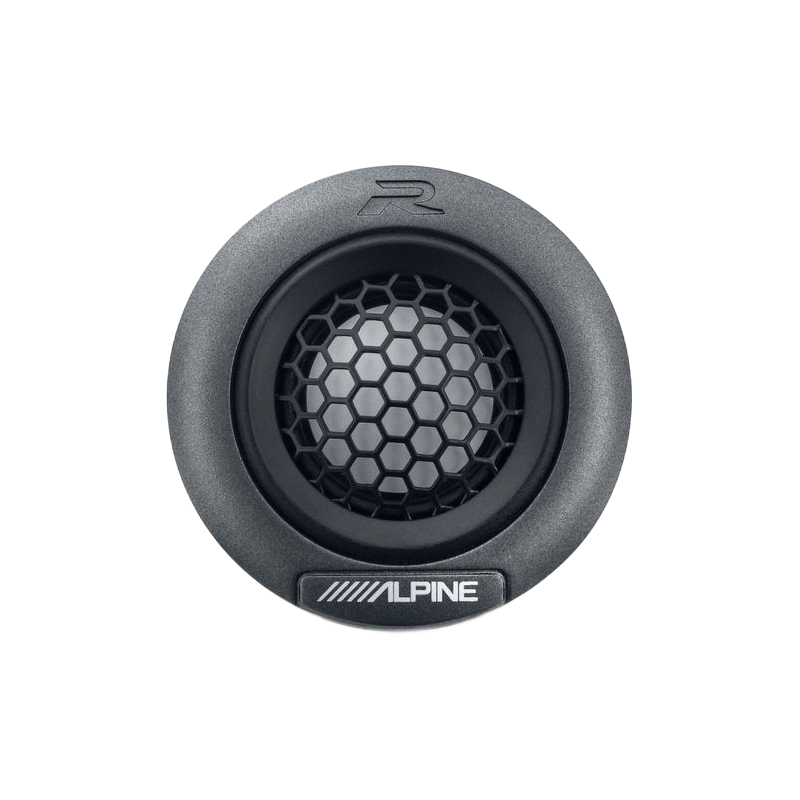

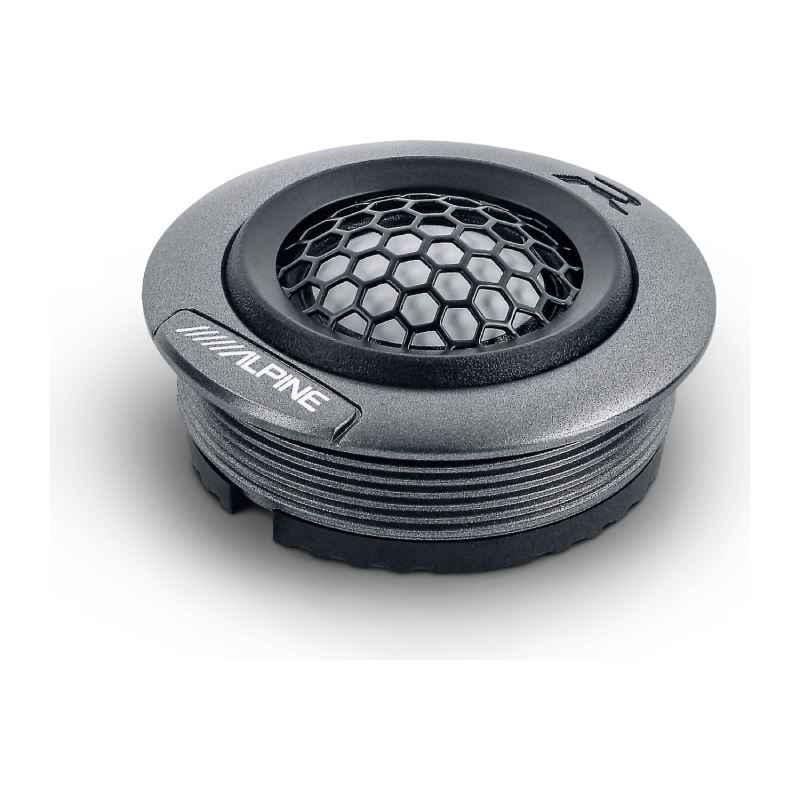

- • (2) Tweeters (each has an attached 30" length of wire terminated with quick slides)

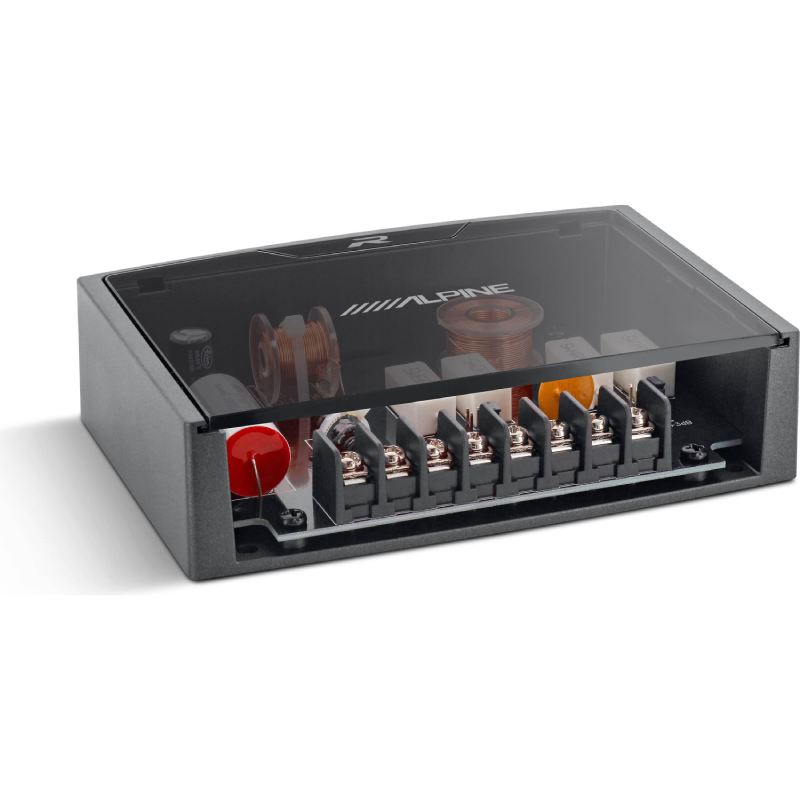

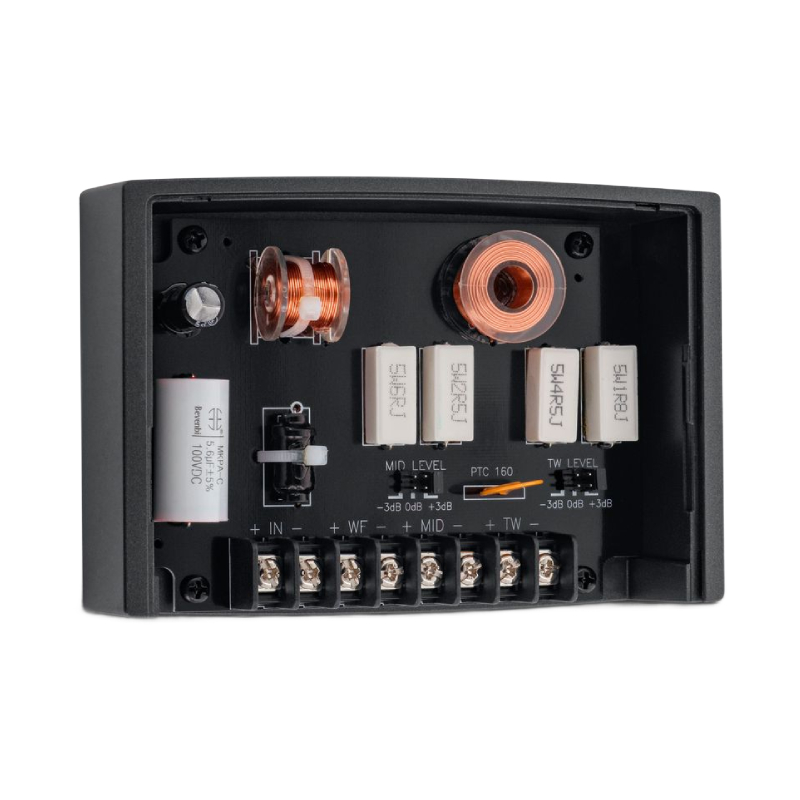

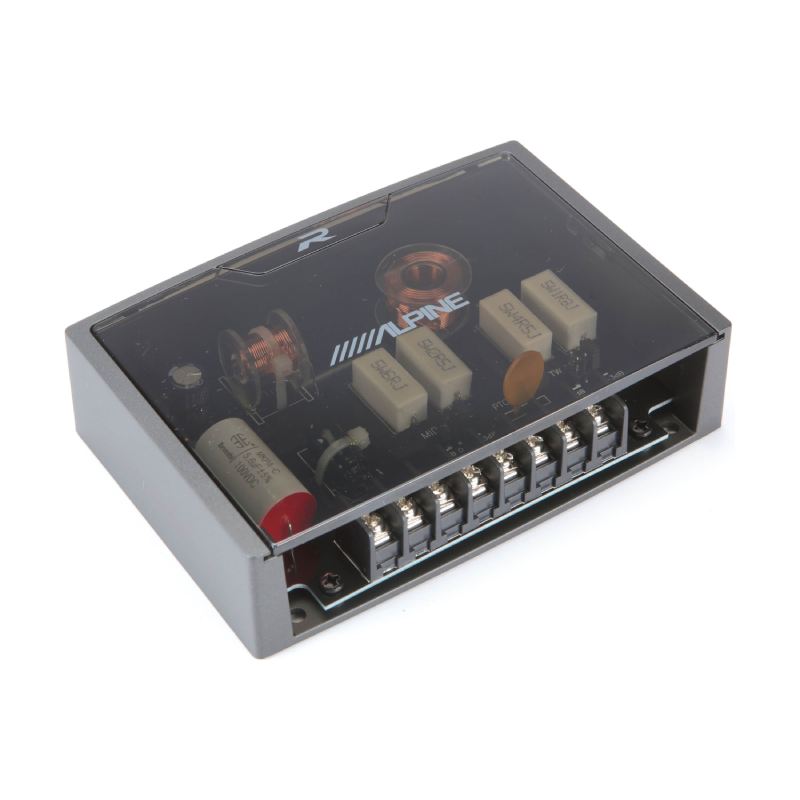

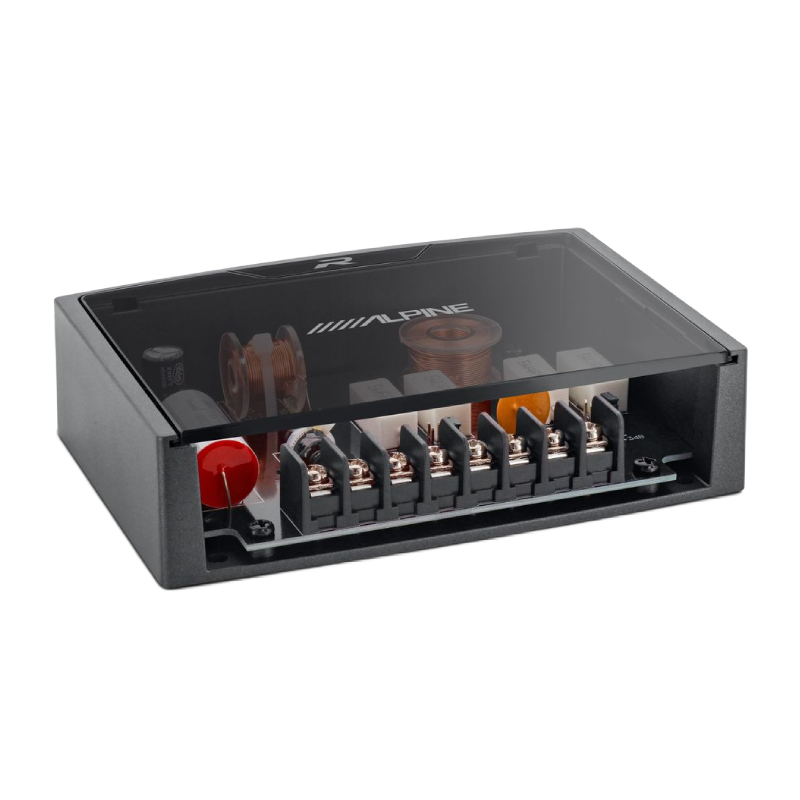

- • (2) Crossovers
- • (2) Tweeter grilles (installed)

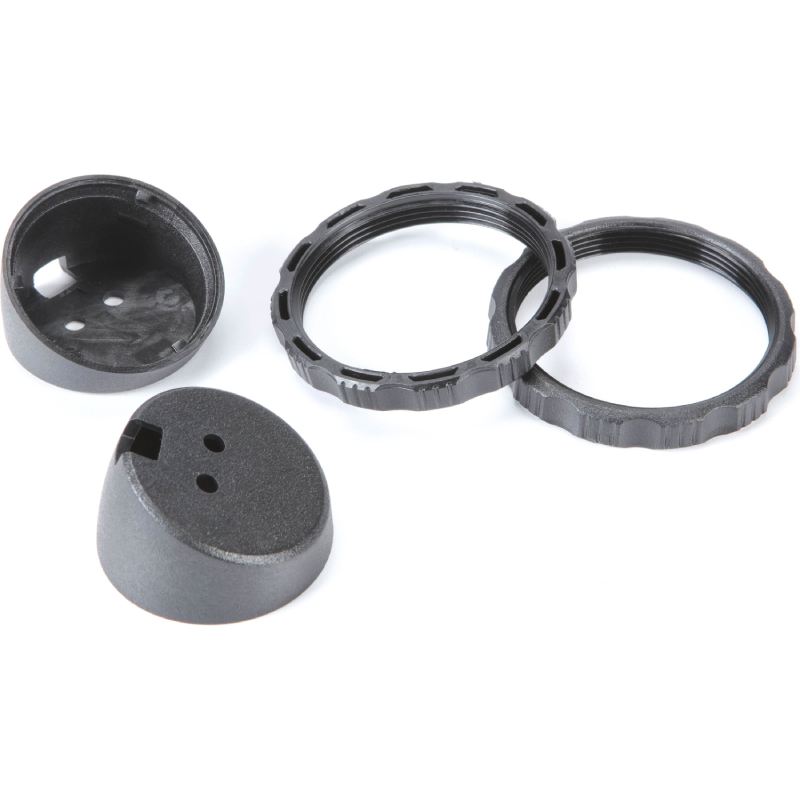

- • (2) Flush mount housings (with tweeters installed)
- • (2) Flush mount retention rings
- • (2) Angled surface mount housings

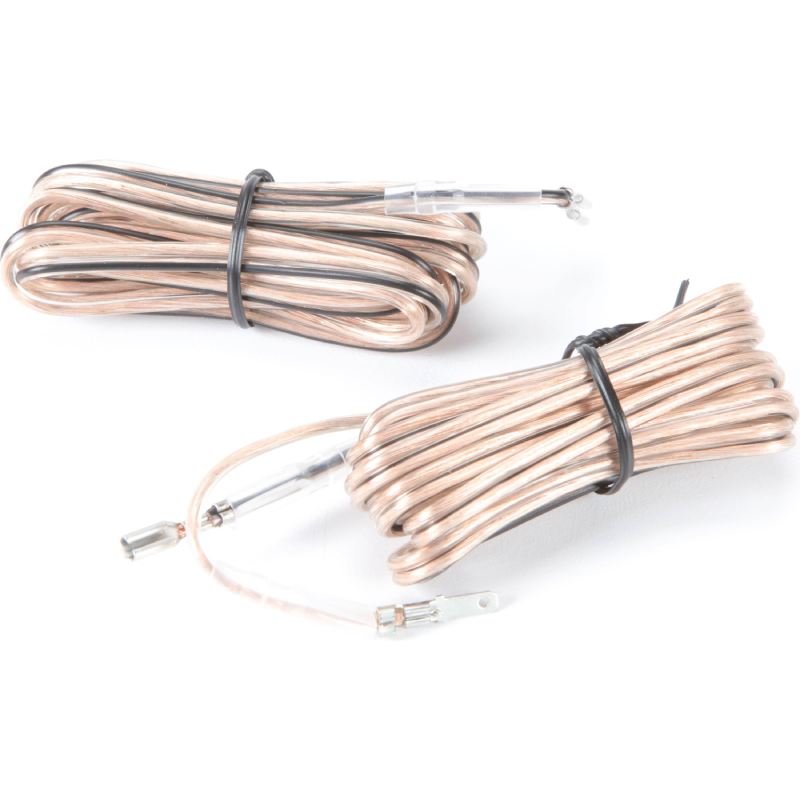

- • (2) 45" Tweeter wire extensions
- • (2) Self-adhesive pads
- • (16) 1-1/8" Screws
- • (4) 5/8" Screws
- • (8) 3/4" Screws
- • (8) Large speed-clips
- • (4) Small speed-clips
- • Warranty information
- • Owner's Manual
Why Choose Alpine R2-S653 Component System?
Hi-Res Sound and Legendary Performance
Inspired by the elite AlpineF#1Status system, the Next-Generation R-Series Speakers use “trickle-down” technology, premium design, and high-performance features to bring studio-quality sound to your vehicle. Hi-Res Audio Certified and capable of reproducing frequencies up to 40kHz, these speakers deliver stunning clarity and ultra-wide bandwidth that brings you closer to the original recording. All while preserving the bold, “loud and fun” sound signature that R-Series fans have always loved.
Clean, Accurate Sound with Every Note

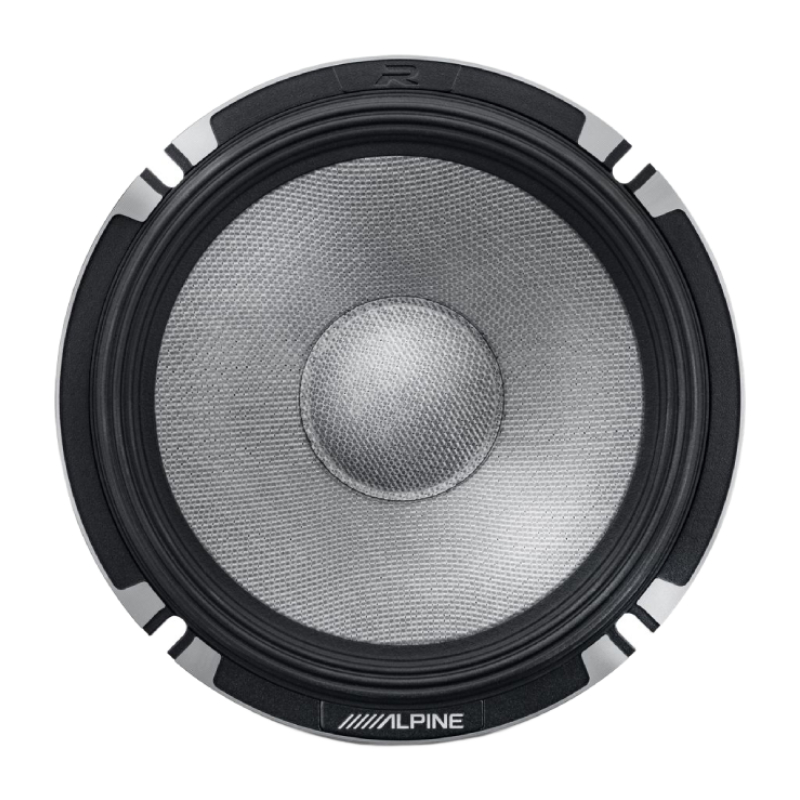

The Next-Gen R-Series features a newly engineered lightweight yet rigid glass fiber-reinforced cone. This advanced material allows for extreme cone movement with minimal distortion, delivering incredibly accurate, clean sound—even at high volumes.
Stronger Mid-Bass and Bigger Impact
The Next-Generation R-Series speakers are equipped with a larger motor structure and a high-powered ferrite magnet—an upgrade from the previous neodymium design. This combination delivers enhanced mid-bass performance, adding greater depth and punch to your music for a fuller, more dynamic listening experience.
Loud, Fun, and Fully Adjustable
Magnesium hard-dome tweeters bring the signature “loud and fun” R-Series sound to life with crisp, detailed highs. Designed for versatility, they feature a swivel-mount for optimal listening angles and a threaded removable housing, making installation easy in both custom and factory setups.
Alpine 6.5-Inch Component Speaker Comparison Chart | R2-S653 vs R2-S652 vs R2-S65C
| Ultimate Alpine 6.5" Component Speaker Performance Comparison |
Alpine R2-S653 R-Series PRO 6.5" 3-Way Component Speaker System – Maximum Sound Separation & Premium Hi-Res Performance
FLAGSHIP 3-WAY
- • 6.5" 3-Way Component Speaker System
- • 300W Peak Power / 100W RMS
- • Dedicated 3" midrange for improved sound separation
- • Premium R-Series PRO speaker construction
- • Ideal for high-end sound quality builds
|
Alpine R2-S652 R-Series PRO 6.5" 2-Way Component Speaker System – High-Performance Hi-Res Audio with a Simplified 2-Way Design
PRO PERFORMANCE
- • 6.5" 2-Way Component Speaker System
- • 300W Peak Power / 100W RMS
- • Premium R-Series PRO performance design
- • High-output sound with excellent clarity
- • Easier installation than a 3-way system
|
Alpine R2-S65C R-Series 6.5" 2-Way Component Speaker System – Powerful High-Output Performance with Strong Midbass & Clarity
R-SERIES VALUE
- • 6.5" 2-Way Component Speaker System
- • 300W Peak Power / 100W RMS
- • Strong midbass and clear high-frequency response
- • High-output R-Series performance
- • Great choice for powerful component upgrades
|
Alpine R2-S653 Highlights
3-WAY COMPONENT
Advanced 3-Way Design
The 3-way component system separates low, mid and high frequencies across dedicated speakers for improved detail, clarity and sound staging.
R-SERIES PRO
R-Series PRO Performance
Engineered as a premium R-Series PRO component system for high-output performance, detailed reproduction and demanding car audio installations.
HI-RES AUDIO
Hi-Res Audio Certified
Hi-Res Audio certification and extended high-frequency response deliver detailed music reproduction with greater clarity and definition.
GLASS FIBER CONE
Rigid Glass Fiber-Reinforced Cone
The glass fiber-reinforced cone combines rigidity and lightweight construction for responsive midbass, accurate mids and reduced distortion.
H.A.M.R. SURROUND
High-Excursion H.A.M.R. Surround
Alpine's High Amplitude Multi-Roll surround design allows increased cone excursion for powerful bass output while maintaining controlled speaker movement.
MAGNESIUM TWEETER
1-Inch Magnesium Hard-Dome Tweeter
The 1-inch magnesium hard-dome tweeter delivers smooth, detailed high frequencies with a rigid diaphragm designed for accurate high-resolution reproduction.
POWER HANDLING
100W RMS / 300W Peak
Handles up to 100 watts RMS and 300 watts peak power at 4 ohms, making the R2-S653 well suited for amplified high-performance car audio systems.
Alpine R2-S653 Recommended Amplifiers | Best R-Series & Status Amplifier Pairings for High-Resolution 3-Way Performance
Build Your Alpine R2-S653 System
Recommended 4-channel and multi-channel amplifier pairings for the R2-S653 3-way component system, high-resolution audio and powerful, controlled performance
Amplifier Matching Overview
R2-S653 Power Rating: 100W RMS / 300W Peak per speaker
Impedance: 4Ω
Ideal Amp Range: 75W – 100W RMS per channel @ 4Ω
Primary Goal: Provide clean, controlled power for the R2-S653's 3-way component system
Best Setup: Alpine R2-A60F for a direct 100W x 4 RMS match
Best Overall Match – Direct R-Series Pairing
The strongest direct match for the R2-S653, delivering 100W RMS x 4 at 4Ω to closely match the speaker's RMS power handling. Its R-Series design and Class-D architecture make it an excellent foundation for a high-performance Alpine system.
Best System Flexibility – 6-Channel R-Series Amplifier
Provides 100W RMS x 4 for the main speaker channels while adding two additional high-power channels for system expansion. The staggered-power design makes it an excellent choice for a complete R-Series system with additional speakers or subwoofers.
Premium Pick – Alpine Status Amplification
A premium 4-channel Status Series amplifier designed for high-resolution systems. Its 100W RMS x 4 at 4Ω output provides an excellent power match for the R2-S653 while offering a premium foundation for a high-end Alpine system.
Best Compact Amplifier Option
Delivers 75W RMS x 4 at 4Ω in a compact Class-D chassis, making it a practical choice when installation space is limited while still providing strong power for the R2-S653.
Why the R2-A60F Is the Recommended Choice
Direct Power Match: Delivers 100W RMS x 4 at 4Ω, matching the R2-S653's 100W RMS power handling
R-Series Synergy: Pairs the R2-S653 with Alpine's next-generation R-Series amplification for a cohesive system
Hi-Res Audio: Supports high-resolution audio playback up to 45kHz
Class-D Efficiency: Provides powerful output in a compact and efficient amplifier design
System Flexibility: Four channels can power the R2-S653 through its included passive crossover networks
Recommended R2-S653 DSP & Amplifier Settings
Gain Setting: Set amplifier gain conservatively and match the amplifier output to the R2-S653's 100W RMS power handling
High-Pass Filter: Use an appropriate HPF to reduce excessive low-frequency excursion and improve speaker control
Crossover: Use the included passive crossover networks for proper distribution between the 6.5" midbass, 3" midrange and 1" tweeter
Time Alignment: Use a compatible DSP or head unit with time-alignment capability to improve staging and imaging
EQ Strategy: Start with a flat response and make gradual adjustments based on the vehicle's acoustics
R2-S653 Amplifier Power Comparison
| Amplifier | Channels | Power @ 4Ω | R2-S653 Match | Best For |
| Alpine R2-A60F |
4 |
100W x 4 |
Excellent |
Direct R-Series pairing |
| Alpine R-A90S |
6 |
75W x 4 + 150W x 2 |
Excellent |
Full-system expansion |
| Alpine HDA-F60 |
4 |
100W x 4 |
Excellent |
Premium Status system |
| Alpine KTA-30FW |
4 |
75W x 4 |
Very Good |
Compact installations |
Pro Tip: For the closest amplifier match, choose the Alpine R2-A60F. Its 100W RMS x 4 output at 4Ω closely matches the R2-S653's 100W RMS power handling while maintaining the same R-Series design philosophy.
Frequently Asked Questions (FAQ)
- • What's the advantage of a 3-way component system over a 2-way setup?
A 3-way component system separates more frequencies, resulting in clearer vocals, smoother highs, and improved midrange detail. It also creates a more accurate and immersive soundstage.
- • Do I really need an amplifier to get the best sound?
While the speakers will play with many aftermarket head units, an external amplifier unlocks their full performance. You'll enjoy better dynamics, cleaner volume, and improved overall clarity.
- • Why do the tweeters sound too harsh after installation?
This is usually caused by tweeter placement, EQ settings, or aiming them directly at the listener. Adjusting the crossover or tweeter angle often produces a smoother sound.
- • Can I use the included passive crossovers with my factory radio?
Yes, the passive crossover networks are designed to divide frequencies correctly between the drivers. However, using an external amplifier will provide better overall performance.
- • Why do my door speakers have very little midbass?
Weak midbass is often caused by poorly sealed doors or missing sound deadening material. Proper speaker mounting and treating the doors can make a noticeable difference.
- • Will these fit in my factory speaker locations?
They fit many vehicles with 6.5-inch speaker openings, but mounting depth and bracket requirements vary by vehicle. Always verify fitment before purchasing.
- • Why does the music sound unbalanced from left to right?
This may be caused by incorrect polarity, crossover wiring, or uneven speaker positioning. Double-checking the installation usually restores proper stereo imaging.
- • Can I install the tweeters in the A-pillars instead of the factory locations?
Yes, many enthusiasts mount tweeters in the A-pillars to improve imaging and soundstage. Proper aiming toward the listening position usually produces the best results.
- • Why do my speakers distort even though they're rated for high power?
Distortion is commonly caused by an amplifier clipping rather than the speakers themselves. Clean amplifier power is much safer than simply increasing the volume.
- • How can I get the best sound quality from this component system?
Install the speakers securely, use the supplied crossover networks, and tune your amplifier and equalizer carefully. Adding sound deadening to the doors can further improve clarity and midbass response.
Alpine R2-S653 Related Videos
← Swipe left or right to browse videos →
- Diameter : 6.5 Inch
- Sensitivity : 88 dB
- Frequency Response : 65-40000 Hz
- Peak Power Handling : 300 Watts
- Woofer Composition : Glass Fiber
- Tweeter Composition : Magnesium
- RMS Power Handling : 100 Watts
Features:
- Pure Precision Audio: Hi-Res Audio Certified delivers crystal-clear, studio-quality sound with certified high-resolution performance.
- Built to Perform: Glass Fiber Reinforced Cone offers a lightweight yet rigid design for accurate sound reproduction and durability.
- Rock-Solid Foundation: Die-Cast Aluminum Basket provides superior structural integrity and reduces unwanted vibrations for cleaner sound.
- Powerfully Magnetic: Ferrite Magnet Structure ensures high-efficiency performance with deeper, more controlled bass response.
- Maximum Movement: High-Amplitude Multi-Roll (H.A.M.R.) Surround enables wide cone excursion for enhanced dynamic range and distortion-free audio at all volumes.

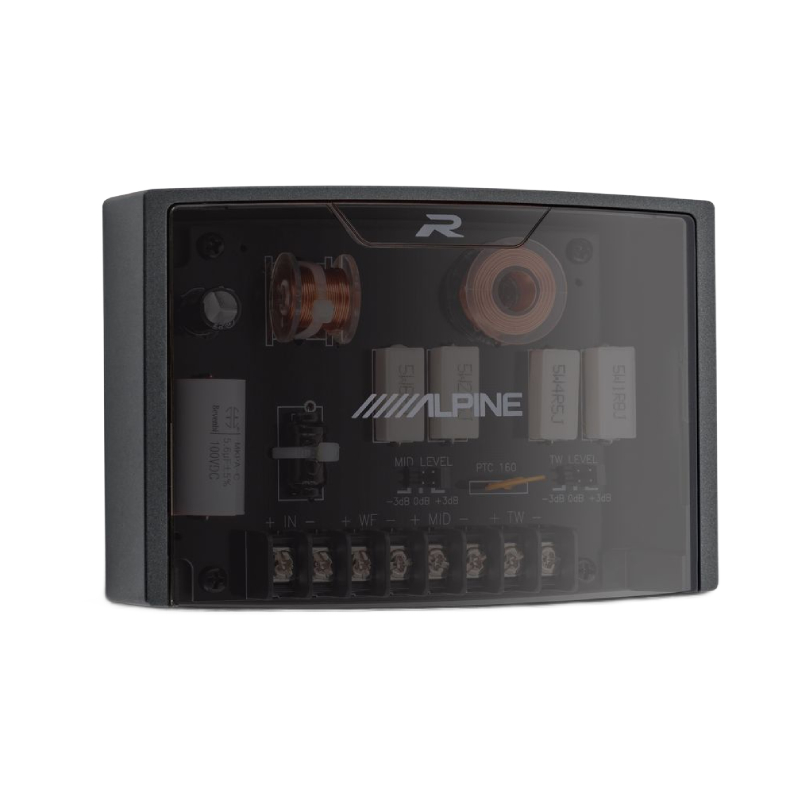

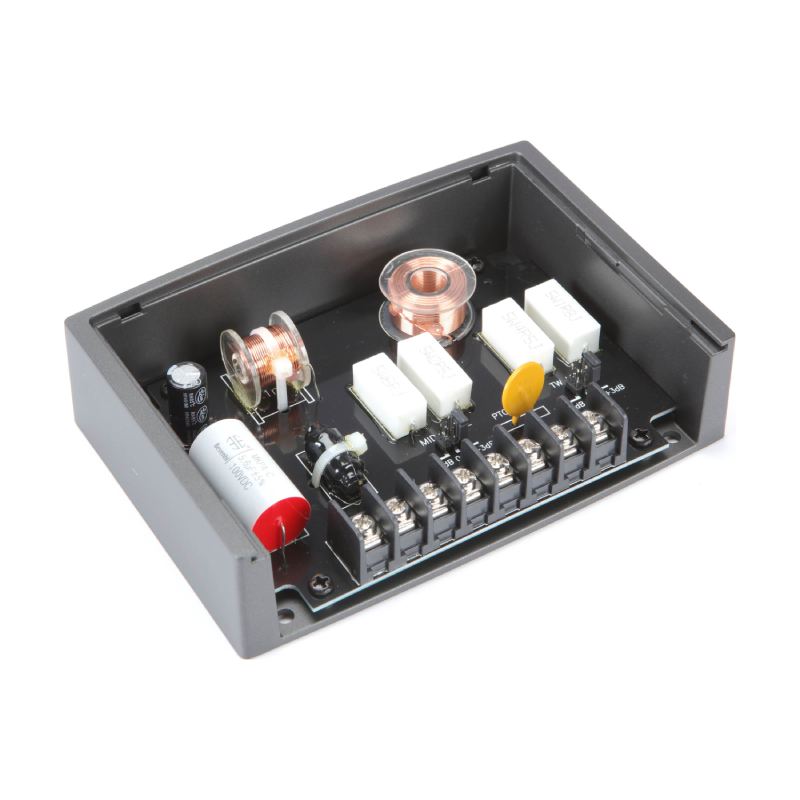

- Precision Tuning: Dual Passive Performance Crossovers separate frequencies accurately for crystal-clear lows, mids, and highs.
- High-Fidelity Treble: Magnesium Hard-Dome Tweeters with swivel mount and threaded removable housing deliver directional, lifelike high frequencies.
- Style Meets Protection: Open Mesh Grille Pair included combines sleek design with protection to shield components while maintaining aesthetics.
Specifications:
- Speaker Size: 6.5 inches
- Driver Design: 3-way
- Woofer Design: Cone
- Woofer Material: Glass-Fiber
- Woofer Surround: Rubber
- Midrange Design: Cone
- Midrange Material: Glass-Fiber
- Tweeter Design: Dome
- Tweeter Material: Magnesium
- Super Tweeter Design: None
- Super Tweeter Material: None
- Impedance: 4 Ohms
- Weather-resistant: No
- Grilles Included: Black, Steel mesh, Plastic frame
- Sensitivity (1W at 1 meter): 88 dB
- Sensitivity at 2.83 volts: N/A
- Frequency Response: 65 - 40,000 Hz
- Maximum RMS Wattage: 100 Watts
- Peak Power Handling: 300 Watts
- Top-mount Depth: 2.5 inches
- Bottom-mount Depth: N/A
- Cutout Diameter or Length: 5.375 inches
- Mounting Height: 0.44 inches
- Frame Width: 6.48 inches
- Frame Length: 6.48 inches
- UPC: 793276084842
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
