Alpine R2-S69 Next Gen R-Series 6"x9" 100W RMS (300W Peak Power Handling) 4 Ohms, 2-Way Coaxial Car Speakers (pair)
We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

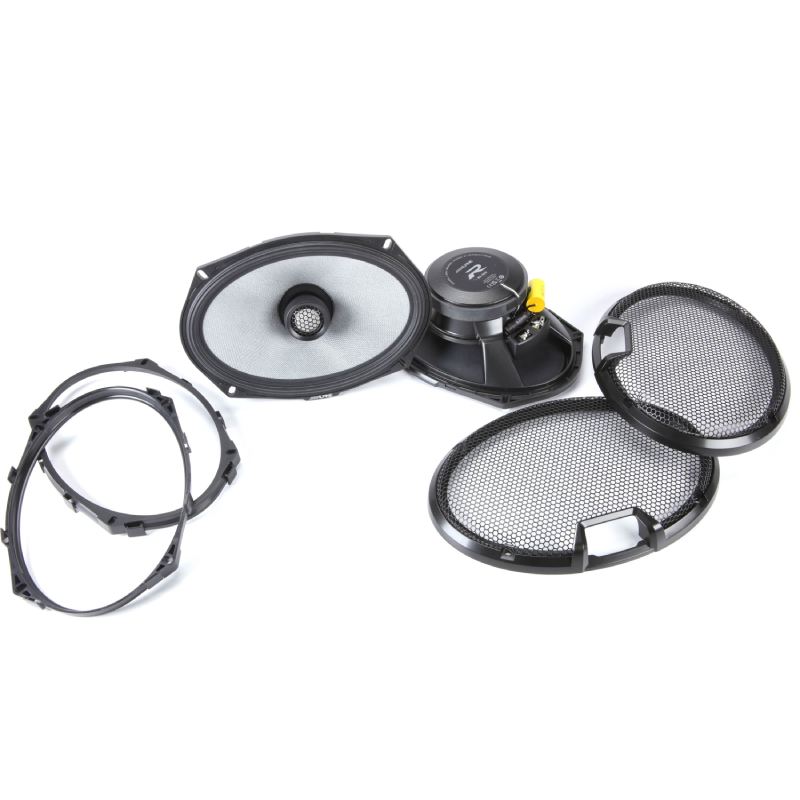

What's Inside?
- • (2) 6"x9" 2-Way Coaxial Car Speakers
- • (2) Bottom Mount Brackets
- • (2) Grilles
- • (8) 1-1/8" Screws
- • (8) M4x60mm Machine screws (with split lock washers attached)
- • (8) Flat Washers
- • (2) M4 Hex Nuts
- • (8) Speed Clips
- • Warranty Information
- • Important Notice
- • Online Product Registration Information
- • Template and Specs on Box
- • Owner's Manual
Why Choose Alpine R2-S69 Coaxial Car Speakers
Hi-Res Audio Performance for Alpine R2-S69
Experience Hi-Res Audio certified performance with the Alpine R2-S69 6x9 speakers, delivering high-resolution sound with exceptional clarity, detail, and dynamic range. The glass-fiber reinforced cone woofer ensures rigid, accurate cone movement for clean midrange response and precise sound reproduction in every listening environment.
Powerful Bass with H.A.M.R. Surround Technology
Designed for deep bass and controlled midbass output, the R2-S69 features Alpine’s High-Amplitude Multi-Roll (H.A.M.R.) surround, allowing extended cone excursion with reduced distortion. Dual high-quality crossover networks ensure precise frequency separation, resulting in balanced sound, improved speaker efficiency, and smooth audio transitions.
Crisp Highs with Premium Tweeter Design
The magnesium hard-dome tweeters deliver sharp, detailed high-frequency response for clear vocals and instruments. A swivel mount design with removable housing allows flexible installation angles for better sound staging, while protective mesh grilles enhance durability and give a clean, premium factory-style finish.
Alpine 6x9” Car Speaker Comparison | R2-S69, R2-S69C, S2-S69 & S2-S69C High-Performance Coaxial and Component Speaker Showdown
| Ultimate Alpine 6x9" Speaker Showdown |
Alpine R2-S69
R-Series 6x9" 300W Peak / 100W RMS 2-Way Coaxial
PREMIUM
- • 6x9" Coaxial Speaker
- • 300W Peak / 100W RMS
- • Glass-Fiber Cone
- • Magnesium Tweeter
- • Hi-Res Audio Certified
- • Optimized for high-output aftermarket amplifiers
|
Alpine S2-S69
S-Series 6x9" 260W Peak / 85W RMS 2-Way Coaxial
BEST VALUE
- • 6x9" Coaxial Speaker
- • 260W Peak / 85W RMS
- • Mica Cone Blend
- • 1" Dome Tweeter
- • Hi-Res Audio Certified
- • High sensitivity design for easy factory upgrade
|
Alpine S2-S69C
S-Series 6x9" Component 260W Peak / 85W RMS
COMPONENT
- • 6x9" Component System
- • Separate Tweeter
- • 260W Peak / 85W RMS
- • Improved imaging and soundstage separation
- • Hi-Res Audio Certified
- • Designed for more precise stereo imaging
|
Alpine R2-S69C
R-Series 6x9" Component 300W Peak / 100W RMS
HIGH OUTPUT
- • 6x9" Component System
- • Separate Tweeter
- • 300W Peak / 100W RMS
- • Glass-Fiber Cone
- • Magnesium Tweeter
- • Designed for maximum dynamic output and clarity
|
Alpine R2-S69 Highlights
HI-RES AUDIO
Hi-Res Audio Certified
Delivers an extended 60Hz-40kHz frequency response for crisp highs, detailed music reproduction and a more natural listening experience.
GLASS-FIBER CONE
Rigid Glass-Fiber Reinforced Cone
The lightweight, rigid glass-fiber reinforced cone allows extreme movement while helping reduce distortion for accurate and clean sound.
H.A.M.R. SURROUND
High-Excursion H.A.M.R. Surround
Alpine's High-Amplitude Multi-Roll surround increases cone excursion while maintaining linearity for strong bass and accurate music reproduction.
MAGNESIUM TWEETER
1-Inch Magnesium Hard-Dome Tweeter
The integrated 1-inch magnesium hard-dome tweeter delivers crisp, detailed highs and features a swivel mount design for flexible aiming.
UPGRADED MIDBASS
Larger Motor for Stronger Midbass
The upgraded ferrite magnet structure and larger motor contribute to increased midbass output while maintaining the same installation depth.
POWER HANDLING
100W RMS / 300W Peak
Handles up to 100 watts RMS and 300 watts peak power, making the R2-S69 an excellent match for a quality aftermarket amplifier.
6X9 COAXIAL
6x9-Inch 2-Way Coaxial Design
Combines a 6x9-inch mid-bass speaker with a 1-inch coaxial tweeter and premium-grade crossover networks for a powerful full-range system.
Alpine R2-S69 Recommended Amplifiers | Best 4-Channel Amp Pairings for Maximum Power & Performance
Build Your Alpine R2-S69 System
Recommended 4-channel amplifier pairings for clean power, stronger dynamics, improved speaker control and maximum R2-S69 performance
Amplifier Matching Overview
R2-S69 Power Rating: 100W RMS / 300W Peak per speaker
Minimum Usable Power: 50W – 60W RMS per channel
Recommended Amp Range: 60W – 100W RMS per channel @ 4Ω
Best Power Match: 100W RMS per channel @ 4Ω
Best Amplifier Type: Quality 4-Channel Class-D or Class-AB Amplifier
Best Overall Match – Exact 100W RMS Power Match
Delivers 100W RMS x 4 at 4 Ohms, exactly matching the R2-S69's 100W RMS power rating. It is the ideal Alpine amplifier pairing for getting maximum clean output and strong speaker control.
Best Premium Alternative – Clean Power & Headroom
Delivers 75W RMS x 4 at 4 Ohms, providing strong clean power while staying below the R2-S69's 100W RMS rating. An excellent premium alternative for improved dynamics and speaker control.
Best Lower-Power Alpine Option
Delivers 60W RMS x 4 at 4 Ohms, providing clean Alpine power for everyday listening while remaining within the recommended usable power range for the R2-S69.
Best Value Alternative – Strong Everyday Performance
Delivers 65W RMS x 4 at 4 Ohms, providing a solid balance of power, affordability and reliability for daily R2-S69 applications.
Why the Alpine R2-A60F Is the Recommended Choice
Exact Power Match: Delivers 100W RMS x 4 at 4 Ohms, matching the R2-S69's 100W RMS rating
Maximum Clean Output: Provides the power needed to drive the R2-S69 to its intended performance level
Improved Speaker Control: Dedicated amplifier power provides better control than relying solely on a factory head unit
Stronger Dynamics: Additional clean power helps the R2-S69 deliver more effortless performance during demanding musical passages
Alpine System Synergy: Keeps the R2-S69 system within the Alpine R-Series amplifier ecosystem for a well-matched installation
Recommended R2-S69 DSP & Amplifier Settings
Gain Setting: Set amplifier gain correctly to achieve clean output without clipping or distortion
Power Target: 60W – 100W RMS per channel is the recommended range for the R2-S69
Best Power Match: 100W RMS per channel @ 4Ω provides an exact match to the speaker's RMS rating
Crossover Strategy: Use an appropriate high-pass filter based on the overall system and subwoofer configuration to improve speaker control
Best Practice: Use clean amplifier power and properly adjusted gains to maximize performance while protecting the speakers
Pro Tip: The Alpine R2-A60F is the strongest overall match for the R2-S69 because its 100W RMS x 4 output exactly matches the speaker's 100W RMS power rating. For a lower-power setup, the JL Audio JD400/4, Alpine S2-A36F and Kicker CXA360.4T provide clean power while staying within a practical range for everyday listening.
Frequently Asked Questions (FAQ)
- • Why do my Alpine R2-S69 speakers sound weak after installation?
This is usually caused by low power from a factory head unit. The R2-S69 needs a clean 4-channel amplifier to fully deliver its midbass impact, clarity, and dynamic output.
- • Why do my Alpine R2-S69 speakers distort when I increase volume?
Distortion is commonly caused by amplifier clipping or incorrect gain settings. Proper gain adjustment and using a high-pass filter around 70–80Hz helps maintain clean sound.
- • Why are my Alpine R2-S69 speakers not loud enough?
Low loudness is usually due to insufficient RMS power. A proper amplifier delivering around 60–100W RMS per channel will significantly improve volume and clarity.
- • Why does my Alpine R2-S69 have weak or missing bass?
This is often caused by phase issues, poor door sealing, or lack of amplification. These are not subwoofers, so proper installation and tuning are essential for midbass performance.
- • Why don’t my Alpine R2-S69 speakers fit properly in my car?
Fitment issues usually come from vehicle-specific mounting depth or adapter requirements. Spacer rings or brackets are commonly needed for proper installation.
- • Why do my Alpine R2-S69 speakers sound harsh or too bright?
Harshness is usually caused by EQ imbalance or improper tuning. Reducing treble boost and setting proper crossover points helps smooth out high frequencies.
- • Why is one Alpine R2-S69 speaker louder than the other?
This is typically caused by wiring polarity issues, balance settings, or channel imbalance on the amplifier. Checking wiring usually resolves the issue.
- • How can I get the best performance from Alpine R2-S69 speakers?
Use a clean 4-channel amplifier, set proper gain, apply a high-pass filter around 80Hz, and ensure solid door mounting with proper sealing for best results.
- • Do I really need an amplifier for Alpine R2-S69?
Not required, but highly recommended. While they work on factory radios, an amplifier unlocks full performance, louder output, and better bass control.
- • What is the ideal amplifier power for Alpine R2-S69?
The ideal range is 60–100W RMS per channel at 4 ohms. This matches the speaker’s 100W RMS rating and ensures clean, controlled performance without distortion.
Alpine R2-S69 Videos & Reviews
← Swipe left or right to browse videos →
- Diameter : 6x9 Inch
- Sensitivity : 88 dB
- Impedance : 4 Ohm
- Frequency Response : 65-40000 Hz
- Peak Power Handling : 300 Watts
- Design : 2 Way
- Woofer Composition : Glass Fiber
- Tweeter Composition : Magnesium
- RMS Power Handling : 100 Watts
Features:
- Hi-Res Audio Certified: Provides exceptional clarity and detail for high-resolution music playback.
- Glass Fiber Reinforced Cone: Delivers rigidity and responsiveness for accurate sound reproduction.
- Ferrite Magnet Structure: Ensures powerful and stable magnetic performance.
- High-Amplitude Multi-Roll (H.A.M.R.) Surround: Allows extended cone movement for deep, distortion-free bass.
- 2 Premium-Grade Crossover Networks: Separates frequencies for precise and balanced audio output.
- Magnesium Hard-Dome Tweeters: Features a swivel mount design and threaded removable housing for flexible installation.
- Protective Open Mesh Grilles: Adds style and protects the components from damage.
Specifications:
- Speaker Size: 6X9
- Design: 2-Way
- Tweeter Design: Dome
- Impedance (Ohms): 4
- Tweeter Composition: Magnesium
- Woofer Composition: Glass-Fiber
- Woofer Surround: Rubber
- Sensitivity (1W at 1 meter): 90
- Sensitivity at 2.83 volts: N/A
- Frequency Response: 60 - 40k Hz
- Minimum RMS Wattage: ---
- Maximum RMS Wattage: 100
- Peak Power Handling (Watts): 300
- Top-mount Depth (Inches): 3
- Bottom-mount Depth (Inches): 3 3/4
- Cutout Diameter or Length (inches): 0
- Mounting Height (Inches): 0.512
- UPC: 793276084897
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
Tried to push these speakers and they are really clean and never heard any distortion. It also come with nice looking grilles, and are durable to protect the 6x9s from getting accidentally damaged. Really great speakers from Alpine
