Pioneer  TS-A1301C

A-Series 5.25" 300W Peak Power Handling at 4 Ohms, 2-way Car Component System

Item #92178

Condition:   Brand New

Product Highlights

  • 5.25" Component System
  • 300W Peak Power
  • 4 Ohms Impedance
  • 2-way Design

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$85.40

Reg. Price $269.99  Save $184.59

Out of Stock Check out other products listed below
Pioneer Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Pioneer TS-A1301C A-Series 5.25" 300W Peak Power Handling at 4 Ohms, 2-way Car Component System


We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • (2) Woofers
  • • (2) Tweeters (with attached 10" speaker leads terminated with quick-connects)
  • • (2) Lengths of speaker wire (each has quick slides to connect to the woofer, a 40" tweeter output leg with integrated crossover and a 10" input leg)
  • • (2) Tweeter angled surface mount housings
  • • (2) Tweeter flush mount rings
  • • (2) Tweeter factory mount brackets
  • • (8) 3/4" screws
  • • (6) 1/2" screws
  • • (2) Adhesive backed foam discs
  • • Warranty information
  • • Templates and specs on box
  • • Owner's Manual



Clean, Controlled Sound That Hits Different

If you’re ready to step up your factory sound, the Pioneer TS-A1301C component system brings a noticeable upgrade in clarity and control. The woofer uses carbon and mica reinforced IMPP cones, giving you a stronger, more stable surface that stays light enough to reduce distortion but rigid enough to keep vocals and midrange clean. It’s built to handle real music detail without getting muddy when the volume goes up, making everyday listening and loud sessions equally satisfying.

Focused Imaging with Smart Component Design

This is a proper 2-way setup, meaning the woofer and tweeter are separated to give you better sound staging and clearer frequency separation across your cabin. The tweeters come with both flush mount rings and angled surface housings, positioning sound at about 45° for better direction toward your ears. Once installed, they stay fixed in place, so the soundstage remains consistent instead of shifting around. Pioneer also keeps installation simple with an integrated crossover system at 3.35 kHz and streamlined wiring that connects woofer and tweeter through quick-slide connectors and clearly organized leads, making setup more straightforward even in tight factory installs.


SPECIFICATIONS


  • Diameter : 5.25 Inch
  • Sensitivity : 90 dB
  • Frequency Response : 42-58000 Hz
  • Peak Power Handling : 300 Watts
  • Woofer Composition : Carbon and mica reinforced IMPP
  • Tweeter Composition : Component Polyetherimide (PEI)
  • RMS Power Handling : 50 Watts

FEATURES


Features:

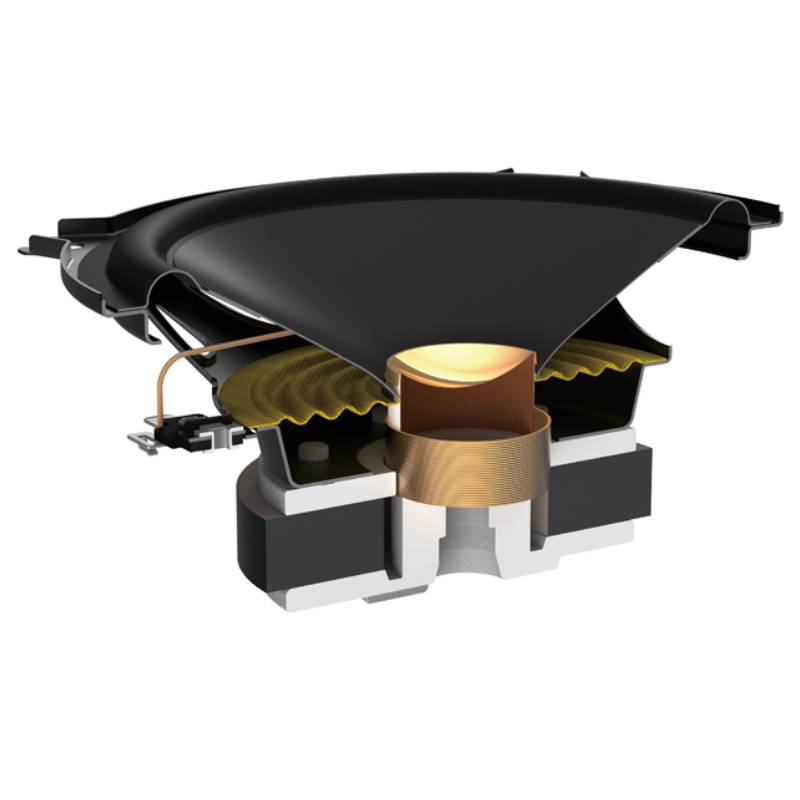

  • Woofer Cone Construction: Built with carbon and mica reinforced injection-molded polypropylene (IMPP) cones, delivering uniform thickness for improved linearity, clarity, and reduced distortion while maintaining a lightweight and rigid structure for accurate sound reproduction.
  • 2-Way Component Speaker Design: Engineered as a dedicated woofer and tweeter system to enhance frequency separation, improve sound staging, and deliver clearer overall audio performance across a wide range of music styles.
  • Flexible Tweeter Mounting Options: Includes flush mount rings and angled surface mount housings, with the angled design positioning tweeters at approximately 45° for improved sound direction and imaging toward the listener.
  • Fixed Tweeter Positioning: Tweeters are designed for stable installation and do not swivel after mounting, ensuring consistent sound direction based on the selected installation position.
  • Tweeter Mounting Specifications: Angled surface mount offers 1.475" mounting height, variable screw depth, 1.5" frame width, and 1.8" frame depth, while flush mount configuration provides 0.2" height, 0.552" depth, 1.952" frame diameter, and 1.63" cutout diameter for installation flexibility.
  • Integrated Crossover System: Features integrated high-pass crossovers built into the speaker wiring, with a 6 dB/octave slope and a 3.35 kHz crossover point for smooth frequency separation and balanced audio output.
  • Simplified Wiring Integration: Each speaker wire set connects both woofer and tweeter, using quick-slide connectors for the woofer, a 40" output leg with integrated crossover for tweeter connection, and a 10" input leg for source integration to streamline installation.



Specifications:

  • System Type: Separate 2-way
  • Sound Pressure Level (Sensitivity): 89 dB (± 1.5 dB)
  • Frequency Range: 42 Hz to 58 kHz
  • Continuous Power Handling (RMS): 50 Watts
  • Maximum Peak Power Handling: 300 Watts
  • Nominal Impedance: 4 ohms
  • Woofer Diameter: 5-1/4"
  • Woofer Cone Material: Carbon and mica reinforced IMPP
  • Woofer Surround Material: Elastic Polymer
  • Woofer Basket Material: Iron Plate Press
  • Woofer Magnet Material: Ferrite
  • Woofer Magnet Weight: 7.14 oz
  • Woofer Voice Coil Bobbin: Glass Imide
  • Woofer Voice Coil Wire: Copper
  • Woofer Mounting Depth: 2-1/8" (Deep basket)
  • Tweeter Type: Separate component Polyetherimide (PEI) hard dome tweeter
  • Tweeter Diameter: 20 mm
  • Tweeter Diaphragm Material: Film (PEI)
  • Tweeter Magnet Material: Neodymium
  • Tweeter Magnet Weight: 0.17
  • Warranty (must be purchased from an Authorized Pioneer Dealer): 1 year
  • UPC: 884938509244
  • Weight: 2
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
