Pioneer TS-A653CH A-Series 6.5" 370W Peak Power Handling at 4 Ohms, 2-way Car Component Speaker System
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) Woofers
- • (2) Tweeters (with attached 10" speaker leads terminated with quick-connects)
- • (2) Multi-application woofer mounting brackets
- • (2) Lengths of speaker wire (each has quick slides to connect to the woofer-a 40" tweeter output leg with integrated crossover-and an 10" input leg)
- • (2) Tweeter angled surface mount housings
- • (2) Tweeter flush mount rings
- • (2) Tweeter factory mount brackets
- • (8) 3/4" Screws
- • (6) 1/2" Screws
- • (8) 3/8" Screws
- • (8) Flat washers
- • (2) Adhesive backed foam discs
- • Warranty information
- • Templates and specs on box
- • Owner's Manual
Why Choose Pioneer TS-A653CH Component System?
Built for Real Clarity, Not Just Volume

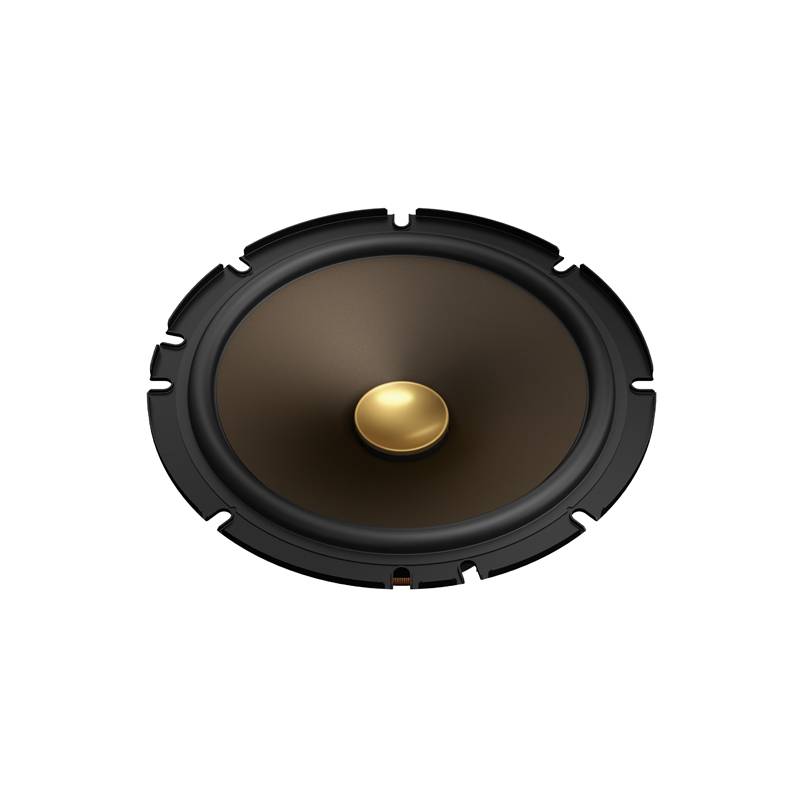

If you’re upgrading your door speakers, the Pioneer TS-A653CH makes a serious difference right away. The woofer uses aramid fiber and mica reinforced IMPP cones, giving you a stiffer, more controlled structure that keeps vocals and midrange clean while cutting down distortion. Even though it’s labeled as a 6½" speaker, it actually needs a slightly larger cutout and is often treated as a 6¾" fit, so it’s worth double-checking your vehicle compatibility before installation.
Focused Soundstage with Smart Component Design
This is a true 2-way component system, meaning the woofer and tweeter work separately to give you better sound separation and a more open, detailed stage inside your car. The tweeter setup is flexible too, with both flush mount rings and angled surface housings that position sound at about a 45° direction for better clarity toward your listening position. Once installed, the tweeters stay fixed, which actually helps keep imaging stable and consistent instead of shifting around over time.
Frequently Asked Questions (FAQ)
- • Does this component speaker kit include all the hardware needed for installation?
Yes. The package includes two woofers, two tweeters, integrated crossover wiring, mounting brackets, multiple tweeter mounting options, screws, washers, adhesive foam discs, warranty information, and installation templates.
- • Why isn't one of the tweeters producing any sound?
A loose quick-connect terminal or an incorrectly connected crossover lead is the most common cause. Inspect the wiring and verify all connectors are fully seated before testing again.
- • Can I use the factory tweeter locations in my vehicle?
Yes. Factory tweeter brackets, flush-mount rings, and angled surface-mount housings are included to support multiple installation methods.
- • Why do the speakers sound harsh when I turn up the volume?
This is usually caused by amplifier clipping, excessive treble settings, or incorrect gain adjustment. Proper amplifier tuning and equalizer settings will produce cleaner sound.
- • Can these speakers run directly from my factory stereo?
Yes. They will work with most factory head units, although an external amplifier will provide greater output and improved overall sound quality.
- • Why do my door panels vibrate after installing the new speakers?
The stronger bass response may cause loose clips and trim panels to resonate. Installing sound-deadening material and tightening loose components usually eliminates the vibration.
- • Which tweeter mounting option should I choose?
Flush mounting provides a cleaner factory appearance, while angled surface mounting can improve sound staging by directing the highs toward the listener. The best option depends on your vehicle and preferred sound characteristics.
- • Why do vocals sound centered but the stereo image feels narrow?
Tweeter placement plays a major role in stereo imaging. Repositioning the tweeters or adjusting their angle can create a wider and more natural soundstage.
- Diameter : 6.5 Inch
- Sensitivity : 91 dB
- Frequency Response : 33-58000 Hz
- Peak Power Handling : 370 Watts
- RMS Power Handling : 85 Watts
Features:

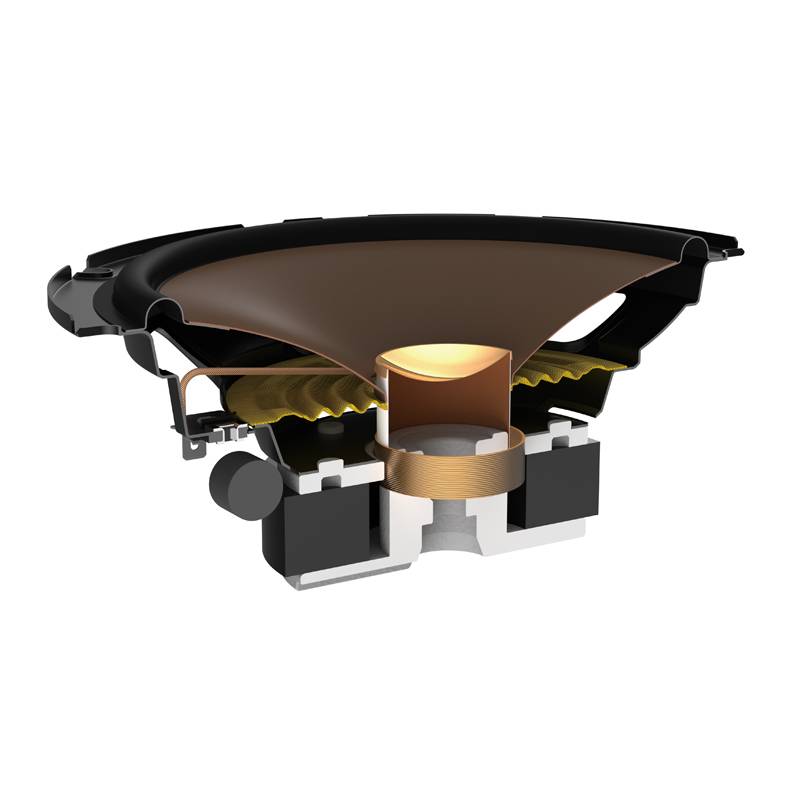

- Woofer Cone Construction: Features aramid fiber and mica reinforced injection-molded polypropylene (IMPP) cones, delivering uniform thickness for improved linearity, clarity, and reduced distortion while maintaining a lightweight and rigid structure.
- Size Classification & Fitment Note: Classified by Pioneer as a 6½" speaker, though it requires a larger cutout and is commonly referred to as a 6¾" size; vehicle fitment verification is recommended for proper installation.
- Vehicle-Specific Mounting Support: Includes a pair of mounting brackets designed to assist installation in vehicle-specific applications, ensuring better adaptability across different factory speaker locations.

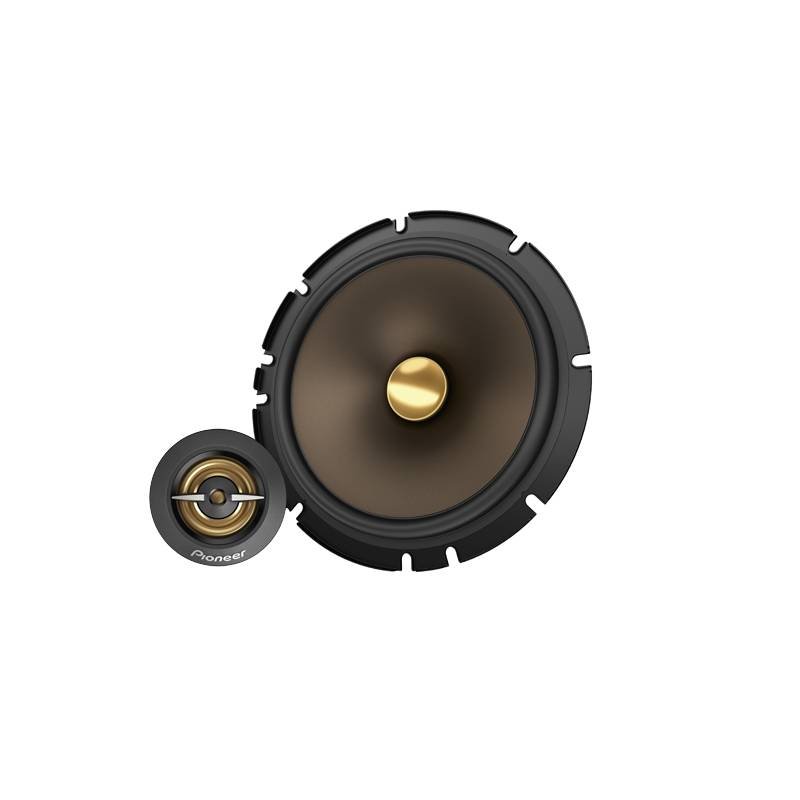

- 2-Way Component Speaker Design: Engineered as a separate woofer and tweeter system to improve frequency separation, enhance sound staging, and deliver clearer overall audio performance.
- Flexible Tweeter Mounting Options: Includes flush mount rings and angled surface mount housings, with the surface mount design positioning tweeters at approximately a 45° angle for improved sound direction.
- Fixed Tweeter Positioning: Tweeters are designed for stable placement once installed and do not swivel, ensuring consistent sound direction based on mounting choice.
- Tweeter Mounting Specifications: Angled surface mount offers 1.475" height, variable screw depth, 1.5" frame width, and 1.8" frame depth, while flush mount provides 0.2" height, 0.552" depth, and 1.63" cutout diameter for flexible installation options.
- Integrated Crossover System: Features integrated high-pass crossovers in the speaker wiring and low-pass crossovers in the woofer baskets, both operating at 6 dB/octave with a 2.8 kHz crossover point for balanced frequency separation
- Simplified Wiring Integration: Each speaker wire set connects both woofer and tweeter, using quick-slide connectors for the woofer, a 40" output leg for tweeter connection, and a 10" input leg for source integration to streamline installation.
Specifications:
- System Type: Separate 2-way
- Sound Pressure Level (Sensitivity): 91 dB (± 1.5 dB)
- Frequency Range: 33 Hz to 58 kHz
- Continuous Power Handling (RMS): 85 Watts
- Maximum Peak Power Handling: 370 Watts
- Nominal Impedance: 4 ohms
- Woofer Diameter: 6-1/2"
- Woofer Cone Material: Aramid fiber reinforced IMPP
- Woofer Surround Material: Elastic Polymer
- Woofer Basket Material: Iron Plate Press
- Woofer Magnet Material: Ferrite
- Woofer Magnet Weight: 11.29 oz
- Woofer Voice Coil Bobbin: Glass Imide
- Woofer Voice Coil Wire: Copper
- Woofer Mounting Depth: 2-3/8" (Shallow basket)
- Tweeter Type: Separate Component Polyetherimide (PEI) hard dome tweeter
- Tweeter Diameter: 20 mm
- Tweeter Diaphragm Material: Film (PEI)
- Tweeter Magnet Material: Neodymium
- Tweeter Magnet Weight: 0.17
- Warranty (must be purchased from an Authorized Pioneer Dealer): 1 year
- UPC: 884938509404
- Weight: 6
