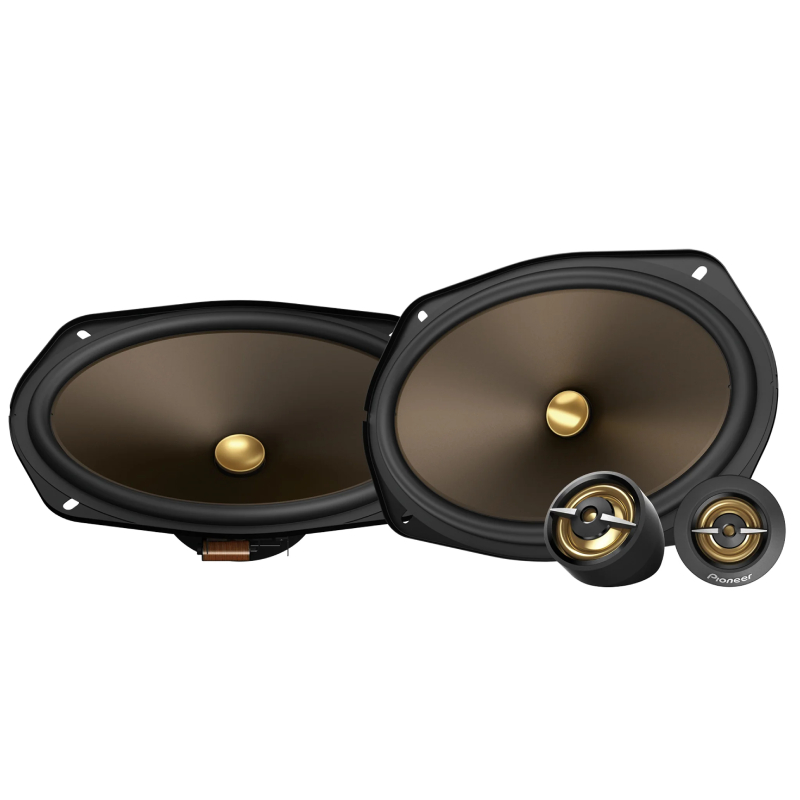

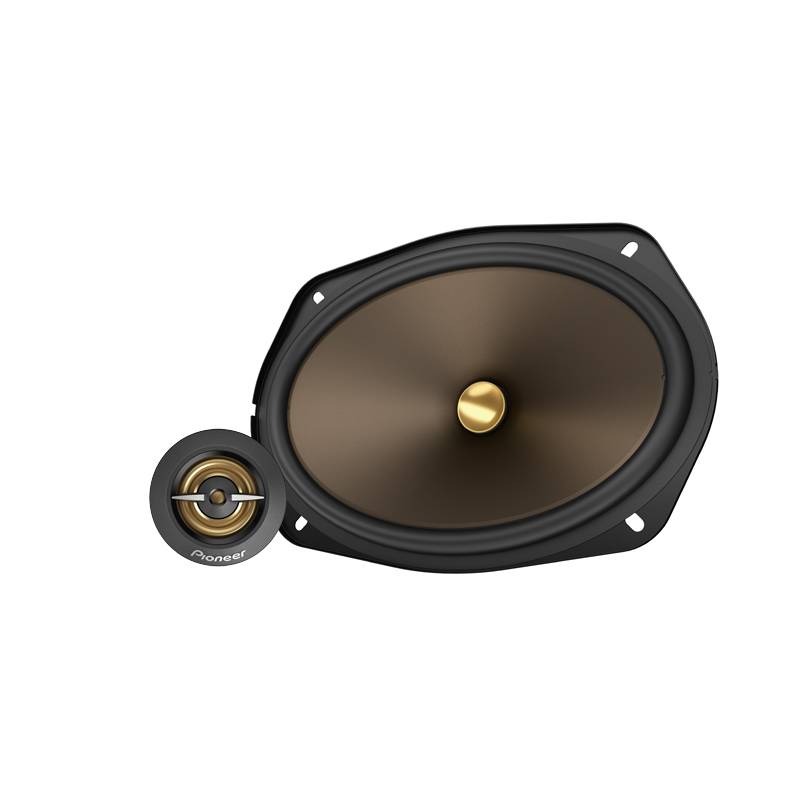

Pioneer TS-A693CH A-Series 6"x9" 105W RMS (460W Peak Power Handling) 4 Ohms Separate 2-way Component Speakers
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) Woofers
- • (2) Tweeters (with attached 10" speaker leads terminated with quick-connects)
- • (2) Multi-application woofer mounting brackets
- • (2) Lengths of speaker wire (each has quick slides to connect to the woofer - a 40" tweeter output leg with integrated crossover - and a 10" input leg)
- • (2) Tweeter angled surface mount housings
- • (2) Tweeter flush mount rings
- • (2) Tweeter factory mount brackets
- • (8) 1-1/8" screws
- • (6) 1/2" screws
- • (8) 3/8" screws
- • (2) Adhesive backed foam discs
- • Warranty information
- • Templates and specs on box
- • Owner's Manual
Why Choose Pioneer TS-A693CH Component System?
Pioneer's A-Series MAX: Built for Superior Sound
Pioneer's A-Series speakers have long been a top choice, and the latest A-Series MAX component systems further this tradition with enhanced performance at a reasonable price. The Pioneer TS-A693CH 6" x 9" component speakers exemplify the A-Series MAX commitment, delivering superior sound quality that shines, especially when paired with an external amplifier. Experience powerful, clear audio without the distortion that can disrupt your listening enjoyment. Thanks to Pioneer's engineering expertise, these speakers provide reliable, consistent output throughout their lifespan.
Built for the Long Haul

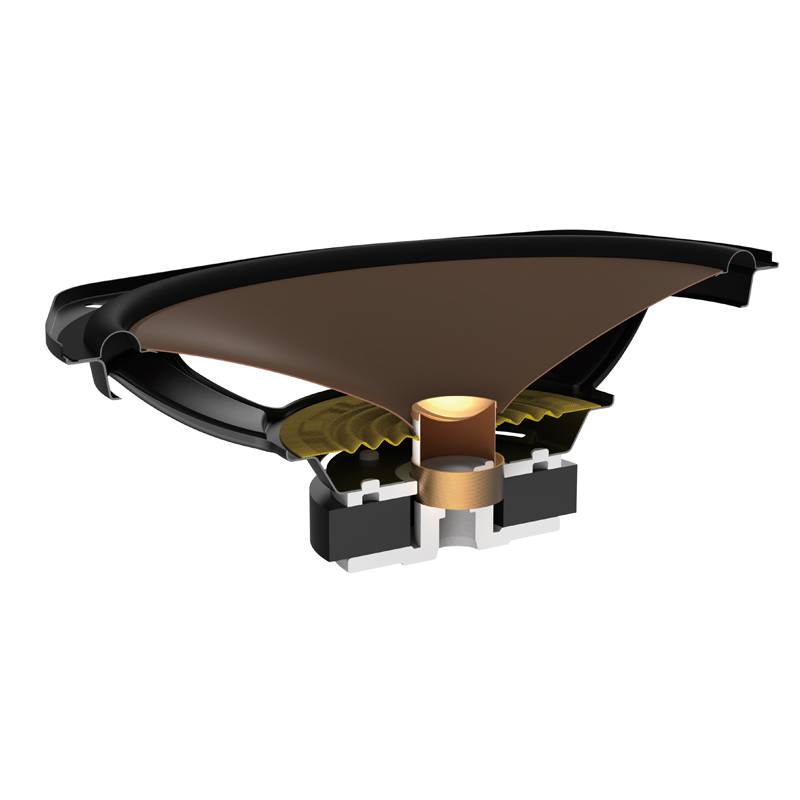

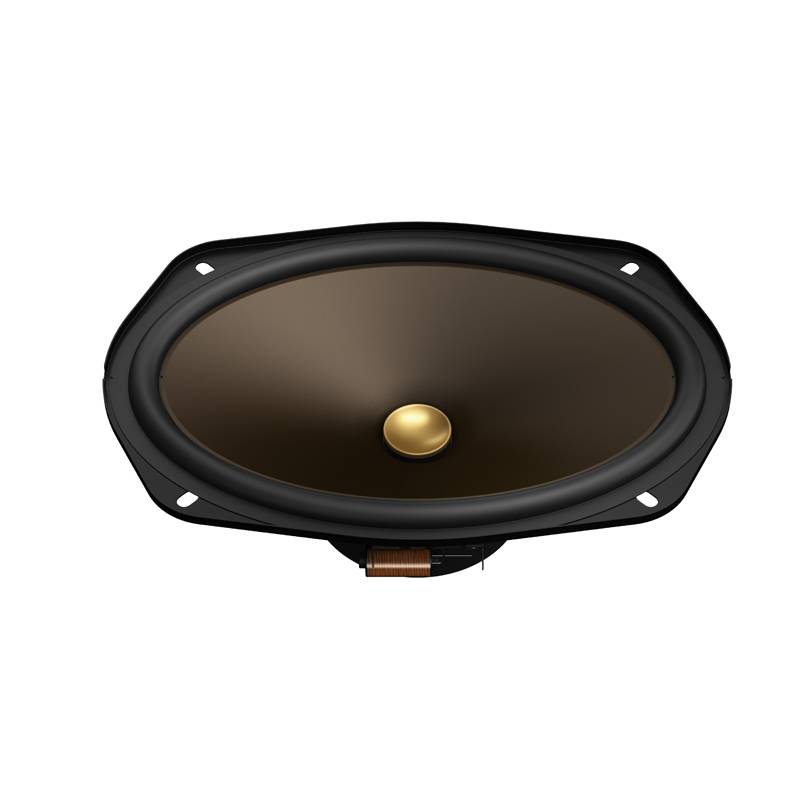

Pioneer's A-Series MAX speakers are crafted with advanced materials to ensure exceptional audio performance. The woofer cone features an injection-molded polypropylene design, reinforced with aramid fiber and mica, delivering smooth sound and robust bass. The deeper basket design, combined with Pioneer's exclusive suspension system, keeps the cone stable during intense musical moments, ensuring precise sound reproduction. The separate dome tweeter comes with both flush- and angle-mount hardware, allowing for optimal placement and clarity of higher frequencies in your car.
Frequently Asked Questions (FAQ)
- • Why do the tweeters sound too bright after installation?
Harsh highs are often caused by excessive treble settings or incorrect tweeter placement. Reducing the treble level and aiming the tweeters away from ear level can create a smoother sound.
- • Can I use this component system with my factory stereo?
Yes. The speakers will operate with most factory head units, but an external amplifier will provide better clarity, volume, and dynamic range.
- • Why isn't one of the tweeters producing any sound?
Loose wiring, an incorrect crossover connection, or a damaged speaker lead can prevent the tweeter from receiving audio. Check all quick-connect terminals and wiring before replacing any components.
- • Do I need to install the included crossover wiring?
Yes. The integrated crossover helps direct high frequencies to the tweeters while protecting them from damaging low-frequency signals.
- • Why is the bass weaker than my factory speakers?
Incorrect speaker polarity, poor door sealing, or insufficient amplifier power can reduce bass performance. Verify the wiring and ensure the woofers are mounted securely against the door.
- • Can I choose between flush and surface mounting for the tweeters?
Yes. The package includes flush-mount rings, angled surface-mount housings, and factory mounting brackets for flexible installation options.
- • Why do the speakers distort when I turn the volume up?
Distortion usually occurs because of amplifier clipping, excessive gain, or an underpowered audio system. Proper amplifier tuning helps maintain clean sound at higher listening levels.
- • Will these speakers fit my factory door openings?
They fit many vehicles, but installation depends on your vehicle's mounting depth, cutout size, and adapter requirements. Always confirm fitment before beginning the installation.
- • Why do my door panels rattle after upgrading the speakers?
Higher-output speakers can cause loose trim panels and clips to vibrate. Tightening the panels and installing sound-deadening material can significantly reduce unwanted noise.
- • What accessories are included with the component speaker system?
The package includes two woofers, two tweeters with attached speaker leads, crossover wiring, multiple tweeter mounting options, woofer mounting brackets, mounting screws, and adhesive foam discs. These accessories provide flexibility for installing the speakers in a variety of vehicles.
- Diameter : 6x9 Inch
- Sensitivity : 92 dB
- Frequency Response : 30-58000 Hz
- Peak Power Handling : 460 Watts
- Woofer Composition : Aramid fiber reinforced IMPP
- Tweeter Composition : Component Polyetherimide (PEI)
- RMS Power Handling : 105 Watts
Features:
- 460 Watts Max Power (105 Watts Nominal)
- 20mm Polyetherimide (PEI) hard dome tweeter
- 30Hz to 58 kHz Frequency Range
- 6" x 9" Aramid fiber reinforced Injection Molded Polypropylene (IMPP) cone construction
- Pioneer patented P.F.S.S. (Progressive Flex Suspension System) (U.S. Patent #20,120,106,777)
Specifications:
- System Type: Separate 2-way
- Sound Pressure Level (Sensitivity): 92 dB (± 1.5dB)
- Frequency Range: 30Hz to 58 kHz
- Continuous Power Handling (RMS): 105 Watts
- Maximum Peak Power Handling: 460 Watts
- Nominal Impedance: 4 ohms
- Woofer Diameter: 6" x 9"
- Woofer Cone Material: Aramid fiber reinforced IMPP
- Woofer Surround Material: Elastic Polymer
- Woofer Basket Material: Iron Plate Press
- Woofer Magnet Material: Ferrite
- Woofer Magnet Weight: 13.05 oz
- Woofer Voice Coil Bobbin: Glass Imide
- Woofer Voice Coil Wire: Copper
- Woofer Mounting Depth: 2-7/8" (Shallow basket)
- Tweeter Type: Separate component Polyetherimide (PEI) hard dome tweeter
- Tweeter Diameter: 20 mm
- Tweeter Diaphragm Material: Film (PEI)
- Tweeter Magnet Material: Neodymium
- Tweeter Magnet Weight: 0.17
- Warranty (must be purchased from an Authorized Pioneer Dealer): 1 year
- UPC: 884938509466
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
