Infinity REF507CF Reference Series 5.25" 195W Peak Power Handling 3 Ohms 2-way Component Car Speaker System
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •(2) woofers
- •(2) tweeters

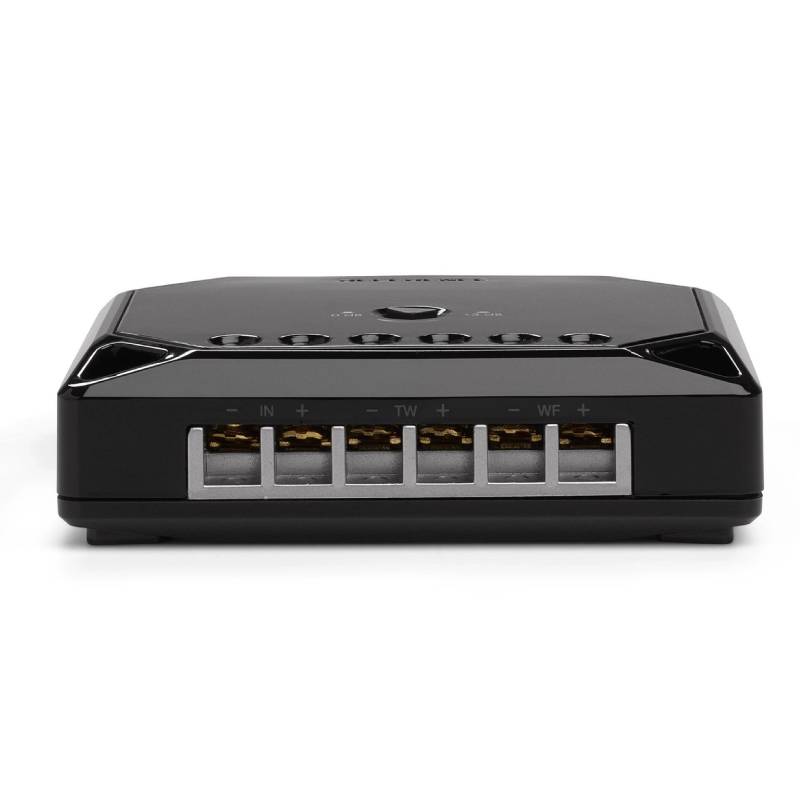

- •(2) crossovers
- •(2) woofer mounting brackets
- •(2) tweeter surface mount accessories
- •(2) tweeter flush mount accessories
- •(2) tweeter nuts
- •(2) tweeter flat washers
- •(6) tweeter mounting screws
- •(8) woofer mounting screws
- •(8) crossover mounting screws
- •(8) speed clips
- •Foam mounting tape
- •Owner’s manual
Provide Increased Bass Output
The latest Reference speakers from Infinity are crafted to bring forth the renowned Infinity sound to a broader range of vehicles. They boast edge-driven textile tweeters, ensuring crisp and clear high frequencies. Larger models come with an adjustable tweeter output level control, allowing for precise optimization of high frequencies based on installation placement or listener preference. With oversized Plus One™ woofers, these speakers provide increased bass output and improved midrange performance, thanks to their larger surface area. Additionally, our newly designed baskets are meticulously engineered to fit most factory speaker locations seamlessly. Available in various standard sizes, these speakers serve as the ideal upgrade from factory-installed ones.
Customizable tweeter output
Textile tweeters with edge-driven technology: The textile tweeters utilized in Infinity's latest Reference speakers provide a smooth, fatigue-free sound experience, even at elevated output levels.For the larger Reference multi-element and component systems, an adjustable tweeter output level control is available. This feature allows for fine-tuning of system linearity to match either the installation location or the listener's personal preference.
Optimized frame size
Plus One™ woofer cone architecture Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class - the result is higher sensitivity, increased low-frequency output and accurate music reproduction. Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today
- Diameter : 5.25 Inch
- Sensitivity : 93 dB
- Frequency Response : 67-21000 Hz
- Peak Power Handling : 195 Watts
- Woofer Composition : Polypropylene
- Tweeter Composition : Textile
- RMS Power Handling : 65 Watts
Features:

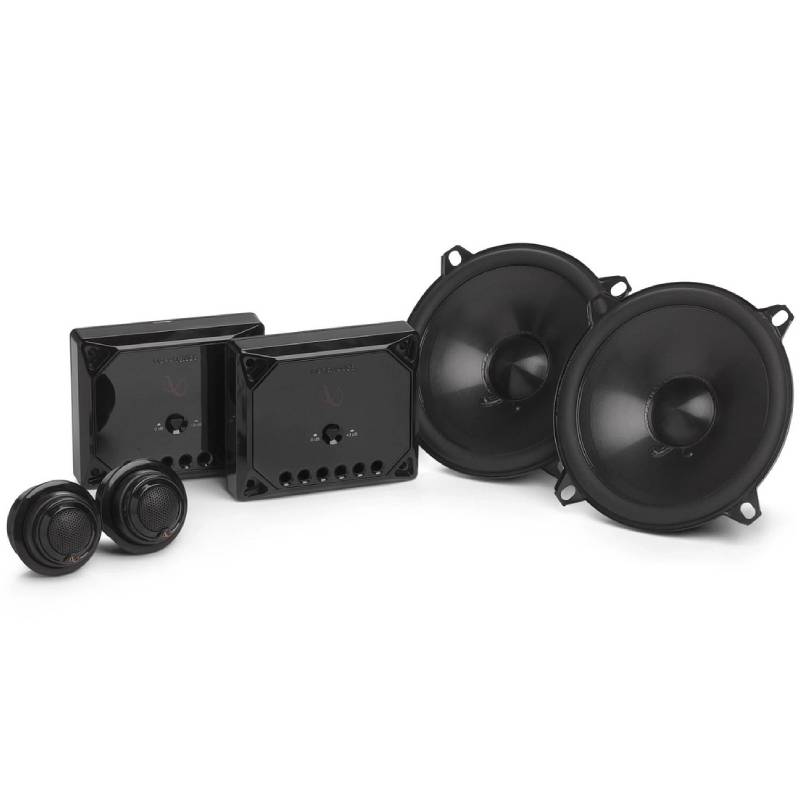

- 5-1/4" component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers

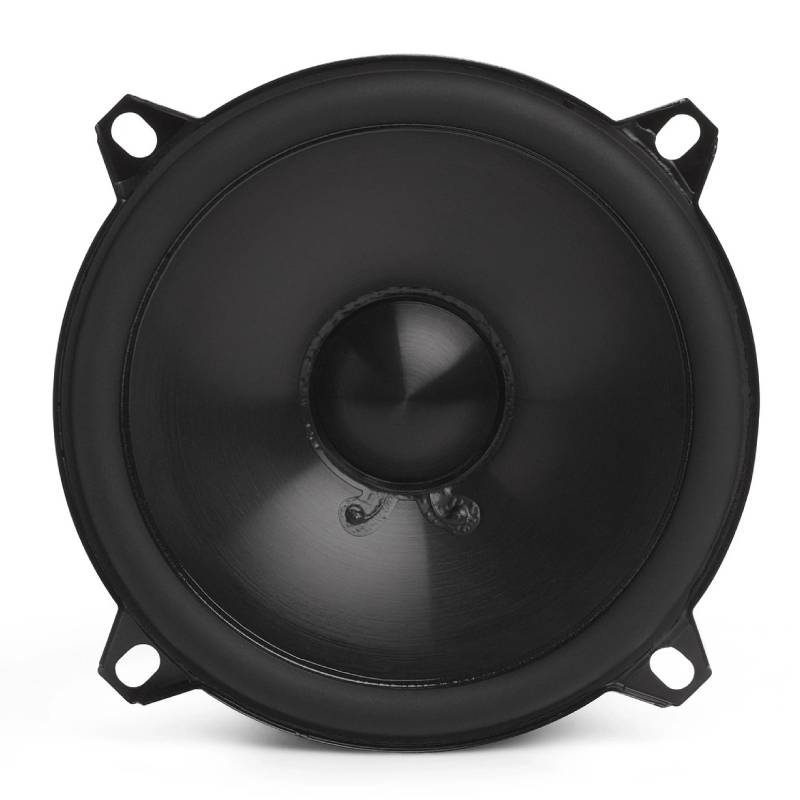

- Plus One+ polypropylene woofer cone with hi-roll rubber surround

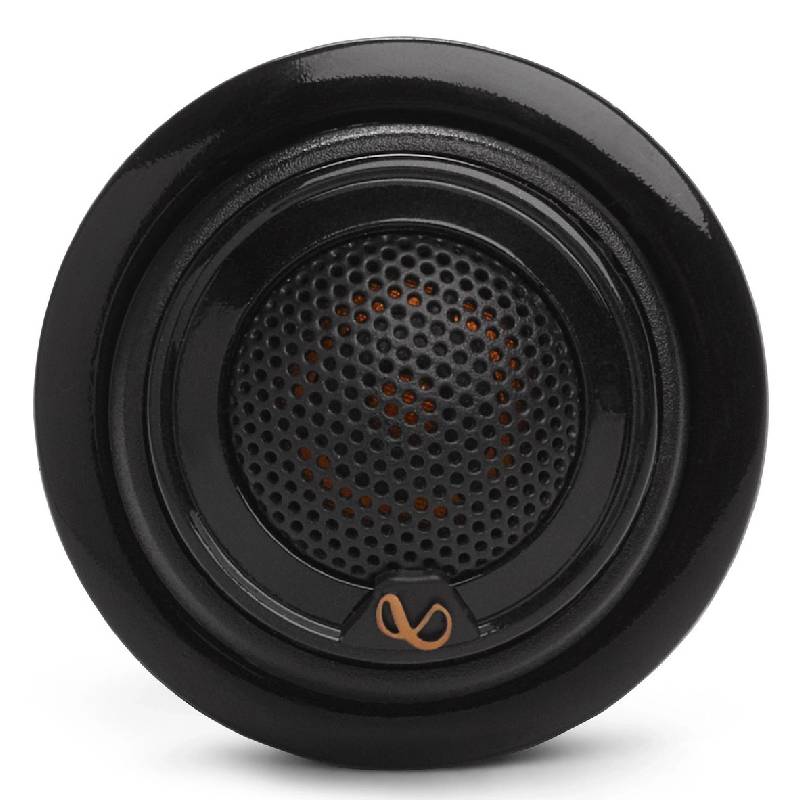

- 3/4" textile edge-driven tweeter
- Flush- and surface-mount hardware included
- Starfish™ bracket for mounting in factory tweeter locations
- True Four Ohm Impedance technology: speaker's 3-ohm impedance combines with speaker wire impedance for a 4-ohm load
- Compatible with virtually all factory or aftermarket car stereos

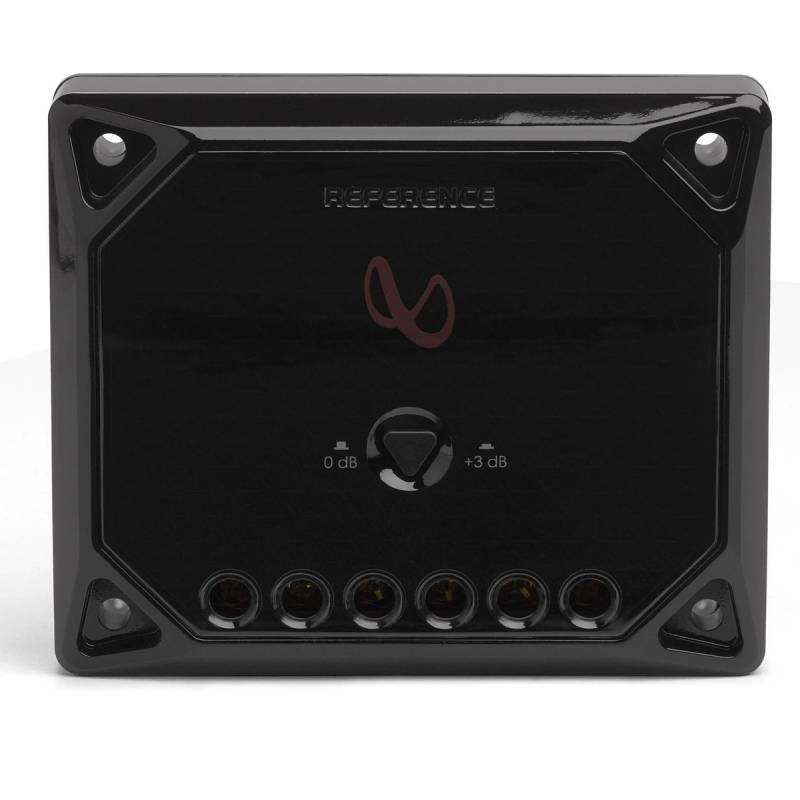

- Tweeter adjustment circuits (0, +3 dB)
- Handles up to 65 watts RMS (195 watts peak power)
- Frequency response: 67-21,000 Hz
- Sensitivity: 93 dB
- Woofer mounting depth: 1.938"
- Woofer grilles not included
- Warranty: 1 year
Specifications:
- Speaker Size: 5 1/4
- Design: 2-way
- Tweeter Design: 3/4" Edge-Driven Dome
- Impedance (Ohms): 3
- Tweeter Composition: Textile
- Woofer Composition: Polypropylene
- Woofer Surround: Rubber
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- Sensitivity at 2.83 volts: 93
- Frequency Response: 67 - 21k Hz
- Maximum RMS Wattage: 65
- Peak Power Handling (Watts): 195
- Top-mount Depth (Inches): 2
- Cutout Diameter or Length (inches): 4 1/2
- Mounting Height (Inches): 0.282
- Frame Width: 5.077
- Frame Length: 5.077
- UPC: 050667379995
- Weight: 5
