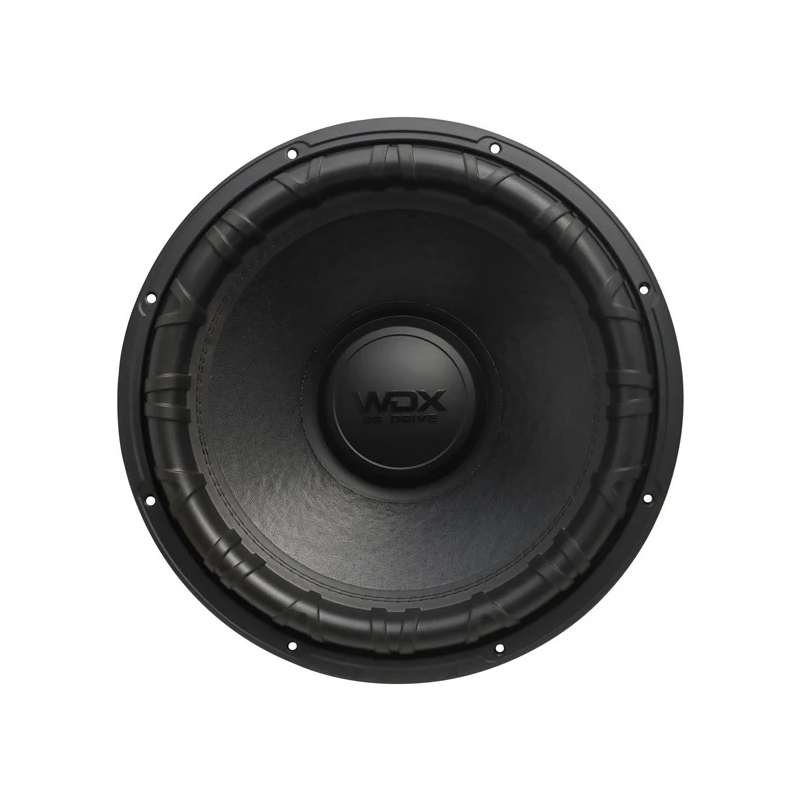

DB Drive WDX18G5R.2 WDX G5R Series 18" 3000W RMS (6000W Peak Power Handling) 2-Ohm, Dual Voice Coil Car Subwoofer (sold individually)
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Bass You Can Feel in Your Chest
This isn't just loud—it's DB Drive loud. The WDX18G5R.2 is built for bass lovers who want more than just sound—they want a full-body experience. With 3000 watts of clean RMS power and peaks up to 6000 watts, this 18" subwoofer doesn’t just play low, it hits hard. If you’ve been chasing that gut-punching, glass-shaking bass, your search ends here.
Engineered to Dominate
Everything about this subwoofer is designed for performance. The custom ribbed surround and high-excursion motor give it the flexibility and control to deliver low-end notes with zero distortion. Dual voice coils and a custom mounting gasket keep the output tight and clean, sealing in every ounce of pressure so you get nothing but pure, aggressive bass.
Ready for Anything You Throw at It
This is a sub that doesn’t flinch. With a rugged aluminum basket, high-temp coils, and powerful Y35 ferrite magnets, the WDX18G5R.2 can take serious abuse and keep pounding. It’s built to stay cool under pressure and perform at its best whether you’re daily driving or competing. One look and listen—and you’ll know this thing means business.
- Diameter : 18 Inch
- Maximum Power : 6000 Watts
- Sensitivity : 86.1 dB
- Impedance : 2 Ohm
- Peak Power Handling : 6000 Watts
- Number of Voice Coils : Dual
- RMS Power Handling : 3000 Watts
Features:
- 3" 4-Layer Anodized Aluminum High-Temperature Voice Coil: Enhanced heat dissipation for high-power performance and distortion-free sound.
- Non-Pressed Paper Cone: Offers lightweight and flexible construction for improved sound quality.
- Double-Stitched Reinforced Foam Surround: Provides enhanced durability and resilience, improving the speaker's lifespan.
- Dual Poly-Cotton Dampeners: Reduces distortion for clearer sound reproduction.

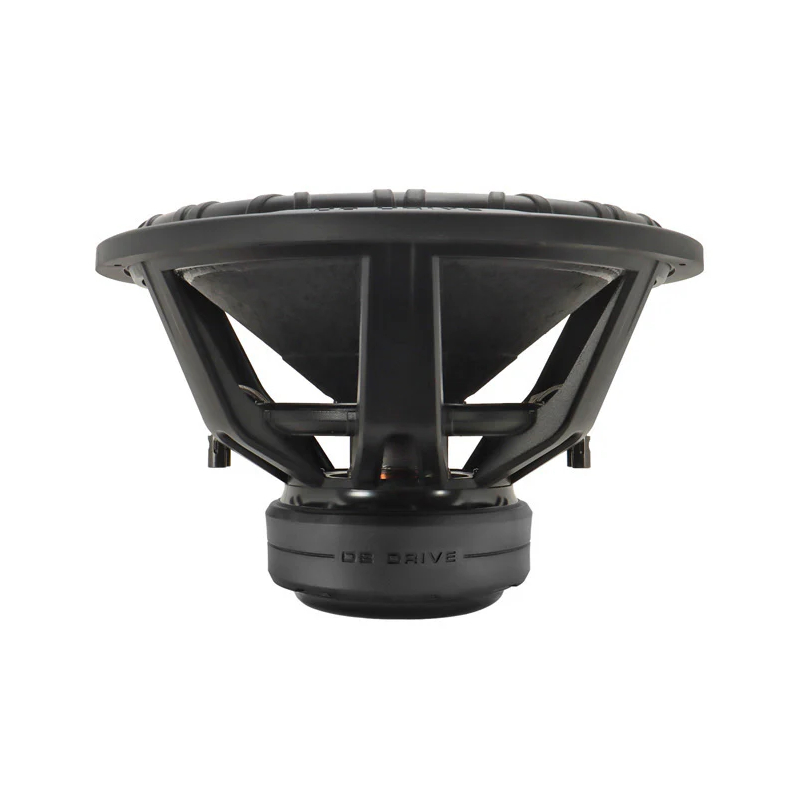

- Die-Cast Aluminum Vented Basket: Promotes better airflow, preventing overheating and improving overall performance.
- Rubber Gasket Trim Ring: Ensures a secure and vibration-resistant seal for enhanced sound clarity.
- Large Gauge Compression Terminals: Allows for high-current connections and improved signal transmission.
- Protective Magnet Cover: Shields the magnet from damage and helps maintain sound quality.
Specifications:
- Dynamic Power Handling: 6000 Watts
- Nominal Power Handling: 3000 Watts
- Impedance: Dual 2Ω Voice Coil
- Resonant Frequency (fs): 27.38 Hz
- D.C. Voice Coil Resistance (Re): 2 x 2Ω
- Mechanical Quality Factor (Qms): 3.68
- Electrical Quality Factor (Qes): 0.77
- Total Quality Factor (Qts): 0.64
- Equivalent Air Volume (Vas): 99.45 L
- Mechanical Compliance of Suspension (CMS): 49.075 mm/N
- Mass of Diaphragm/Coil (Mms): 688.56 g
- Force Factor (BL): 24.82
- Sound Pressure Level (SPL): 86.1 dB
- UPC: 811536039538
- Weight: 25
